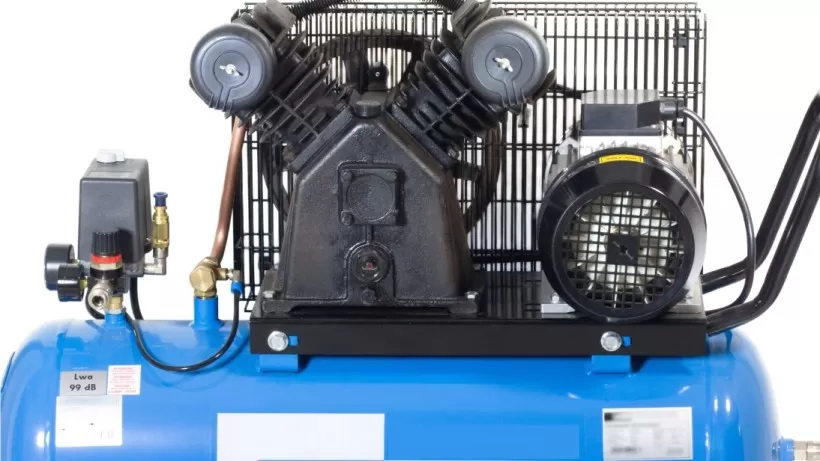

Air compressors are vital components in manufacturing, HVAC systems, automotive workshops, and industrial automation. Their efficiency depends heavily on maintaining correct pressure levels — too low, and performance drops; too high, and safety risks increase. That's why pressure control plays such a critical role in keeping compressors operating reliably.
When pressure-related issues arise, they can lead to energy waste, downtime, and costly repairs. Understanding how to troubleshoot common air compressor pressure control problems is essential for maintaining productivity and extending equipment life. With decades of engineering expertise, Lefoo pressure switches and pressure transmitters are designed to ensure accurate control, stability, and safety in every compressed air system.
A well-regulated pressure control system ensures that an air compressor produces air at a safe and consistent level. This system typically includes a pressure switch or transmitter, safety valve, and pressure gauge. The pressure switch automatically starts and stops the compressor motor according to pre-set limits — a process that optimizes energy use and prevents overpressurization.
Lefoo pressure switches, such as the LF19 and LF42, are widely used in air compressor applications for their reliability, precision, and long service life. These switches help maintain ideal operating conditions by activating the motor when pressure drops (cut-in) and turning it off when it reaches the maximum limit (cut-out).
Even in well-maintained systems, air compressors can develop pressure-related issues over time. Below are the most frequent problems, their possible causes, and effective solutions.
Symptoms:
The compressor does not start when air pressure is low.
The compressor continues running even after reaching the maximum set pressure.
Possible Causes:
Faulty or incorrectly adjusted pressure switch.
Wiring issues or loose electrical connections.
Blocked air intake or clogged filters.
Solution:
Inspect the pressure switch settings to ensure correct cut-in and cut-out pressures. For precise calibration, follow the manufacturer's specifications. Lefoo pressure switches come pre-calibrated but can be easily adjusted if needed. Also, check electrical connections and ensure filters are clean to avoid false readings.
Symptoms:
Pressure drops unexpectedly during operation.
Airflow becomes unstable or pulsating.
Possible Causes:
Leaks in air hoses or fittings.
Malfunctioning check valve or regulator.
Dirty or failing pressure transmitter.
Solution:
Conduct a leak test using soapy water around fittings and valves. Tighten or replace any components showing leaks. If fluctuations persist, test the pressure transmitter or sensor for stability. Lefoo transmitters provide accurate readings even under vibration and temperature changes, ensuring smooth control in demanding environments.
Symptoms:
The compressor never shuts off, even when pressure exceeds normal levels.
Possible Causes:
Stuck pressure switch contacts.
Pressure switch diaphragm damage.
Incorrect cut-out pressure adjustment.
Solution:
Disconnect power and inspect the pressure switch. If mechanical contacts are stuck, clean them carefully or replace the switch if damaged. Regular maintenance and correct calibration prevent this problem. Lefoo LF42 pressure switch is built with durable diaphragms and reliable contact materials to withstand high cycling rates.
Symptoms:
The gauge or controller displays pressure values that do not match the system's actual performance.
Possible Causes:
Sensor drift due to aging or contamination.
Faulty gauge or wiring issue.
Pressure transmitter out of calibration.
Solution:
Compare readings between multiple instruments. If the transmitter shows deviation, recalibrate it using a certified reference gauge. Lefoo pressure transmitters are designed for easy calibration and long-term accuracy, minimizing measurement drift.
Symptoms:
Pressure drops quickly after compressor stops.
System struggles to maintain pressure during use.
Possible Causes:
Leaking check valve or damaged air line.
Malfunctioning drain valve.
Leaking pressure switch housing or fittings.
Solution:
Inspect the check valve between the compressor and tank; replace it if it doesn't hold pressure. Also, examine drain valves for proper sealing. Ensure that all connections on the pressure control assembly are tight and leak-free.
Preventive maintenance is key to avoiding most pressure control issues. Here are some essential steps to keep your system running efficiently:
Regularly Inspect and Clean Filters: Clogged filters restrict airflow and create false pressure readings.
Check Pressure Switch Operation: Test the cut-in and cut-out cycle regularly to confirm proper function.
Calibrate Transmitters Annually: Maintain accuracy by following manufacturer calibration guidelines.
Monitor for Air Leaks: Even small leaks can waste significant energy and affect pressure stability.
Keep Components Dry: Protect electrical contacts and sensors from moisture and oil contamination.
Lefoo's high-quality components are engineered for low maintenance and extended service life, making them ideal for demanding industrial and commercial compressor systems.
Lefoo offers a wide range of pressure switches, transmitters, and digital controllers tailored for air compressor applications.
Lefoo LF19 Mechanical Pressure Switch: Compact, cost-effective, and ideal for small and medium compressors.
Lefoo LF42 Pressure Switch: Designed for heavy-duty use, with precise calibration and high durability.
Lefoo Digital Pressure Switch (LFDS68): Provides advanced accuracy, adjustable settings, and real-time digital display.
Each model is built with corrosion-resistant materials and tested for performance under extreme conditions, ensuring stable operation and long-term reliability.
Maintaining stable air compressor pressure control is essential for efficient operation, energy savings, and equipment protection. Most pressure issues can be prevented or quickly resolved through regular inspection, calibration, and component care.
With Lefoo pressure switches and pressure transmitters, industries gain access to durable, precise, and easy-to-maintain solutions for every compressor system. Designed for performance and reliability, Lefoo products help keep your compressed air systems running smoothly — ensuring consistent pressure, optimal safety, and minimal downtime.
