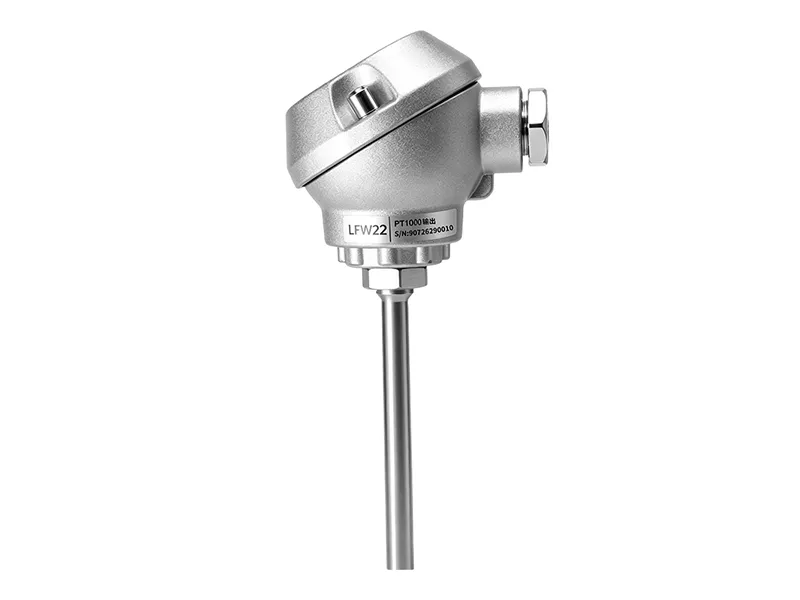

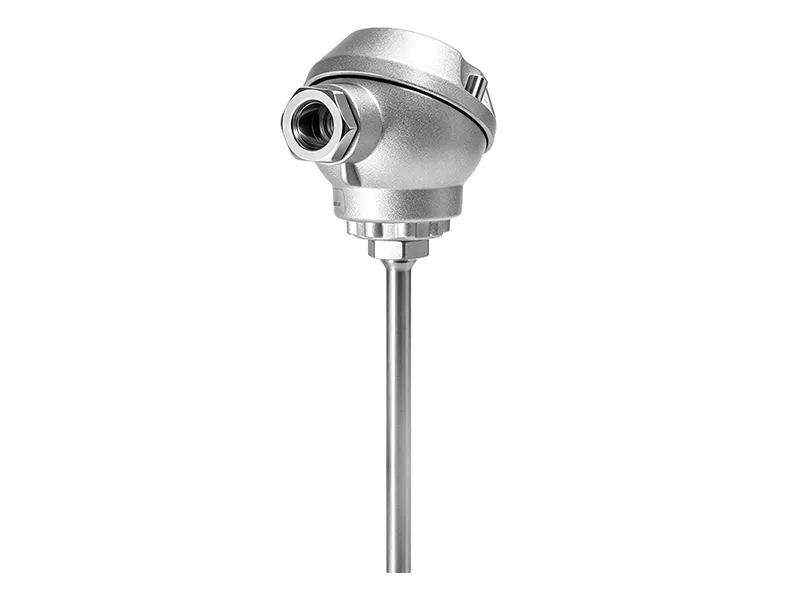

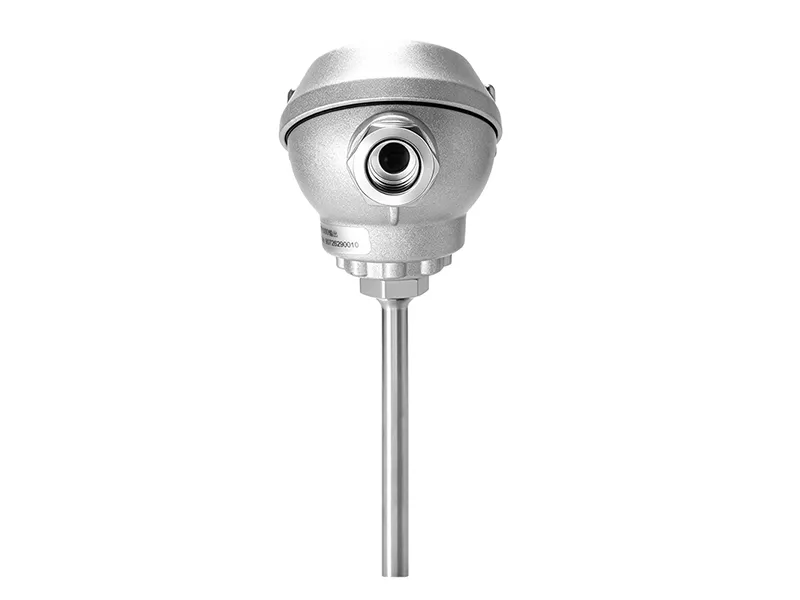

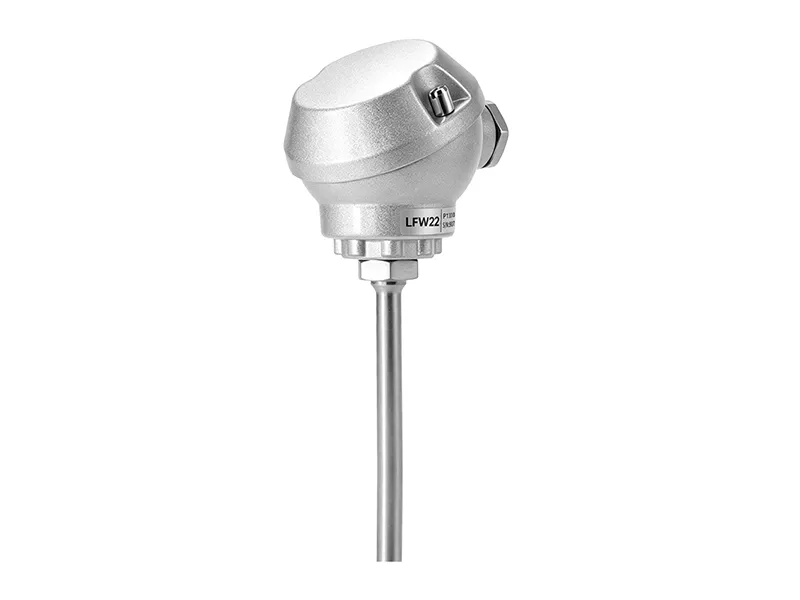

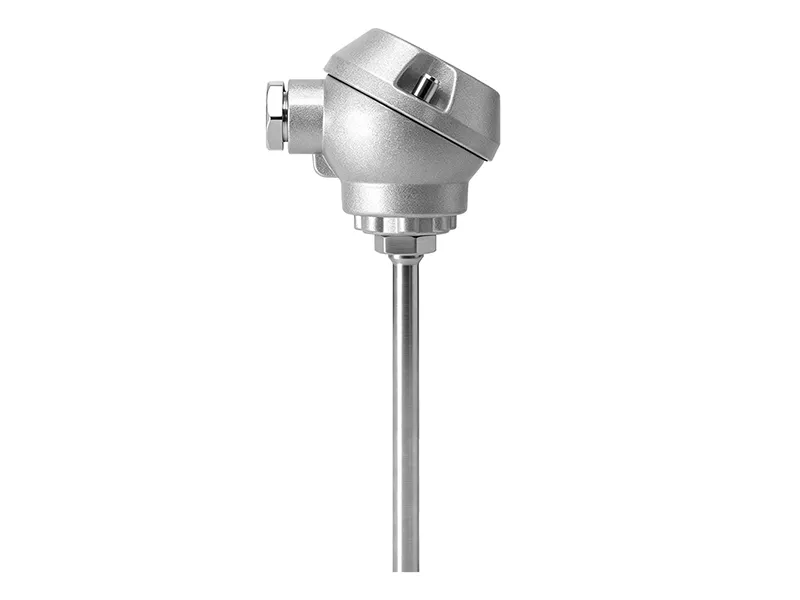

The LFW22 temperature sensor features a 304 stainless steel temperature probe and a mechanically robust die‑cast aluminum housing. Its compact, elegant design and IP65 enclosure protection make it suitable for temperature measurement in petroleum, chemical processing, power generation, hydrological monitoring, and similar industrial applications.
| Measuring medium | Liquid or gas, etc. (compatible with contact materials) |
| Measuring range | -50~450°C(PT100、PT1000)、-50~200°C(NTC10K、NTC20K) |
| Output signal | PT1000,±0.2°C@0°C、PT100,±0.2°C@0°CNTC20K,±0.3°C@25°C、NTC10K,±0.3°C@25°C |
| Working environment | -40~85°C, 0~95%RH (No condensation) |
| Housing material | Die‑cast aluminum housing, 304 stainless steel probe rod and casing |
| Protection level | IP65. Note: this protection level refers to the level achieved after the electrical connection is complete |
Compact design with an elegant appearance
IP65 degree of protection
