get a quote
PDF Download

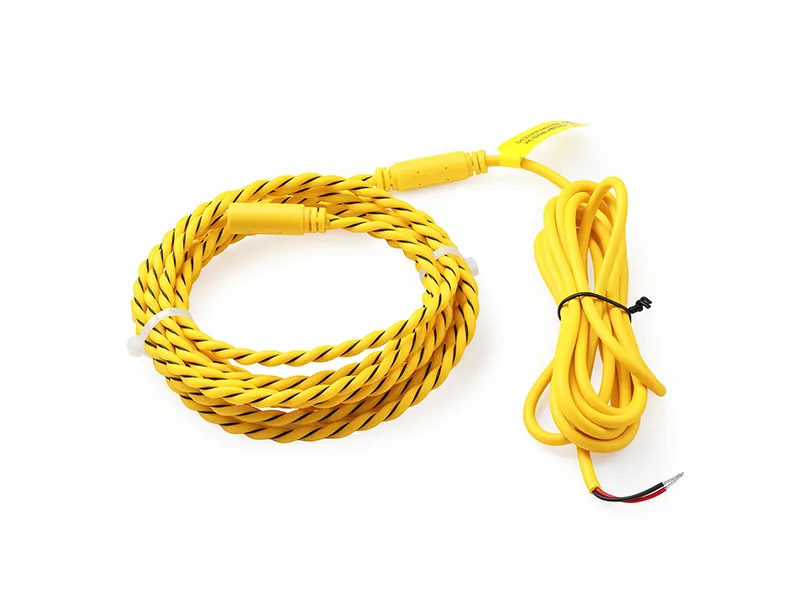

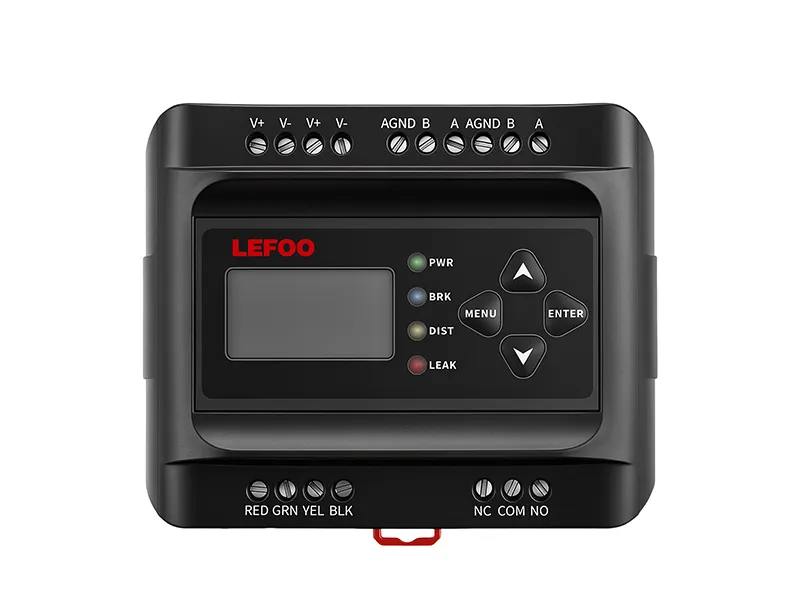

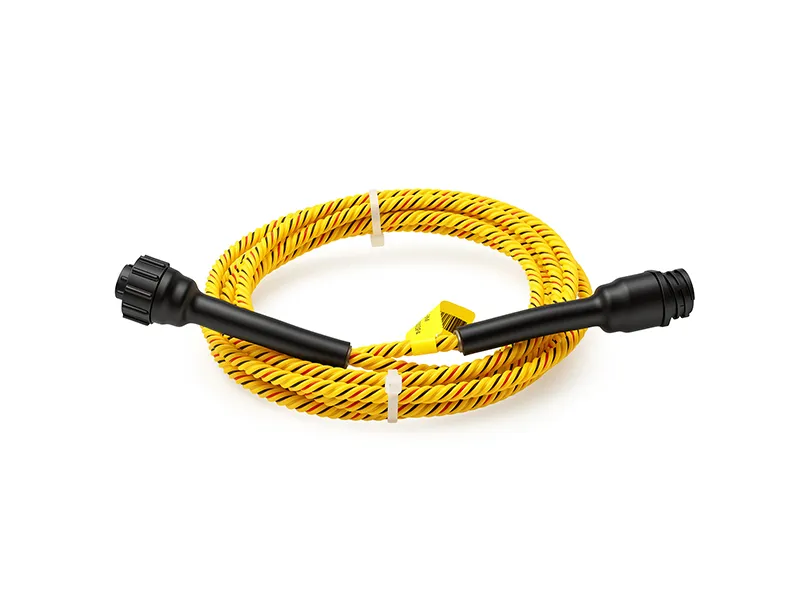

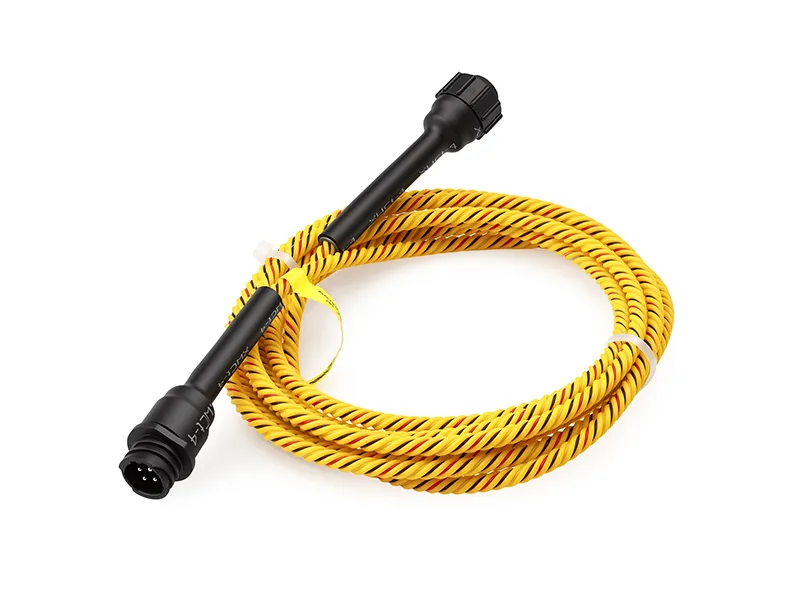

LFLX11 Leak Detection and Location Cable can detect leaks at any point along a cable, making it suitable for various locations with a risk of leakage. When connected to the leak detection controller, the cable forms a leak detection system with high accuracy and rapid, reliable response. The detection cable is made of two light, high‑density polyethylene conductors pressed around a spiral axis. Compared to parallel structures, the spiral structure reduces environmental electromagnetic interference and false alarm rates, while significantly improving cable strength and lifespan. It also features an automatic recovery function and is reusable.
| Item | Specification |
| Cable diameter | Φ6.0±0.2mm |
| Sensor line | 2×30 AWG, with conductive fluoropolymer sheath |
| Cable frame | yellow |
| Number of wire cores | 4 |
| Cable weight | 500g/15m±10g/15m |
| Cable resistance | 13Ω/m |
| Abrasion resistance | >65 cycles |
| Tensile strength | ≤90kg |
| Fire resistance | Level 2 cable |
| Operating ambient temperature | -20~75° C |
| Flame retardant rating | According to UL94‑2017 standard, it meets V0 level. |
| Alarm leakage level (tap water) | Leakage sensing at any location along the line: maximum 30 mm |
The cable is flexible and adaptable to various installation scenarios, including complex bends in pipes
Uniform resistance and small error ensure stable and accurate leak location
Waterproof connectors are easily expandable, and the patented structure provides enhanced resistance to interference and durability
