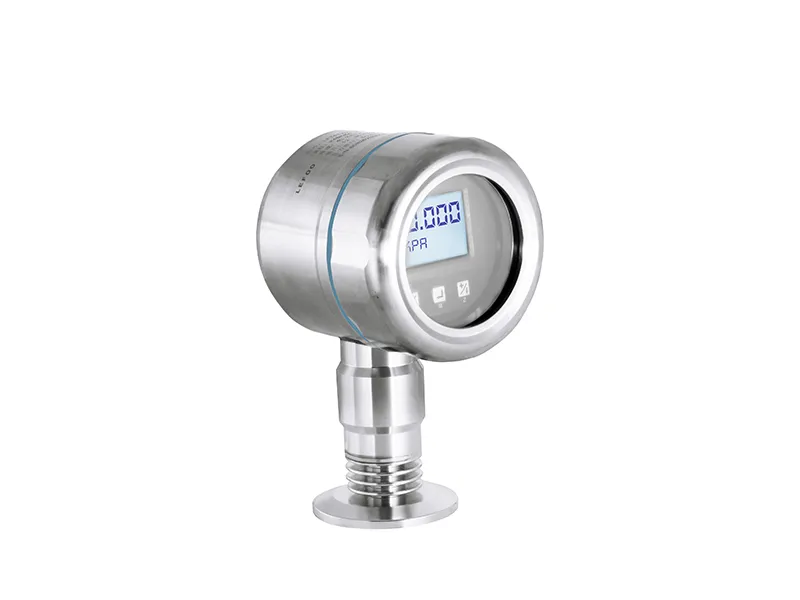

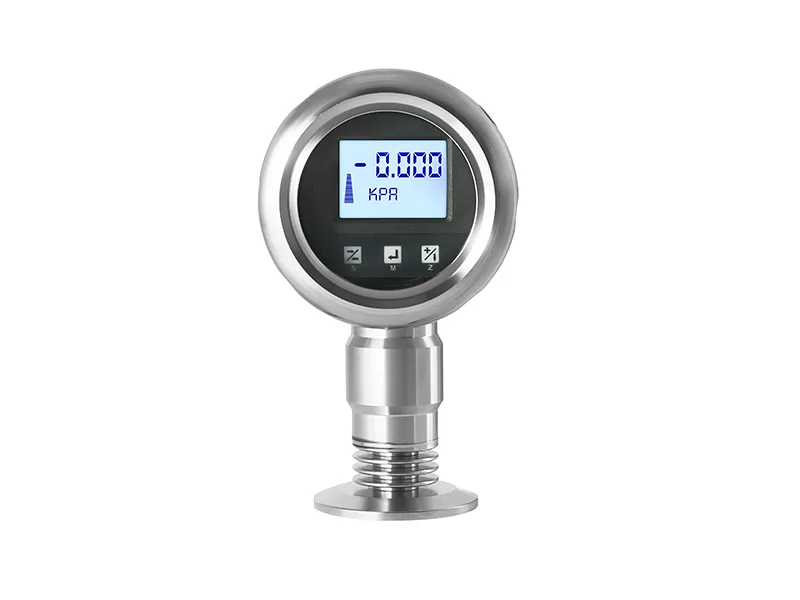

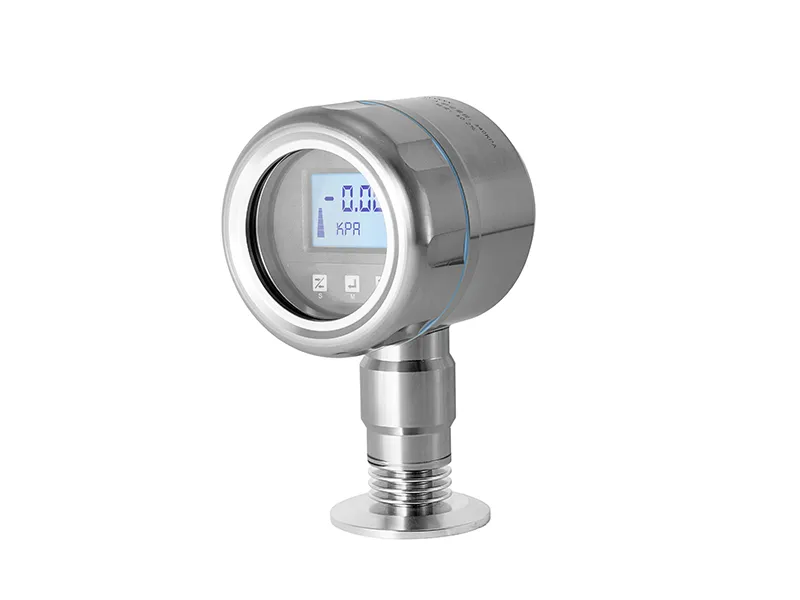

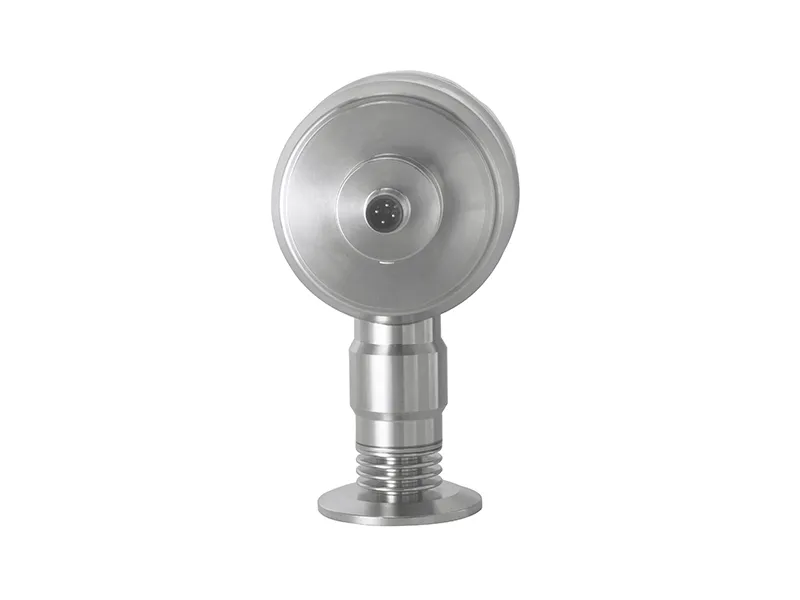

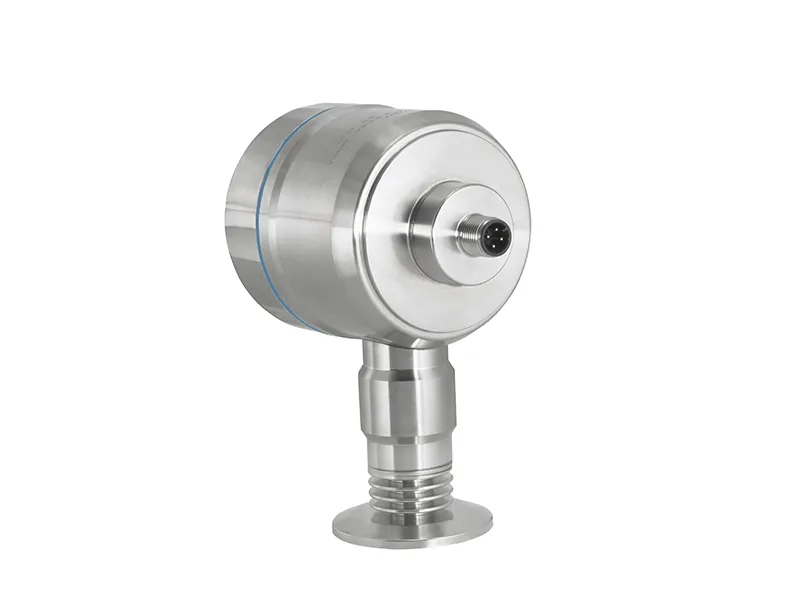

The LFT6727 Digital Sanitary Pressure Transmitter is designed for pressure measurement in the food, beverage, pharmaceutical, and biotechnology industries. Its housing features a fully stainless steel construction, with connection components fabricated through integral welding and polishing processes. Wetted parts are made of sanitary‑grade materials with a roughness value of Ra <0.8, providing a smooth surface finish, dead‑leg‑free construction, reduced contamination risk, easy cleaning and sterilization (via Tri‑Clamp connection), and convenient sterilization capabilities.
| Item | Parameter |
| Diaphragm Material | Stainless Steel 316L |
| Connection Material | Stainless Steel 316L |
| Wetted Surface Roughness | Ra ＜ 0.8um |
| Fill Fluid | Room temperature silicone oil (-30℃ to 180℃), high‑temperature silicone oil (-20℃ to 320℃), etc. |
| Number of Cooling Fins | Default: 3 pieces; or customize to 5 or 10 pieces |
| Material of the Transmitter Housing | Stainless Steel 304 |
The sensor serves as a hygienic and easy‑to‑sterilize measurement point
All connection components are manufactured using a single‑piece welding and polishing process.
Wetted parts are made of sanitary‑grade materials with a roughness value Ra ≤ 0.8 μm
High measurement accuracy and strong interference resistance
