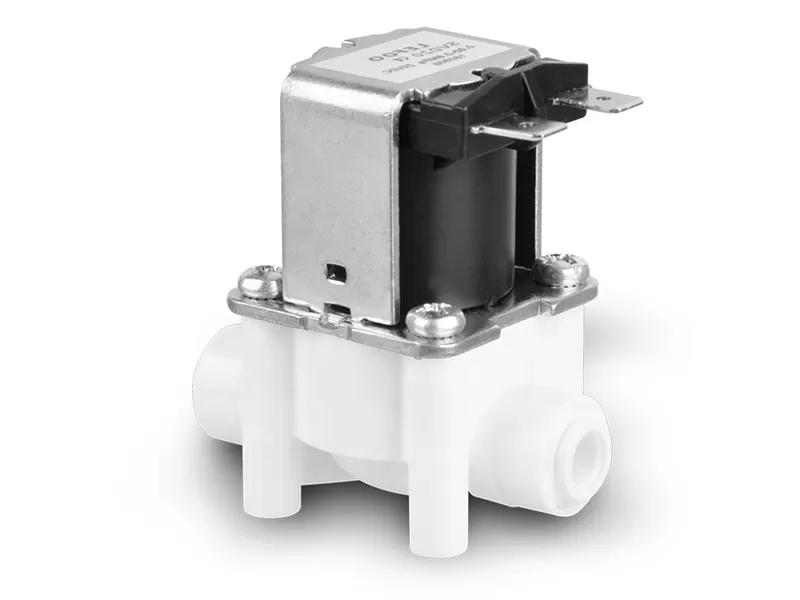

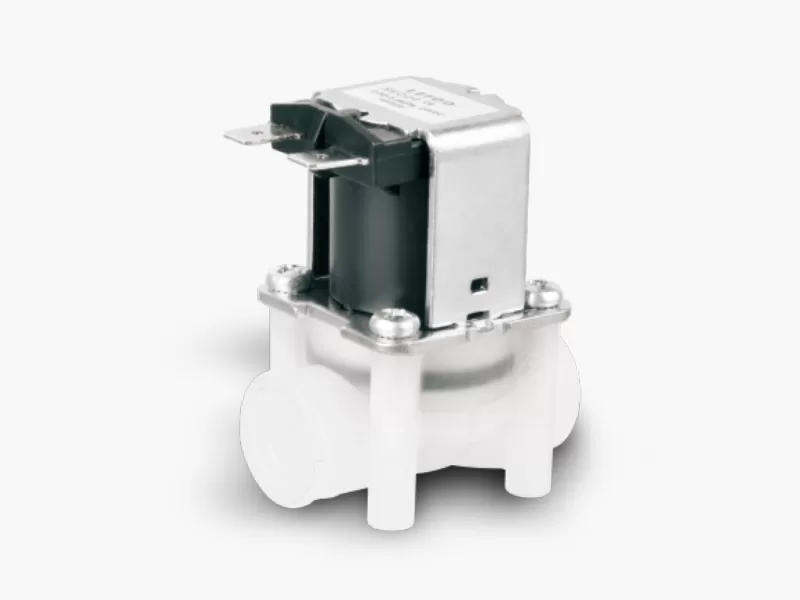

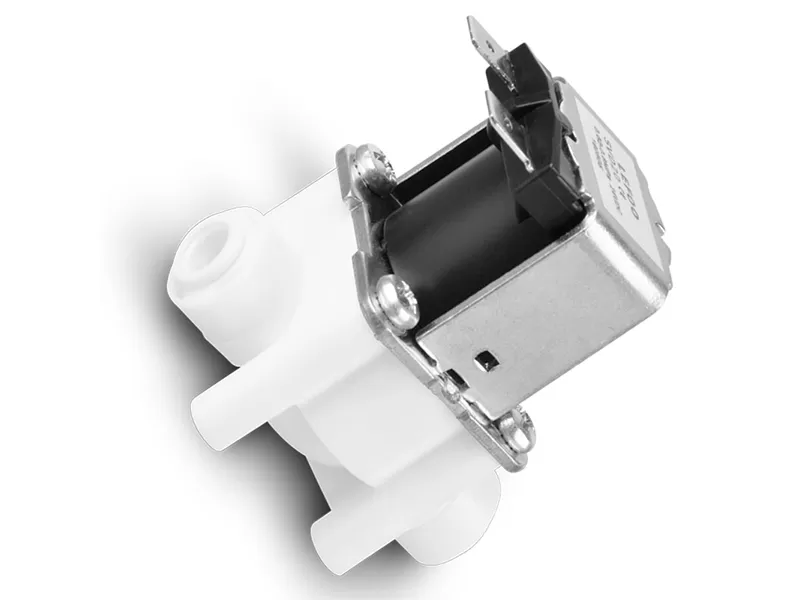

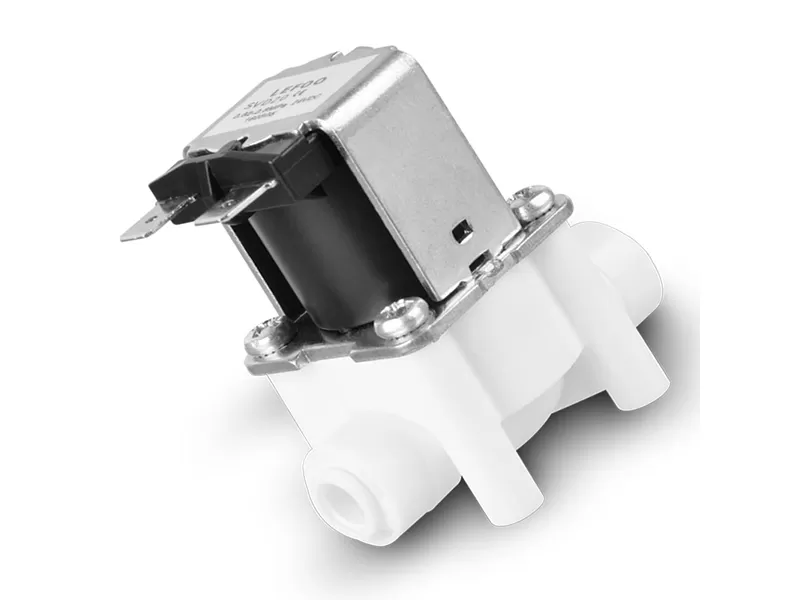

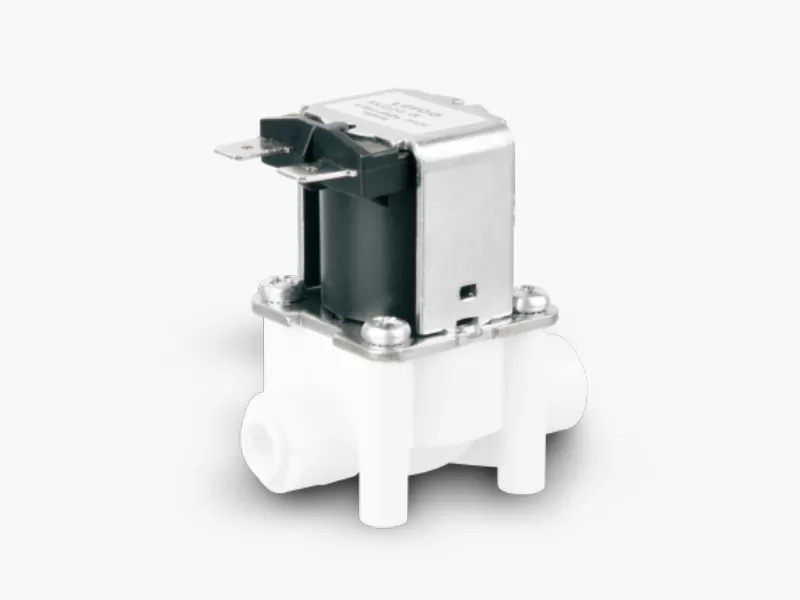

SVD20 Series of inlet and outlet solenoid valve with novel design, unique structure, also with excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine, pipeline machine, water purifying machine, coffee machine and other home appliances.
Model | Value | |||
Rated Voltage | DC12V | DC15V | DC24V | DC36V |
Working Voltage | DC12V±15% | DC15V±15% | DC24V±15% | DC36V±15% |
Water Pressure Range | 0.02~0.8MPa | |||
Medium Temperature | 0~100℃ | |||
Working Life | ≥100000 times | |||
Water Pressure | 0.3MPa | |||
Flow | >0.3L/min | |||

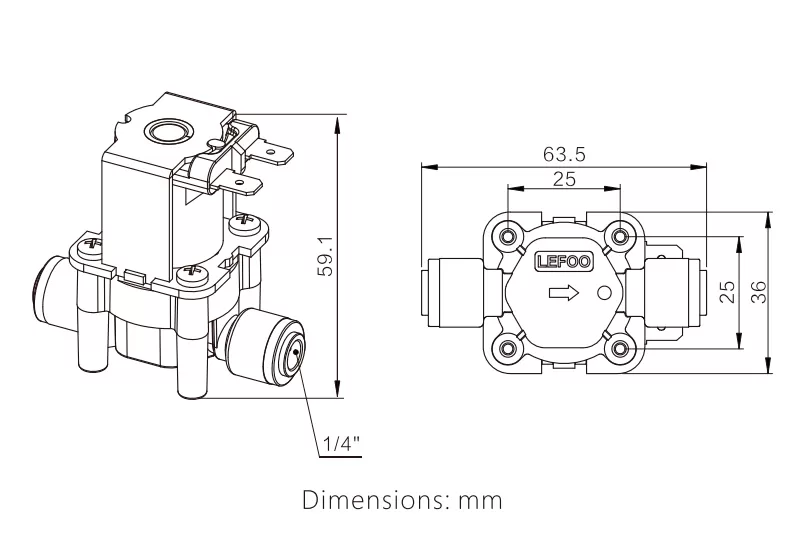

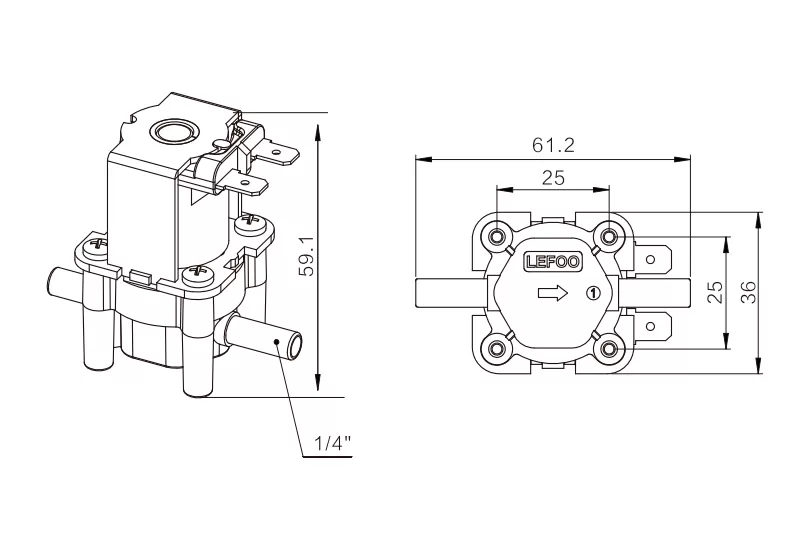

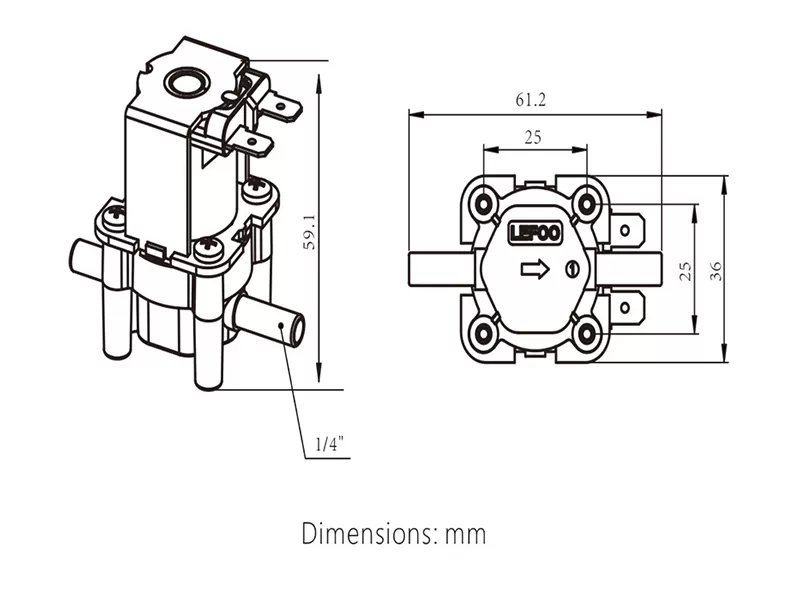

Spacing | Spacing: 25×25mm/42±0.2mm | |||
Inlet Port | Φ6.35mm, NPT1/4, 1/4" | |||
Outlet Port | Φ6.35mm, NPT1/4, 1/4" | |||
Options | Customer design and OEM service are provided | |||
