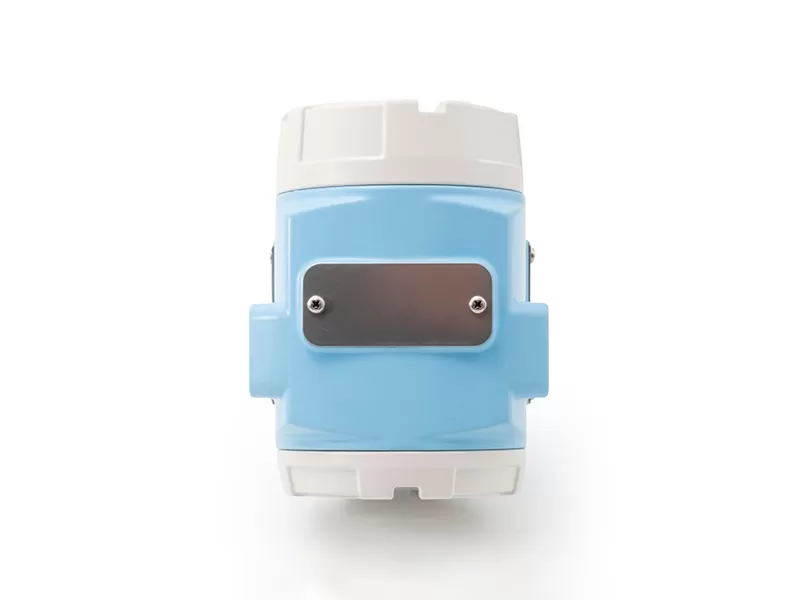

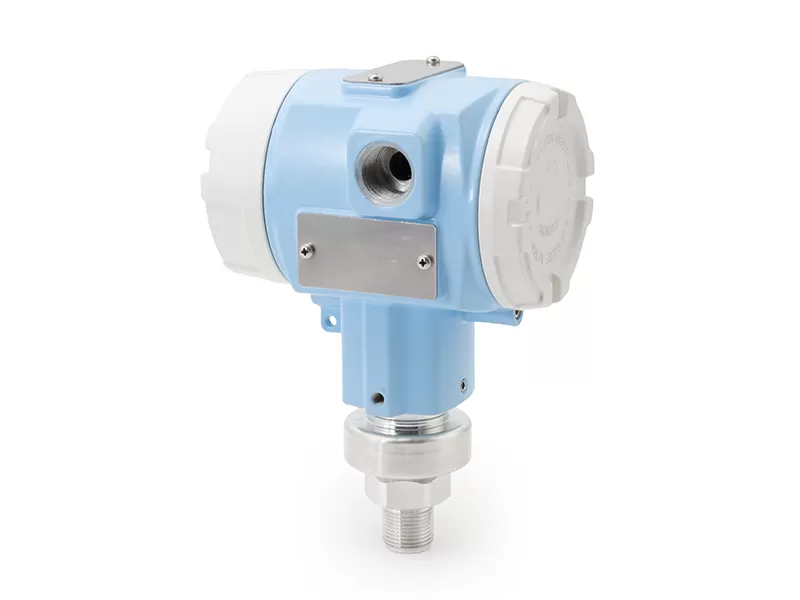

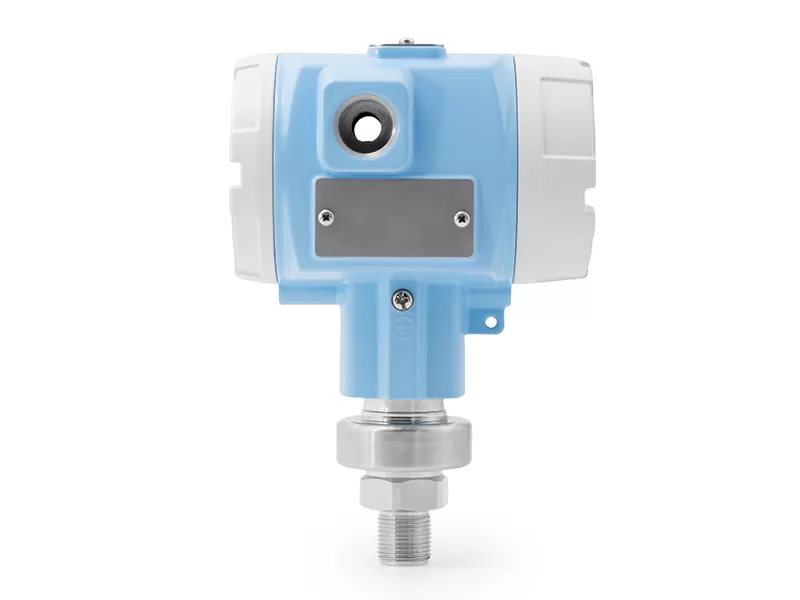

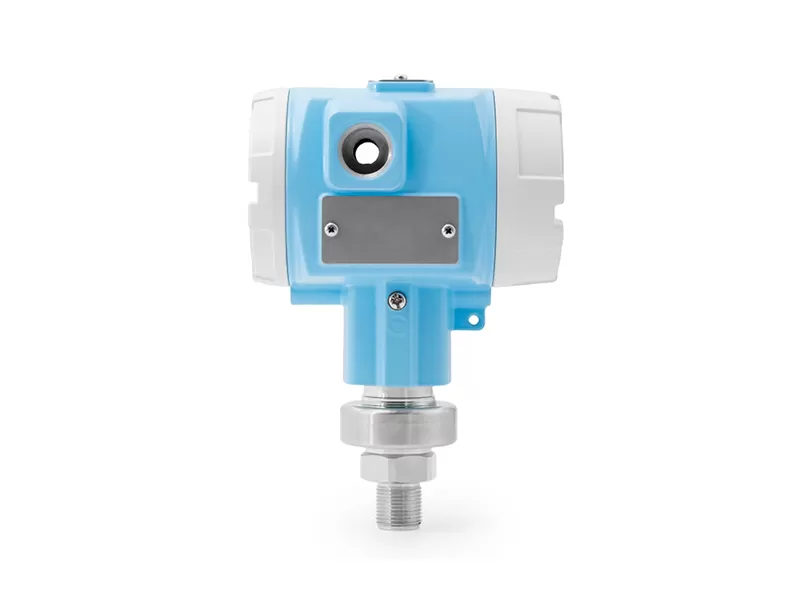

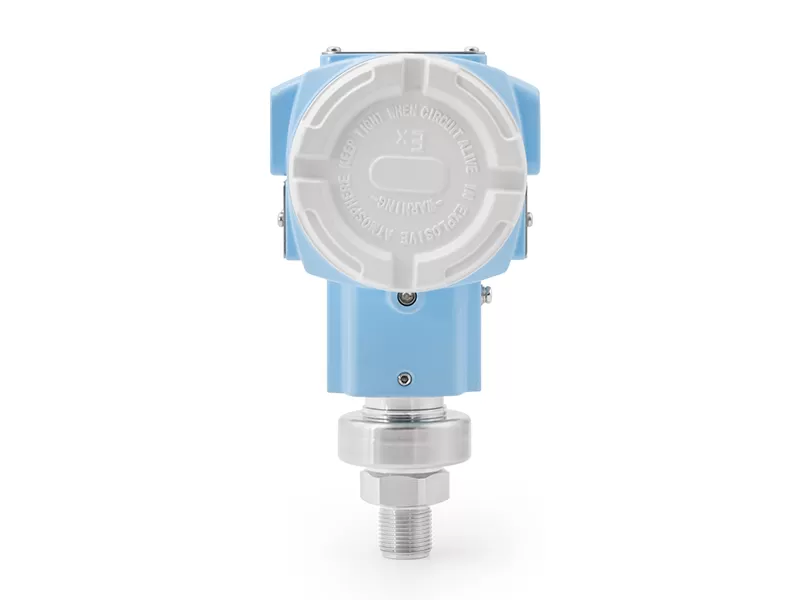

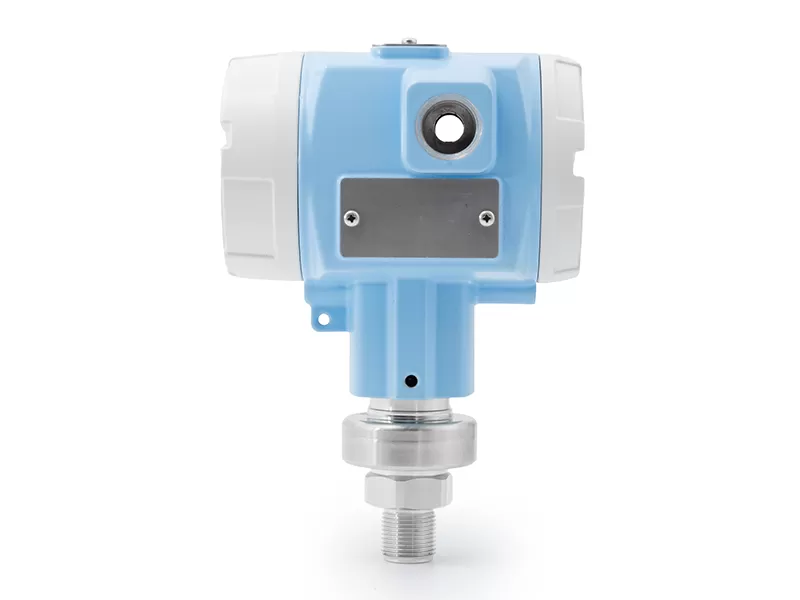

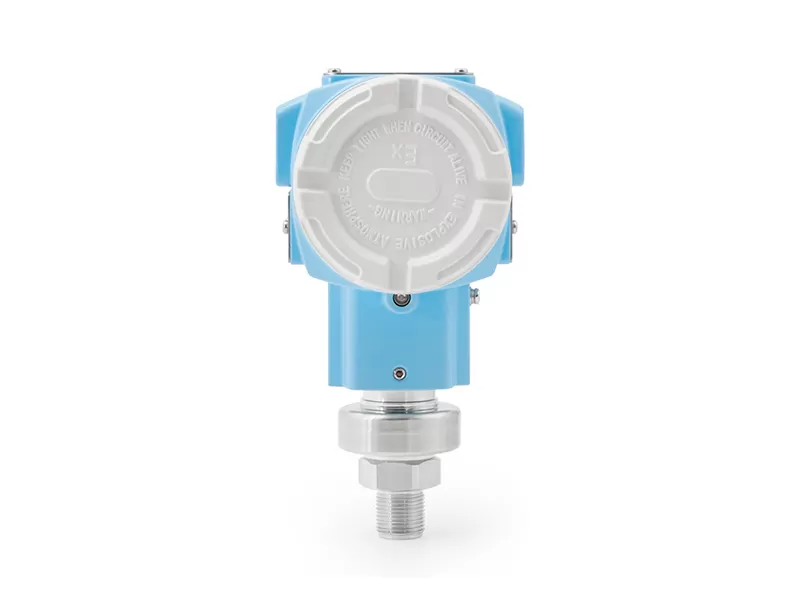

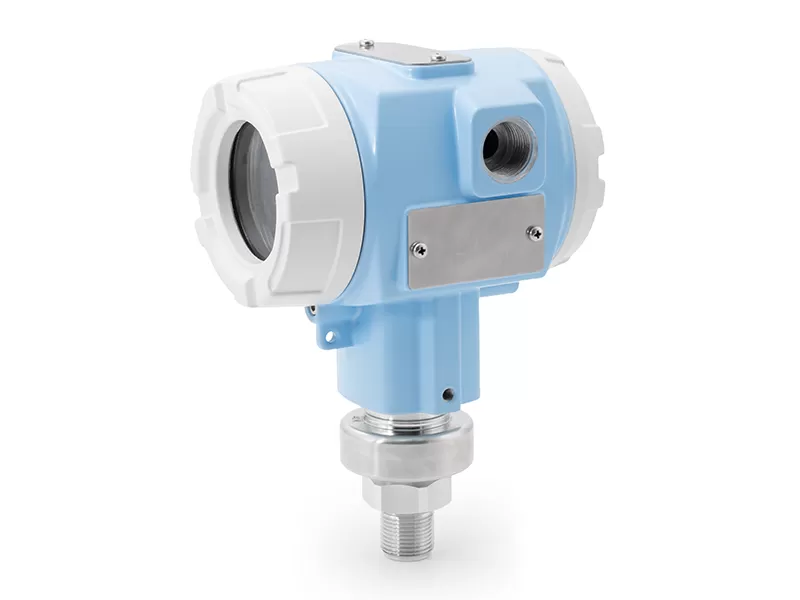

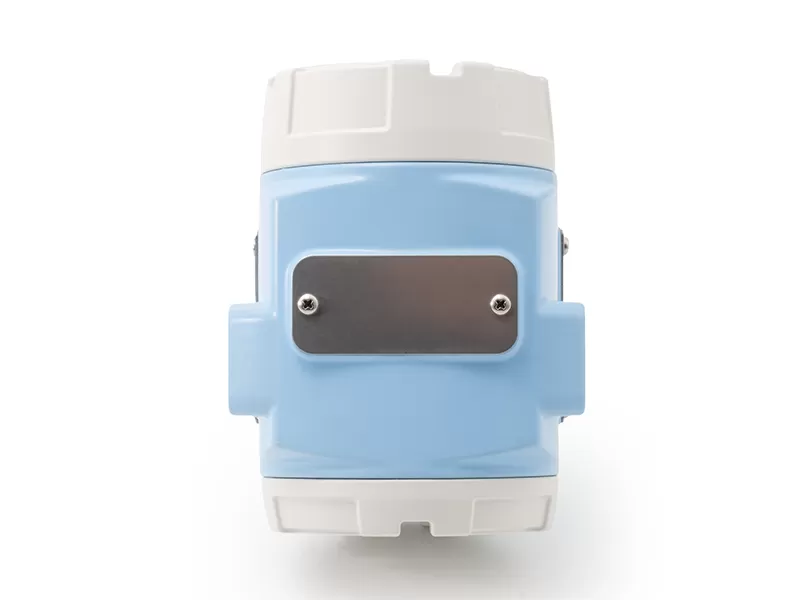

LFT700 pressure transmitter is used to measure the liquid leveldensity and pressure of liquid, gas or steam, then convert it to 4~20mA DC output signal. The transmitter can be operated locally with three buttons, or remotely operated by a universal hand operator, configuration software, and mobile phone APP. It can perform display and configuration adjustments without affecting the output signal of 4~20mA DC.
High-precision pressure sensor using MEMS monocrystalline silicon.
Fast response time, high stability, measurement accuracy 0.075%FS.
Turndown ratio up to 100:1.
Provide standard HART bus communication mode, perfect self-diagnosis and remote communication function.

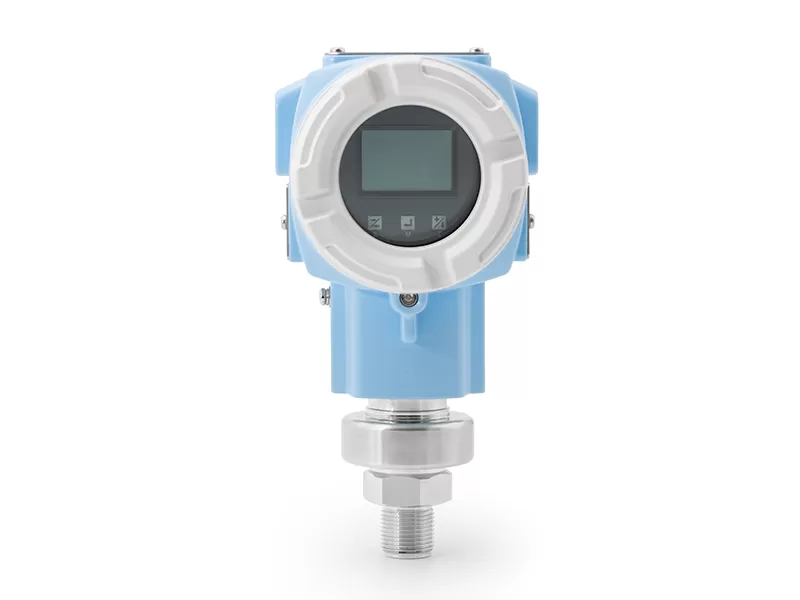

High brightness LCD display with backlight, reversible in-place display screen.
In-place zeroing function, in-place zero point, fullpoint setting and adjustment function.
Convenient in-place current loop calibration function.
Various types of connection.
RS-485 and 4~20mA HART output mode.
Measurement range | 6KPa, 40KPa, 250KPa, 1MPa, 3MPa, 10MPa | ||
Overload pressure | 6KPa(400KPa), 40KPa(1MPa), 250KPa(4MPa), 1MPa(6MPa), 3MPa, 10MPa | ||
Accuracy | ±0.075%F.S | ||
Stability | ±0.2% of the upper range | ||
Operating temperature | -20~70℃ with display | ||
Storage temperature | -40~85℃ | ||
Media to be measured | Gas, liquid | ||
Diaphragm material | 316L, Hastelloy C, tantalum | ||
Electrical performance | 2-wire | 4-wire | |
Output signal | 4~20mA | 4~20mA HART | RS485 |
Power supply | 12~36VDC | 12~36VDC | 12~36VDC |
Electrical connection | M20*1.5 waterproof outlet wire, NPT1/2 waterproof outlet wire | ||
Enclosure protection level | IP65 | ||
Pressure interface | M20*1.5 male thread, NPT1/2 female thread, NPT1/2 male thread, G1/2 male thread, others | ||
Pressure type | Gauge pressure G | ||
Certification items | ExdIICT6, CE | ||
