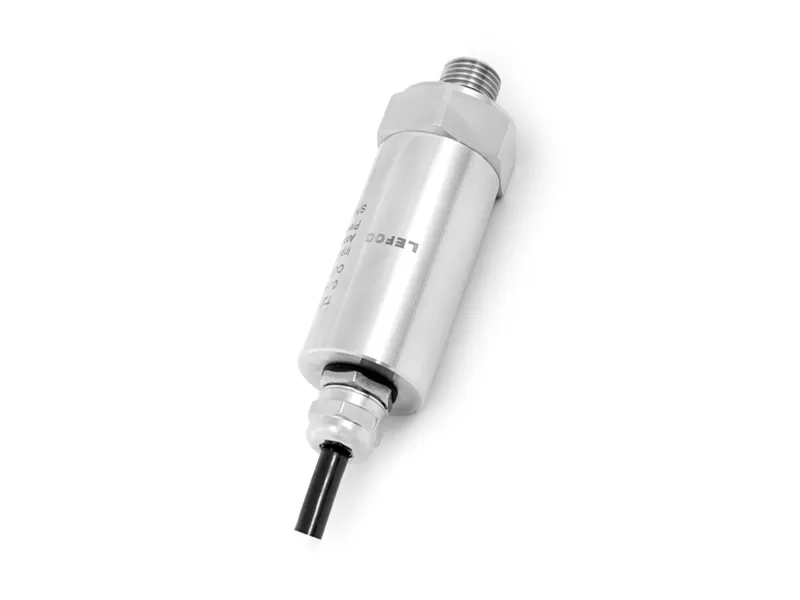

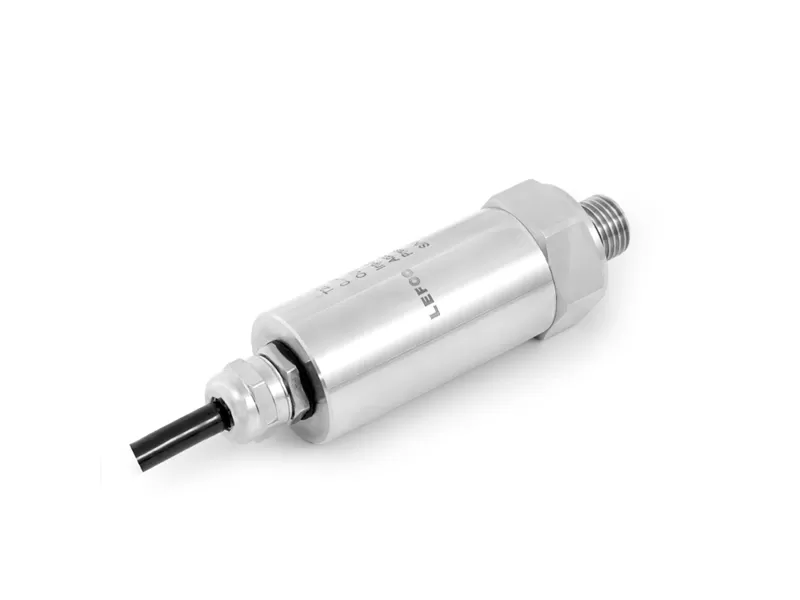

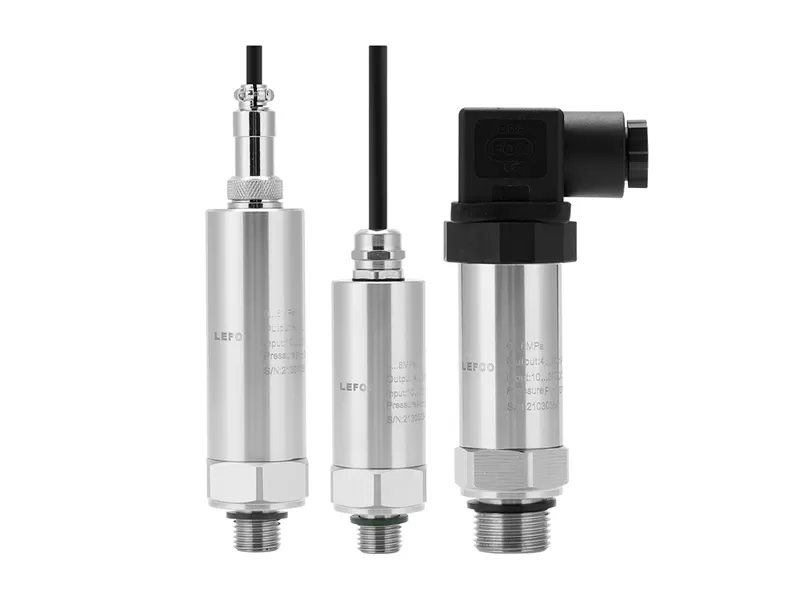

LFT2010 high-precision pressure transmitter adopts a high-precision oil-filled diffusion silicon core, and is automatically tested by a computer, and the zero point and temperature performance compensation in a wide temperature range is carried out by a laser resistance trimming process. This model has the features of high precision, high quality, small size and easy installation. Adopt high-performance MCU with low power consumption to collect pressure signals and convert into standard analog signal output, which is widely applied in fluid media pressure measurement in high-precision test systems such as fire protection, water treatment, water supply systems, air compressor pneumatic devices, and factory automation.
Adopt oil-flled diffusion silicon core with high precision and high overload capacity.
Adopt special temperature compensation technology.
Excellent anti-corrosion and anti-wear performance.
Accuracy up to 0.1%.
Measurement Range | 0~0.1...-4MPa | |||
Overload Pressure | 1.5 times of the rated pressure | |||
Accuracy | ±0.1%F.S | |||
Stability | <0.1%F.S/year | |||
Working Temp | -20~85℃ | |||
Storage Temp | -40~100℃ | |||
Measured Medium | Gas or liquid compatible with 304 and 316L stainless steel, Fluorine rubber or Nitrile rubber | |||
Electrical Properties | 2-wired | 3-wired | 4-wired | |
Output Signal | 4~20mA | 0~5V① | 0~10V② | RS485 |
Power Supply | 10~36VDC | 10~36VDC | 14~30VDC | 10~30VDC |

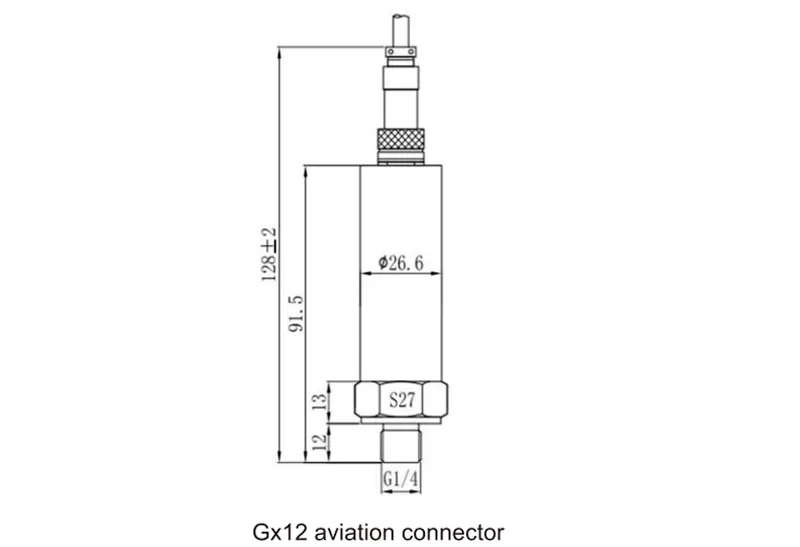

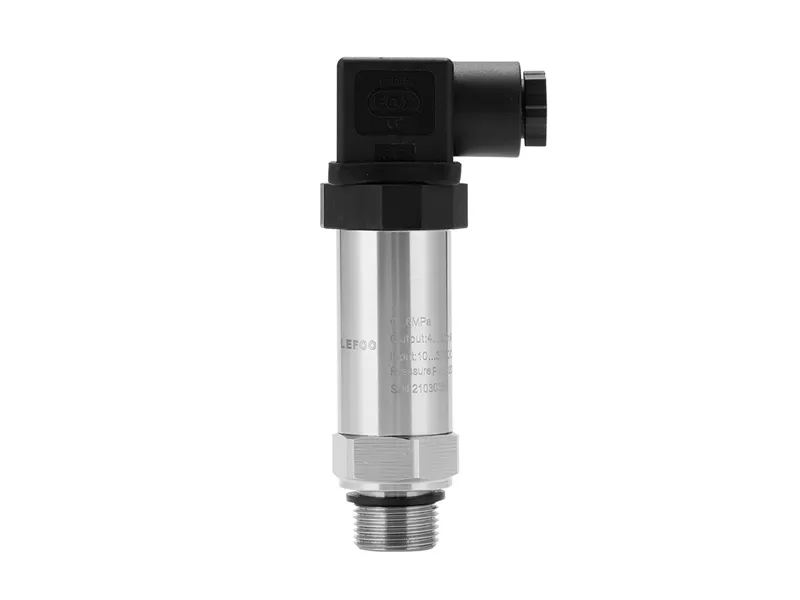

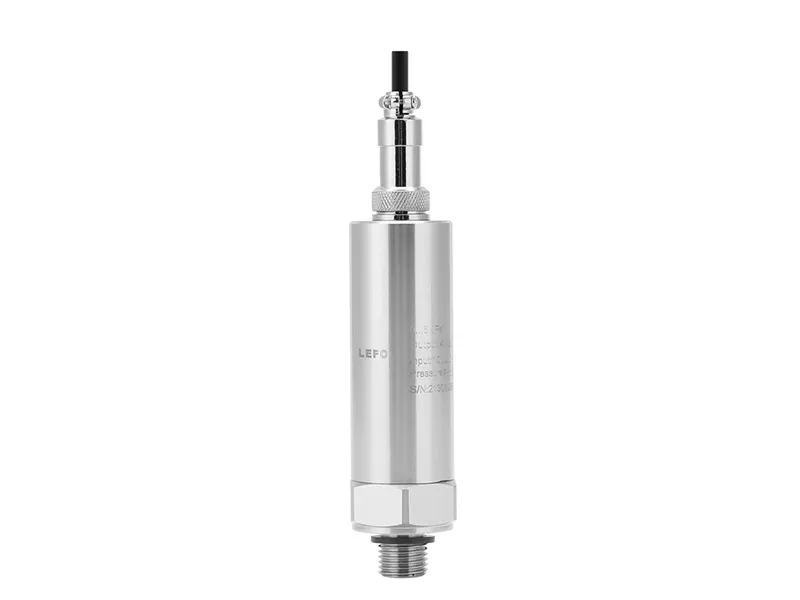

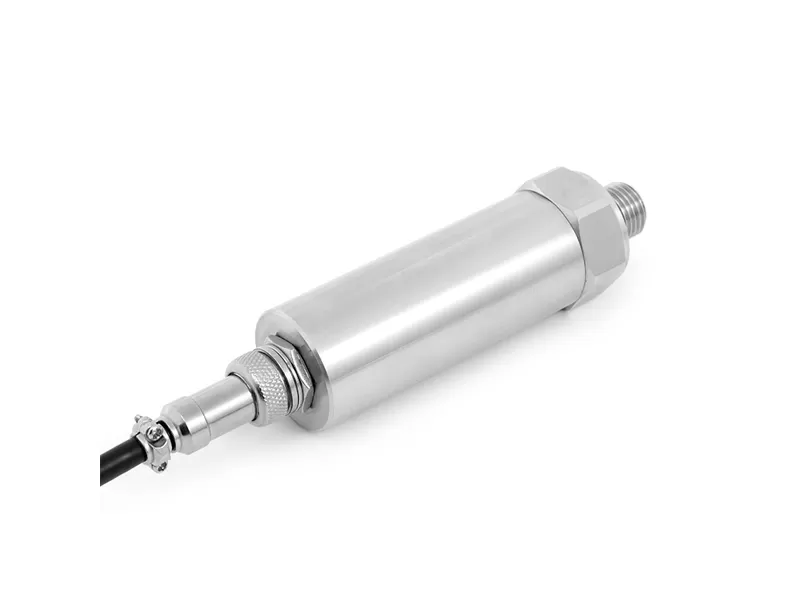

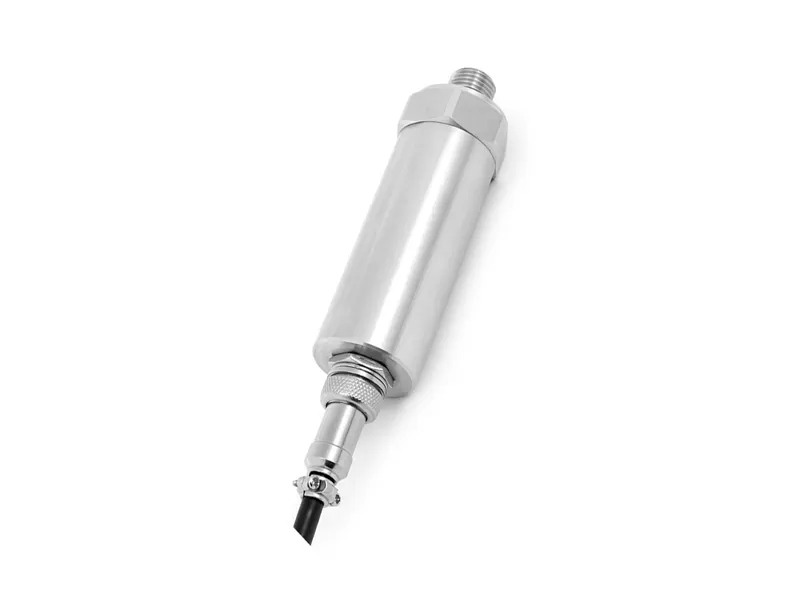

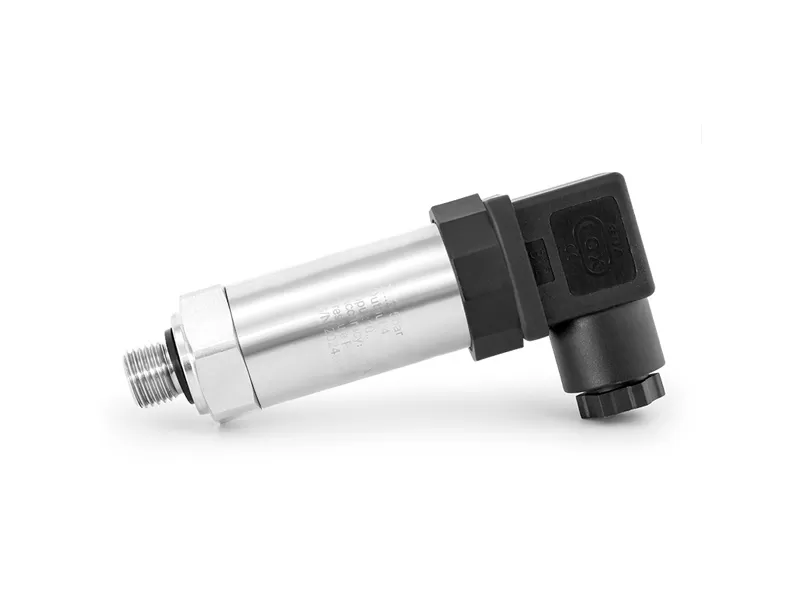

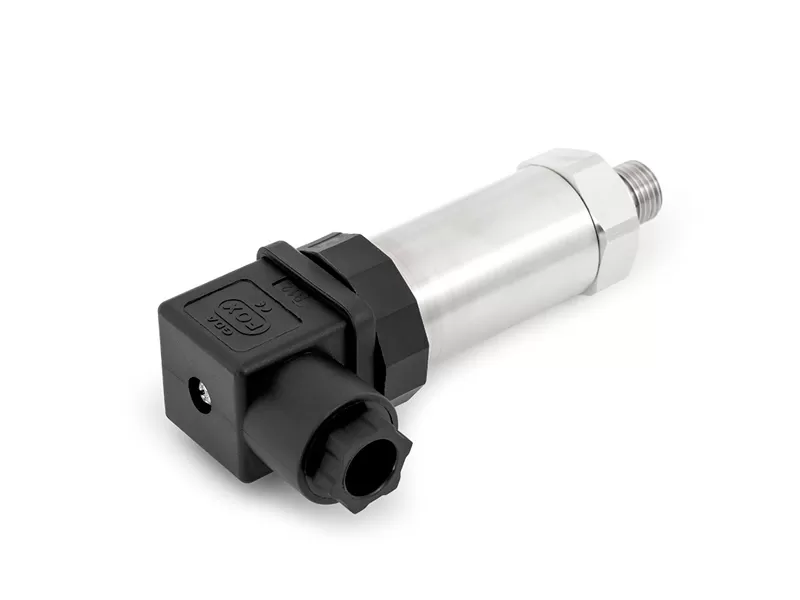

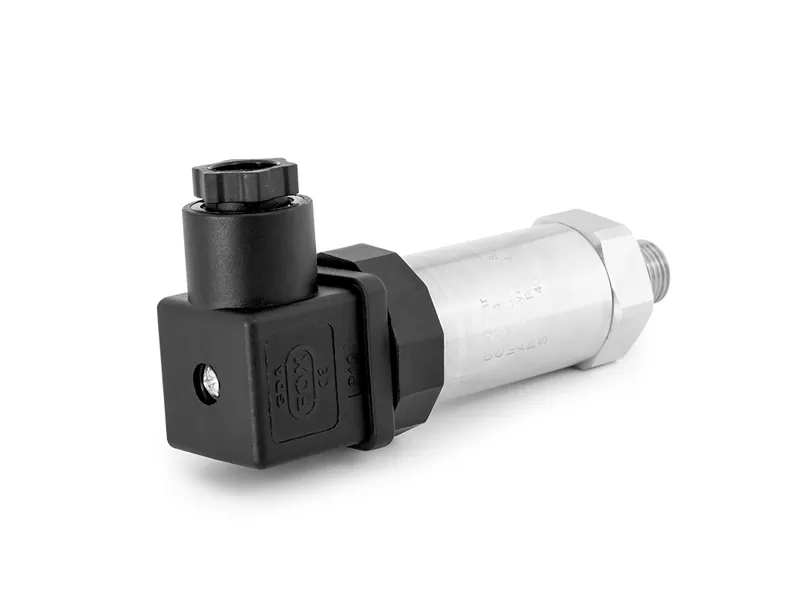

Electrical Connection | DIN43650A(Big Hirschmann), M12 waterproof outlet, GX12 aviation connector (three-core/four-core), M12 four-core aviation connector | |||
Enclosure Protection | IP65/1P67 | |||
Pressure Connection | G1/4, NPT1/4, R1/4, G1/2, 7/16-20UNF, M20*1.5, M10*1, M14*1.5 etc. | |||
Pressure Form | Gauge Pressure G | |||
Certification | Safety explosion-proof type E, RoHS, EU electrical safety standard CE | |||
①When the accuracy is 0.1%F.S, the output is 1-5V
②When the accuracy is 0.1%F.S, the output is 1-10V
