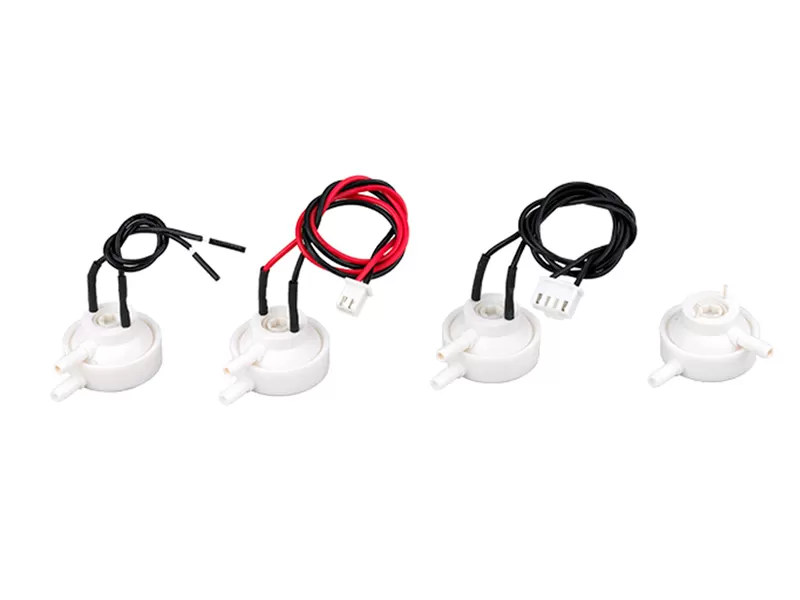

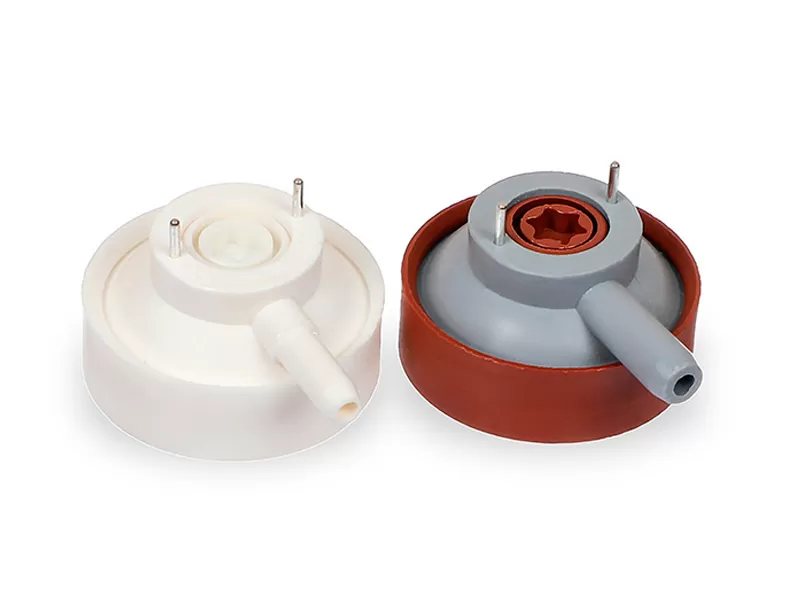

LFS-02 Pressure Switch is designed as an economical interface between pressure systems and Printed Circuit Boards. This switch can be used as a gauge or differential pressure switch with almost no hysteresis. It is applied to detection both positive and negative pressure. Features of this switch include a body design that allows the pressure ports to be rotated, various terminal styles including wire leads.
Model | LFS-02 |
Media | Non-hazardous gas only |
Electrical Function | 1 pole NO |
Electrical Rating | 250mA, 250V~ |
Ambient Temperature | -10℃ to+90℃ |

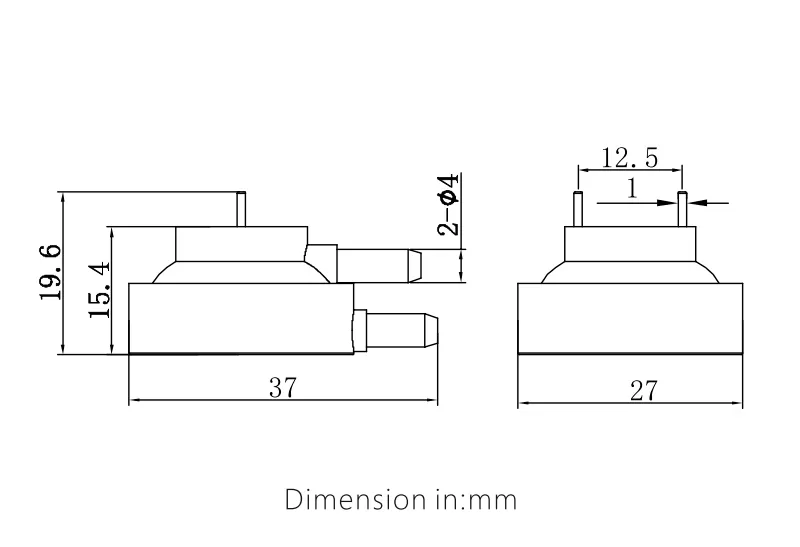

Electrical Connection | solder pins 1.0mm, 12.5mm between away from each other or with different leads and terminals |
Pressure Range | Pressure: 5-800mbar; Vacuum: 5-800mbar |
Maximum Pressure | Pressure: 1000mbar; Vacuum: 1000mbar |
Connection | Inlet 4.0mm or 5.0mm for tube connection |
Conversion: 1mbar=100Pa 1"W.C=249Pa
