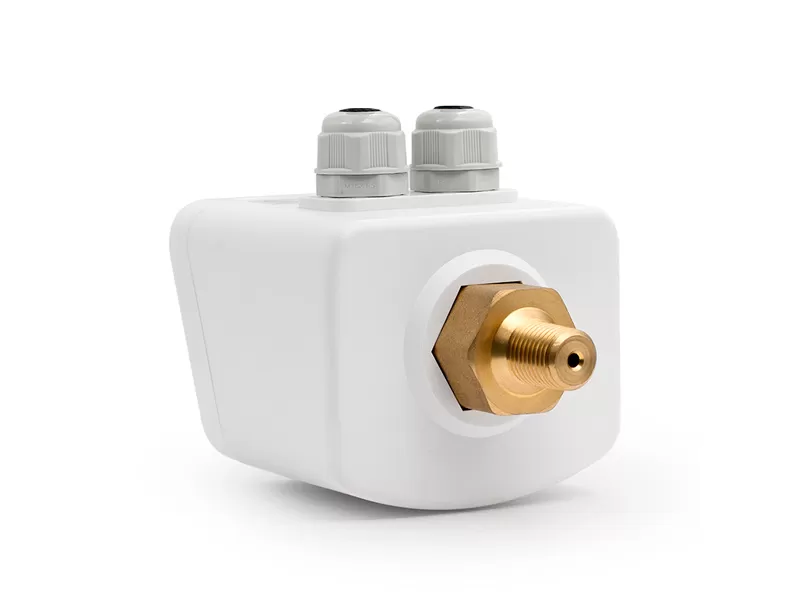

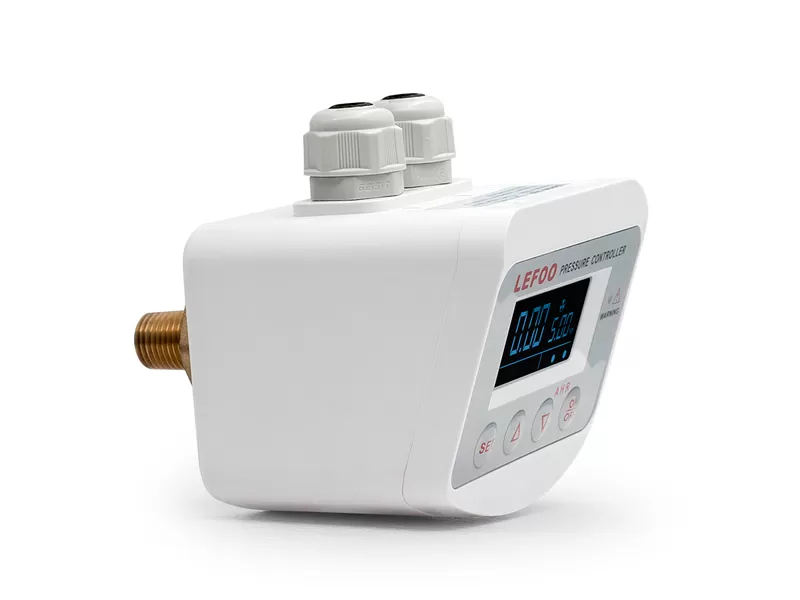

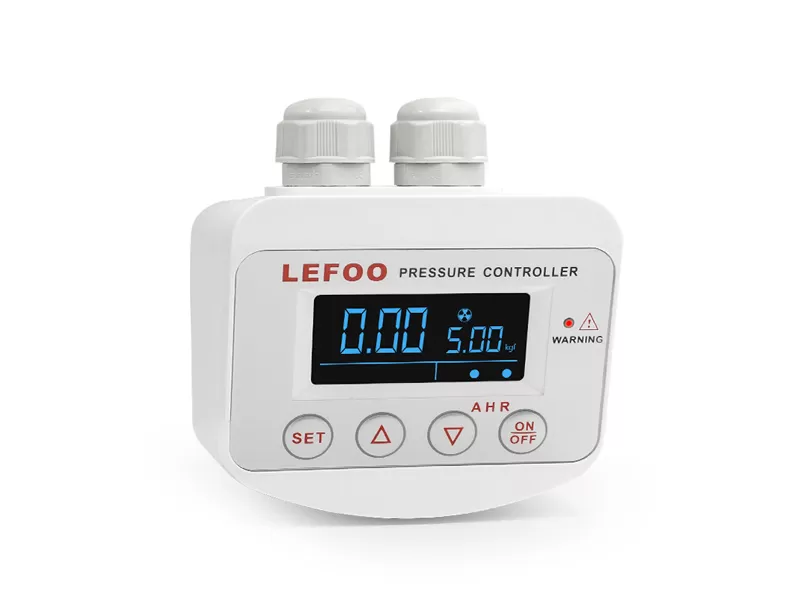

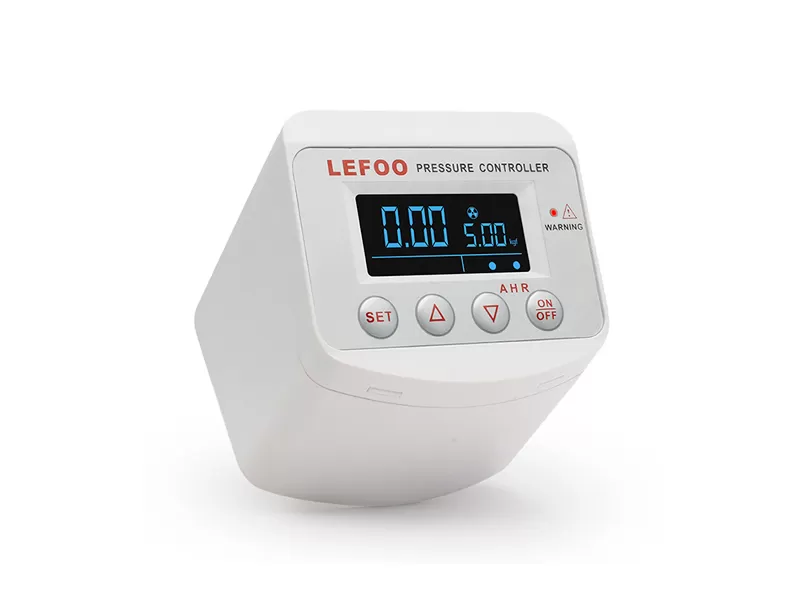

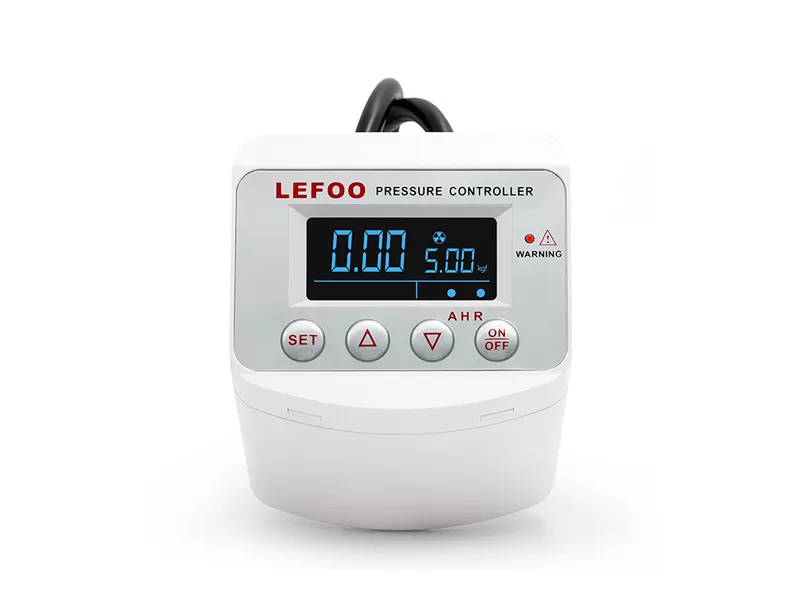

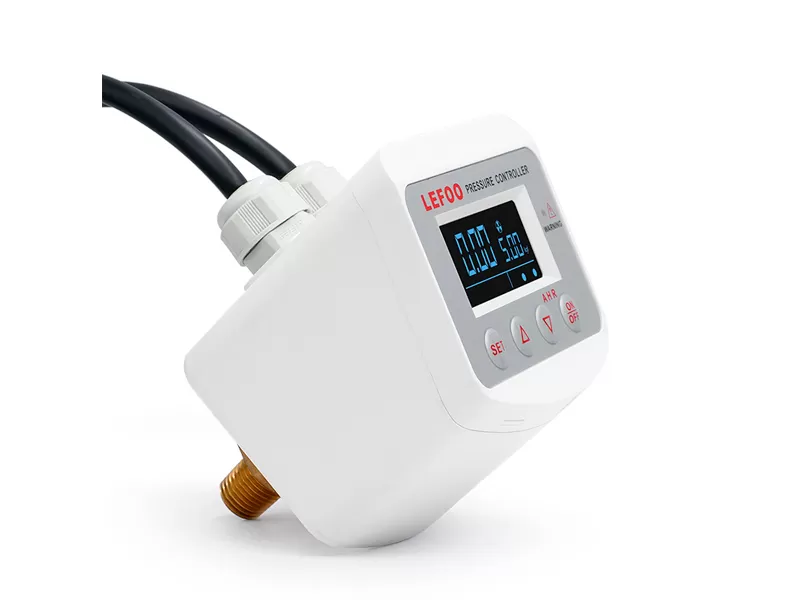

LFDS63 Digital Pressure Switch adopts high-reliability pressure core for pressure measurement. The signal is processed by the back-end circuit and displayed, and the relay output is automatically controlled according to the pressure change. This series of products are designed with all-engineering plastic shell, and the high-contrast LCD digital display enables the product to be used in various industrial occasions. It provides a variety of connection methods to fully meet various specific installation needs, and has a variety of built-in setting items, allowing users to adjust the working parameters by themselves, which is flexible and convenient. This series of products has the characteristics of anti-vibration, long life, simple operation, strong stability and clear display.
Self-adjusting working parameters, flexible and convenient.
LCD display, rich in function.
High precision, vibration resistance, long service life.
Intelligent control instruments that integrate pressure measurement, display, and control.
Pressure type | Vacuum type(negative pressure) | Medium pressure type |
Pressure range | -101~0kPa | 0~1…5MPa |
Voltage withstand | 1.5 times | 2 times |
Medium | Gas or liquid compatible with 1Cr18Ni9Ti, copper, Fluorine rubber or Nitrile Rubber | |
Display mode | LCD | |
Rated-operating voltage | 220/110VAC | |
Output mode | Single AC output(active charge) | |
Single Switch Output | ||
Load capacity | 10A MAX | |
Storage temperature | -40℃~85℃ | |
Operating temperature | -10℃~50℃ | |
Protection level | IP54 | |
Pressure connection | G1/4(default), NPT1/4, R1/4 | |
Accuracy | ±1%F.S | |

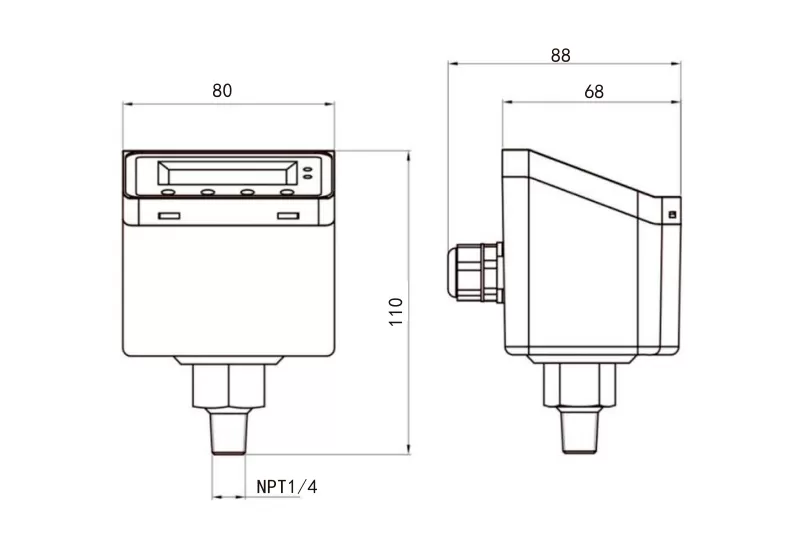

Dimensions | 80*98*110mm(with connector) | |
