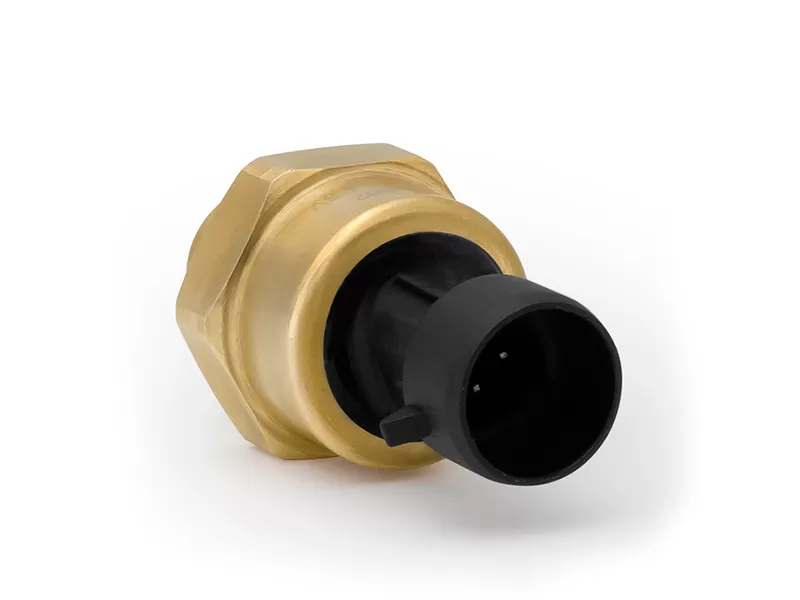

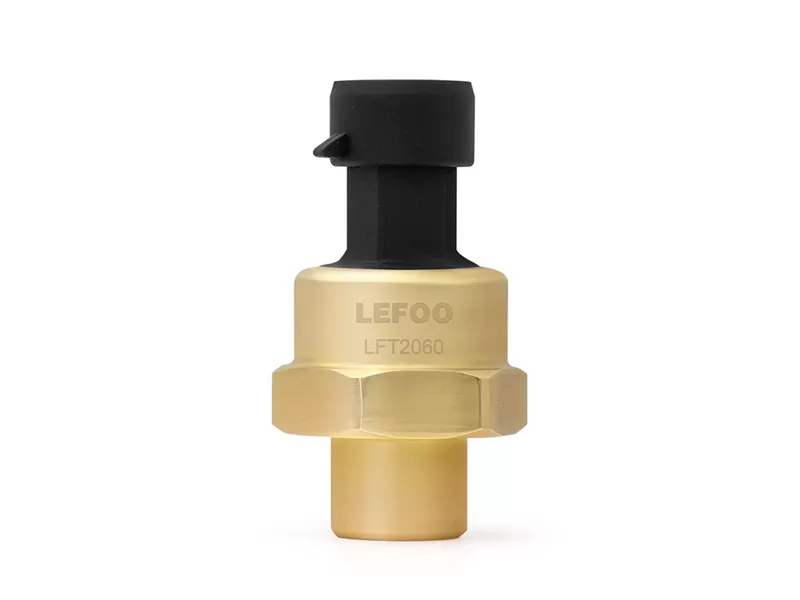

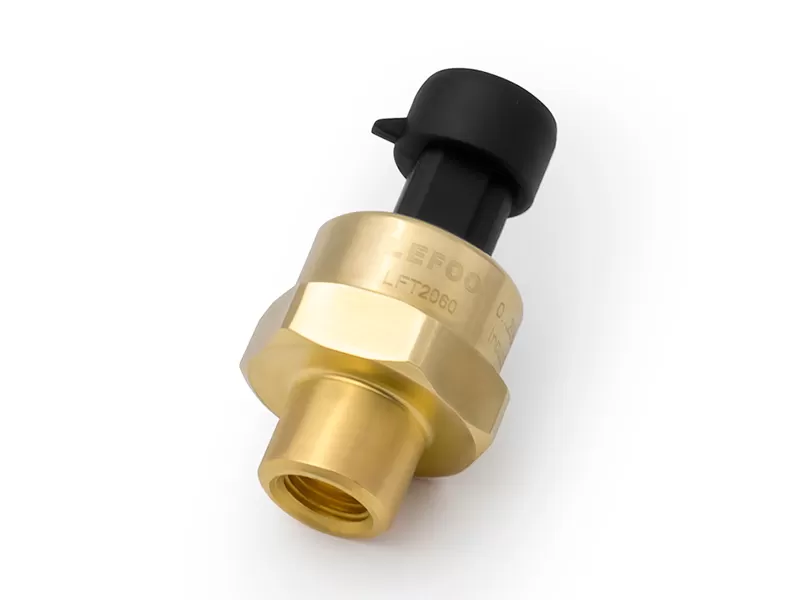

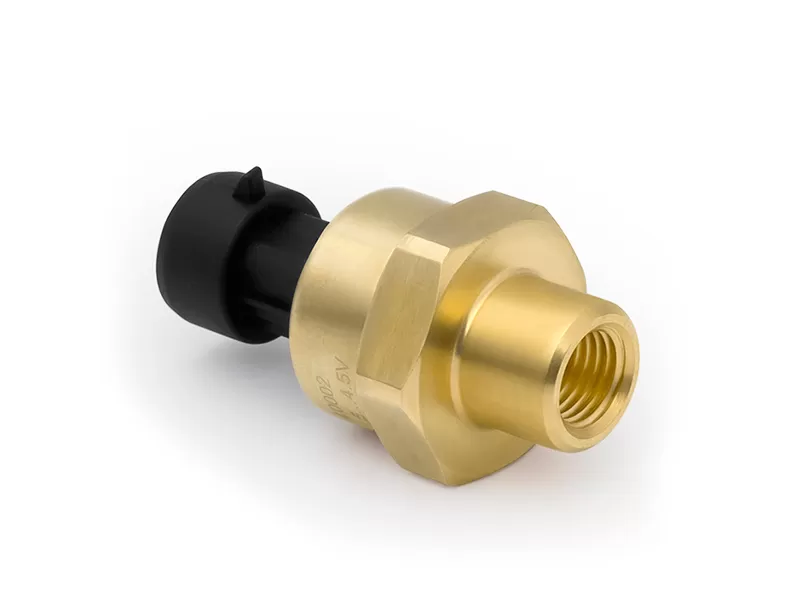

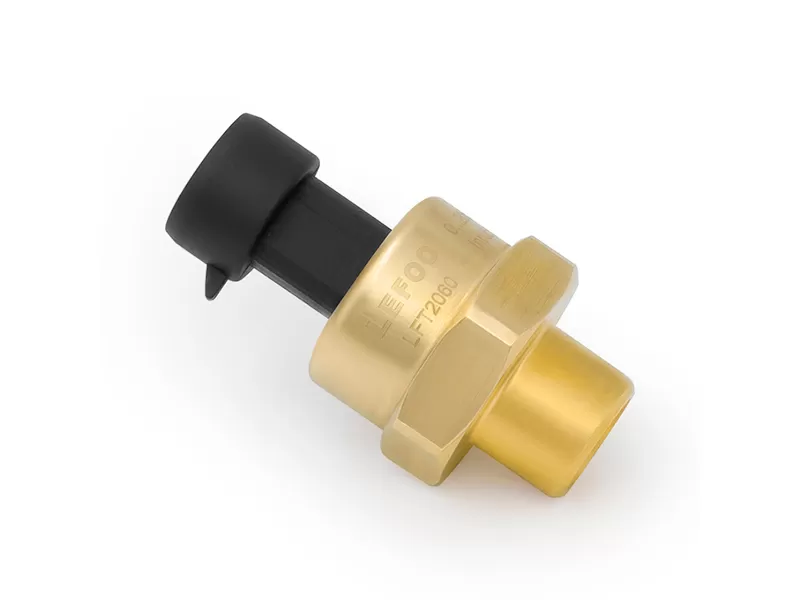

LFT2060 pressure transmitter adopts ceramic capacitor core, which is an ideal choice for refrigerant pressure measurement occasions. The standard 0.5~4.5V output signal, has the advantages of wide operating temperature, high precision, high waterproof level, and anti-condensation water. It is suitable for the pressure measurement of most common refrigerants, and also has a high burst pressure.
Adopt ceramic capacitor core with high overload capacity and excellent temperature characteristics
Small size and good stability
Wide temperature range
Waterproof grade IP67
Measurement Range | 0～50Bar |
Overload Pressure | 2 times of the rated pressure |
Burst Pressure | 3 times of the rated pressure |
Accuracy | ±1.5%F.S (-20~80℃) ±2.5%F.S (-40~120℃) |
Working Temp | -40~120℃ |
Refrigerant Medium① | R12, R22, R32, R134a, R404a, R407c, R410a, R502, R507 |
Electrical Properties | 3-wired |
Output Signal | 0.5~4.5V (Proportional voltage output) |
Power Supply | 4.75~5.25VDC |
Electrical Connection | Packard |
Dielectric Strength | 1800VAC for 1 second |
Enclosure Protection | IP67 |

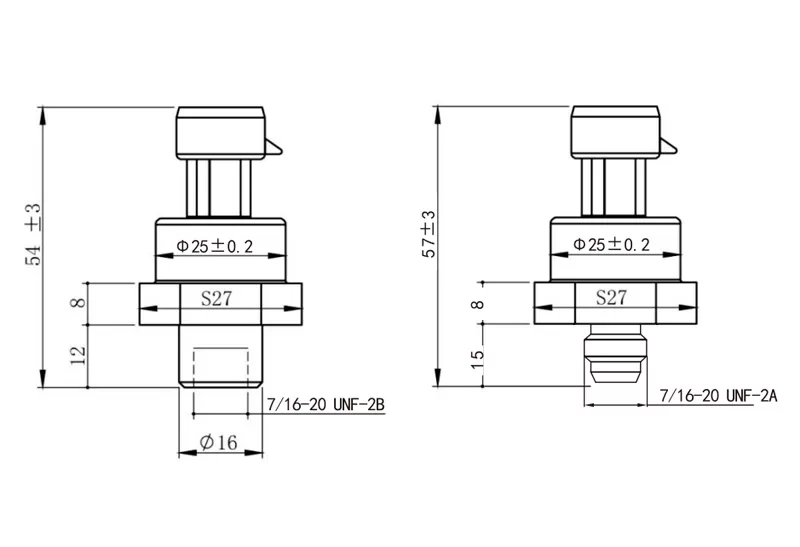

Pressure Connection | 7/16-20UNF Internal thread / 7/16-20UNF External thread |
Pressure Form | Gauge Pressure G |
Certification | RoHS, EU electrical safety standard CE |
① Sealing rubber ring default is neoprene rubber.
