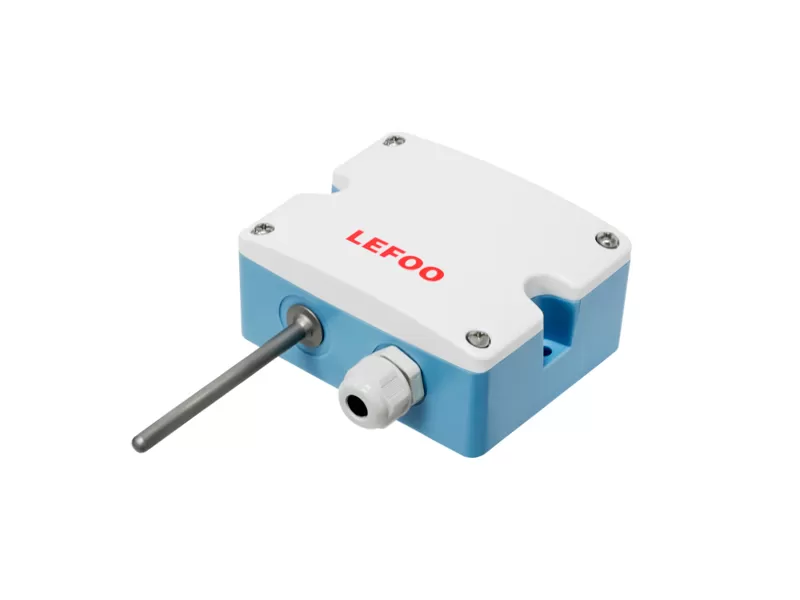

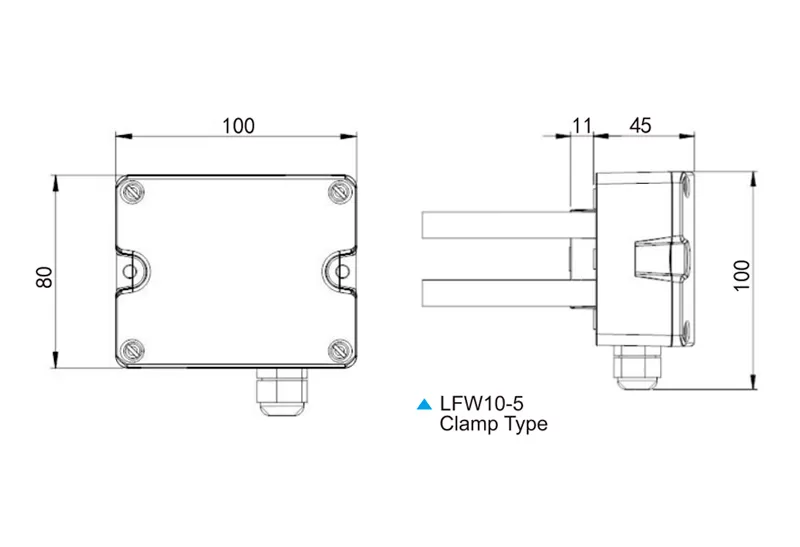

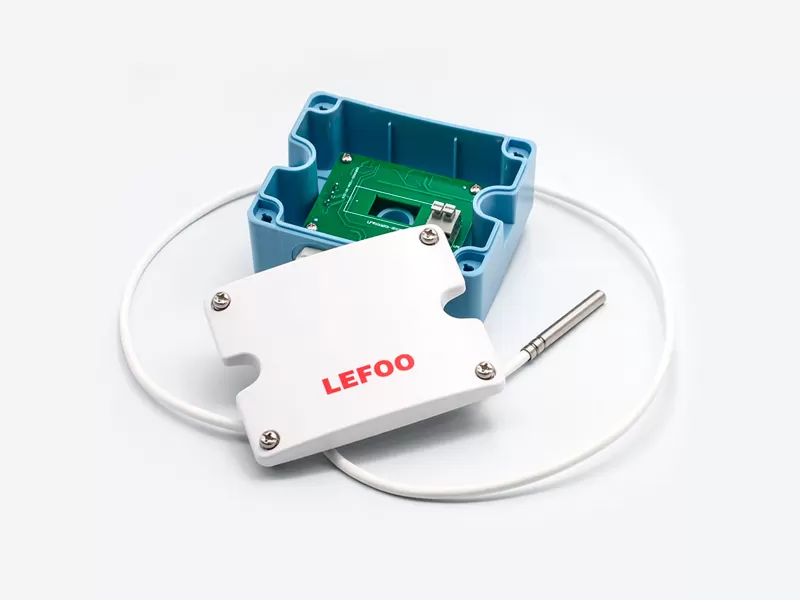

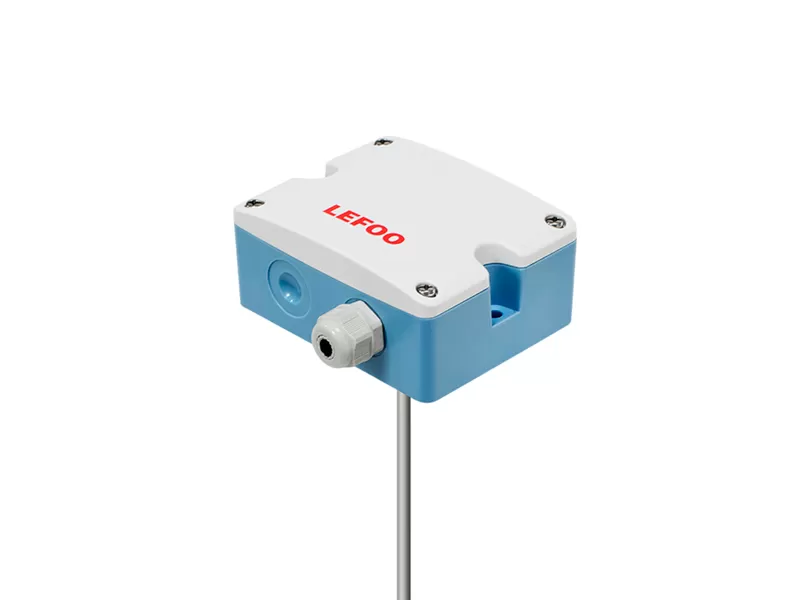

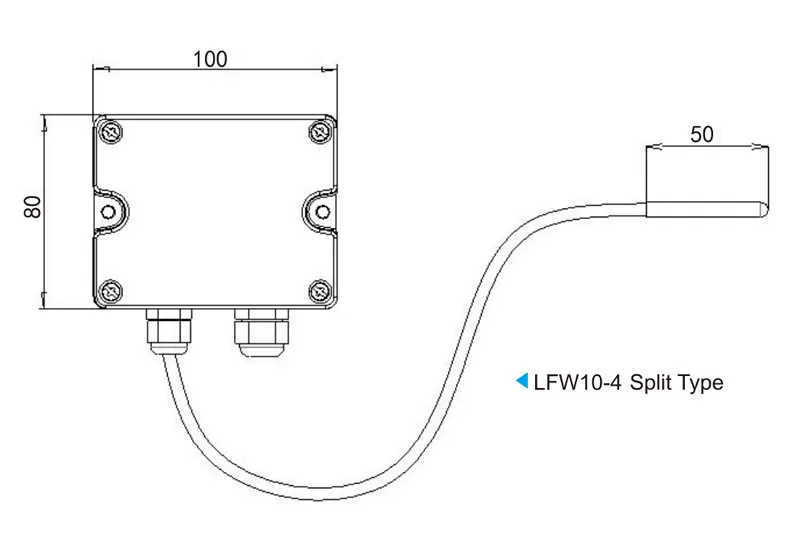

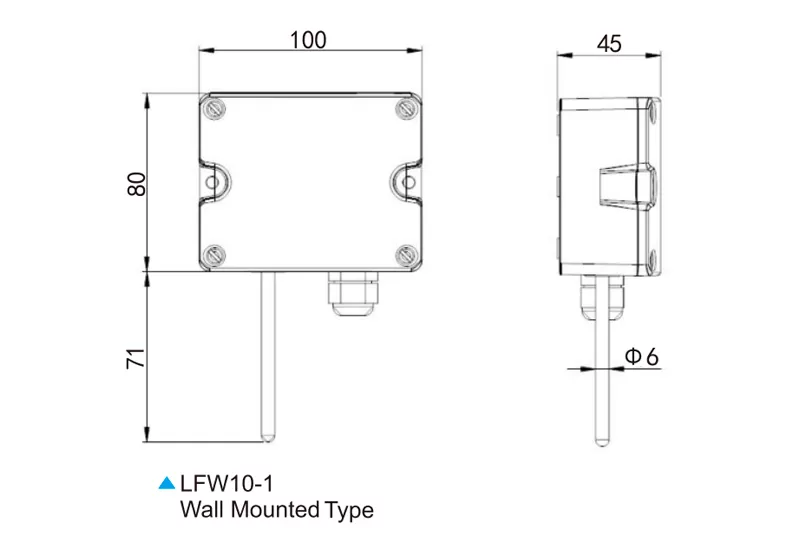

LFW10 Temperature Transmitter is a transmitter specially designed for industrial applications. It is specially designed for lightning surge, electrostatic discharge and group pulse pressure, and has strong anti-interference ability. There are five installation methods:wall hanging, air duct/water pipe, split, and clamp. Three output modes of current, voltage and thermal resistance are optional, strong site installation adaptability. The spring screw/terminal design is suitable for quick installation. It can be widely used in HVAC, buildings, warehouses and other places where temperature detection is required.
Up to 5 installation and output options available.
New industrial appearance fast installation design, suitable for quick installation.
Imported Heraeus A-level sensor, high precision, fast response, low temperature drift.
Excellent anti-interference ability, CE certification, IP65, RoHS.
Sensor | High-precision thermal resistance, see Order Reference No. (resistance outpt type /PT1000, class A(analog output type) |
Output | For resistance value, see Order Reference No.and Thermal Resistance Indexing Table/4~20mA or 0~10VDC, 0~5VDC |
Thermal Resistance | See Order Reference No.and Thermal Resistance Indexing Table |
Accuracy | Typical 0.2~0.5℃@0/25℃, see Order Reference No. ±0.3℃@25℃, see Temperature Accuracy Curve for details |
Power Supply | Voltage type 15~35VDC/24VAC±20% |
Current type 18.5~35VDC(RL=500Q)8.5~35VDC(RL=O) | |
Output Load | (Analog output type): ≤500Q(current type), ≥2kQ(0~5V), ≥3KQ(0~10V) |
ShellMaterial | PC housing, stainless steel probe(6MM) and sleeve |
Working Environmentt | -40~70℃, 0~95%RH(non-condensing) |
Protection level | IP65 |
