| Straight Connector | ||||||
| No | Product Name |
Matching Dimensions | Suitable Model | |||
| A | B | C | ||||
| 1 | 1*3 Straight Connector | 2.9 | 1.7 | 0.9 | 101ST, 102DB, 102ADB, 104DB, 104BL | |
| 2 | 2*4 Straight Connector | 3.2 | 2.4 | 1.6 | 101ST, 102DB, 102ADB, 104DB, 104BL, 202DB, 203DB, 203BL, 203ST | |
| 3 | 3*5 Straight Connector | 4.2 | 3 | 2 | 101ST, 102DB, 102ADB, 104DB, 104BL, 203DB, 203BL, 203ST | |
| 4 | 4*6 Straight Connector | 5.7 | 4.2 | 3.5 | 101ST, 104DB, 104BL, 203DB, 203BL, 203ST | |
| 5 | 16# Straight Connector | 5 | 3.7 | 3 | 101ST, 104DB, 104BL, 202DB, 203DB, 203BL, 203ST | |
| 6 | 25# Straight Connector | 6.7 | 5.3 | 4.3 | / | |
| 7 | 16# Straight Connector (with O ring) | 5.2 | 3.4 | 3 | 302ST, 303DB, 303ADB | |
| 8 | 25# Straight Connector (with O ring) | 6.5 | 5.5 | 4.5 | 302ST, 303DB, 303ADB | |
| 9 | 17# Straight Connector | 8.4 | 7.1 | 5.4 | 302ST, 303DB, 303ADB | |
| 10 | 18# Straight Connector | 9.9 | 8.6 | 6.9 | / | |
| 11 | 25# Straight Connector(401) | 7.5 | 5.2 | 4.5 | 401DB, 401ST, 403DB, 403ST | |
| 12 | 17# Straight Connector(401) | 8.4 | 6.1 | 5.4 | 401DB, 401ST, 403DB, 403ST | |
| 13 | 35# Straight Connector | 9.8 | 6.5 | 4.6 | 401ADB, 401ST, 402DB, 402ST, 403ST, 404DB, 404ST, 601DB, 601ST | |
| 14 | 36# Straight Connector | 11.2 | 8.4 | 6.9 | 402DB, 402ST, 404DB, 404ST, 601DB, 601ST | |
| 15 | 18# Lateral Elbow Connector(Left) | 9.8 | 7.4 | 6.9 | 401ADB, 401ST, 402DB, 402ST, 403ST, 404DB, 404ST, 601DB, 601ST | |
| 16 | 18# Lateral Elbow Connector(Right) | 9.8 | 7.4 | 6.9 | 401ADB, 401ST, 402DB, 402ST, 403ST, 404DB, 404ST, 601DB, 601ST | |
| 17 | 3*5 Straight Connector | 4.2 | 3 | 2 | 102DB, 102ADB, 104DB, 104BL, 203DB, 203BL, 203ST | |
| 18 | 4*6 Straight Connector | 5.7 | 4.2 | 3.5 | 104DB, 104BL, 203DB, 203BL, 203ST | |

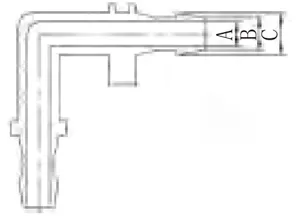

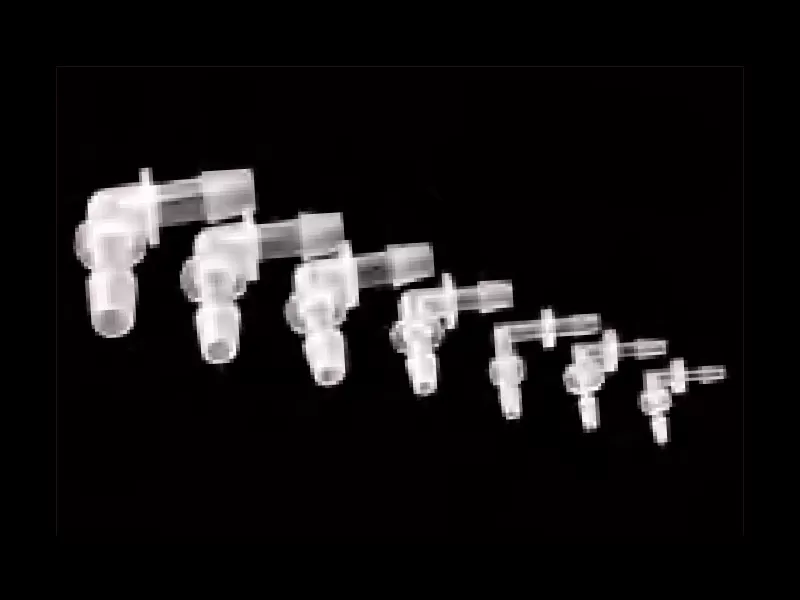

| Elbow Connector | |||||
| No | Product Name |
Matching Dimensions | Suitable Model | ||
| A | B | C | |||
| 1 | 18# Lateral Elbow Connector (Left) | 9.8 | 7.4 | 6.9 | 401ADB, 401ST, 402DB, 402ST, 403ST, 404DB, 404ST, 601DB, 601ST |
| 2 | 18# Lateral EIbow Connector(Right) | 9.8 | 7.4 | 6.9 | 401ADB, 401ST, 402DB, 402ST, 403ST, 404DB, 404ST, 601DB, 601ST |
| 3 | 3*5 Elbow Connector | 4.2 | 3 | 2 | 102DB, 102ADB, 104DB, 104BL, 203DB, 203BL, 203ST |
| 4 | 4*6 Elbow Connector | 5.7 | 4.2 | 3.5 | 104DB, 104BL, 203DB, 203BL, 203ST |

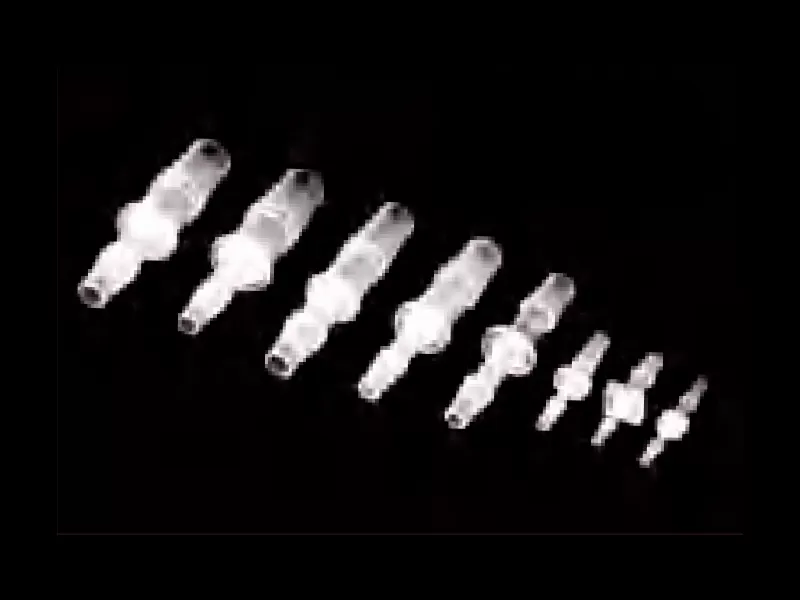

| Reducing Connector | ||||
| No | Product Name |
Matching Dimensions | Suitable Model | |
| A | B | |||
| 1 | 1*3 to 2*4 Straight Reducing Connector | 1*3 Straight Connector | 2*4 Straight Connector | 101ST, 102DB, 102ADB, 104DB, 104BL, 202DB, 203DB, 203BL, 203ST |
| 2 | 2*4 to 3*5 Straight Reducing Connector | 2*4 Straight Connector | 3*5 Straight Connector | 101ST, 102DB, 102ADB, 104DB, 104BL, 202DB, 203DB, 203BL, 203ST |
| 3 | 2*4 to 4*6 Straight Reducing Connector | 2*4 Straight Connector | 4*6 Straight Connector | 101ST, 102DB, 102ADB, 104DB, 104BL, 202DB, 203DB, 203BL, 203ST |
| 4 | 3*5 to 4*6 Straight Reducing Connector | 3*5 Straight Connector | 4*6 Straight Connector | 101ST, 102DB, 102ADB, 104DB, 104BL, 203DB, 203BL, 203ST |
| 5 | 6# to 25# Straight Reducing Connector | 16# Straight Connector | 25# Straight Connector | 101ST, 104DB, 104BL, 202DB, 203DB, 203BL, 203ST |
| 6 | 4*6 to 25# Straight Reducing Connector | 4*6 Straight Connector | 25# Straight Connector | 101ST, 104DB, 104BL, 203DB, 203BL, 203ST |
| 7 | 25# to 17# Straight Reducing Connector | 25# Straight Connector | 17# Straight Connector | 302ST, 303DB, 303ADB |
| 8 | 17# to 18# Straight Reducing Connector | 17# Straight Connector | 18# Straight Connector | 302ST, 303DB, 303ADB |
| 9 | 8# to 36# Straight Reducing Connector | 18# Straight Connector | 36# Straight Connector | 401ADB, 401ST, 402DB, 402ST, 403ST, 404DB, 404ST, 601DB, 601ST |
| 10 | 3*5 to 4*6 Straight Reducing Connector | 3*5 Straight Connector | 4*6 Straight Connector | 102DB, 102ADB, 104DB, 104BL, 203DB, 203BL, 203ST |
