LFLX10 Non‑Locating Leak Detection Cable features outstanding cost performance and suits various liquid leak detection applications. Compatible with most leak detection alarm panels, it offers high sensitivity, fast response, and stable, reliable performance. The Detection Cable is constructed from two lightweight high‑density polyethylene (HDPE) conductors formed along a spiral central axis. Compared with traditional parallel‑structure cables, its unique spiral structure effectively minimizes electromagnetic interference and false alarms while enhancing mechanical strength and extending service life. Suitable for data centers, libraries, museums, warehouses, and other applications, it meets diverse liquid leak monitoring requirements.
| Item | Specification |
| Cable Diameter | Φ6.0±0.2mm |
| Resistance Between Conductors | ≤0.1Ω/m |
| Cable Weight | 28g/m±2 g/m |
| Cable Color (Core) | Yellow |
| Core Material | PVC |
| Operating Temperature | -20℃~75℃ |
| Flammability Rating | Compliant with UL 94‑2017, V‑0 rated |
Patented spiral structure for excellent anti‑interference, durability, and reduced false alarms
Two‑core universal design, compatible with various non‑locating leak detection systems

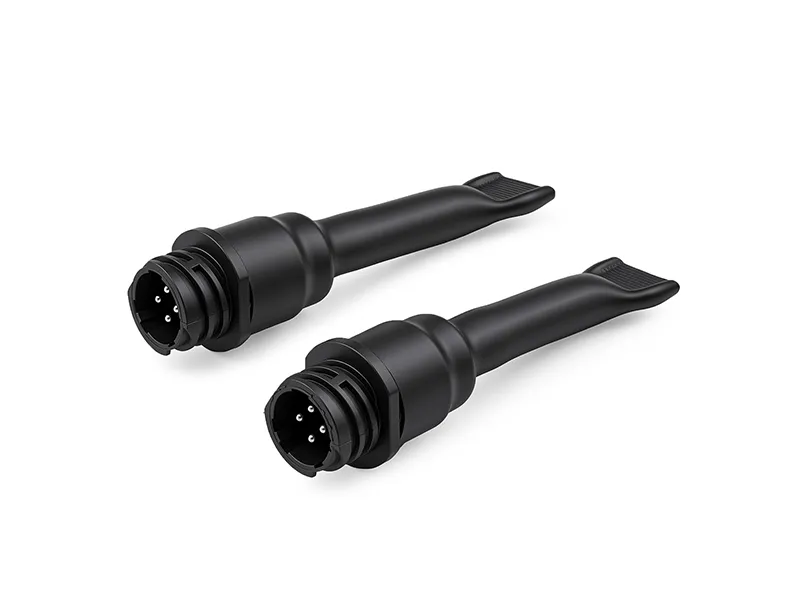

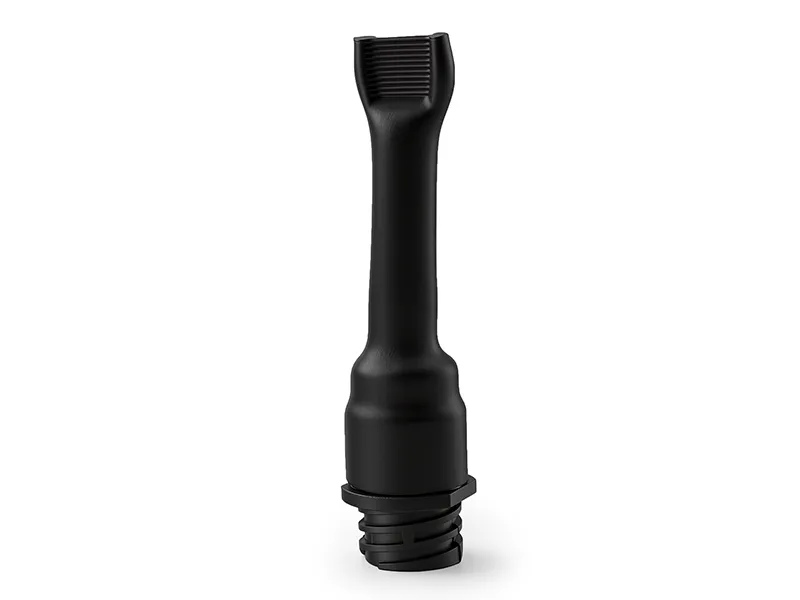

Waterproof connectors for easy cascading and multiple cable length options
Flexible cable design for easy installation in complex and curved applications
