T2000 Pressure Transmitter

The heart of T2000 pressure transmitter is a ceramic pressure sensor (If you need higher accuracy and pressure, we have a transmitter with an oil-washed silicon core) that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it convenient to be installed in small room. Some typical applications for these pressure sensor are: Process control and automation, compressors and pumps, engine controls, off road vehicles to name few.

Specification

General	Value
Measurement Range	-1~0......100bar, 0~2......3bar, 0~4......60bar(normal range), 0~61......600bar
Overload Pressure	1.5 times of full scales
Burst Pressure	3 times of full scales
Accuracy	±0.5%F.S,±1.0%F.S
Long Term Stability	Typical value: 0.5%F.S Maximum: 1%F.S
Working Temperature	-40°C~100°C
Compensated Temperature	-10°C~80°C
Storage Temperature	-50°C~125°C
Medium Compatibility	All corrosive medium compatible with 1Cr18Ni9Ti stainless steel and ceramic
Output Mode	Two-wired	Three-wired
Output	4~20mA	0.5~4.5V	0/1~5V	0~10V
Power Supply	10~30VDC	5VDC	10~30VDC/AC	12~30VDC/AC
Load Resistance	(U-10)/0.02(Ω)	>100K(Ω)
Insulation	>100M(Ω)@50V

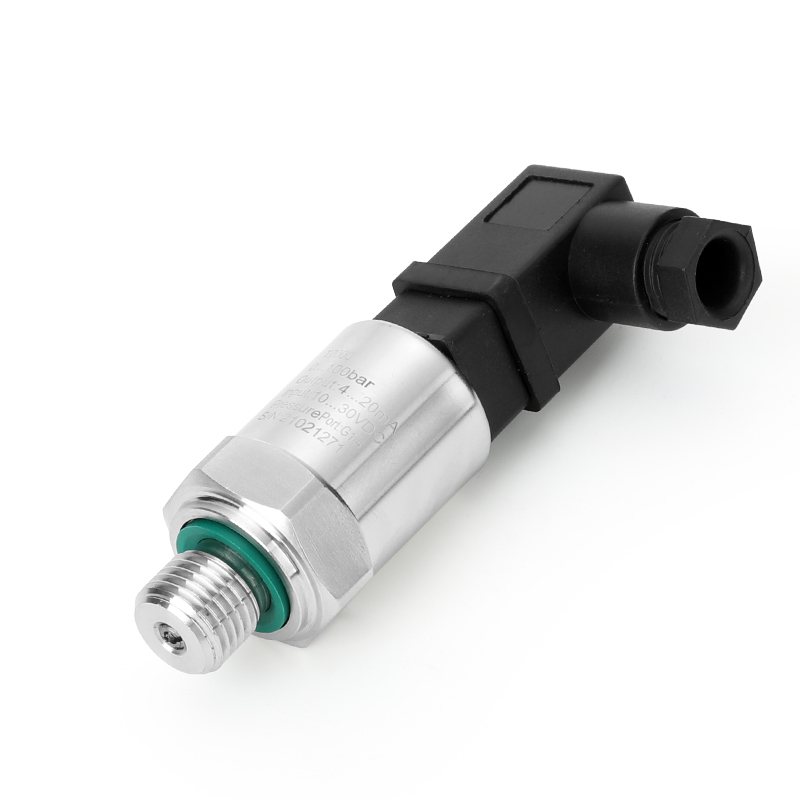

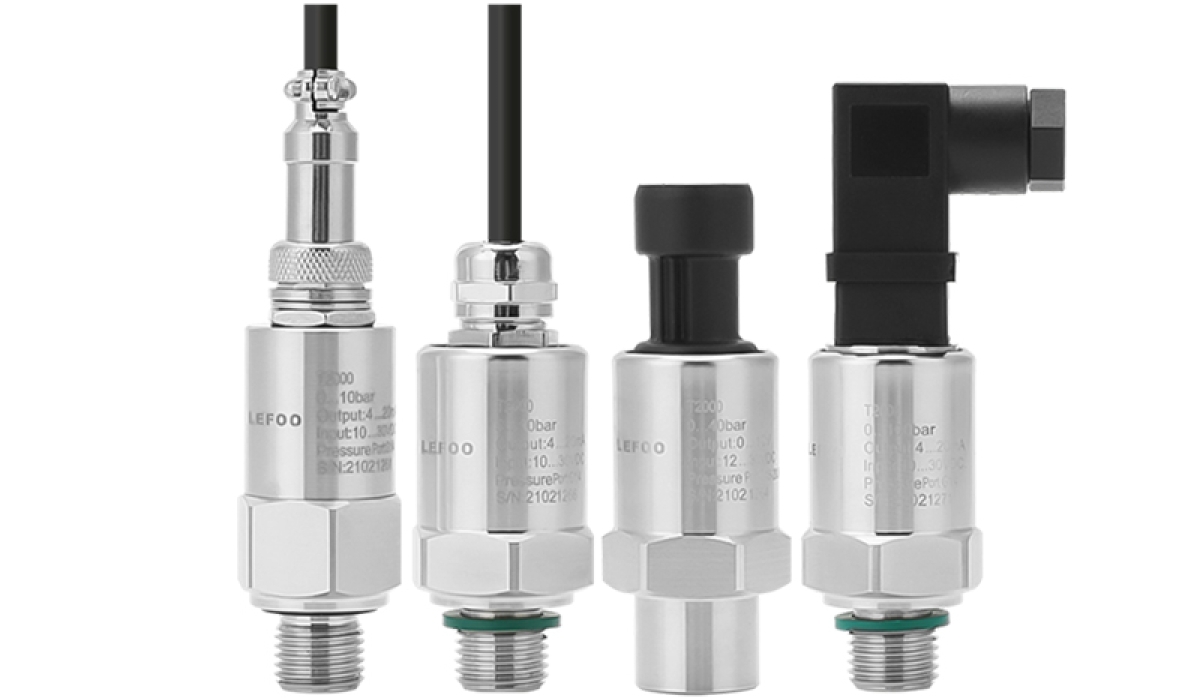

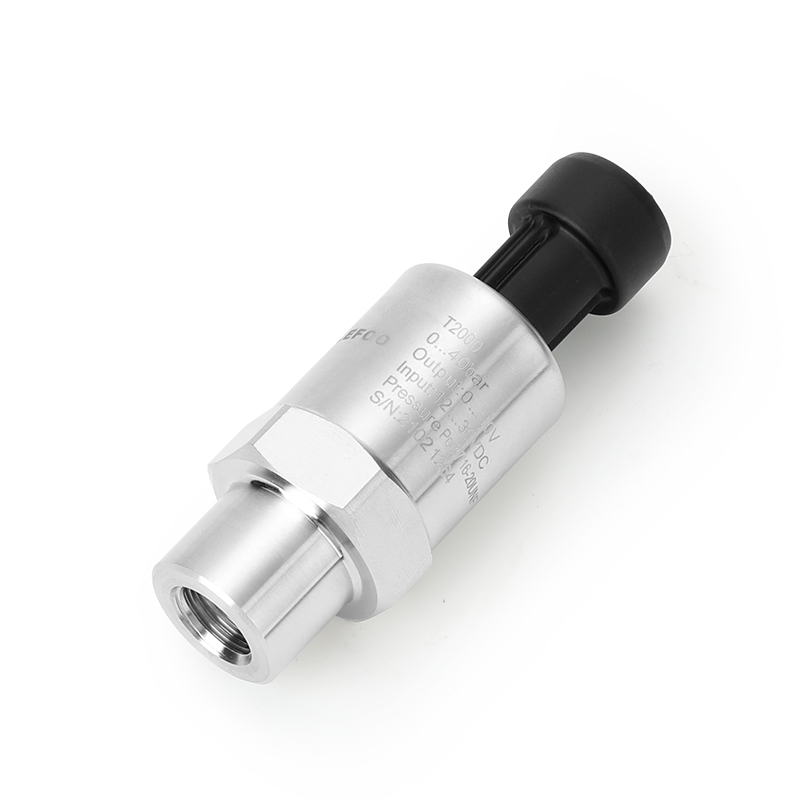

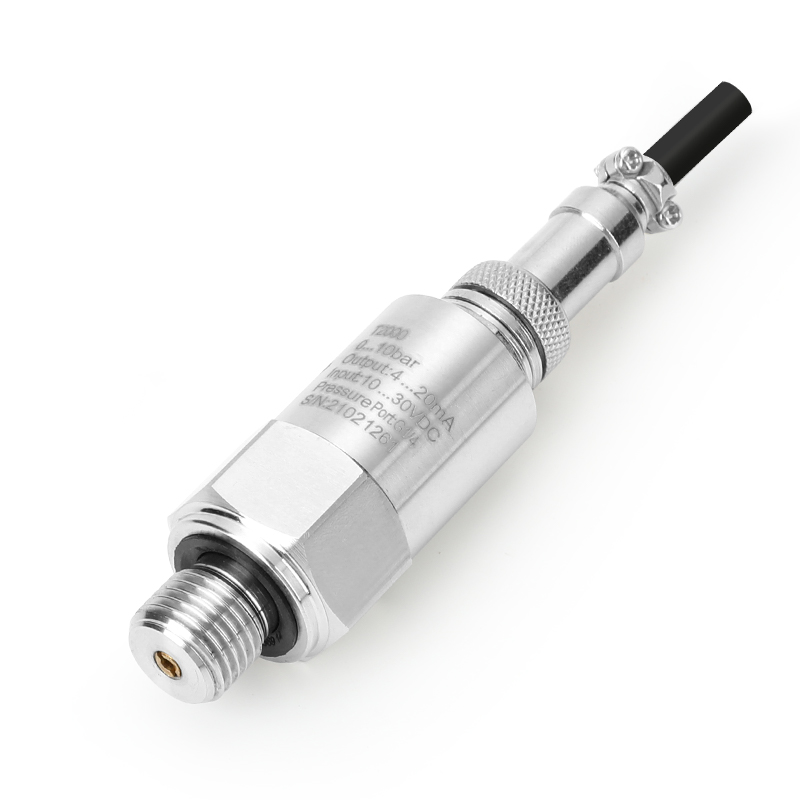

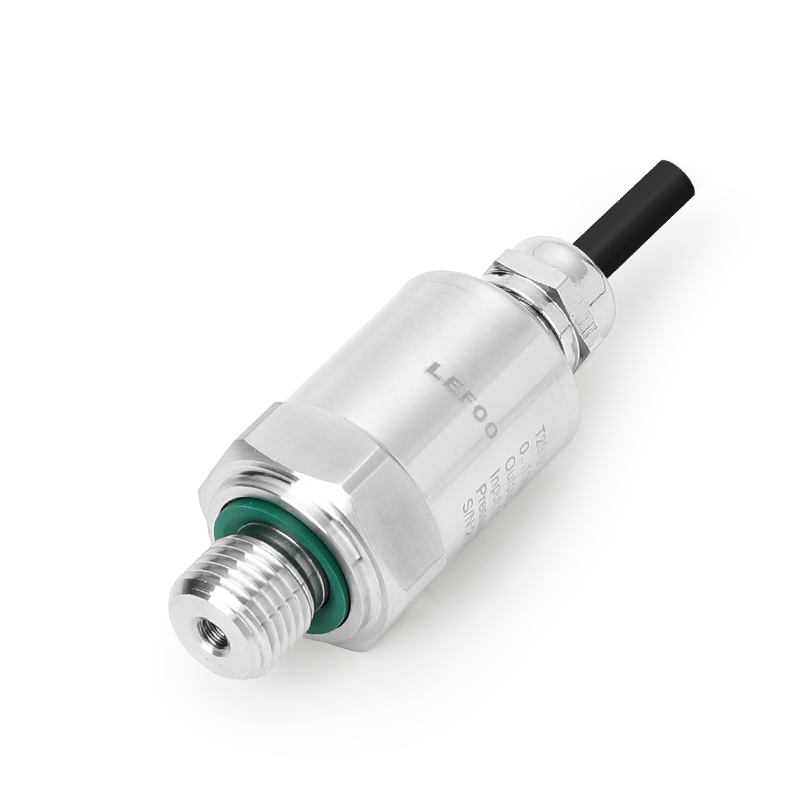

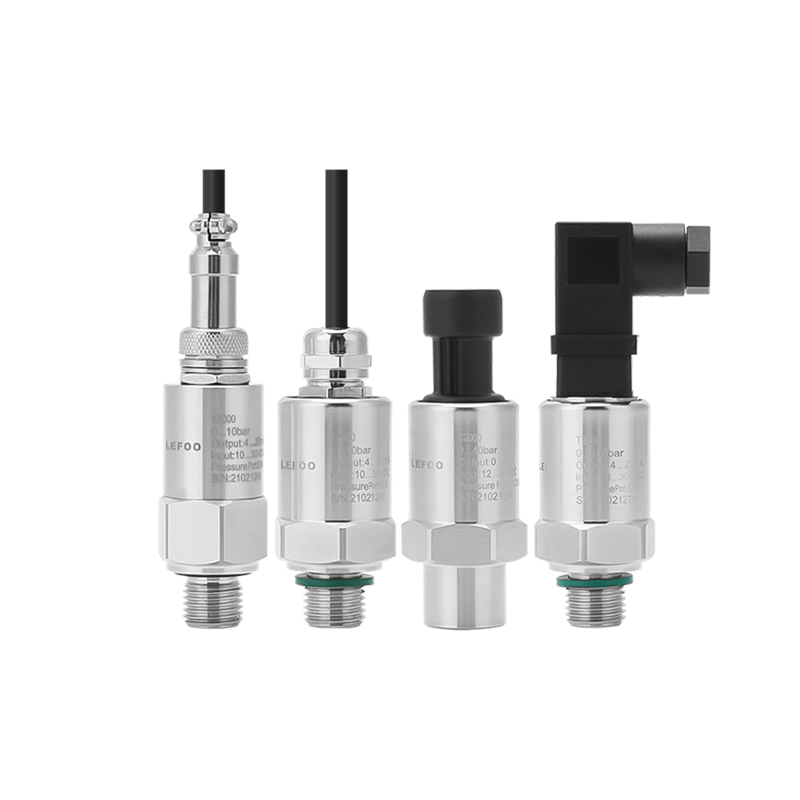

Electrical Connection	Packard, DIN43650C, DIN72585, M12, Cable
Protection Grade	IP67
Pressure Connection	Male G1/4,NPT1/4,7/16-20UNF,M20×1.5,G1/ (Female and other connection is available on request)
Response Time	10ms
Pressure Form	Gauge pressure
Electromagnetic Compatibility	Electromagnetic transmit: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2
