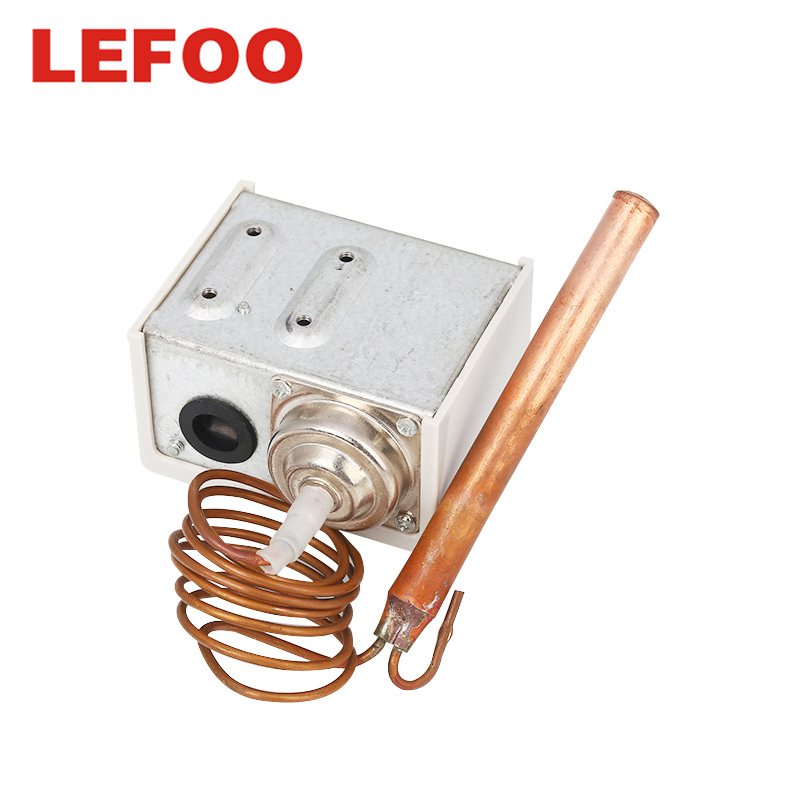

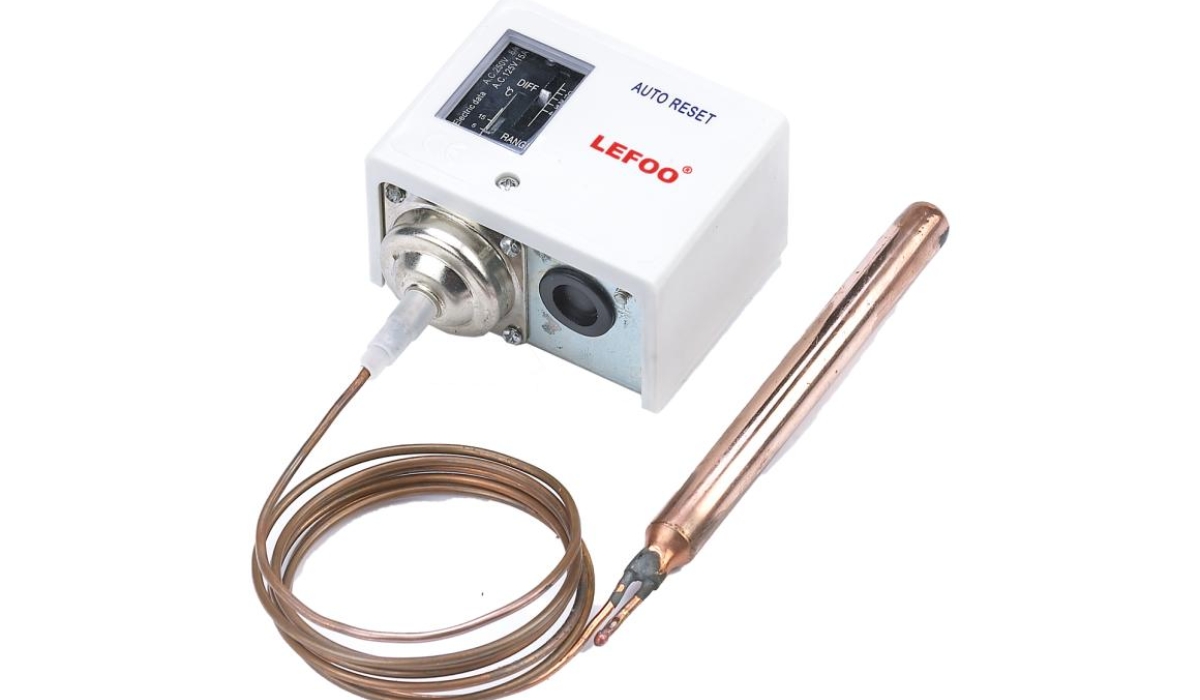

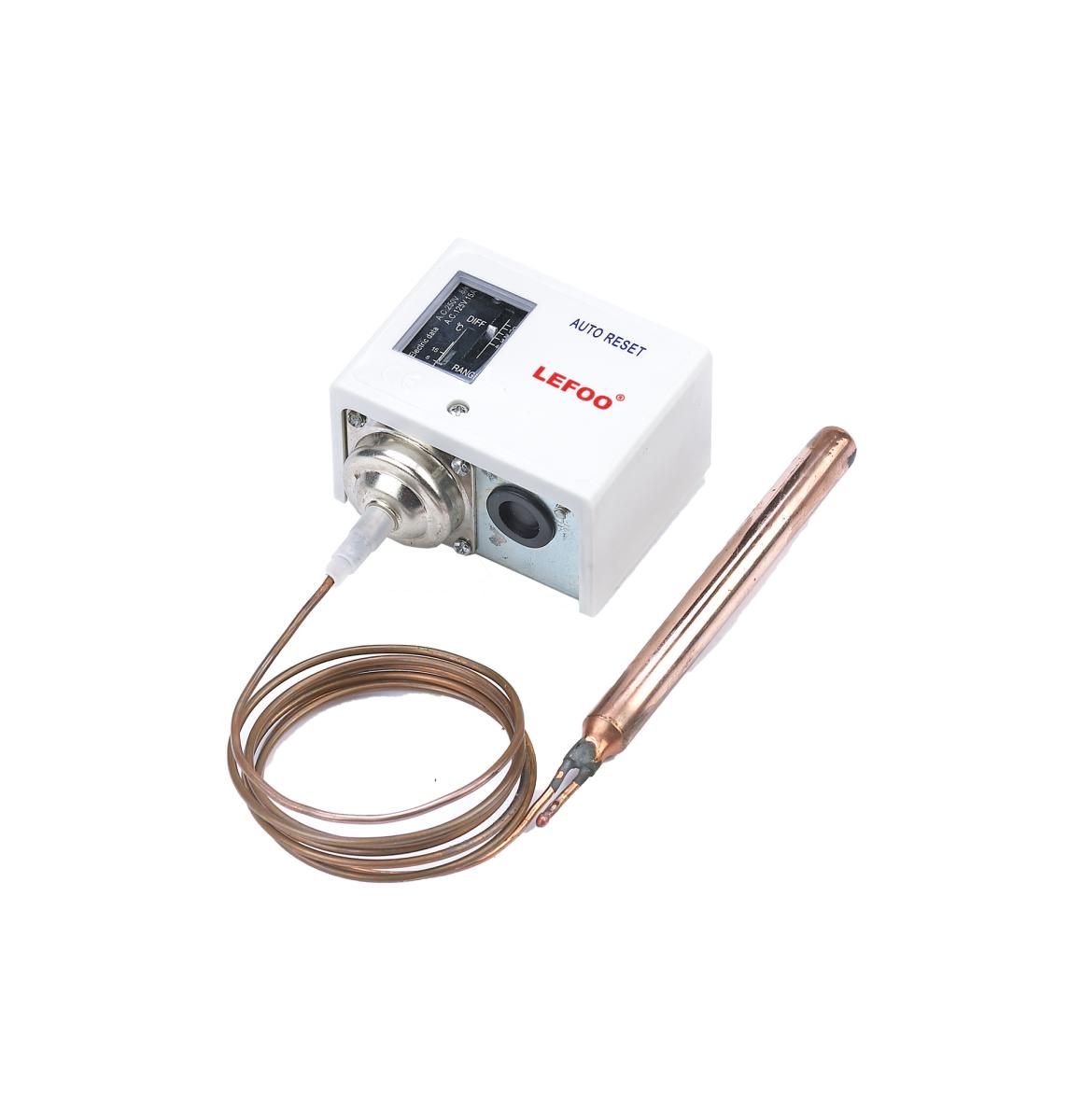

TS series temperature controller is an electric switch. It can control the temperature range and can be directly connected to single motor under 1KW.
TS series temperature controller can match with solenoid valve to control the temperature of the refrigerator.
TS series temperature controllers equipped with a SPDT double throw switch. The switching points depend on the setting value of temperature controller and temperature thermometer bulb sense.
Wire connection: diameter of wire entrance hole 15mm
Electrical Rating
| Rated Voltage(V) Rated Current(A) | A.C.110 | A.C.220 | |
| Non-induced current | 20A | 10A | |
| Induced current | Full load current | 15A | 8A |
| Instantaneous current | 72A | ||
