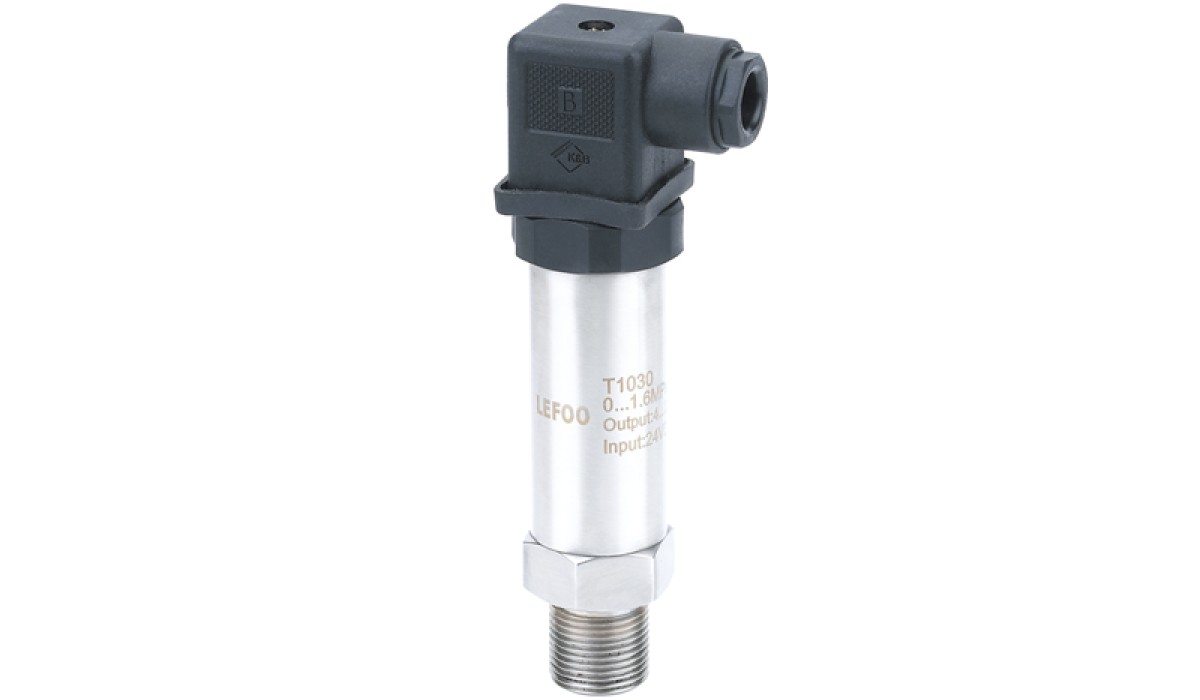

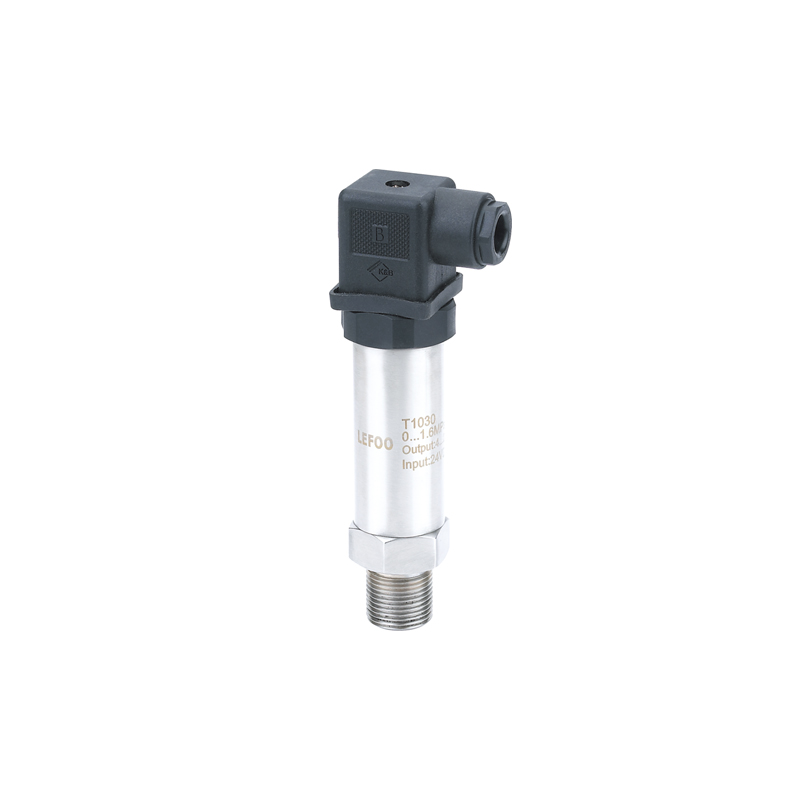

T1030 pressure transducer is a product which is characterized by high precision, high reliability, high cost-effectiveness and flexible range. It is widely used in testing gas and liquid pressure, such as water, oil, light hazardous liquid and gas.
Features
accuracy ±0.25, ±0.5%F.S; zero and full rang can be adjusted; one unit or non-standard order is acceptable; displayer is optional; digital compensation with whole range of temperature, various of pressure range and signal output; electrical connector and pressure connection; Non-polarity two wired current output
Application
Gas dispenser, Refrigeration compressor, Hydraulic control, Agricultural machine, Pressure instrument, Automatic monitoring system, Energy and water treatment, Real-time management of oil well
Specification
| Measurement Range | -0.1MPa……0.01MPa~0-0.01MPa……100.0MPa | ||||
| Overload Pressure | 1.5 times of full scales | ||||
| Burst Pressure | 3 times of full scales | ||||
| Accuracy | ±0.25%F.S, ±0.5%F.S | ||||
| Long Term Stability | Typical 0.25%F.S per year, Maximum?0.4%F.S per year | ||||
| Medium Temperature | -40°C ~85°C | ||||
| Compensated Temperature | -10°C ~70°C | ||||
| Medium Compatibility | All corrosive medium compatible with 1Cr18Ni9Ti and316L | ||||
| Output Mode | Two- wired | Three-wired | Four-wired | ||
| Output | 4~20mA | 0~20mA | 0~5V | 0.5~4.5V | 0~20mA |
| 0~10Vdc | 1~5V | 0.5~3V | 0~5/10Vdc | ||
| Power Supply | 10~30Vdc | 11~30Vdc | 8~24Vdc | 5V Ratio | 8/11~30Vdc |
| Load Resistance | (U-10)/0.02 | Current model: (U-12)/0.02; Voltage model:20k | |||
| Insulation | 100M @50V | ||||
| Electrical Connection | DIN63650, IP65; GX16-7, IP45; Wire,IP68; | ||||
| Pressure Connection | M20×1.5, G1/2, G1/4, G1, NPT1/2, NPT1/4, R1/4,(Ht) | ||||
| Response Time | 10ms | ||||
| Electromagnetic compatibility | Electromagnetic transmit: EN50081-1/-2;electromagnetic sensitivity: EN50082-2 | ||||
