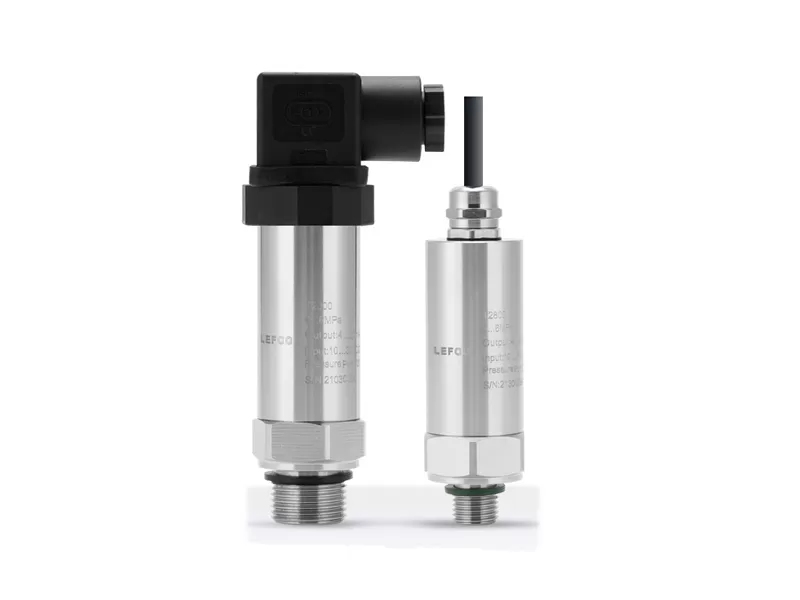

LFT2800 pressure transmitter is widely used in the measurement of fluid medium pressure in test systems such as fire protection, water treatment, water supply systems, air compressors, and pneumatic device and factory automation. It has excellent anti-corrosion and anti-wear performance, adopts ASIC technology, MEMS technology, digital compensation, and can be applied in various complex environment.
Adopt oil-flled silicon core with high overload capacity.
Excellent corrosion and wear resistance.
Using ASIC technology, digital compensation.
Can be applied in a variety of complex environment.
Measurement Range | -100kPa…0～1kPa...60MPa | ||||
Overload pressure | 1.5 times of the rated pressure | ||||
Accuracy① | ±1.0%F.S(-100kPa...0~1kPa…2kPa…60MPa) | ||||
±0.5%F.S(-100kPa...0~3kPa…9kPa…60MPa) | |||||
±0.25%F.S(-100kPa…0~10kPa…60MPa) | |||||
Stability | <0.5%F.S/year | ||||
Working Temp | -20～85℃ | ||||
Storage Temp | -40～100℃ | ||||
Measured Medium | Gas or liquid compatible with 304 and 316L stainless steel, Fluorine rubber or Nitrile rubber | ||||
Electrical Properties | 2-wired(current) | 3-wired(voltage) | 4-wired | ||
Output Signal | 4~20mA | 0.5~4.5V | 0~5V | 0~10V | RS485 |
Power Supply | 8~36VDC | 4.75~5.25VDC | 8~36VDC | 12~36VDC | 10~30VDC |

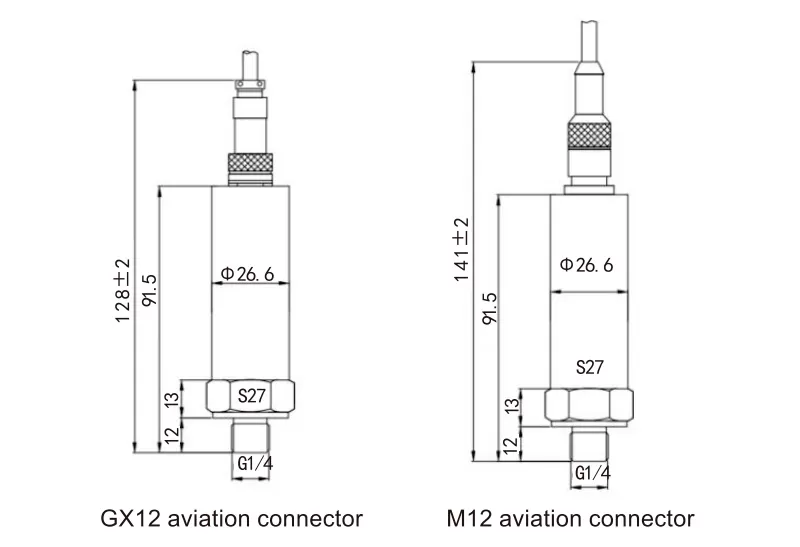

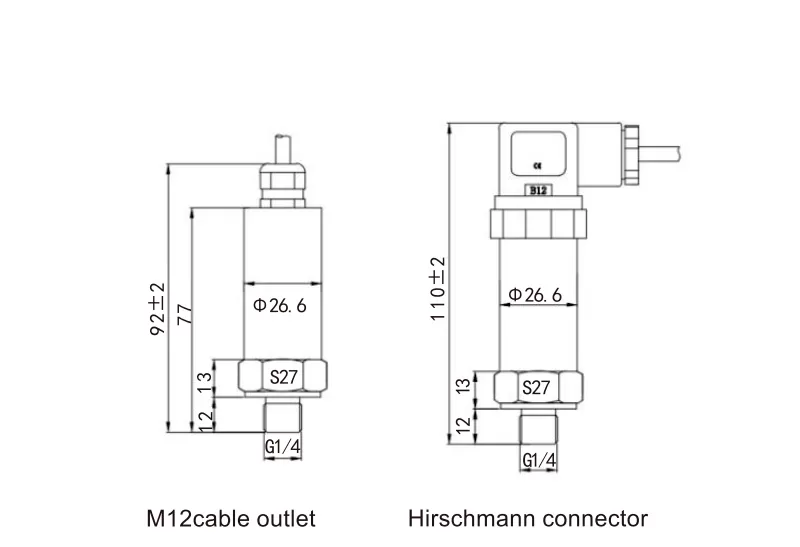

Electrical Connection | DIN43650A(Big Hirschmann), M12 waterproof outlet, GX12 aviation connector (three-core/four-core), M12 four-core aviation connector | ||||
Enclosure Protection | IP54, IP65 | ||||
Pressure Connection | G1/4, NPT1/4, R1/4, G1/2, 7/16-20UNF, M20*1.5, M10*1, M14*1.5 etc | ||||
Pressure Form | Gauge Pressure G/Absolute Pressure A | ||||
Certification | Safety explosion-proof type E, RoHS, EU electrical safety standard CE | ||||
① Measured at 25℃, including the comprehensive accuracy of linearity, repeatability and hysteresis.
