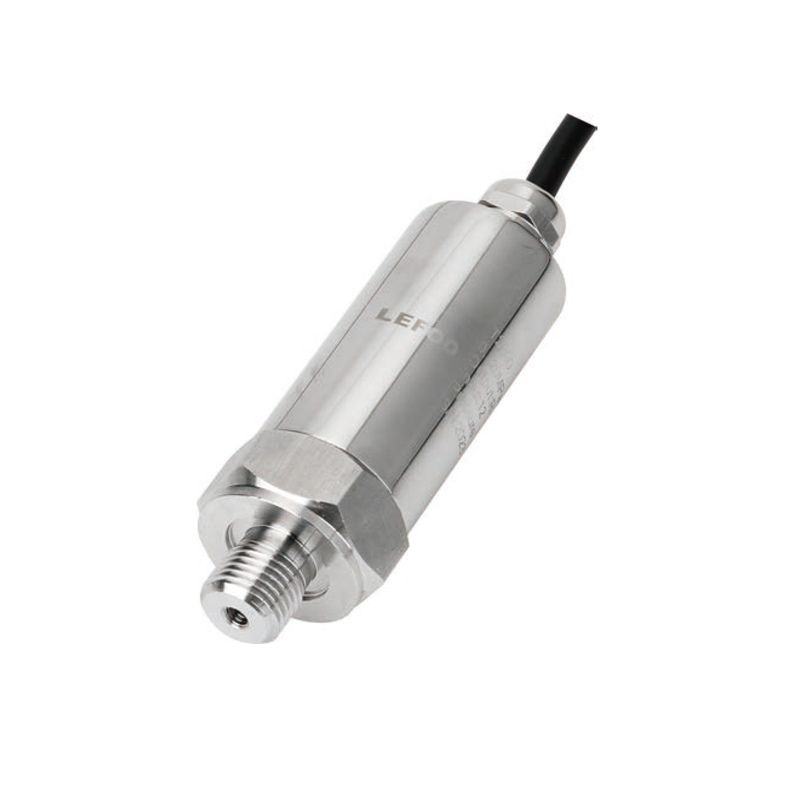

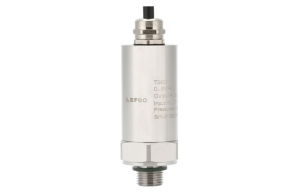

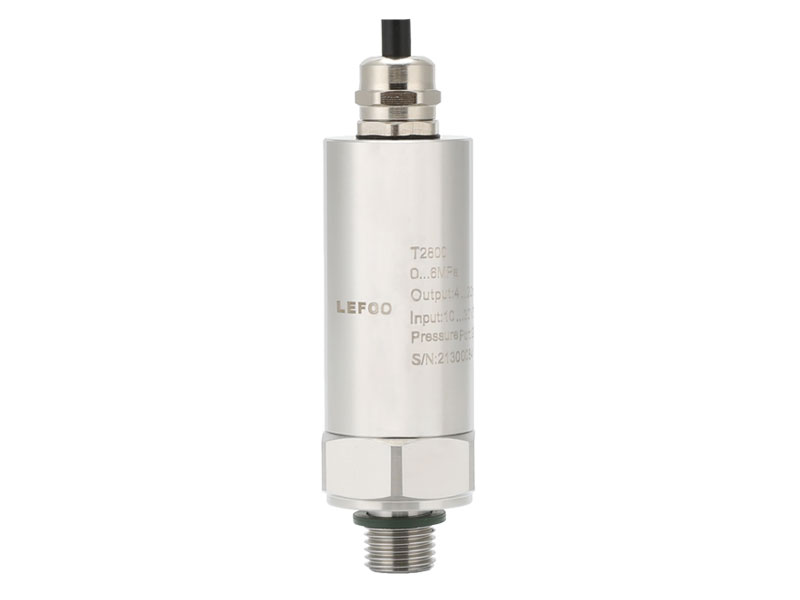

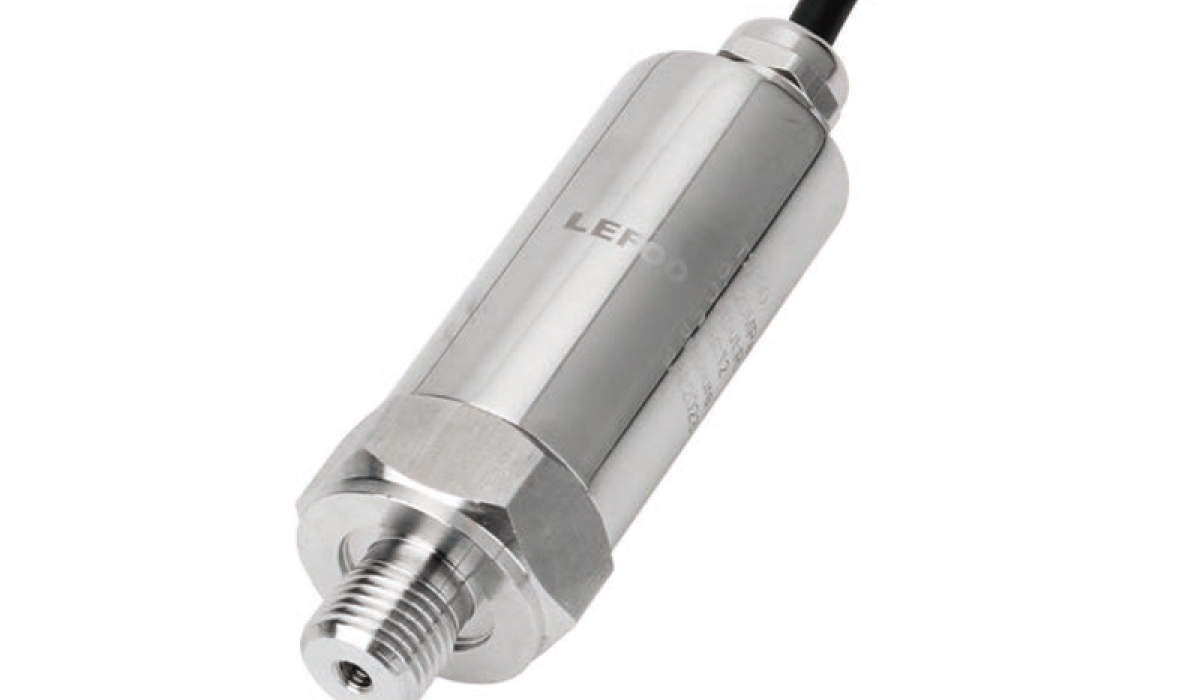

This type of pressure transducer uses a piezoresistive pressure sensor with a stainless steel isolation film as the signal measurement component. The zero-point and temperature compensation for wide temperature range is carried out by laser trimming process. By using low-power high-performance MCU, the pressure signal is collected and converted into a digital signal through RS485 output, which adopts international standard Modbus protocol. It can be widely used in the measurement of medium pressure in test systems such as fire fighting, water treatment, water supply systems, air compressors, pneumatic devices, and factory automation, etc.
-

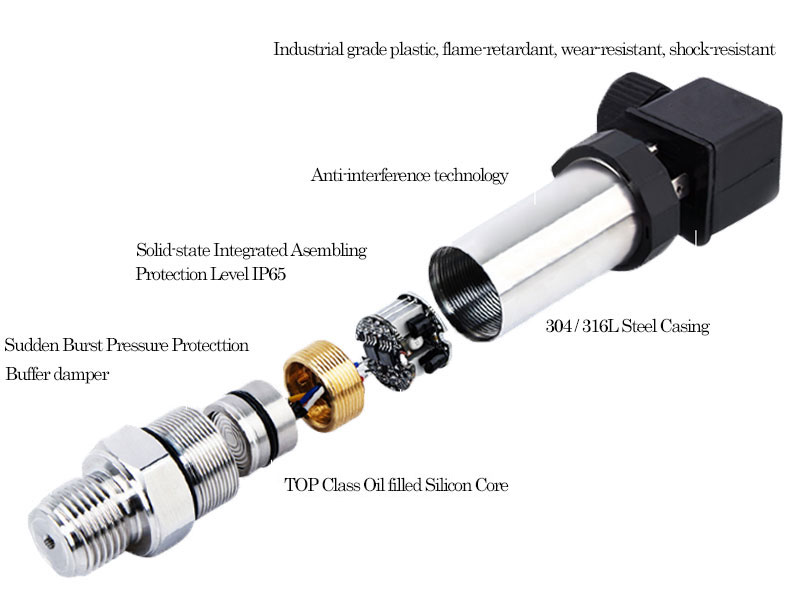

Adopt oil-filled diffusion silicon core
-
High precision and high overload capacity
-
Excellent corrosion and wear resistance
-
Strong resistance to electromagnetic interference
-
Multiple pressure ranges and RS485 signal output
Pressure Monitoring for Fluid or Gas Medium
Building automation
Chemistry experiment equipment
Fire Equipment
Power energy equipment
Automation equipment
Medical supporting equipment
Low-speed unmanned vehicle
Heating tube manufacturers
Specification
| Measurement Range | 100kPa...0~10kPa...60MPa (Gauge pressure/Absolute pressure) | ||||
| Overload Pressure | 1.5 times full scale(Max.100Mpa) | ||||
| Burst Pressure | 3.0 times full scale(Max.100Mpa) | ||||
| Accuracy | ±0.5%F.S | ||||
| Stability | <0.2%F.S/Year | ||||
| Working Temperature | -20~+85?/-40~+100°C Customized | ||||
| Compensated Temperature | -10~+70°C | ||||
| Storage Temperature | -40~+100°C | ||||
| Medium Compatibility | All corrosive medium compatible with stainless steel | ||||
| Output Mode | Two-wired
| Three-wired
| Four-wired
| ||
| Output Signal | 4~20mA
| 0.5~4.5V
| 0~5V
| 0~10V
| RS485
|
| Power Supply | 10~30VDC
| 4.75~5.25VDC
| 10~30VDC
| 12~30VDC
| 10~30VDC
|

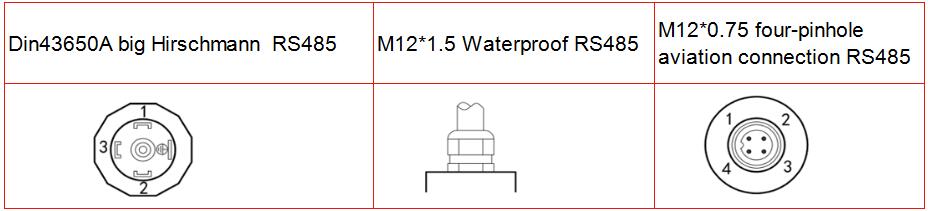

| Electrical Connection | DIN43650A Big Hirschmann M12 Waterproof outlet M12 Aviation connector | ||||
| Protection Grade | IP65?IP67 | ||||
| Pressure Connection | G1/4 M12*1 M10*1 NPT1/4 G1/2 M20*1.5 etc. | ||||
| Pressure Form | Gauge pressure G / Absolute pressure A | ||||
| Certification | Safety explosion-proof type E, RoHS, EU electrical safety standards CE | ||||
Connections
| T2800 | Pressure Transducer | Model | ||||||||||||||
| Range | -100kPa...0~10kPa...60MPa | Measurement Range | ||||||||||||||
| RS RS-485 | A4 4~20ma | V05 0.5~4.5V | V0 0~5V | V10 0~10V | Output mode | |||||||||||
| K | K = kpa | P | P = psi | Unit | ||||||||||||
| M | M = Mpa | B | B = bar | |||||||||||||
| 0.5 | 0.5 = 0.5%F.S | Accuracy | ||||||||||||||
| D1 | D1 = DIN43650A Big Hirschmann | Electrical connection | ||||||||||||||
| M | M = M12 M12 Aviation connector | |||||||||||||||
| C | C = Cable Waterproof outlet | |||||||||||||||
| G1 | G1= G1/4 | G2 | G2 = G1/2 | Pressure connection | ||||||||||||
| N | N = NPT1/4 | M3 | M3 = M20*1.5 | |||||||||||||
| M1 | M1= M10*1 | M2 | M2= M12*1 | |||||||||||||
| 1.0 | 1.0 = 1m | Cable length | ||||||||||||||
| 2.0 | 2.0 = 2m | |||||||||||||||
| 3.0 | 3.0 = 3m | |||||||||||||||
| T2800 | 0-20Mpa | RS | M | 0.5 | D1 | G2 | 1.0 | Model selection example | ||||||||
