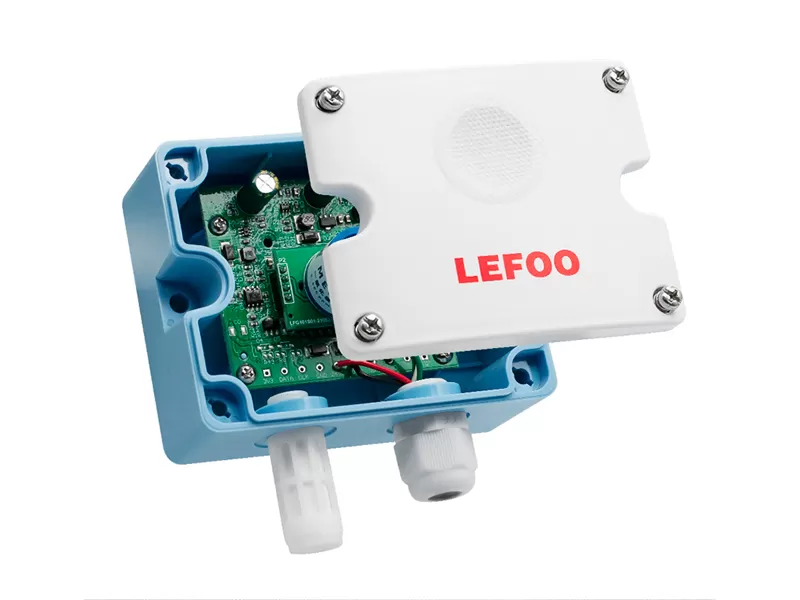

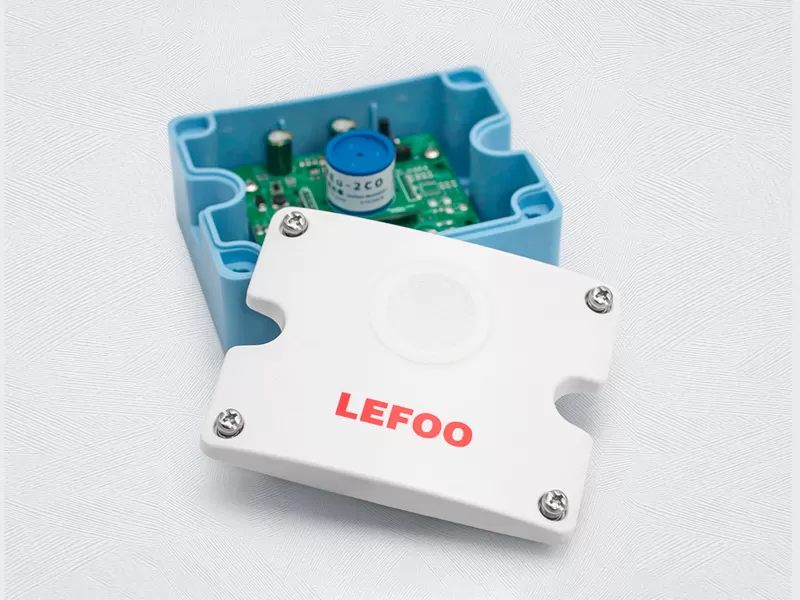

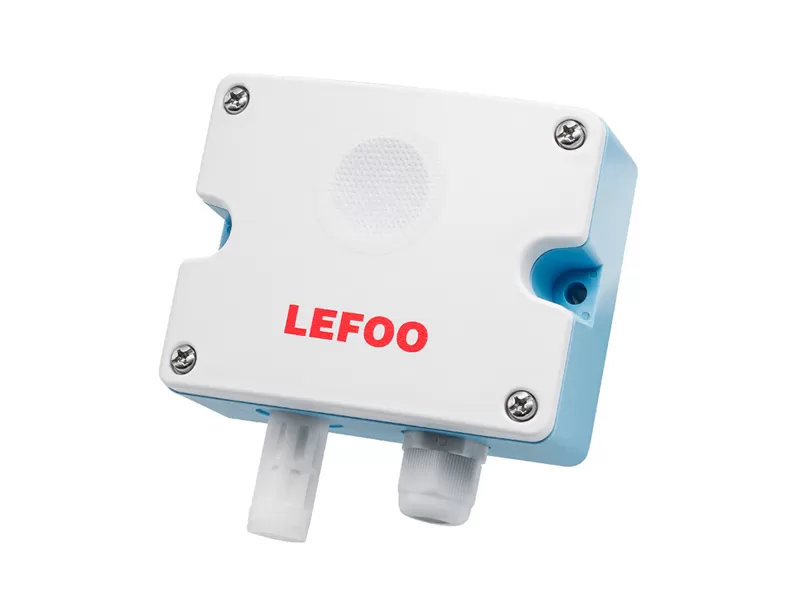

LFG101 Wall-mounted Carbon Monoxide Transmitter uses electrochemical principle to detect carbon monoxide in the air, with good selectivity and stability. Three output modes of current, voltage and RS485 are optional, wide voltage power supply and power supply anti-reverse connection protection. It is suitable for carbon monoxide gas monitoring in indoor air quality detection, air conditioners, air purifiers, underground parking lots and other occasions.
High linearity sensor provides accurate and reliable stability.
Good repeatability, service life>5 years.
Optional output signal, power reverse connection protection.
Double-layer waterproof membrane design, prevent moisture entering.
Output | 4~20mA(3-wire) | 0~5V(3-wire) | 0~10V(3-wire) | RS485(4-wire) |
Working voltage | 10-30Vdc | 10-30Vdc | 16-30Vdc | 10-30Vdc |
Working Temperature | -10~50℃ | |||
Working humidity | 15%~90%RH | |||
Work pressure | 1atm(Standard Atmospheric Pressure)±10% | |||
Measured concentration | 0-500ppm/0-1000ppm | |||
Accuracy | ±5%F.S@25℃ | |||
Response time(T90) | ≤15s | |||
IP grade | IP6x | |||
Service Life | >5year | |||
