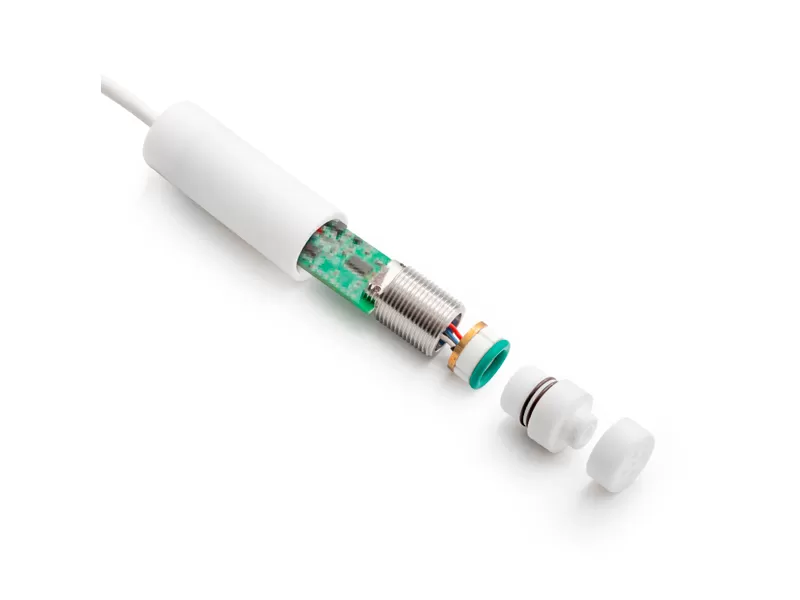

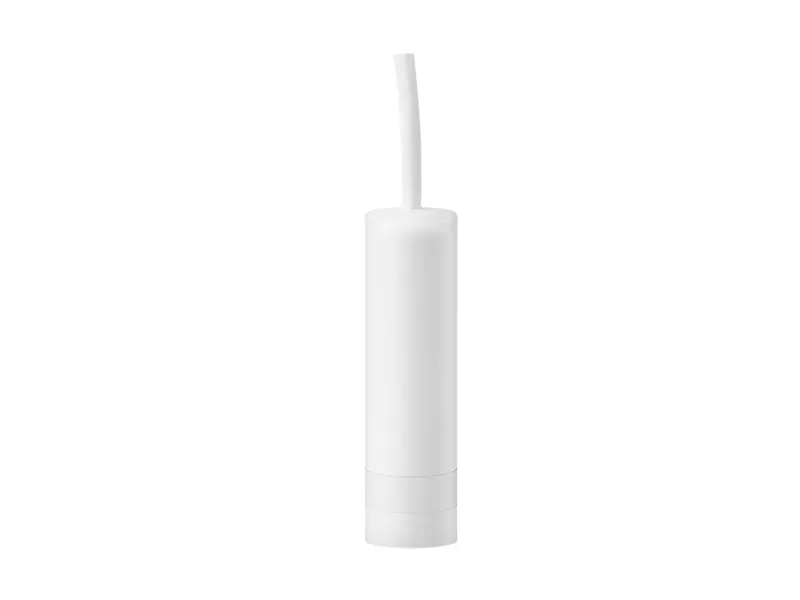

LFT3080 Ant-corrosion Liquid Level Transmitter uses an anti-corrosion ceramic core as the measuring element, and the outer shell is made of corrosion-resistant plastic material. The vented cable uses special anti-corrosion liquid level wires made of PTFE, which is mainly used for liquid level measurement of corrosive media such as acids and akalis. The Transmitter has been reliably sealed at the connections of the shell, wires and other key links, ensuring that the product has good sealing properties. It is widely used in chemical industry, environmental protection, medicine, industrial process control and many other fields.
Adopt high precision and high overload capacity ceramic core.
Excellent corrosion resistance.
The cap is removable, prevent accidental damage to the membrane, easy regular cleaning.
The shell adopts multiple protection and sealing design.
| Meaurement Range | 0~1…200mH₂0 | ||
| Overload Pressure | 1.5 times of rated pressure | ||
| Accuracy① | ±0.5%F.S ② ±1%FS ③ | ||
| Stability | <0.5%F.S/year | ||
| Working Temp | -10~70℃ | ||
| Storage temperature | -10~70℃ | ||
| Measured medium | Fluids compatible with ceramics, polytetrafluoroethylene (PTFE), fluorine rubber (FKM), perfluoroether rubber (FFKM) | ||
| Electrical Properties | 2 wired | 3 wired | 4 wired |
| Output Signal | 4~20mA | 0~10V | RS485 |
| Power Supply | 10~36VDC | 15~36VDC | 10~36VDC |
| Electrical Connection | Cable outlet | ||
| Pressure Connection | Throw in/M20*1.5 Installation method | ||
| Enclosure Protection | IP68 | ||
| Pressure Form | Guage G | ||
①: Measured at 25℃, combined accuracy including inearity, repeatability and hvsteresis.
②: Accuracy of ±0.5%E.S when range is greater than 2mH₂0.
③: Accuracy ±1%F.$ when range is less than or equal to 2mH₂0.
