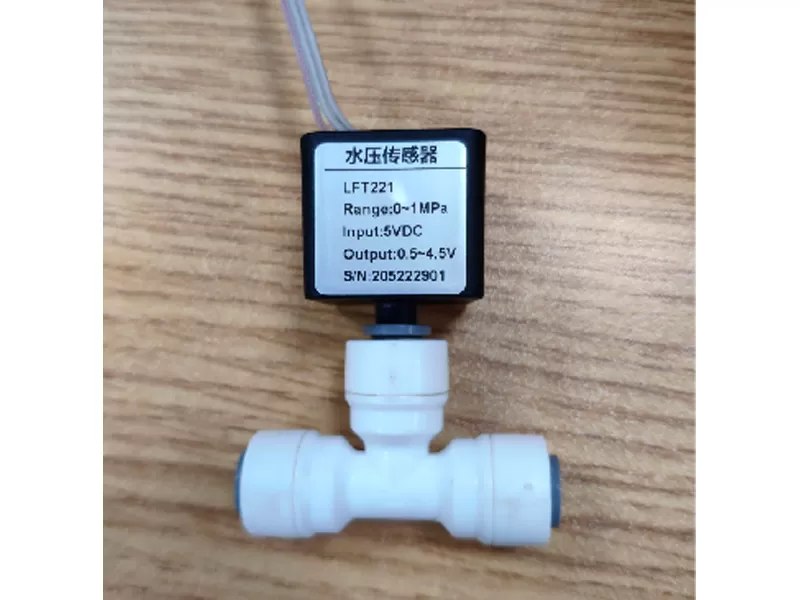

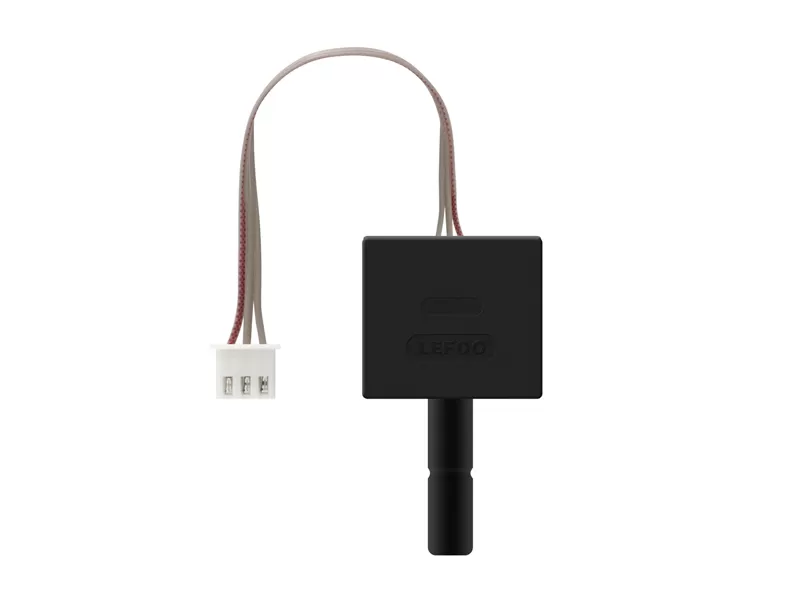

LFT221 water pressure transmitter adopts plastic shell structure, high-precision pressure core, and proportional output voltage signal. This product is mainly used in the water treatment industry and has the characteristics of small size, light weight, compact structure and good stability.
Adopt high-precision ceramic core with good performance.
The product is smalland beautiful, and can be installed quickly.
Compact structure with good stability.
Measurement Range | 0~1MPa(Normal pressure section) |
Overload Pressure | 2 times of rated pressure |
Burst Pressure | 3 times of rated pressure |
Accuracy | ±2.0%F.S |
Output Mode | Voltage type(3-wired) |
Power Supply | 4.75~5.25VDC |
Output Signal | 0.5~4.5V(Proportional output) |
Working Temp | 0℃~60℃ |
Storage Temp | -20℃~85℃ |
Medium | Various fluids without corrosion to PA66, ceramics, EPDM |
Load Resistance | ≥14.5KQ |

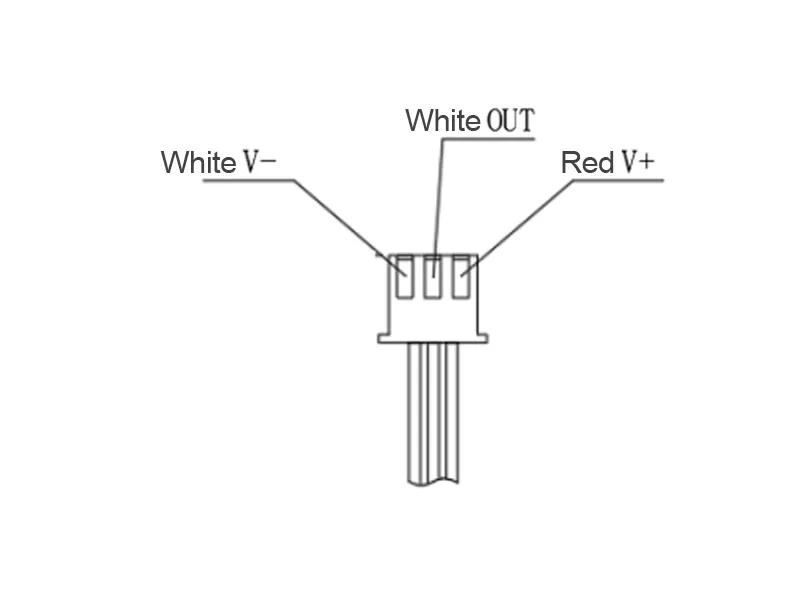

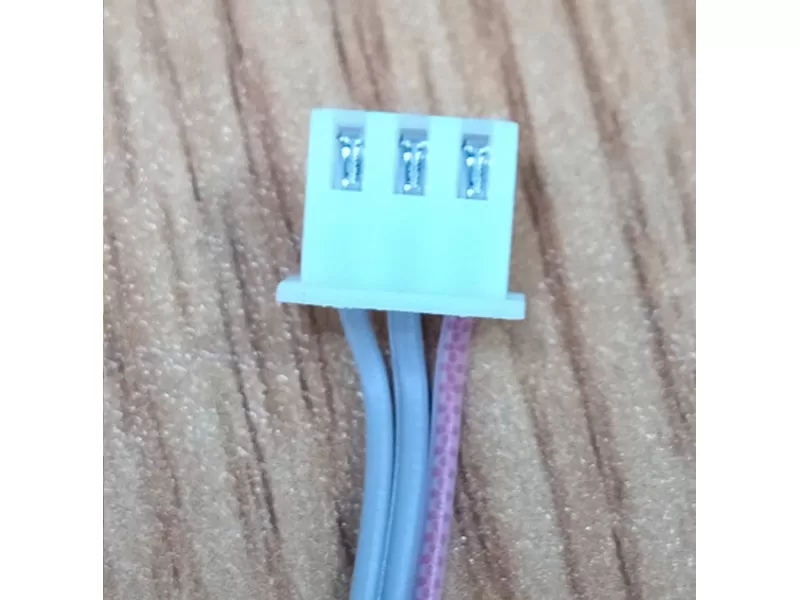

Electrical Connections | 3 core 2.54mm spacing Terminal |
Enclosure Protection | IP65 |
Pressure Connection | 1/4"PE pipe quick connector |
