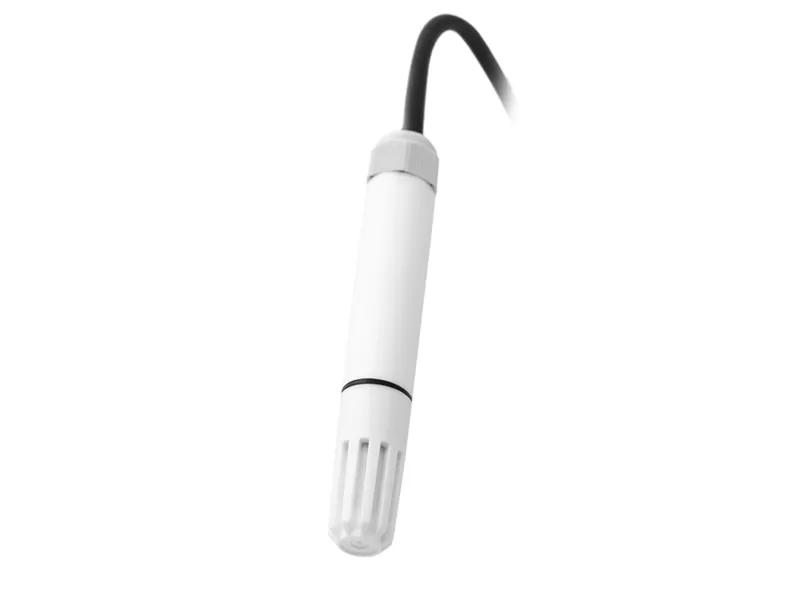

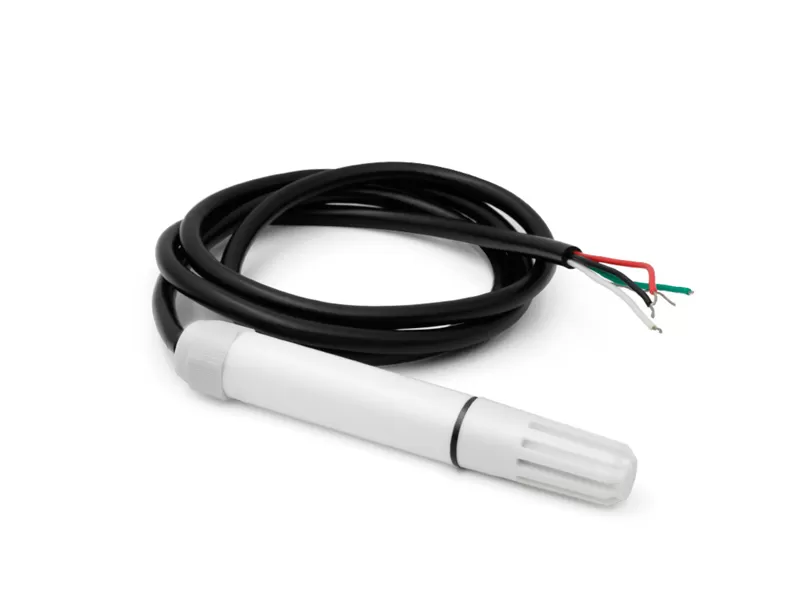

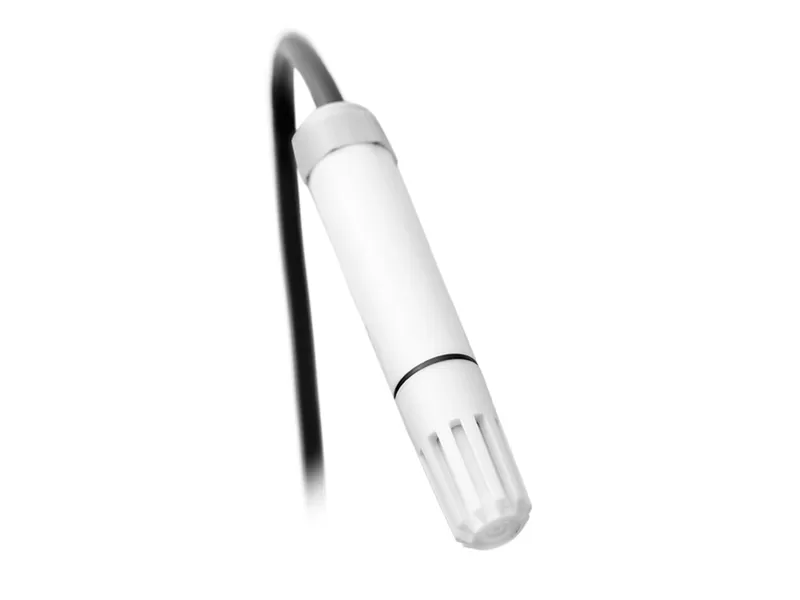

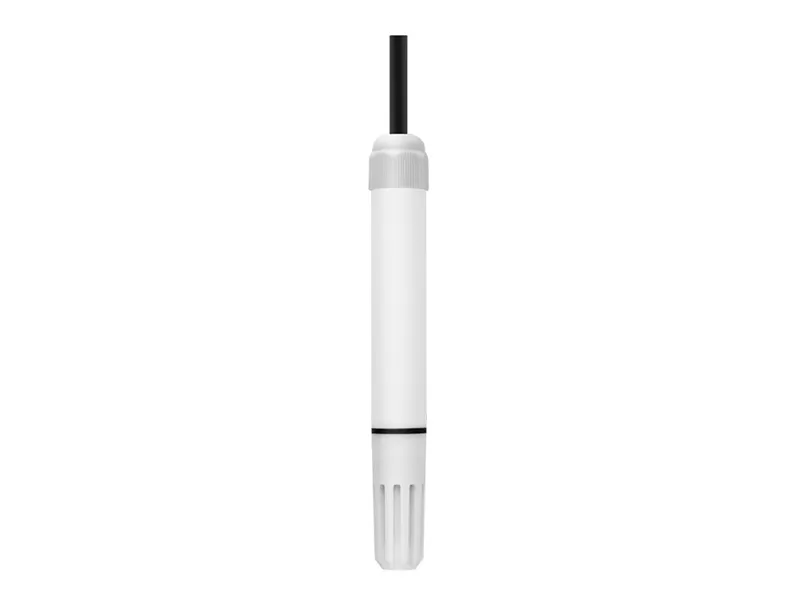

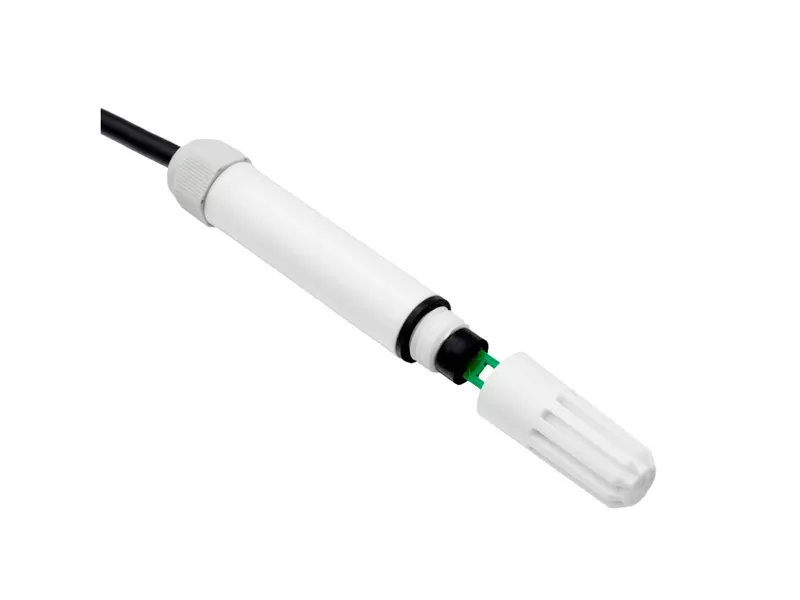

LFH51 Temperature and Humidity Transmitter adopts high-precision digital probe, which has good long-term stability and anti-interference ability, small size, simple installation and easy operation. There are two output modes of voltage and RS485 to choose from. It is widely used in ventilation ducts, industrial workshops, warehouses and other places that need to measure temperature and humidity.
Small size, easy installation.
Power supply and output with overvoltage protection and reverse polarity protection.
12-36VDC wide range power supply.
High protection grade design, up to IP65.
1) Relative humidity
Sensor | Digital |
Measurement Range | 0%~100% |
Output | RS485/Modbus, 0~10VDC |
Accuracy | ±3%@20℃ & 60%RH |
2) Temperature
Sensor | Digital |
Output | RS485/Modbus, 0~10VDC |
Accuracy | ±0.3℃@20℃ see the Table below |
Power Supply | 12-36VDC |
Shell Material | PC shell |
Working Environment | -40~85℃, 5%-95%RH(Non-condensing) |
Protection Level | IP65 |
