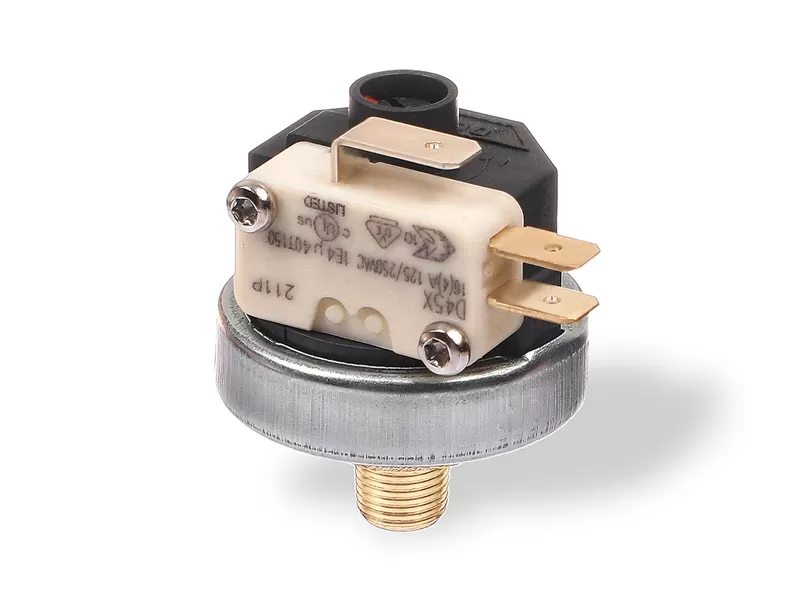

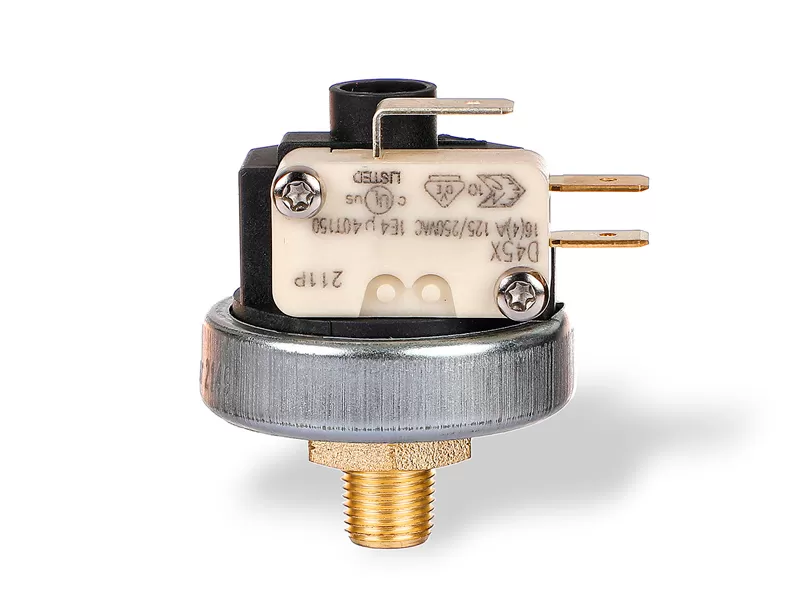

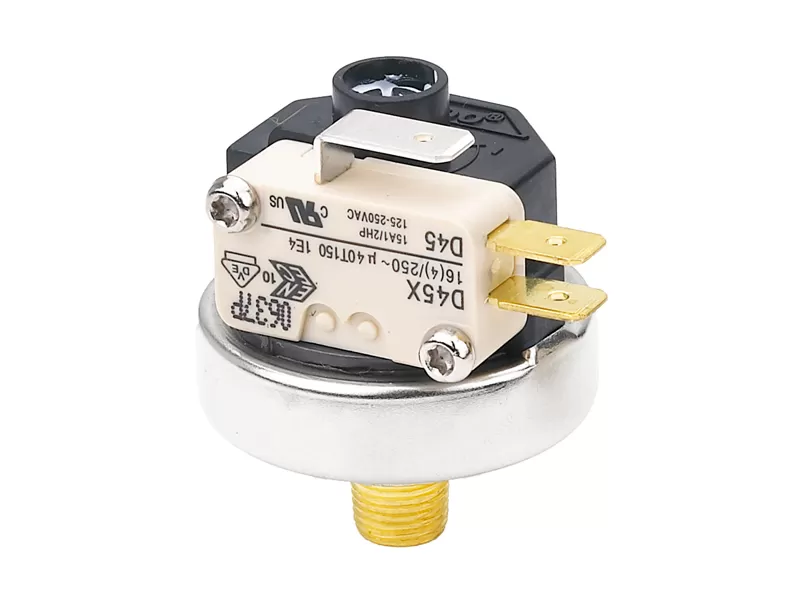

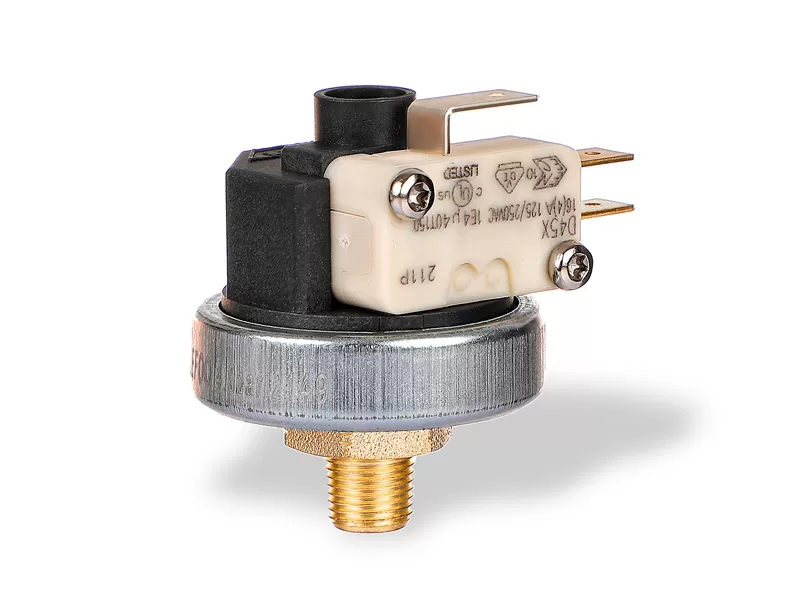

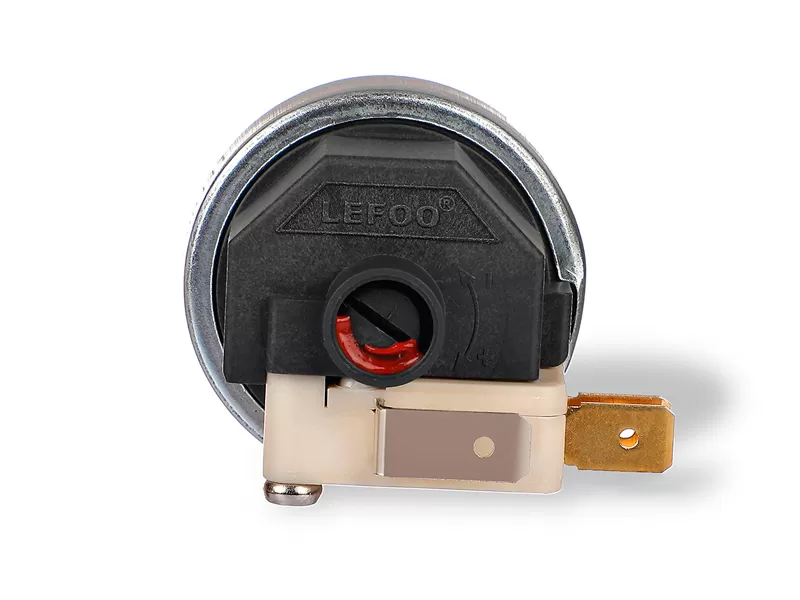

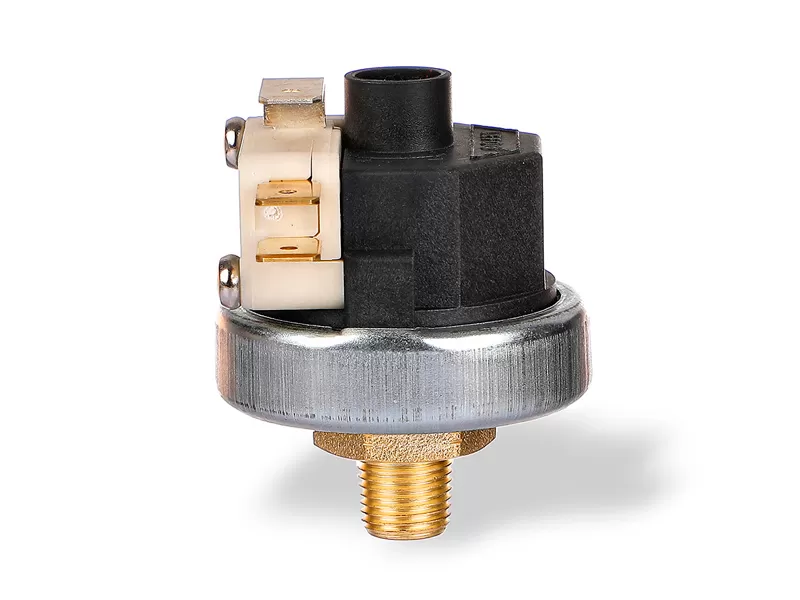

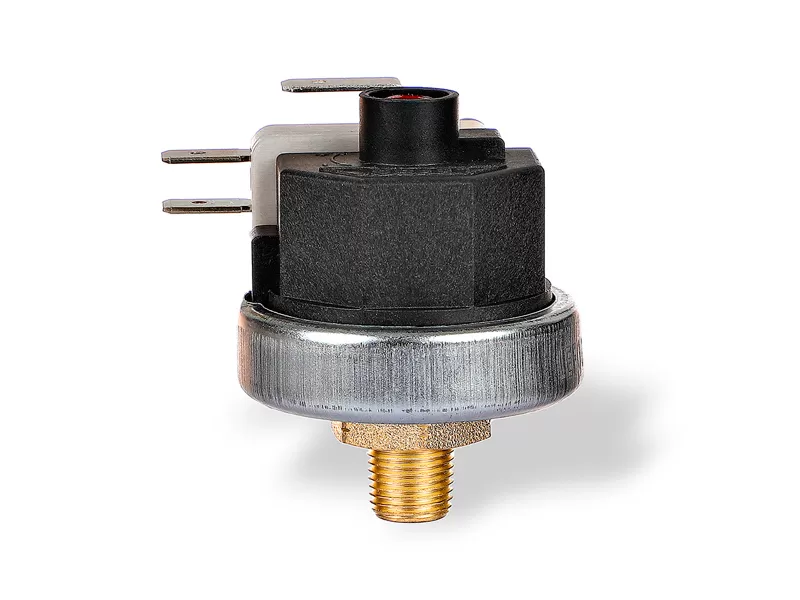

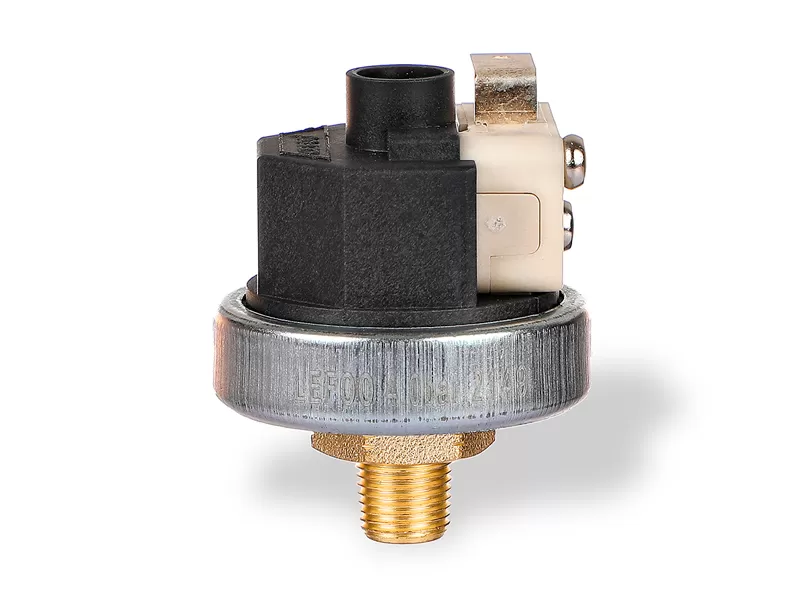

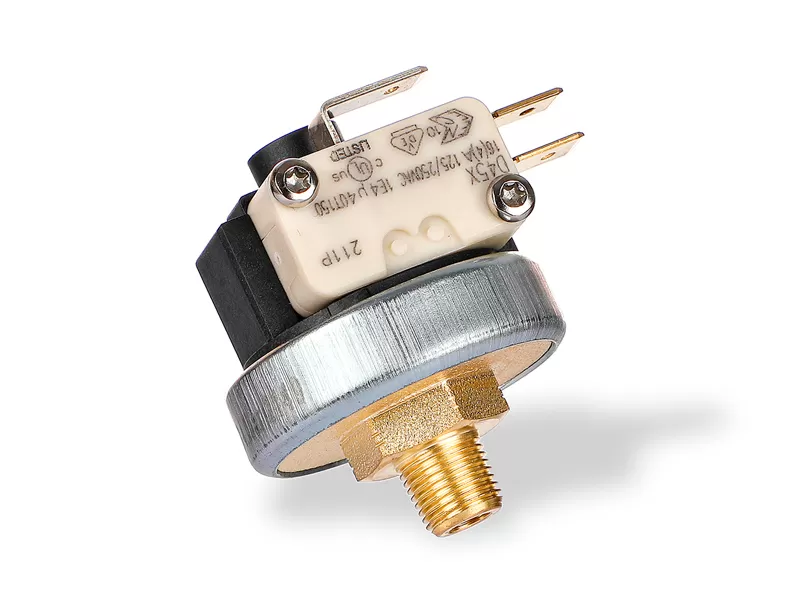

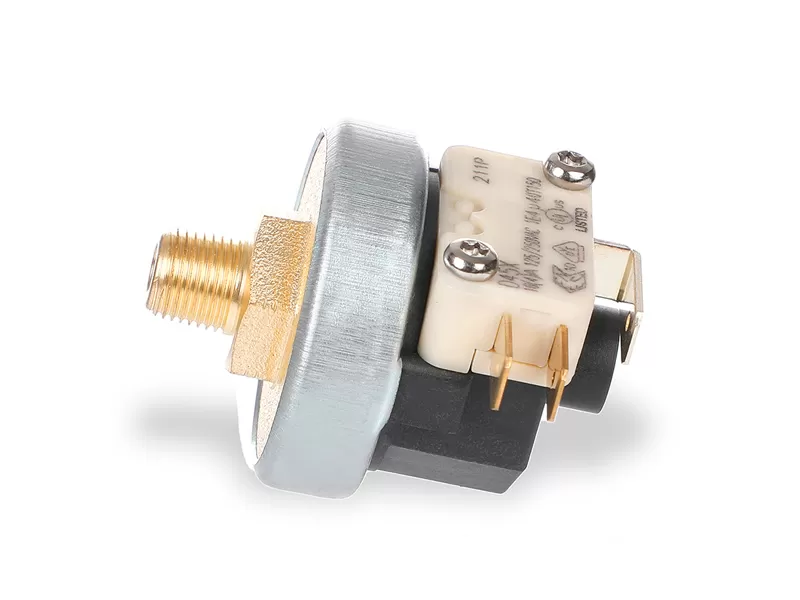

LF25 pressure switch s designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron and other pressure control system. It provides SPST or SPDT contact form and switch deadband(also referred to as mechanical differential or hysteresis). LF25 switch utilize high- quality miniature snap-action switches. The switch is diaphragm operated. Duringthe development of a specification, actuation point can be adjusted by the designer. In production, factory settingis required.
Model | LF25 | |||||
Media | Non hazardous gas, liquid or steam | |||||
Operating Pressure | 0.2-0.6bar | 0.5-1.0bar | 1.0-2.5bar | 2.0-4.0bar | 3.0-7.0bar | 5.0-9.0bar |
Proof Pressure | 3bar | 3bar | 10bar | 10bar | 10bar | 10bar |
Opeating Temperature Range | +125℃ Maximum | |||||
Contact Arrangement | SPST or SPDT | |||||
Electric Rating | SPST or SPDT/Normal Close: 16(4)-250VAC(other ratings are available if necessary) | |||||
Terminal | 6.3 or 4.8mm male Q.C. Insulation cover is available if necessary | |||||
Connection | 1/8NPT-27 or 1/4NPT-18 Male(other connection is optional) | |||||
Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi
