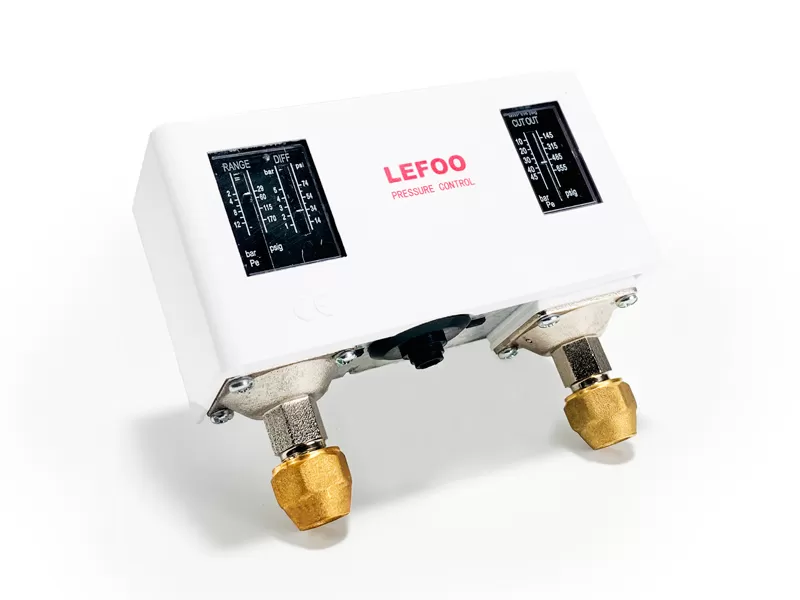

LF 58 pressure switch is an automatic control device that receives pressure signals and actuates. It is usually used to control the start and stop of compressors and fans in refrigeration systems. lt can also be used in water pumps, fire protection, boilers, hydraulics, ironing and other devices as a safety protection.
General | Value |
Medium | R22, R134a, R404A, gas, etc. |
Contact method | SPDT |
Electrical parameters | 240VAC/FL8A LR48A 120VAC/FL16A LR72A |
Contact material | Moving contact: covered with silver; Static contact: full silver |
Temperature range | Ambient temperature: -20~65℃, Medium temperature: -40~120℃ |
Withstand voltage | 2000V for 1minute without breakdown |
Maximum mounting torque | 2 N · m |
Cable connection | 6-14mm diameter cable gland |
