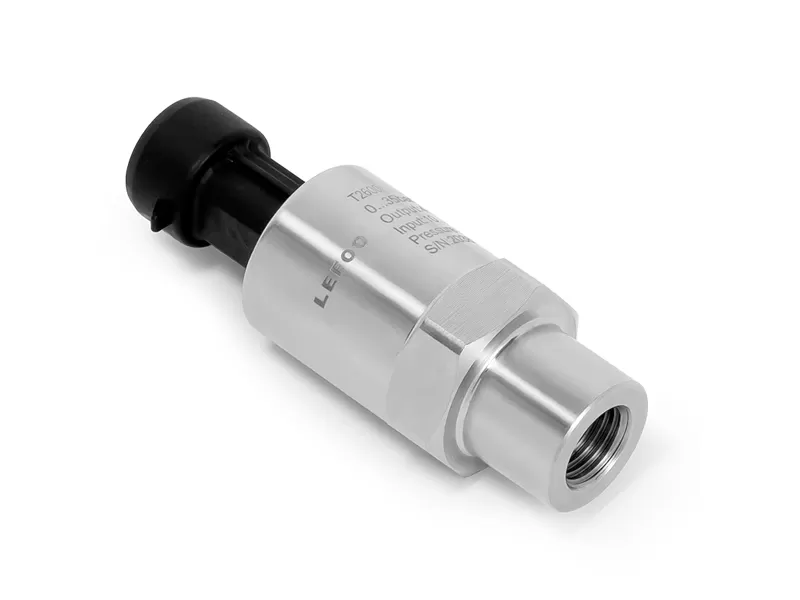

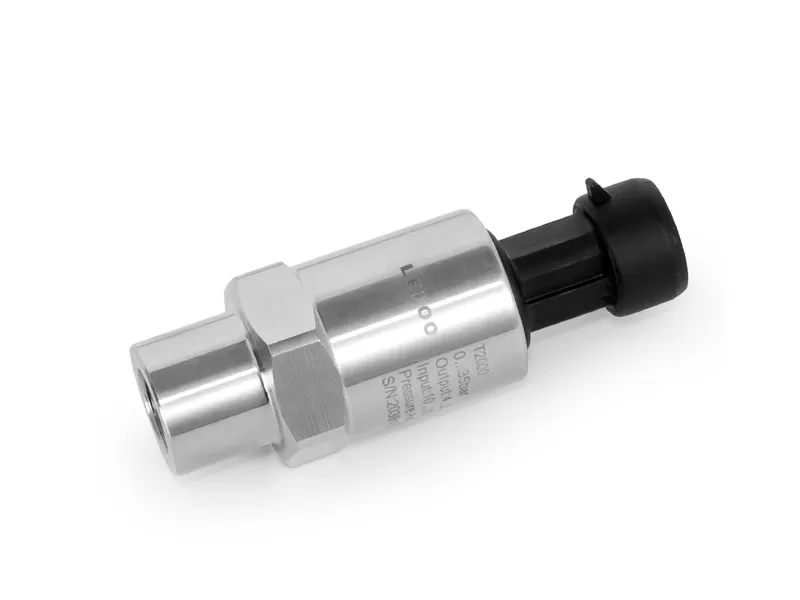

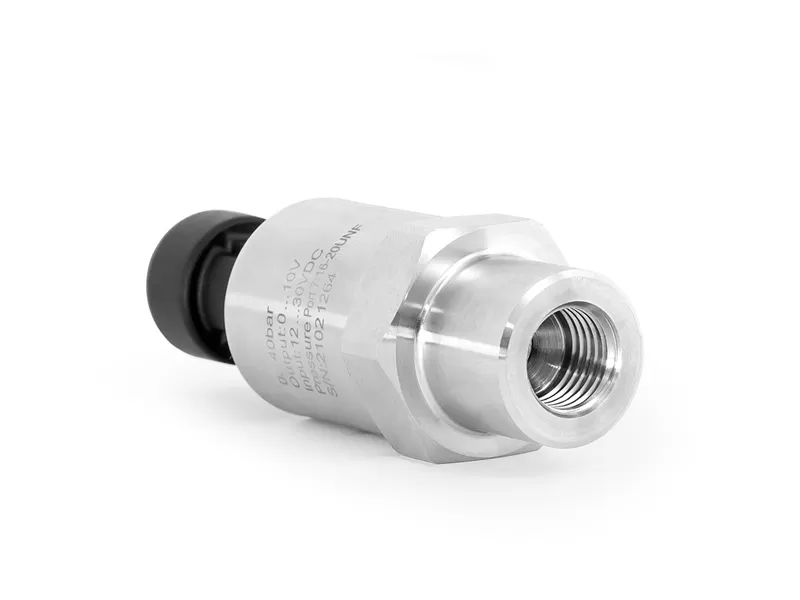

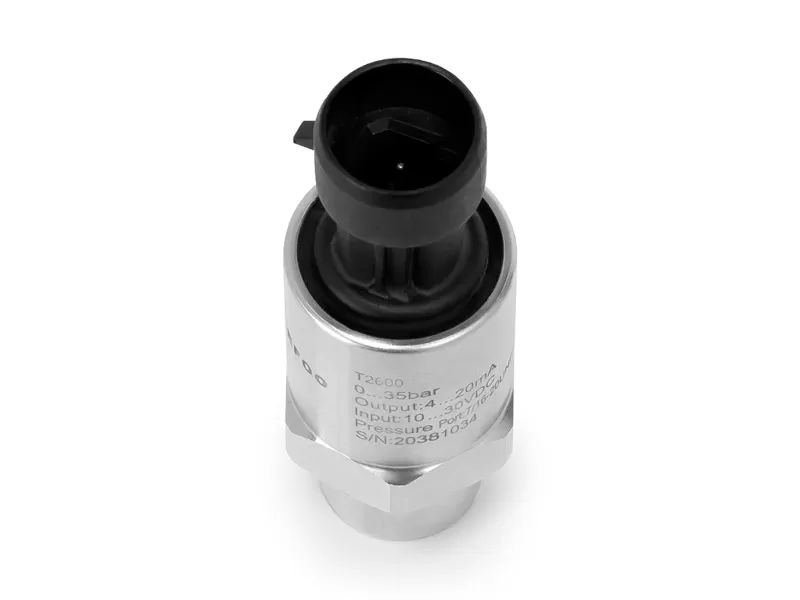

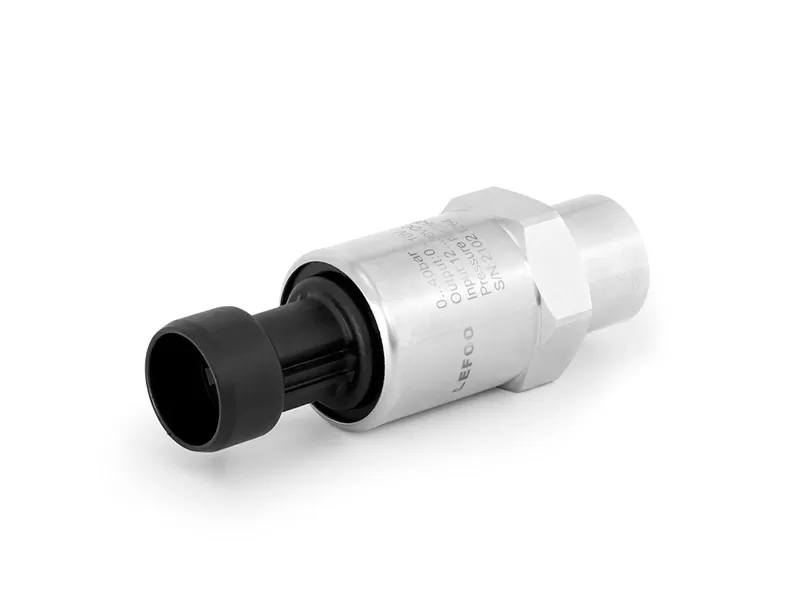

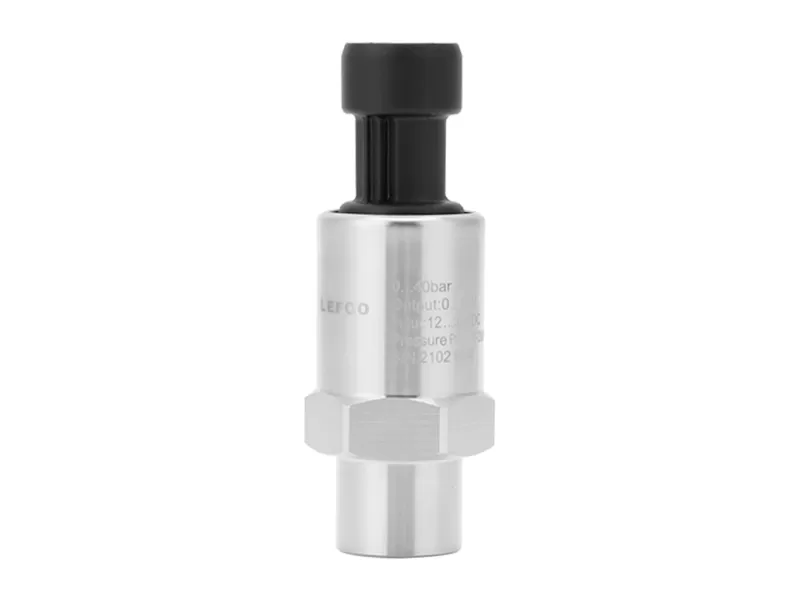

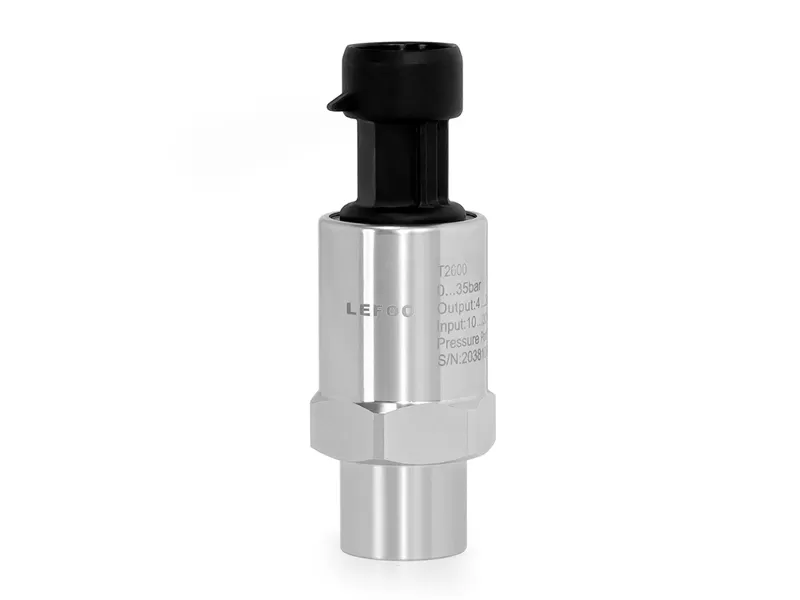

LFT2600 refrigeration pressure transmitter adopts a high-performance pressure-sensing core, and with advanced circuit processing and temperature compensation technology to convert pressure changes into linear voltage signals. The product is small in size, easy to install, adopts stainless steel shell or isolation and anti-corrosion, and has a wide operating temperature range. It is suitable for measuring gas and liquid and other media that are compatible with the materials in contact with it. It is widely applied in the medium pressure measurement of air conditioning, refrigeration, cooling systems and other test systems.
Adopt special thimble structure design.
High protection grade and smallsize.
Suitable for refrigerant medium, such as R22, R134a, R404a, etc.
Strong overload and anti-environmental interference ability, economical, practical and stable.
Measurement Range | 0~50Bar |
Max Overload Pressure | 1.5 times of measurement range |
Accuracy | ±2.0%F.S(-30~120℃)/±0.8%F.S(-40~40℃) |
Working Temp | -40~120℃ |
Storage Temp | -40~120℃ |
Power Supply | 4.75~5.25VDC |
Output | 0.5~4.5VDC |
Measured Medium | Gas or liquid compatible with 1Cr18Ni9Ti, 304 stainless steel and hydrogenated nitrile rubber or neoprene rubber |

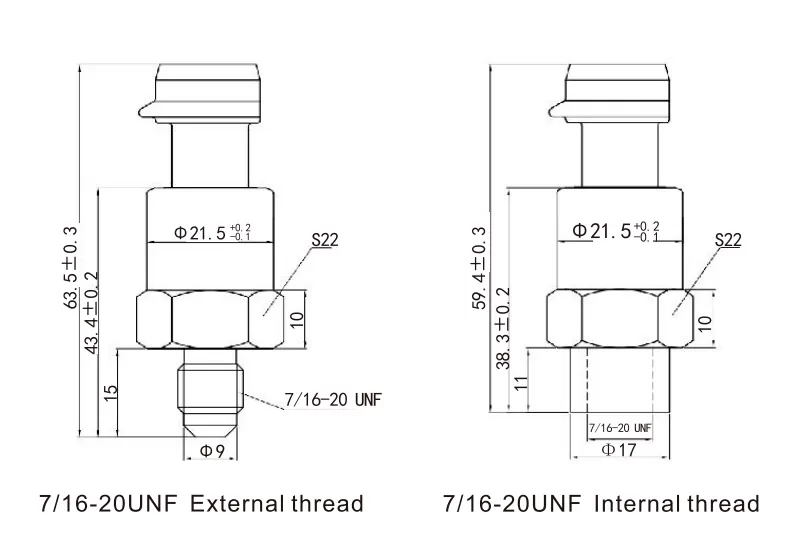

Pressure Connecton | 7/16-20UNF internal thread/7/16-20UNF external thread |
Electrical Connection | Packard |
Pressure Form | Gauge Pressure G |
Enclosure Protection | IP67 |
Certification | RoHS,EU electrical safety standard CE |
