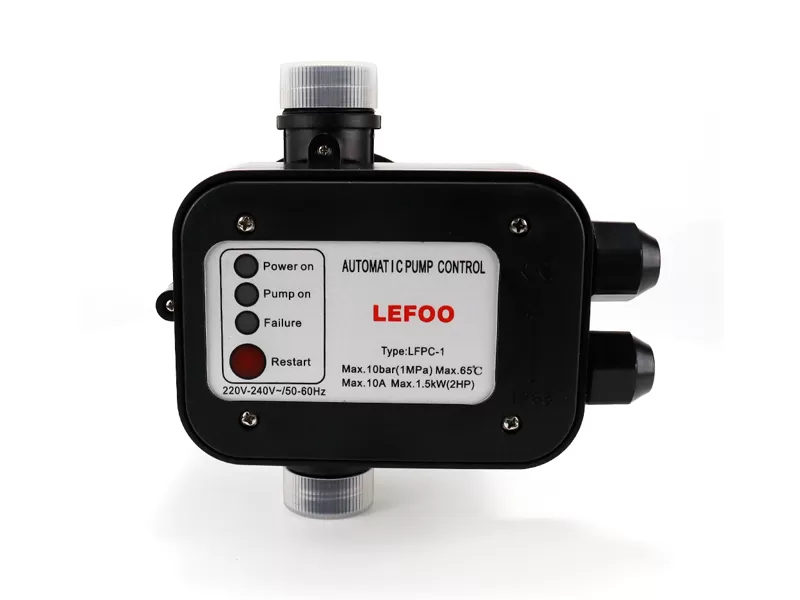

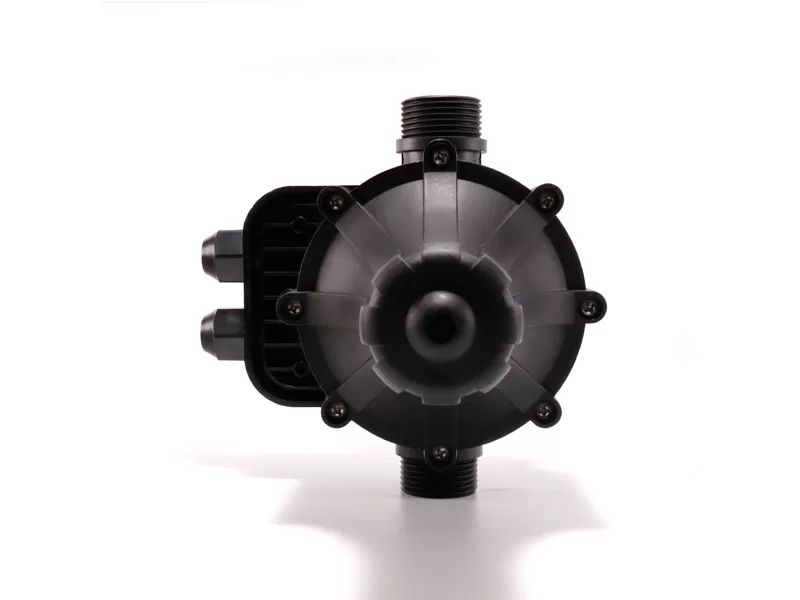

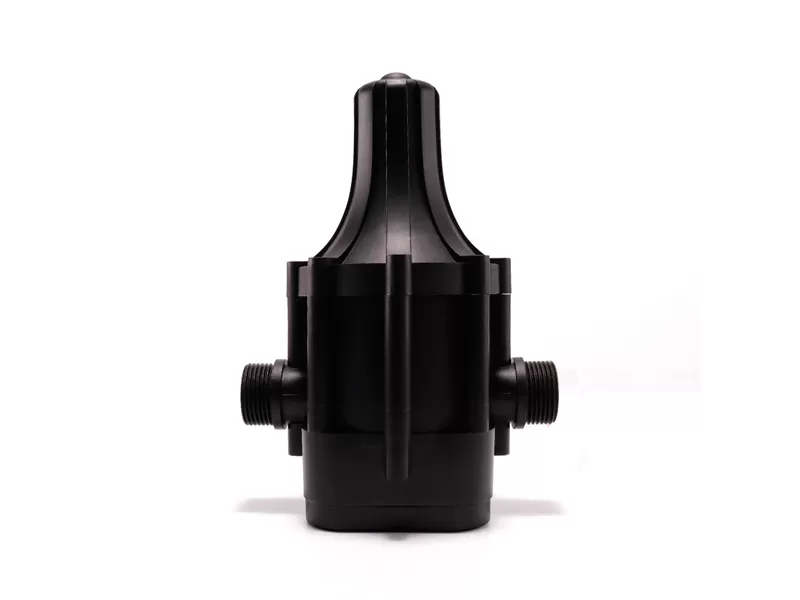

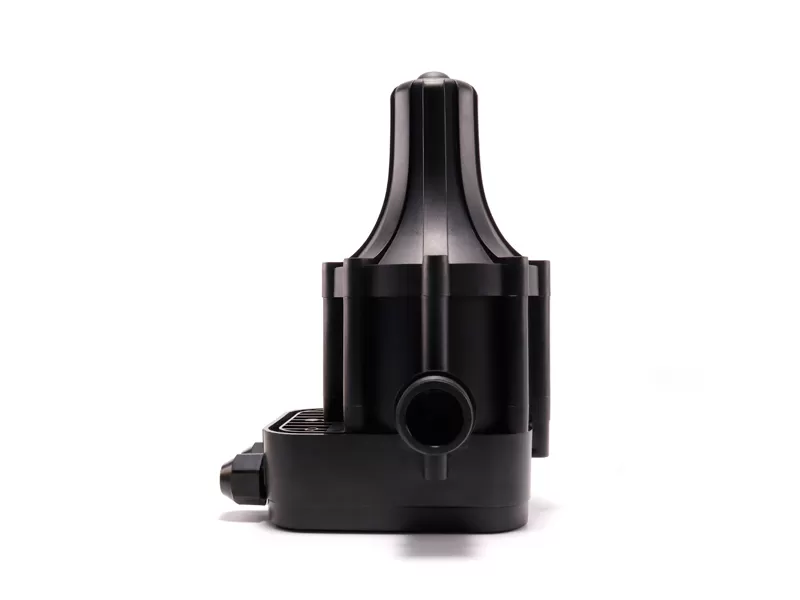

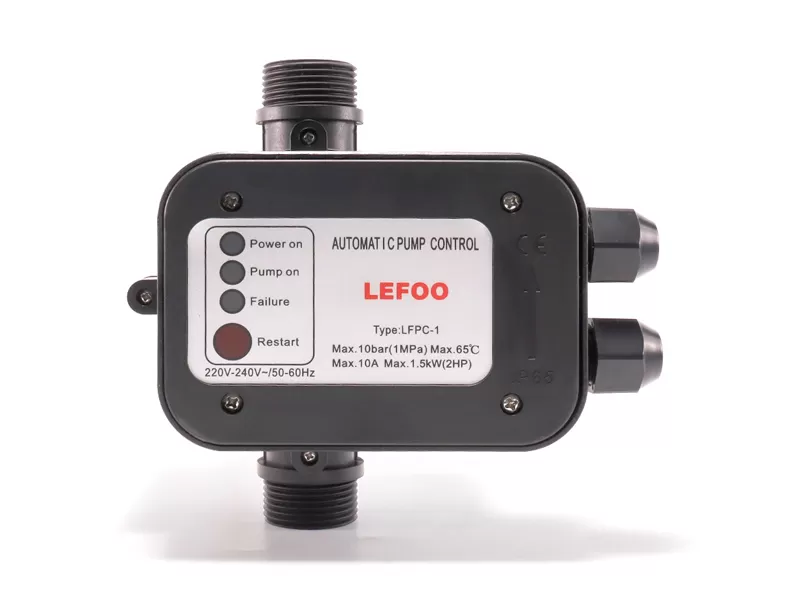

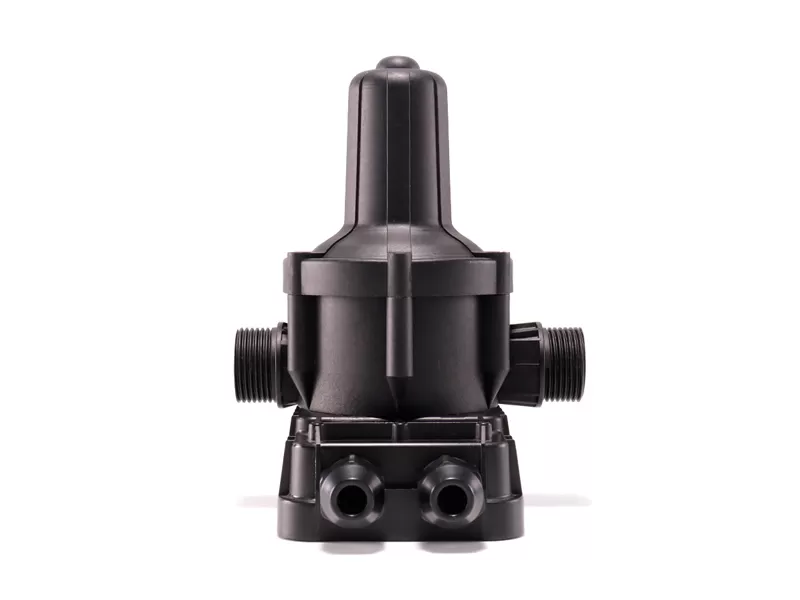

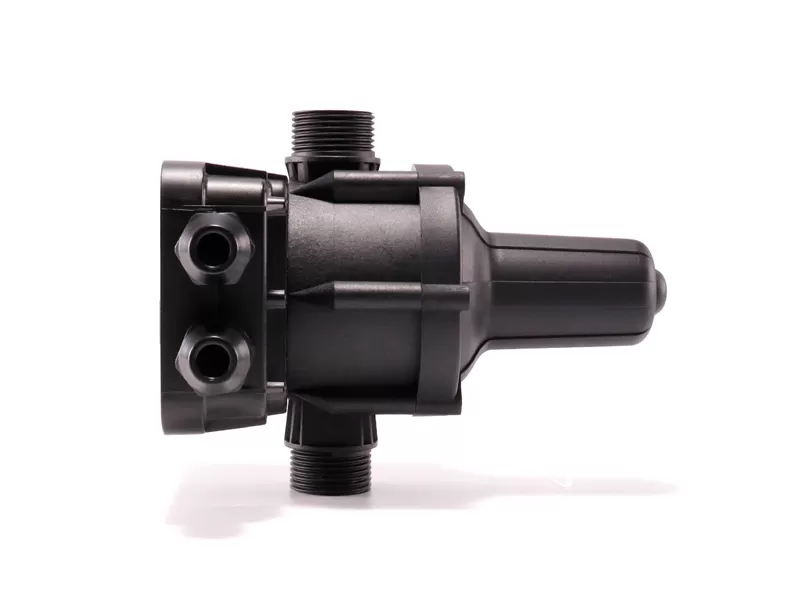

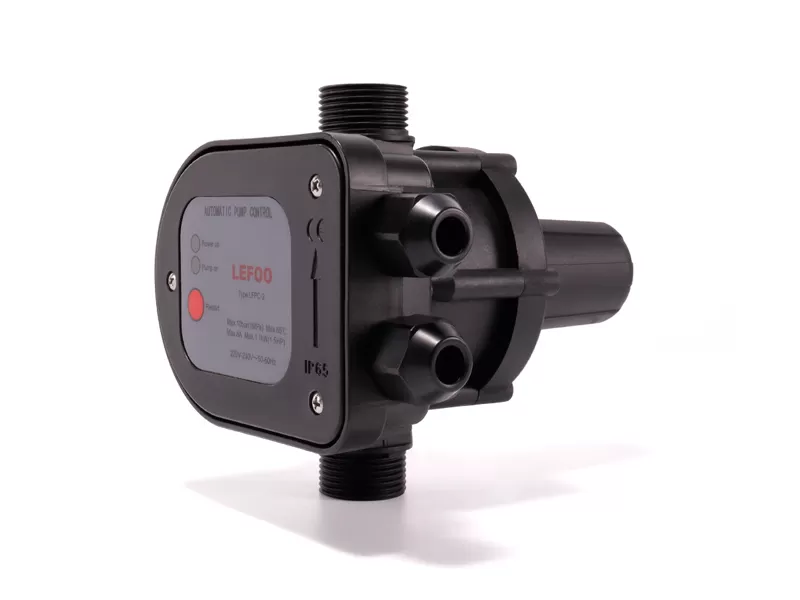

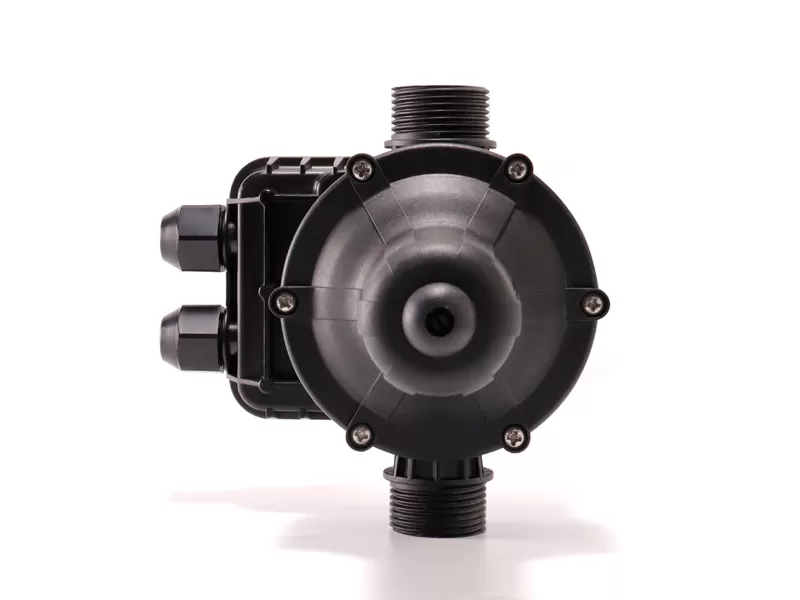

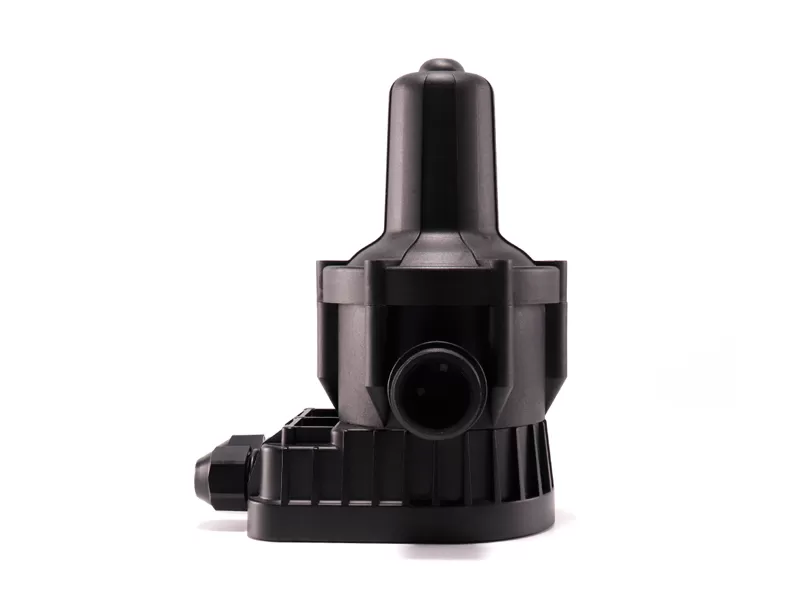

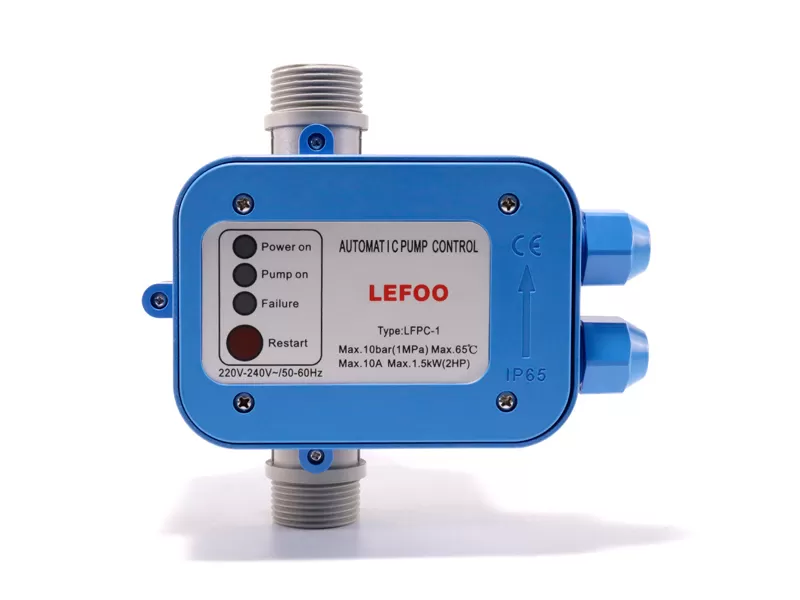

LFPC-1
Pump Automatic Controller

get a quote get a quote

Automatic water pump controller is the electronic intelligent water pump control equipment, which can completely replace traditional strong power control system composed of pressure tank, pressure switch, water shortage protection device, check value and four ports, also saving time and material when instal lation. Control cabinet with complete isolation of electric part and pipe and high sealing make controller own characteristics of safety, environmental protection, long life, stable performance, less maintenance and no noise, which is better than traditional pressure and preferred by family.

  • Setting pressure is not adjustable.

  • Need to install on water pump with power greater than 200W.

  • Don't install any faucet between controller and pumps.

  • The distance between controller and the highest faucet shouldn't exceed 15M.

Parameters
Dimension

Parameters

ModelLFPC-1
Rated voltage220-240VAC
Maximum working pressure10bar
Frequency50-60Hz
ConnectionR1"
Maximum current8A
Protection levelIP65
Maximum power1.5kW(2HP)
Maximum operating temperature65℃
Factory setting1.5bar, stop when water pressure reach 3.5bar

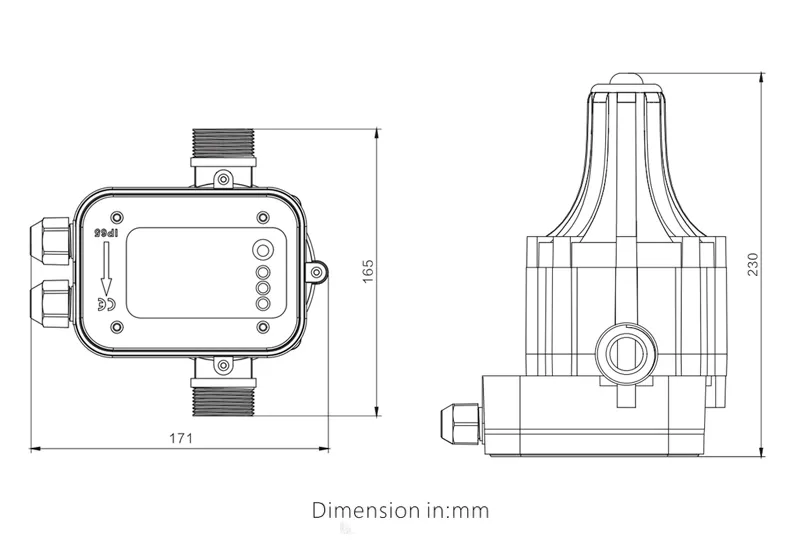

Dimension

Dimension
