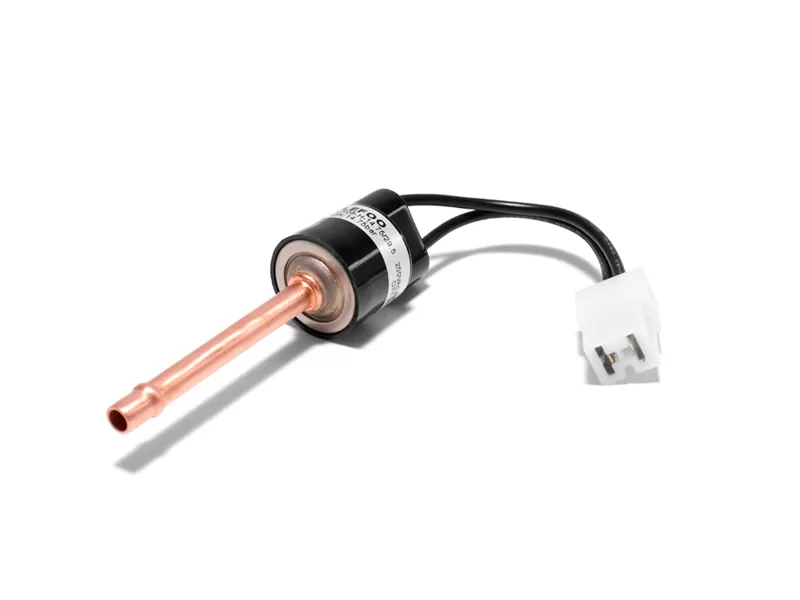

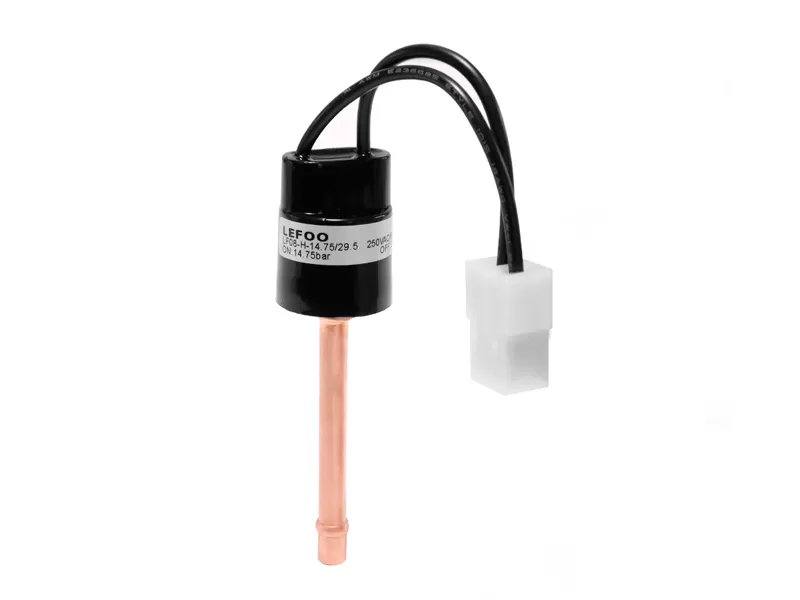

This product is generally used for cooling fans, long life can be applied to the frequent start of fan fans. This product can also meet the demand for pressure control equipment with relatively long service life requirements.
Model | LF08H | |||||
Pressure setting range(gauge pressure) | 0.02MPa to 6.5MPa; Low pressure below 1.0MPa; High pressure above 1.0MPa | |||||
Operating pressure /Tolerance/ Withstand pressure(gauge pressure) | Operating pressure value | Tolerance | Withstand maximum pressure | |||
0.02≤<0.6MPa | ±0.03MPa | 1.5MPa | ||||
0.6≤<1.0MPa | ±0.05MPa | 2.0MPa | ||||
1.0≤<2.0MPa | ±0.07MPa | 3.0MPa | ||||
2.0≤<3.0MPa | ±0.10MPa | 4.0MPa | ||||
3.0≤<4.0MPa | ±0.15MPa | 5.5MPa | ||||
4.0≤<5.0MPa | ±0.20MPa | 6.5MPa | ||||
5.0≤<6.5MPa | ±0.25MPa | 8.0MPa | ||||
Burst pressure(gauge pressure) | 34.5MPa×1min, no damage, leakage | |||||
Operating temperature | Ambient temperature | Medium temperature | ||||
Low pressure: -40℃~65℃ | High pressure: -40℃~120℃ | Low pressure: -40℃~80℃ | High pressure: -40℃~135℃ | |||
Electrical parameter | 24~250VAC/0.02~6A; 8~36VDC/0.02~3A; 600VAC/0.02~3A | |||||
120VAC/6A; 250VAC/6A(CE) | ||||||
Medium | Air, water, oil, lubricants, refrigerants and other similar hydrocarbons | |||||
Service life | Mechanical life: 100,000 | Electrical life: 30,000(CE) | ||||
Customizable for longer life | ||||||
IP level | Ip67 | |||||
Certification | CE | |||||
Conversion: 1bar=14.5psi 1MPa=10bar
