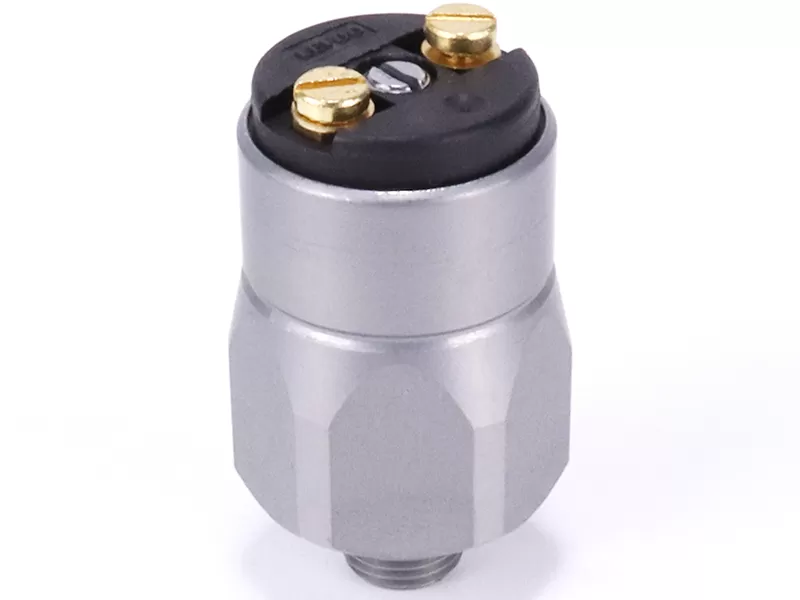

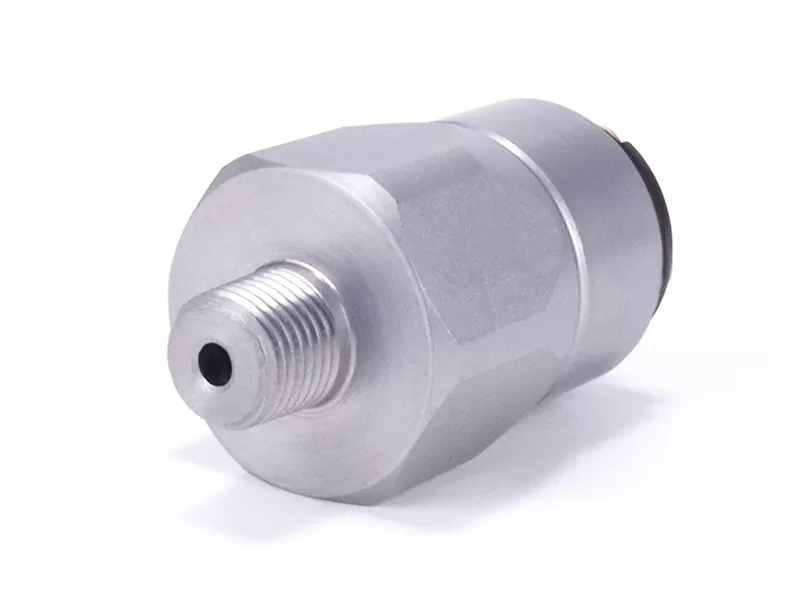

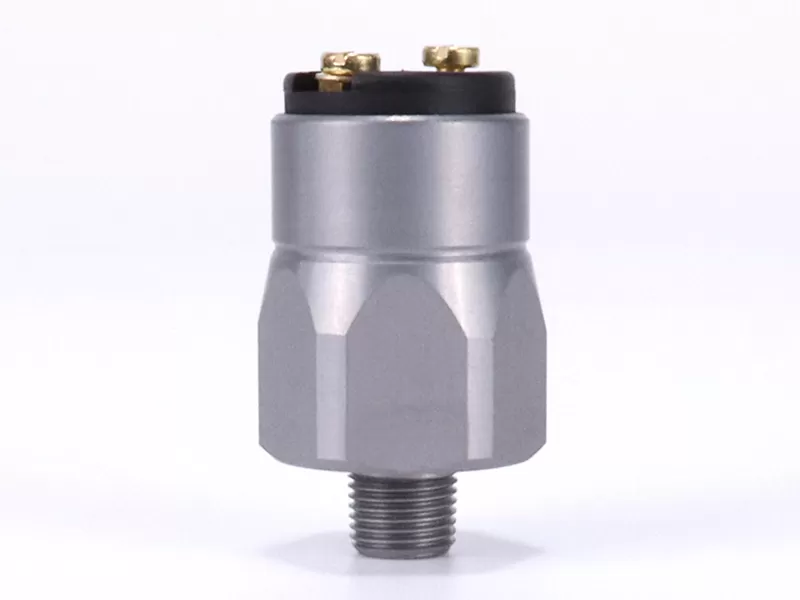

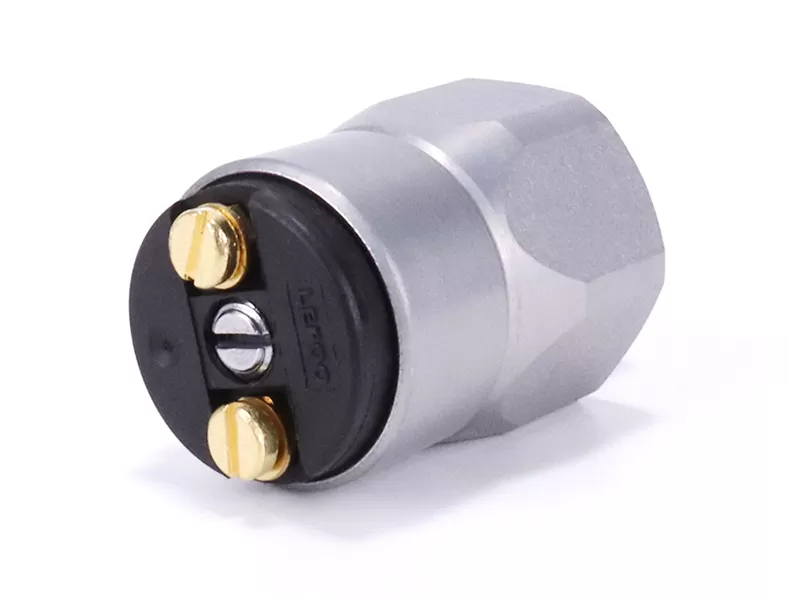

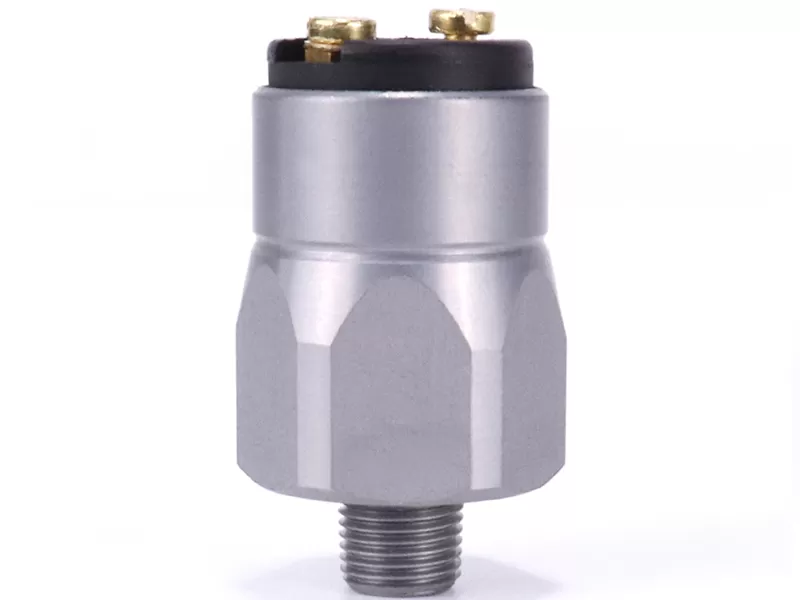

In the industrial and automotive felds, a certain pressure value is usually set for the equipment. When the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment. Which triggers awarning(such as a leak of equipment, an alarm, etc.). This is the plunger type pressure switch. The max pressure can not be exceeded to 600bar.
General | Value |
Body Material | Zinc plated steel/Stainless steel |
Contact | Silver cadmium alloy, gold plated is available |
Max Voltage | 42V/MAX100VAC |
Max Current | 4A |
Working Temperature Range | -40°C--+10℃(Different Diaphragm. |
Mechanic Life Endurance | 106 tmes |
Electric Life Endurance | 105 times |
Pollution Situation | Normal |
Protection Level | IP00(Terminal1-2), IP67(Terminal 3-8), IP65(Terminal 9) |
Upper Cover | IP54(Termial1-2) |
Side Cover | IP55(Termial1-2) |
Applicable Rule | EN60730-1 |
Max Working Pressure | 450bar |
Burst Pressure | 600bar |
Weight | ~85gr |
Conversion: 1kgf/cm=14.2psi 1bar=14.5psi
