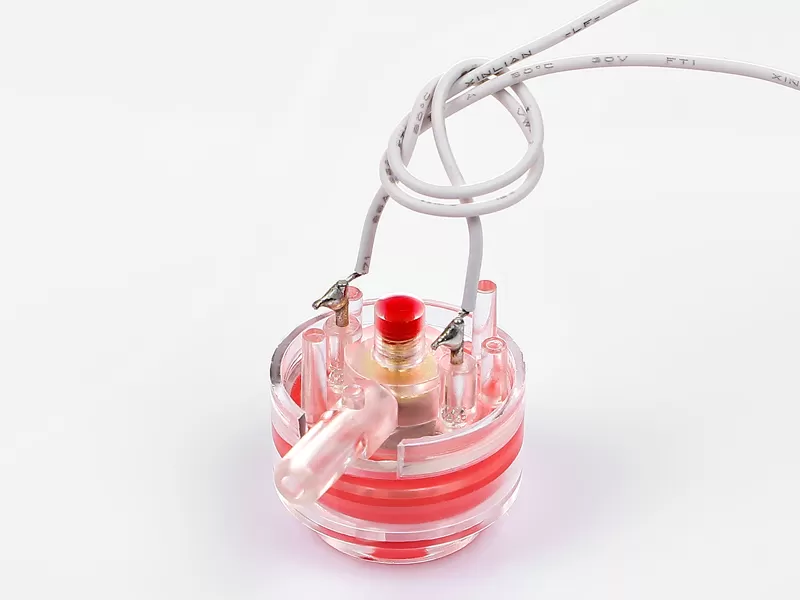

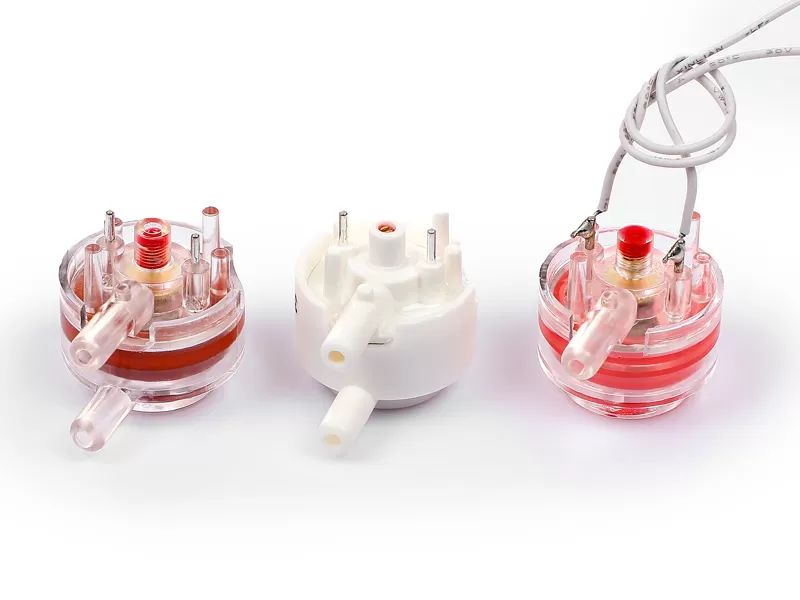

Negative and positive pressure, such as the family vacuum cleaner. The switch have many electrical connection type, such as different wire leads, terminals, socket and solder pin connection (special design for the installation of Printed Circuit Boards). It is designed as an economical interface between pressure systems and Printed Circuit Boards with no delay nearly.
Model | LFS-01 |
Media | Non-hazardous gas only |
Electrical Function | 1 pole NO |
Electrical Rating | 20mA, 125/250V~ |
Ambient Temperature | -10℃ to +90℃ |
Electrical Connection | solder pins 1.0mm, 10mm between away from each other or with different leads and terminals |
Pressure Range | Pressure: 10-800mbar; Vacuum: 10-800mbar |
Maximum Pressure | 1000mbar |
Connection | Inlet 4.0mm for tube connection |
Conversion: 1mbar=100Pa 1" W.C=249Pa
