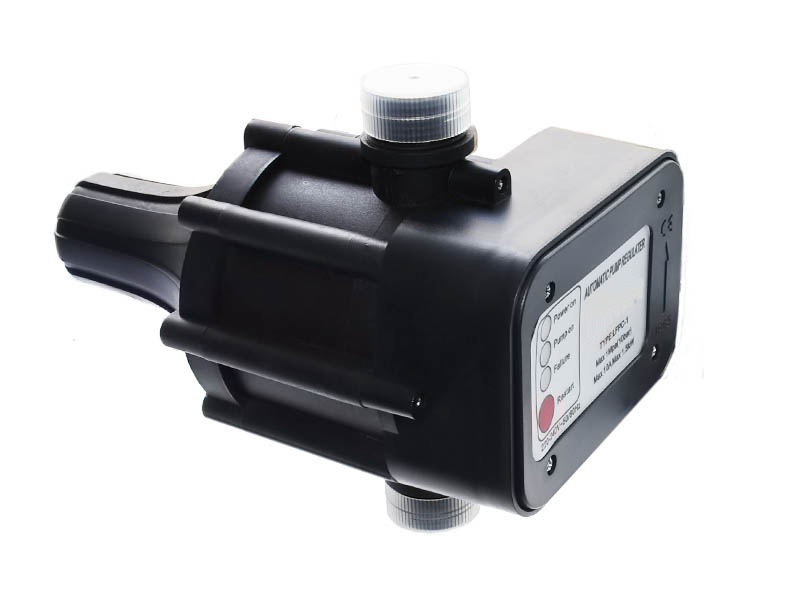

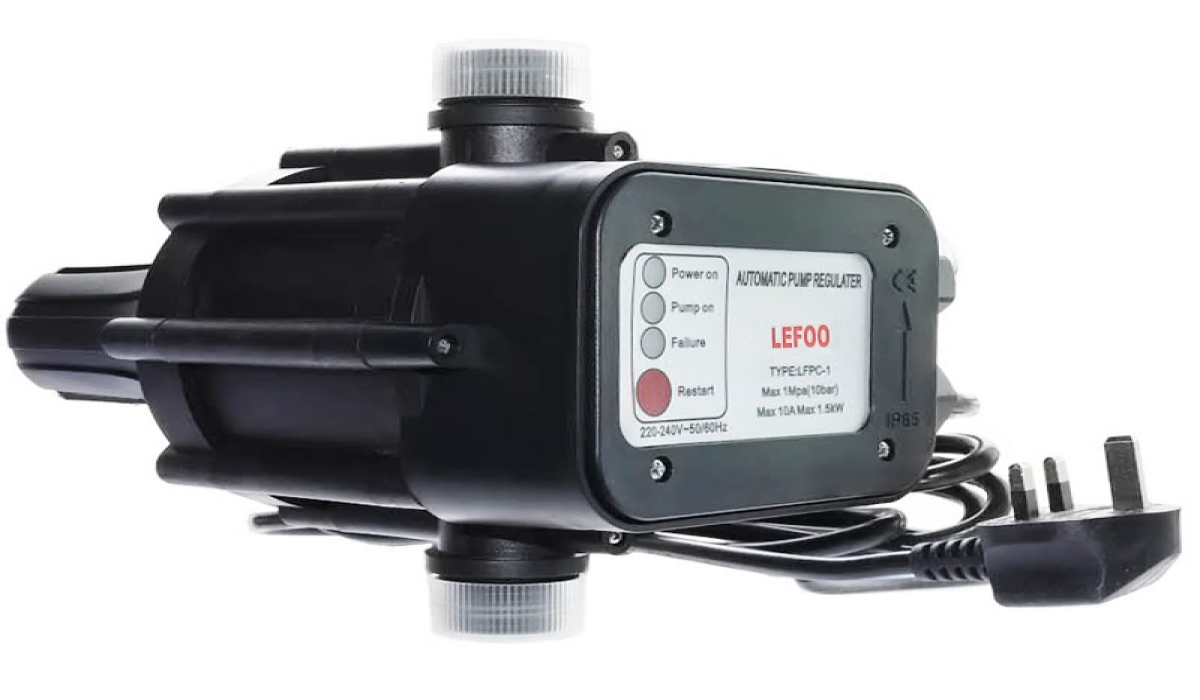

Automatic water pump controller is the electronic intelligent water pump control equipment, which can completely replace traditional strong power control system composed of pressure tank, pressure switch, water shortage protection device, check value and four ports, also saving time and material when installation.
Control cabinet with complete isolation of electric part and pipe and high sealing make controller own characteristics of safety, environmental protection, long life, stable performance, less maintenance and no noise, which is better than traditional pressure and preferred by family.
Specification
| Rated voltage | 220-240VAC |
| Maximum working pressure | 10bar |
| Frequency | 50-60Hz |
| Connection | R1” |
| Maximum current | 8A |
| Protection level | IP65 |
| Maximum power | 1.5kW(2HP) |
| Maximum operating temperature | 65°C |
| Factory setting | 1.5bar, stop when water pressure reach 3.5bar |
