Convenient to start and stop, adjustable speed, positive reverse
High precision, low noise, quiet and stable
Support PLC control, 485 Communication

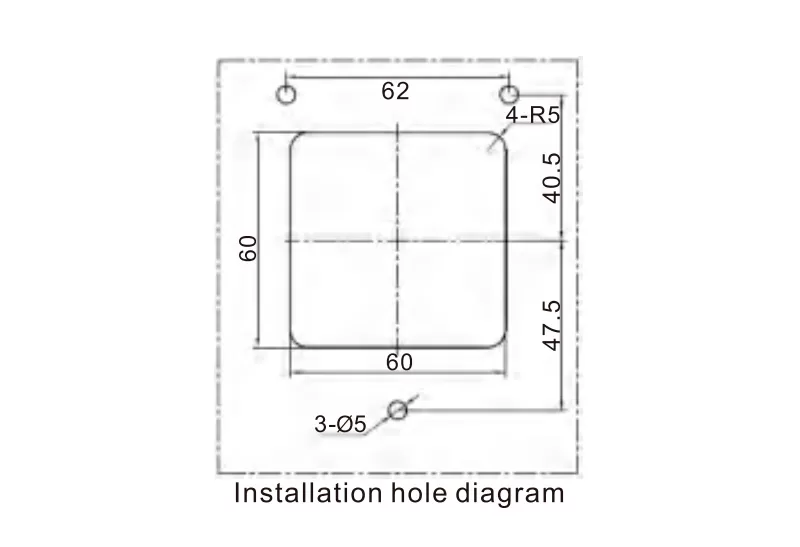

Installation method can be customized
SPECIFICATIONS | |||||||||
Model | Installation Method | Motor Type | Control Method | Function | Working Voltage | Power | Weight | Working Environment | Rollers |
P601ST | Stainless steel mounting plate as standard (customizable) | Stepper motor | Driver control (Optional with Driver PLC control) | Precise adjustable flow control | DC24V | ≤24W | 1470g | Temperature 0-45℃, Relative Humidity <85%RH | Standard with 3 rollers |
FLOW RATE: ml/min | |||
Voltage | Flow Range | Tube Size | Tube Type |
DC24V | 10～920 | 26# | BPT Tube/Silicone Tube/A60-F/Viton Tube |
10～1450 | 35# | ||
10～2050 | 36# | ||
