Support PLC control, RS485 communication.
Real-time start and stop, adjustable speed.
Positive and negative rotation.
Low noise, quiet and stable.

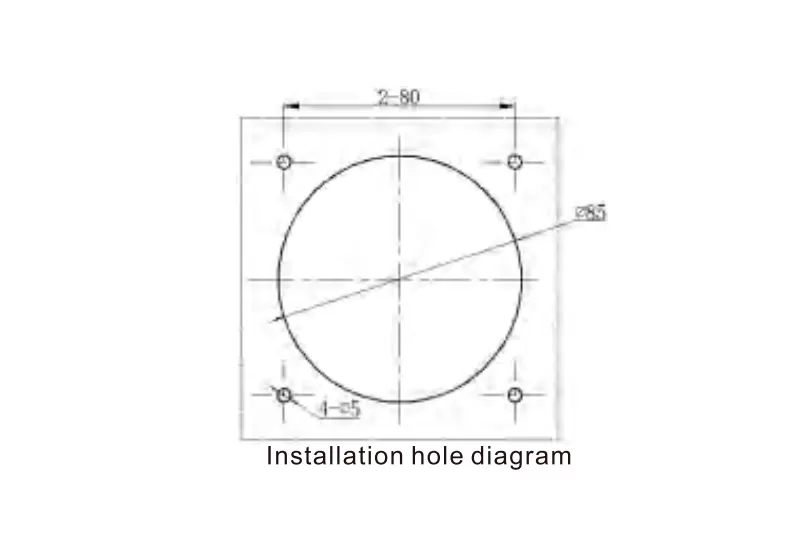

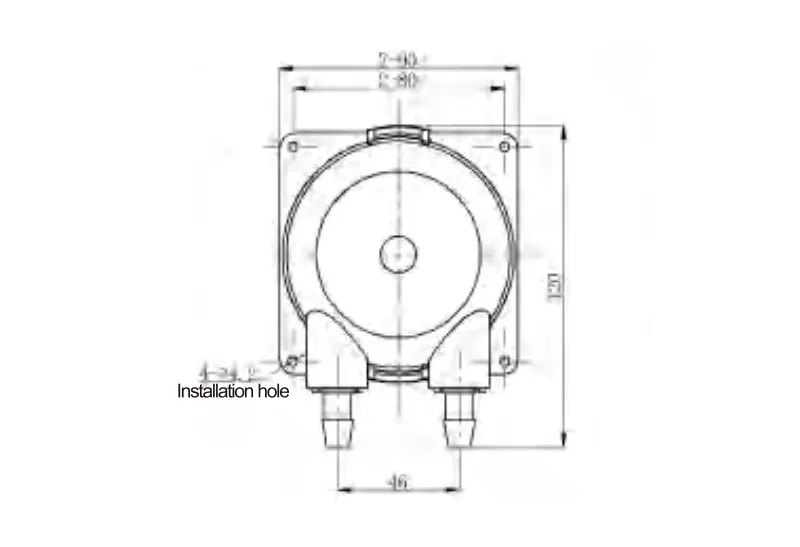

Installation method can be customized.
SPECIFICATIONS | |||||||||
Model | Instalation Method | Motor Type | Control Method | Function | Working Voltage | Power | Weight | Working Environment | Rollers |
P402ST | Stainless steel mounting plate as standard (customizable) | Stepper motor | Driver control (Optional with Driver PLC control) | Precise adjustable flow control | DC24V | ≤24W | 1400g | Temperature 0-45℃, Relative Humidity <85%RH | Standard with 2 rollers+2 training wheels |
| FLOW RATE: ml/min | |||
| Voltage | Flow Range | Tube Size | Tube Type |
| DC24V | 10～1900 | 35# | BPT Tube/Silicone Tube/A60-F/Viton Tube |
| 10～2350 | 36# | ||
