Ambient temperature | -20~+40℃ | Rated voltage: 24VDC | Insulation grade: F | IP grade: IP55 |
Medium temperature | -20~+105℃ | Voltage range: 18~30VDC | Lifetime: 5000 hours | Medium: Cool water, hot water, and other fluid |
Model | Selections | Rated voltage (VDC) | Max. Flow rate (L/min) | Max. Lift of pump(m) | Max. Current (A) | Max. Power (W) | Controls |

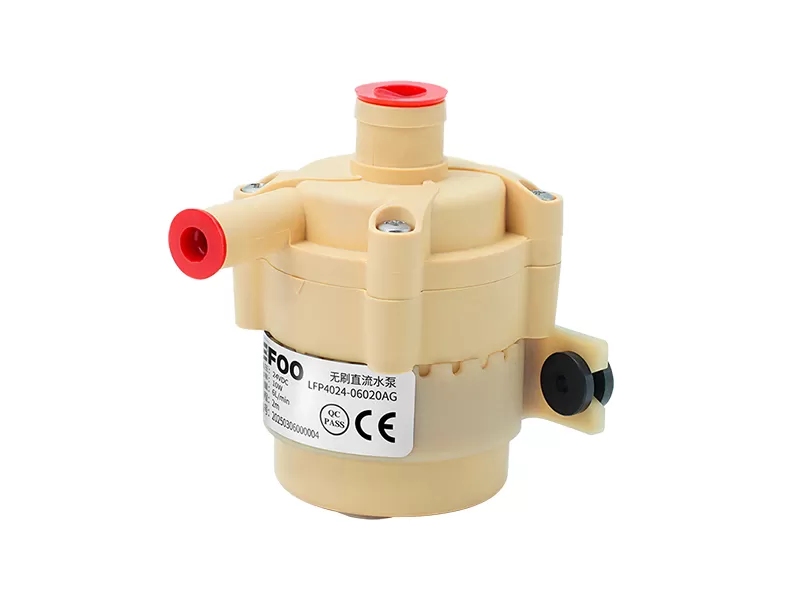

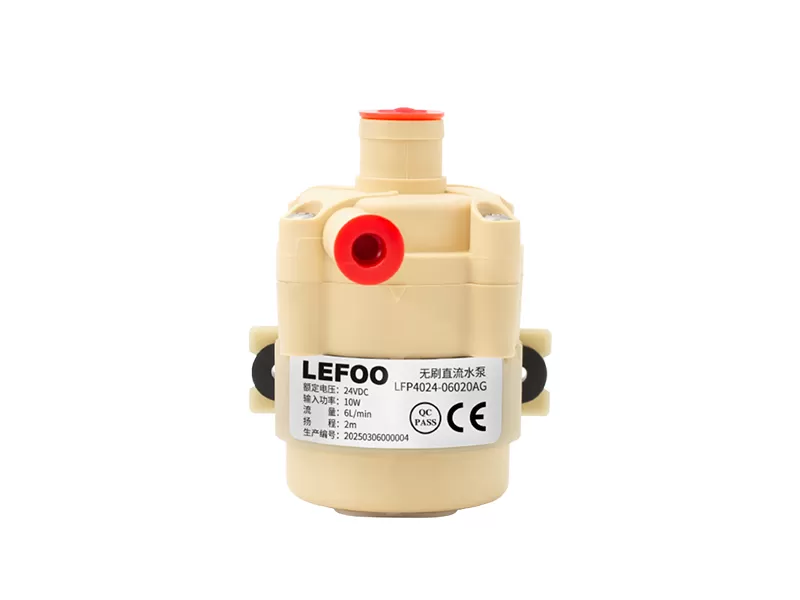

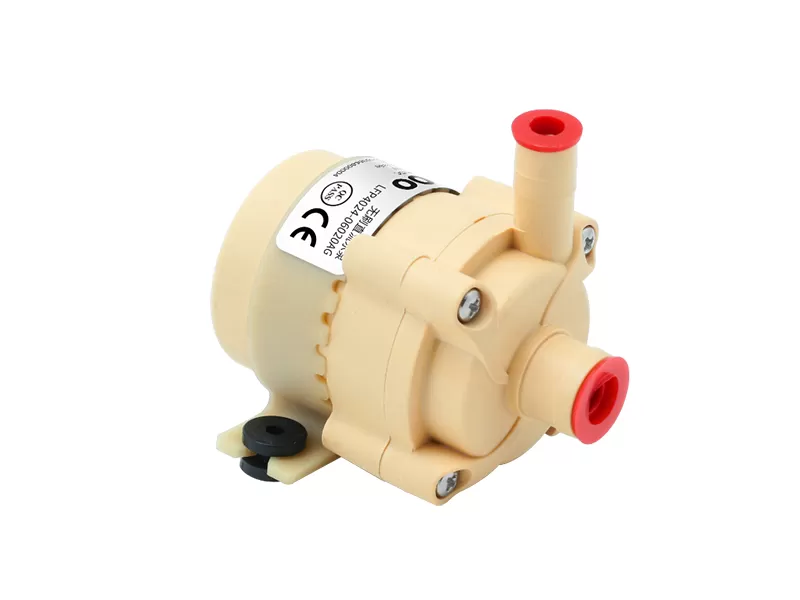

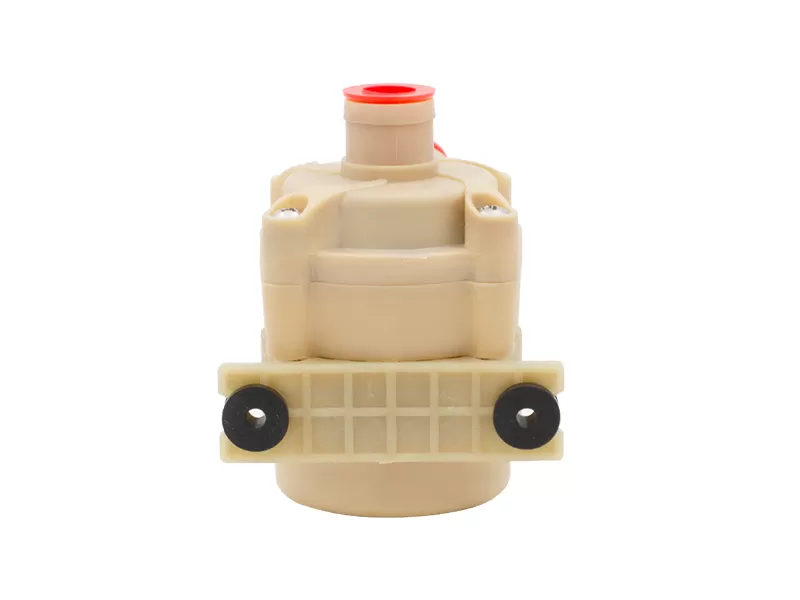

LFP4024 Series (High Temperature) | LFP4024-03006AG | 24 | 3 | 0.6 | 0.13 | 3 | · FG Signal · 0-5V speed regulation · PWM speed regulation |
LFP4024-04010AG | 24 | 4 | 1.0 | 0.23 | 5.5 | ||
LFP4024-04018AG | 24 | 4 | 1.8 | 0.23 | 5.5 | ||
LFP4024-05014AG | 24 | 5 | 1.4 | 0.31 | 7.5 | ||
LFP4024-06020AG | 24 | 6 | 2.0 | 0.42 | 10 | ||
LFP4024-07025AG | 24 | 7 | 2.5 | 0.52 | 12.5 | ||
LFP4024-08030AG | 24 | 8 | 3.0 | 0.75 | 18 | ||
LFP4024-08040AG | 24 | 8 | 4.0 | 0.75 | 18 |
