Support PLC control, RS485 communication.
Real-time start and stop, adjustable speed.
Positive and negative rotation.
Low noise, quiet and stable.

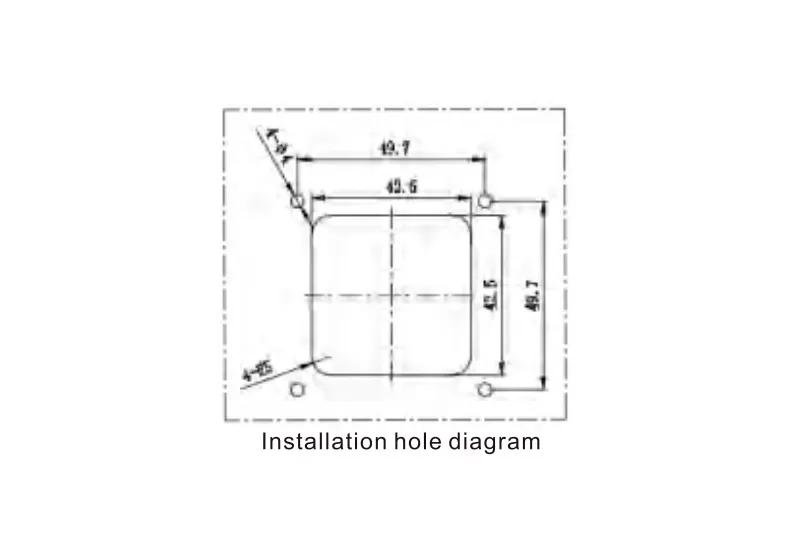

Installation method can be customized.
SPECIFICATIONS | |||||||||
Model | Installation Method | Motor Type | Control Method | Function | Working Voltage | Power | Weight | Working Environment | Rollers |
P101ST | Stainless steel mounting plate as standard (customizable) | Stepper motor | Driver control (Optional with Driver PLC control) | Precise adjustable flow control | DC24V | ≤12W | 375g | Temperature 0-45℃, Relative Humidity <85%RH | Standard with 2 rollers (3 or 6 rollers are available) |
FLOW RATE: ml/min | |||
Voltage | Flow Range | Tube Size | Tube Type |
DC24V | 1～16 | 1*3 | BPT Tube/Silicone Tube |
1～32 | 14# | ||
1～65 | 2*4 | ||
1～120 | 3*5 | ||
1～130 | 16# | ||
1～200 | 4*6 | ||
