Micro flow rate design.
Compact structure, mini size, light weight, fine workmanship.
Low noise, smooth running, suitable for gap operation.

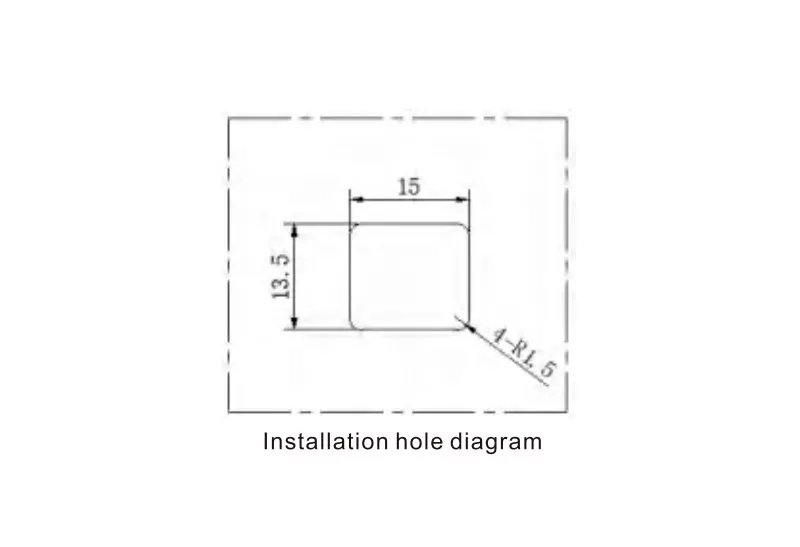

Installation method can be customized.
| SPECIFICATIONS | |||||||||
| Model | Installation Method | Motor Type | Control Method | Function | Working Voltage | Power | Weight | Working Environment | Rollers |
| P101ADB | Rubber mounting plate (optional) | Micro brush reduction motor | Power-on operation | Fixed flow rate | DC3V, DC6V, DC12V | ≤2W | 13g | Temperature 0-45℃, Relaive Humidity <85%RH | Standard with 2 rollers |
| FLOW RATE:ml/min | |||
| Voltage | Flow Range | Tube Size | Tube Type |
| DC3V, DC6V, DC12V | 0～0.3 | 0.5*1.5 | BPT Tube/Silicone Tube |
| 0.3～1.2 | 1*2 | ||
| 0.6～2 | 1.5*2.5 | ||
