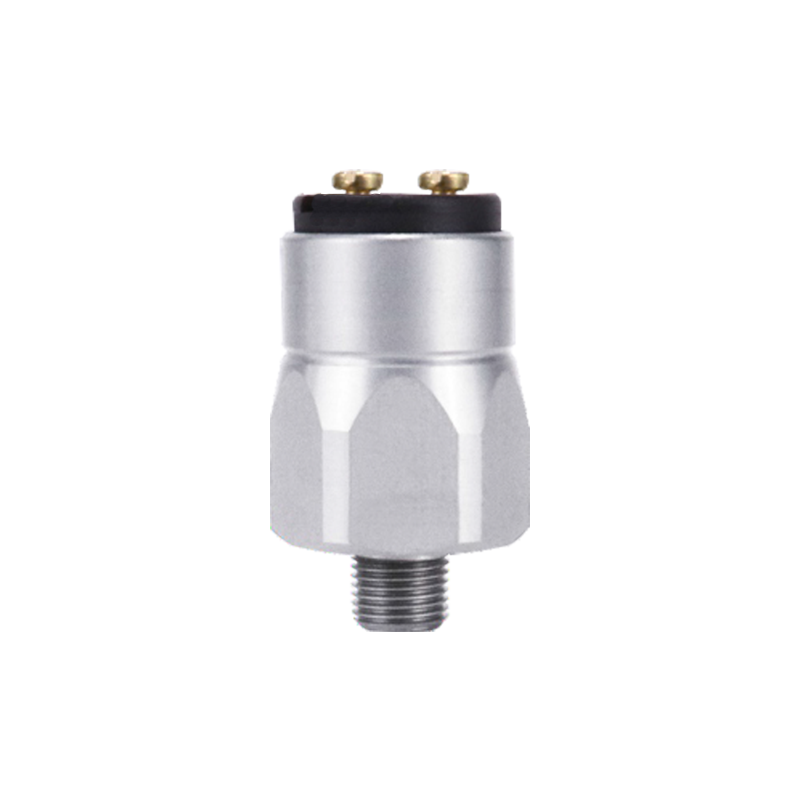

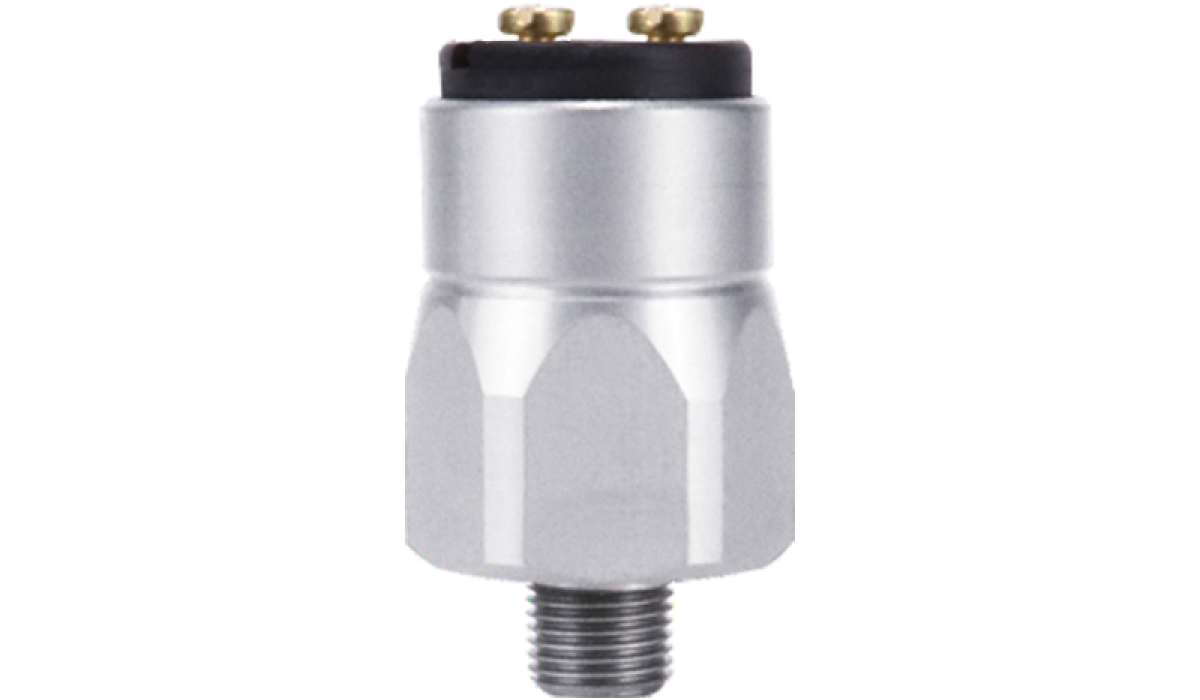

LF702 High Pressure Switch, 30~200bar

In the industrial and automotive fields , a certain pressure value is usually set for the equipment When the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment Which triggers a warning (such as a leak of equipment, an alarm, etc.). This is the plunger type pressure switch. The max pressure can not be exceeded to 600bar



Specification

Body Material  Zinc plated steel/Stainless steel
Contact Silver cadmium alloy,gold plated is available
Max Voltage  42V/ MAX100VAC
Max Current  4A
Working Temperature Range  -40°C~-+100°C(Different Diaphragm)
Mechanic Life Endurance  1,000,000 times
Electric Life Endurance  100,000 times
Pollution Situation  Normal
Protection level  IP00(Terminal 1-2), IP67(Terminal 3-8), IP65(Terminal 9)
Upper cover  IP54(Termial 1-2)
Side cover  IP55(Termial 1-2)
Applicable Rule  EN 60730-1
Max Working Pressure  450bar
Burst Pressure  600bar
Weight ~85gr
