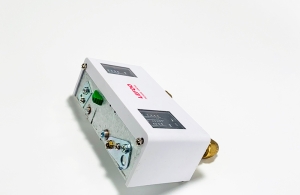

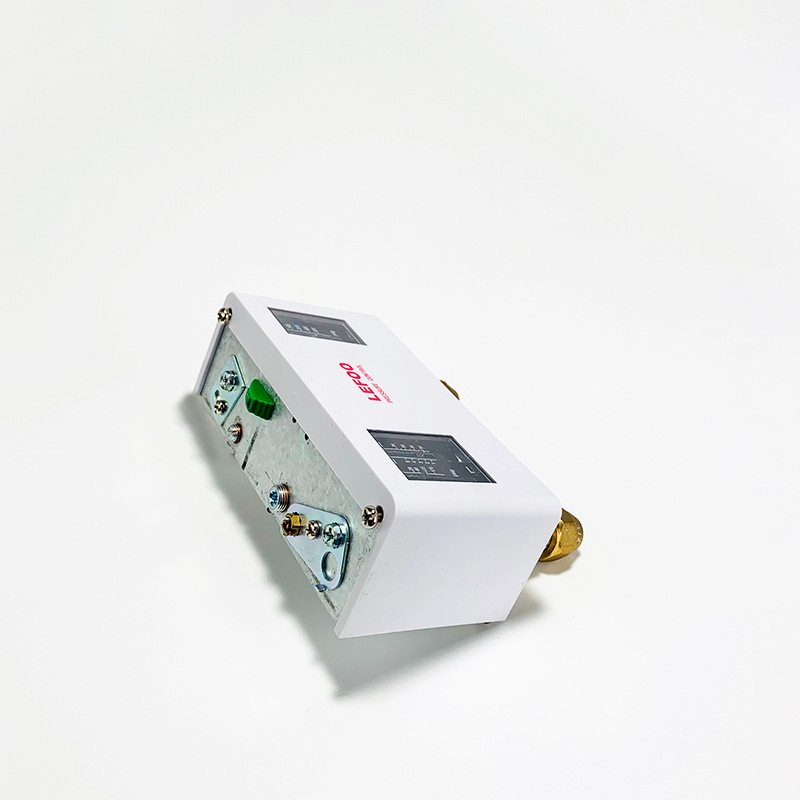

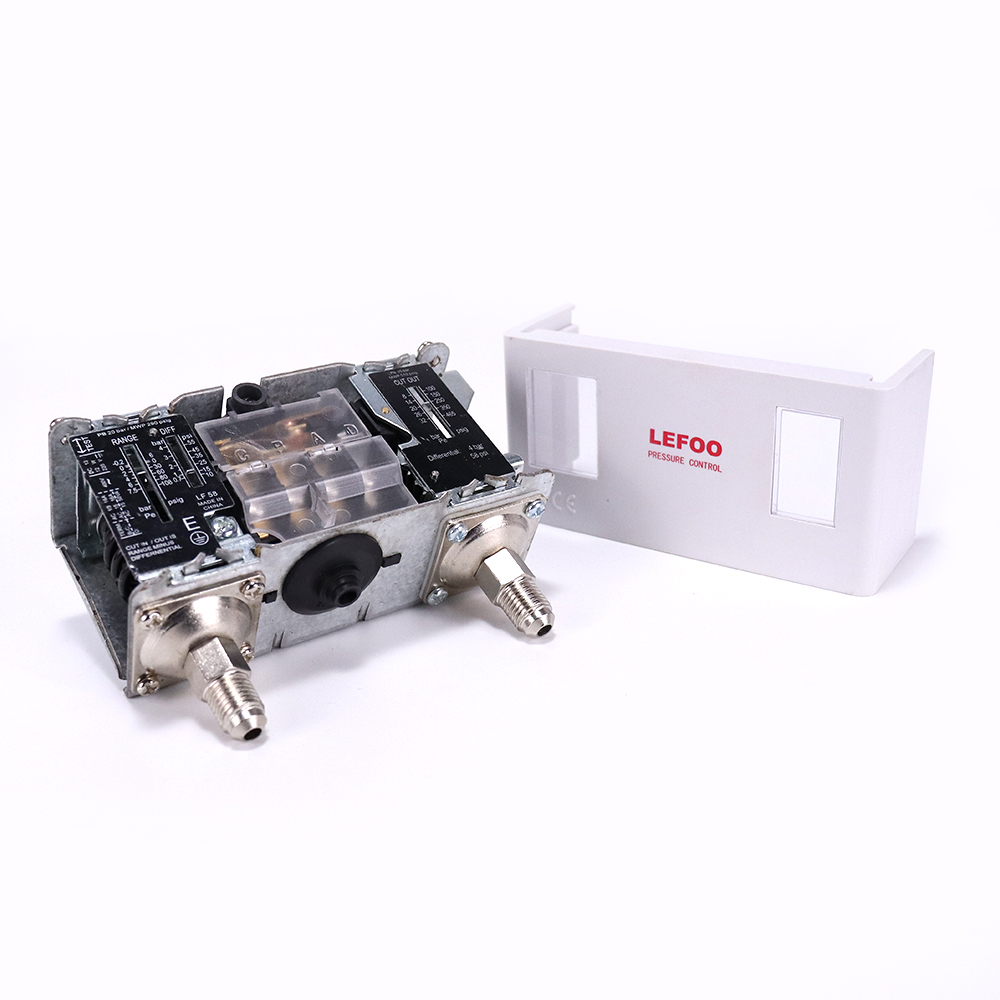

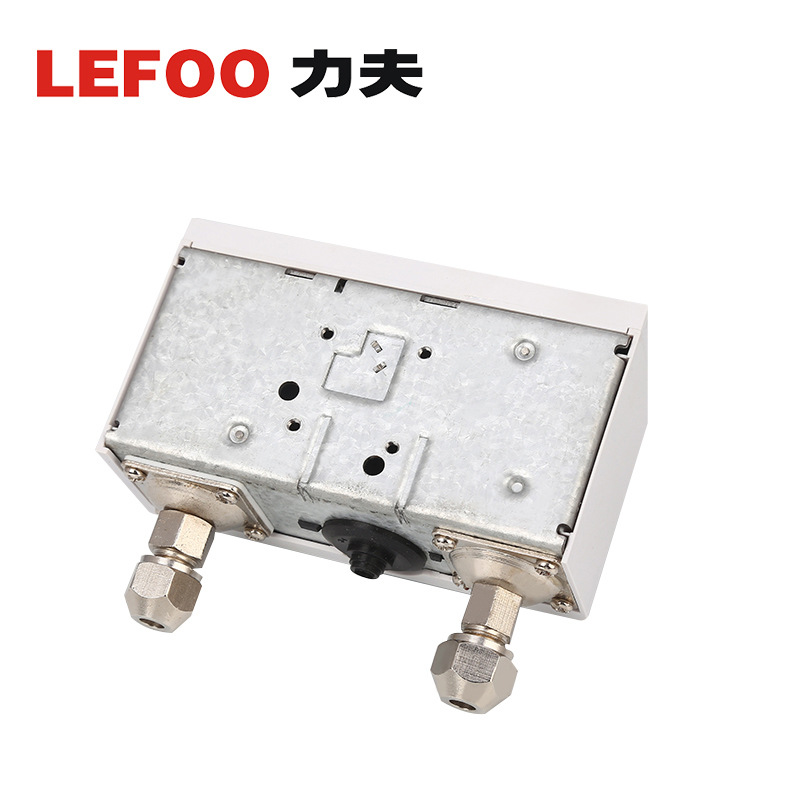

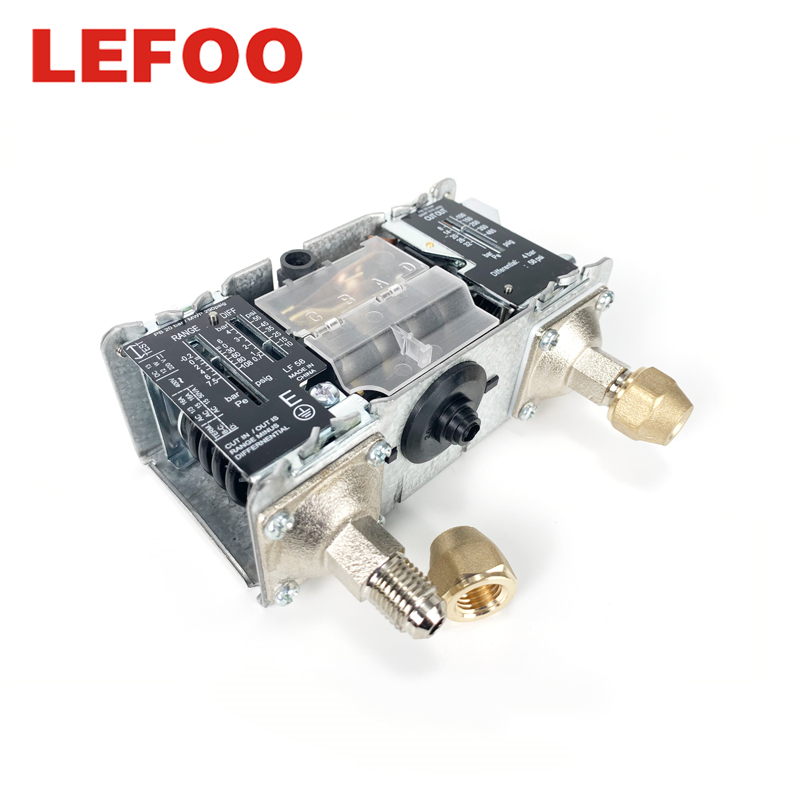

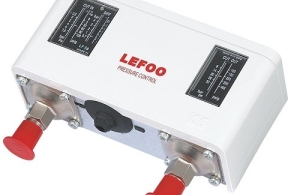

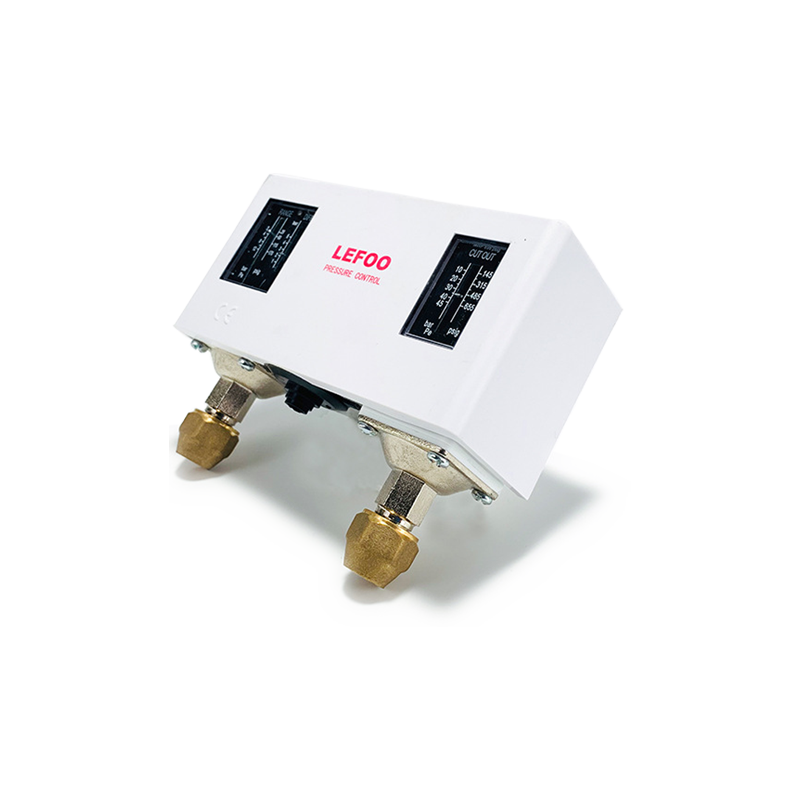

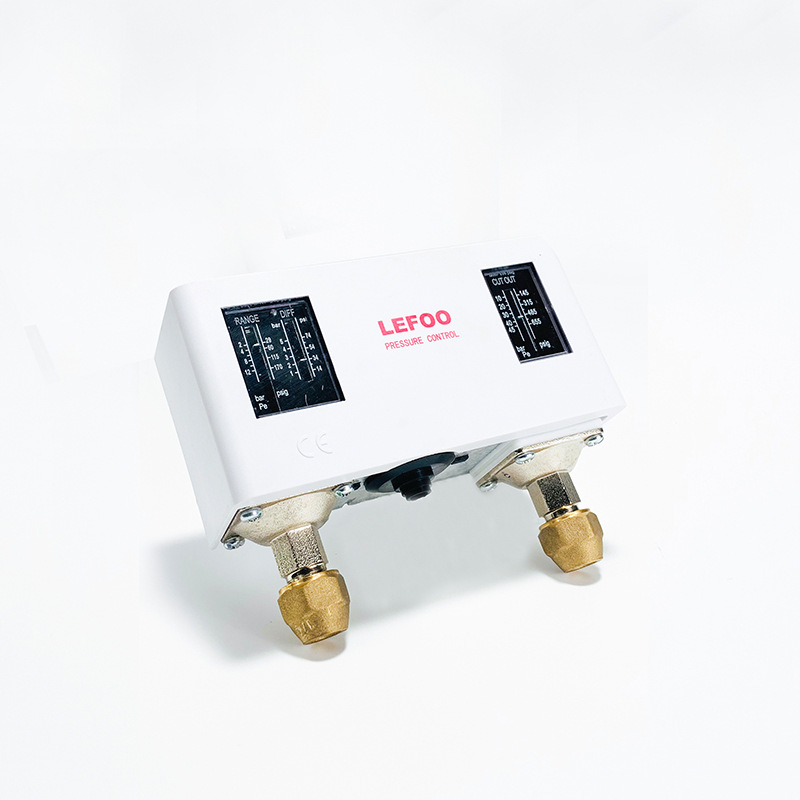

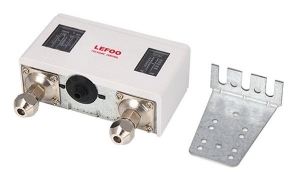

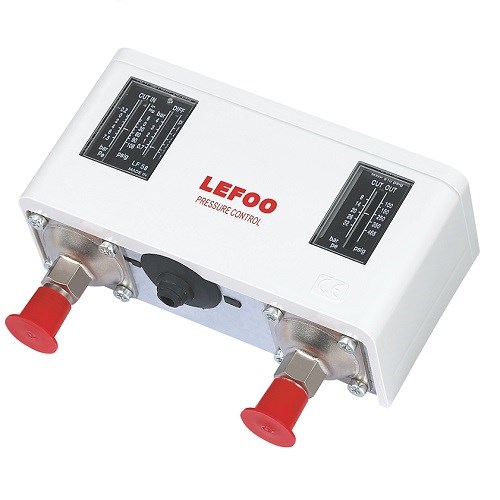

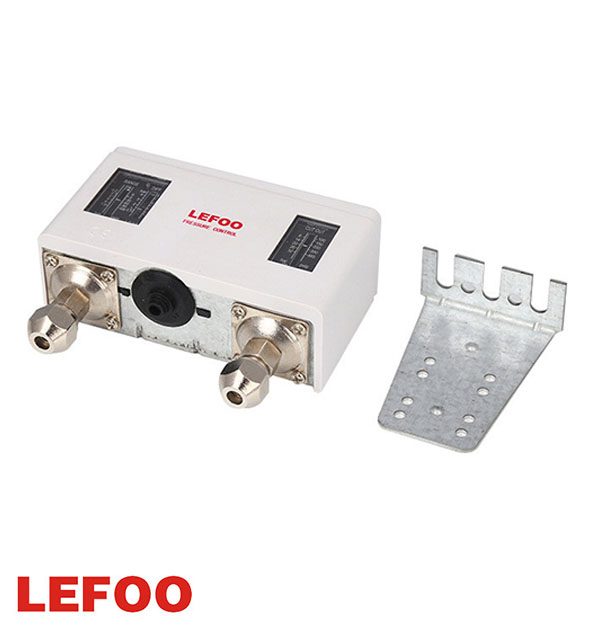

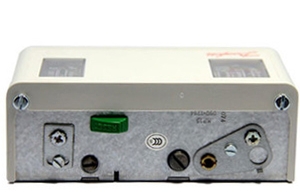

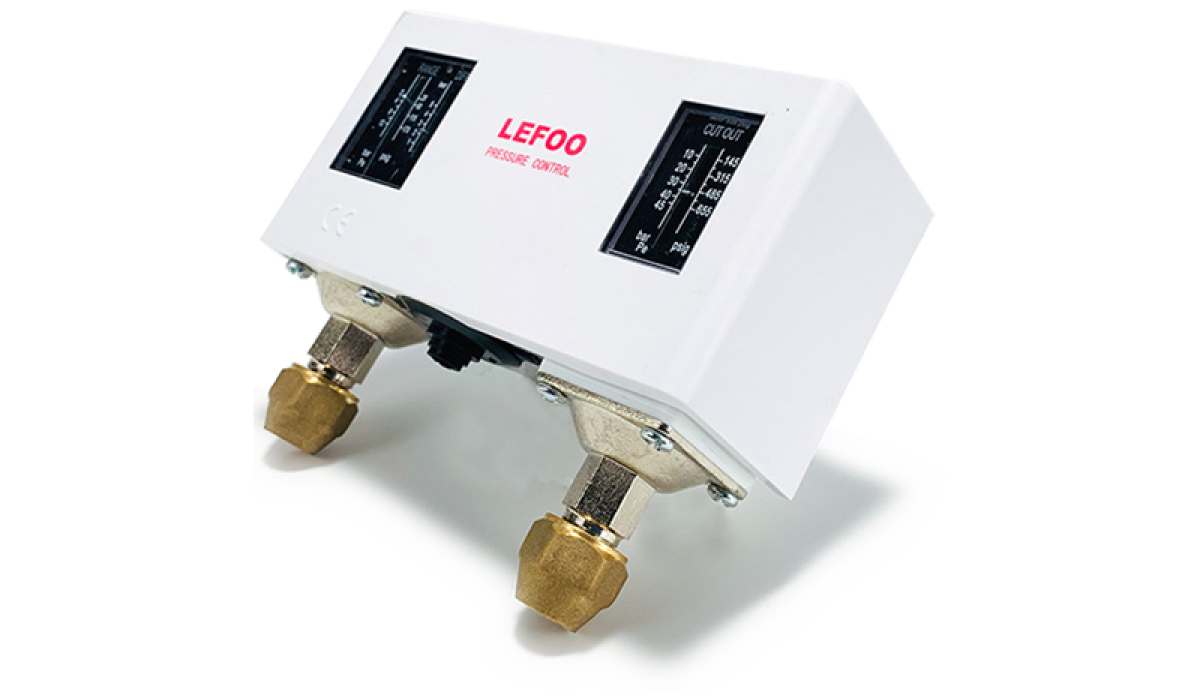

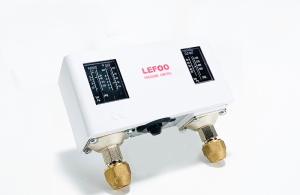

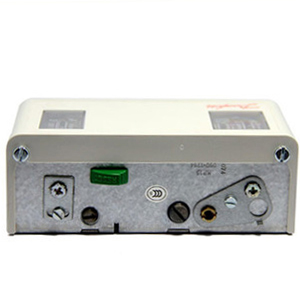

LF58 Dual pressure switches is usually used with fluorinated refrigerants to control the pressure of compressor in refrigeration system. It can also be used in air and water. It provide two pressure set points in one switch.
Several models are available with drip-proof enclosure for marine application or in explosion-proof enclosure for special applications.

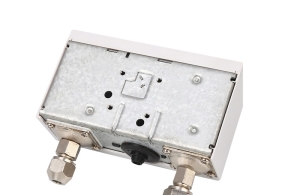

Various conatact functions are available. Internal Micro-swith ensures reliable switching. It is provided standard Mounting Bracket.
Specification
| Model | Pressure Side | Adjustable range (Bar) | Differential (Bar) | Factory setting (Bar) | Max working pressure (Bar) | |||
| Min. | Max. | Min. | Max. | OFF(ON) | ON(OFF) | |||
| LF5832 | Low | -0.2 | 7.5 | 0.7 | 4 | 4 | 2 | 20 |
| High | 8 | 32 | Fixed 4 | 20 | 15 | 35 | ||
| LF5832HM | Low | -0.2 | 7.5 | 0.7 | 4 |
| 2 | 20 |
| High | 8 | 32 | Fixed 4 | 20 | Manual Reset | 35 | ||
| LF5832LM | Low | -0.2 | 705 | Fixed 4 | 3 | Manual Reset | 20 | |
| High | 8 | 30 | Fixed 4 | 20 | Manual Reset | 35 | ||
| Medium | Refrigerant, Air, Water, Oil |
| Media Temperature | -20 °C to 110 C |
| Connection | M12X1.25, 7/16-20UNF other connection is available on request |
| Contact Arrangement | SPDT |
| Rated Amps. (A)Rated Voltage(V) | 125VAC 250VAC 24VDC | 250VAC |
| Full Load | 20A 10A 8A | 50VA |
| Locked Roter | 72A 72A 64A | 4A |
