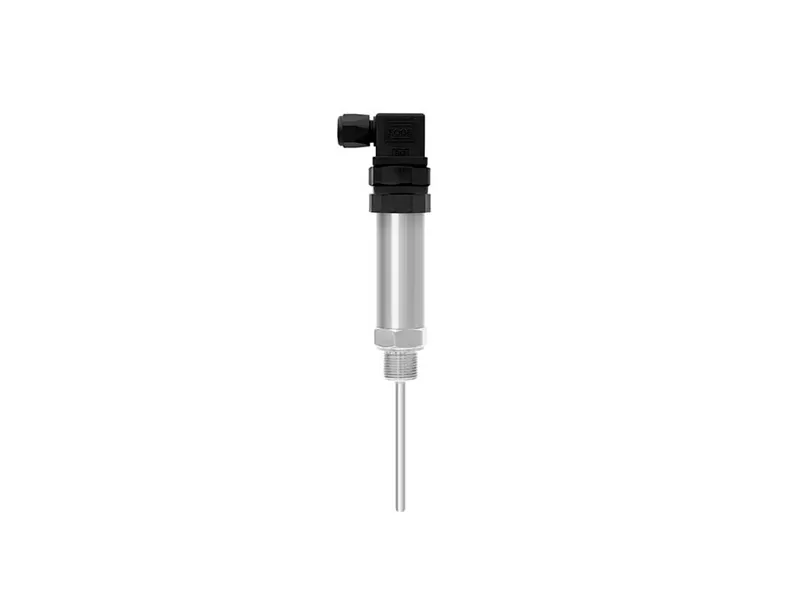

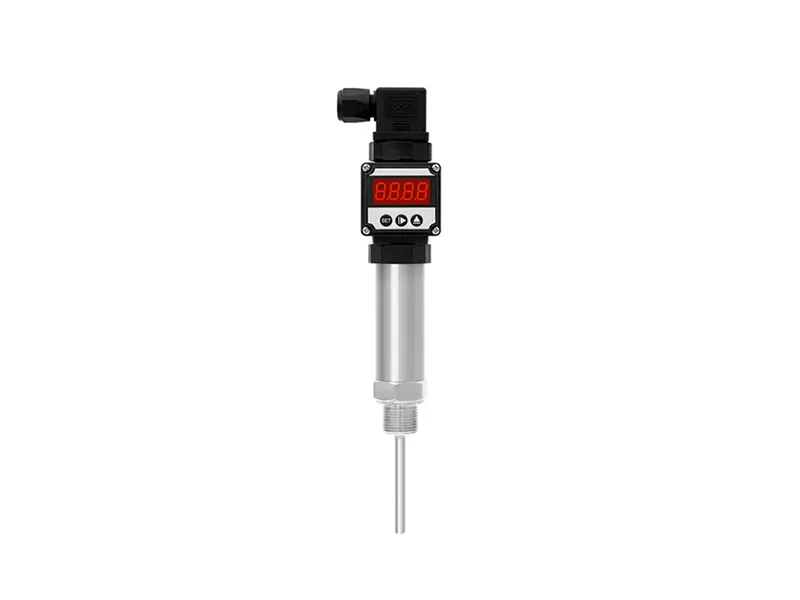

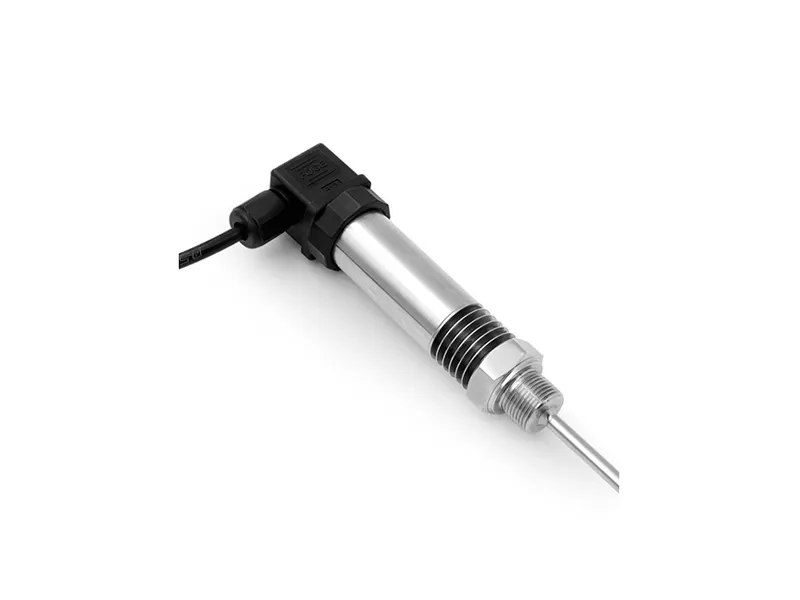

LFW21 Integrated Temperature Transmitter uses a high-resolution and high-precision temperature sensor as the measuring element. The amplifier circuit is located in a 304 stainless steel housing to convert the sensor signal into an analog signal output. This product is widely used in temperature measurement at industrial sites such as petroleum, chemical industry, electric power, hydrology, etc.
With reverse connection and overvoltage protection.
Small size, light weight, easy to install.
Suitable for temperature measurement of fluid media, able to work stably for along time.
Measuring medium | Liquid or gas, etc. (compatible with contact materials) |
Measuring range | -50~200℃(see Order Ref. No.) |
Output signal | 4~20mA/0-10V/PT100/PT1000 |
Supply voltage | 15~33VDC |
Accuracy | 0.5%FS |
Working environment | -40~85℃, 0~95%RH(no condensation) |
Shellmaterial | 304 stainless steel probe rod and casing, ABS Hirschmann connector |
Protection level | IP65(without display), IP54(with display) Note: The above protectionlevel refers to the level achieved after the electrical connection is complete. |
