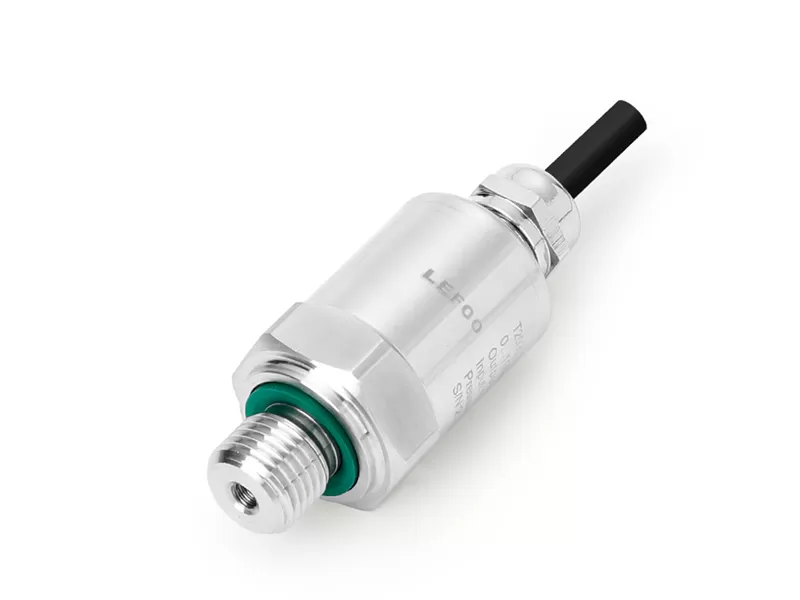

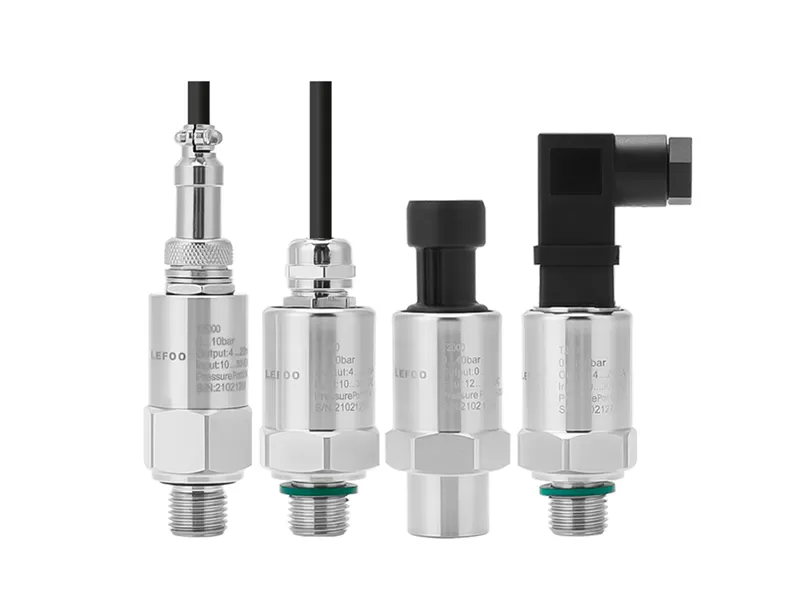

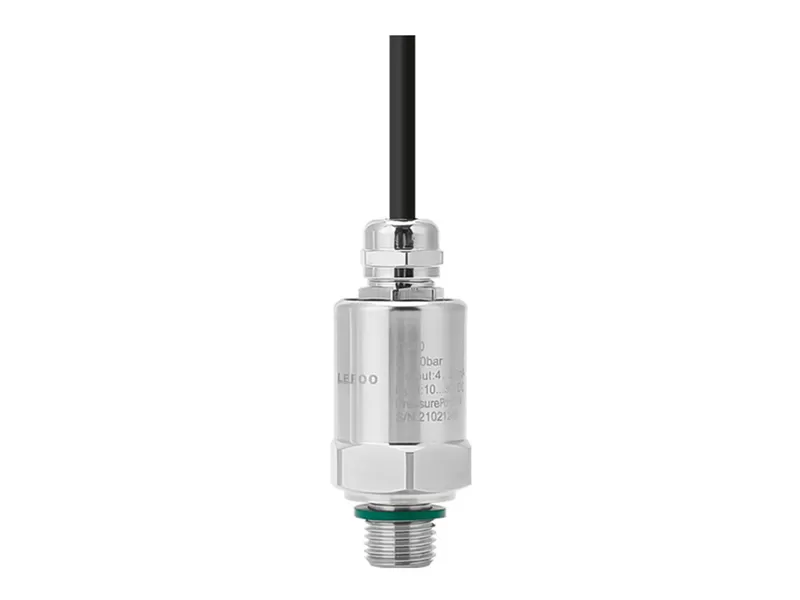

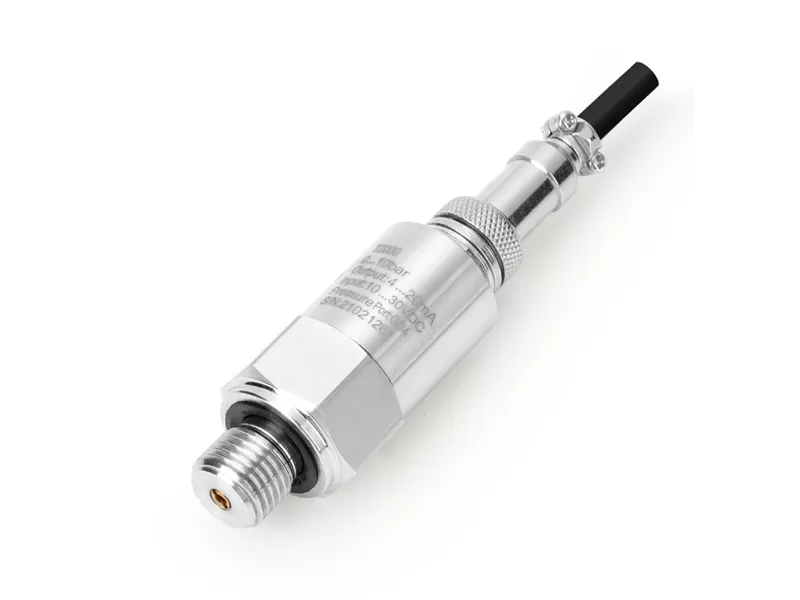

LFT2000 pressure transmitter is widely used in the measurement of fluid medium pressure in test systems such as fire protection, water treatment, water supply systems, air compressors, pneumatic devices, and factory automation. Adopt ceramic sensitive diaphragm with high overload capacity. It has excellent anti-corrosion and anti-wear performance, adopts ASIC technology, MEMS technology, and digital compensation And it has the characteristics of small size and low price, can be applied in various complex environment.
Adopt ceramic sensitive diaphragm with high overload capacity.
Excellent corrosion and wear resistance.
Using ASIC technology, digital compensation.
Small size, can be applied in various complex environment.
With a variety of threaded connection and electrical connections.
Measurement Range | -100kPa~0.3MPa...6MPa | |||
Overload Pressure | 1.5 times the rated pressure | |||
Burst Pressure | 2 times the rated pressure | |||
Accuracy | ±0.5%F.S, ±1.0%F.S | |||
Stability | <0.5%F.S/year | |||
Working Temp | -20~85℃ | |||
Storage Temp | -40~100℃ | |||
Measured Medium | Gas or liquid compatible with 1Cr18Ni9T, 304 stainless steel, Fluorine rubber or Nitrile rubber | |||
Electrical Properties | 2-wired | 3-wired | ||
Output Signal | 4~20mA | 0.5~4.5V | 0~5V | 0~10V |
Power Supply | 10~36VDC | 4.75~5.25VDC | 10~36VDC | 12~36VDC |

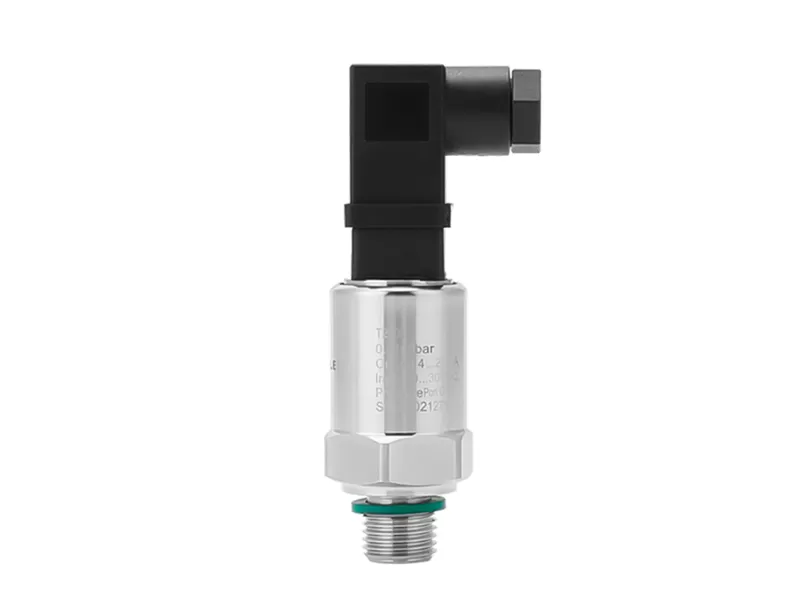

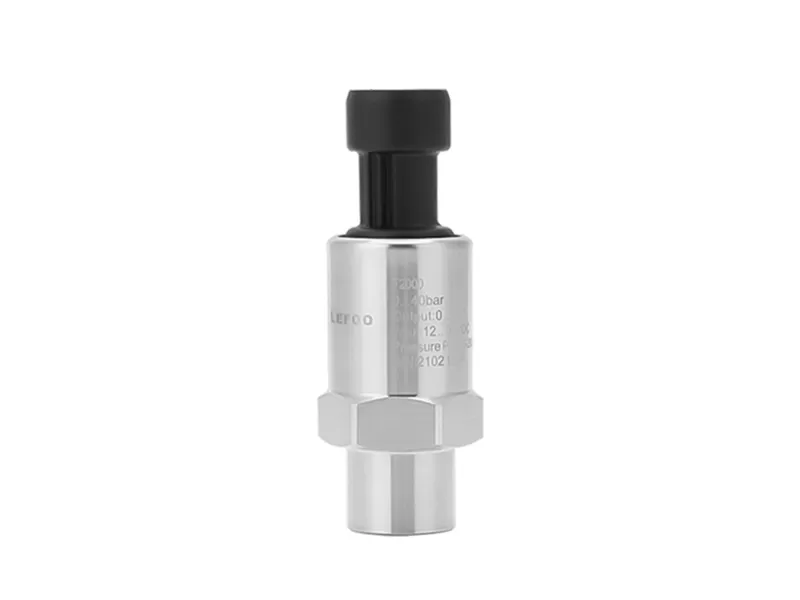

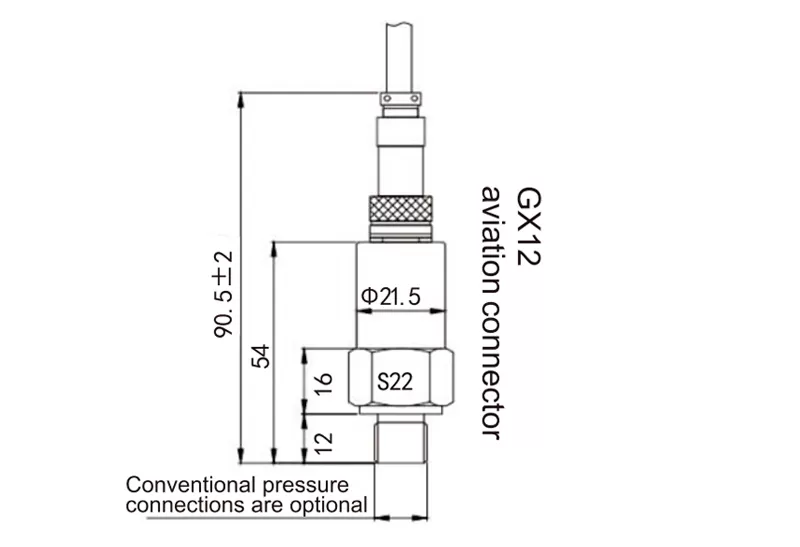

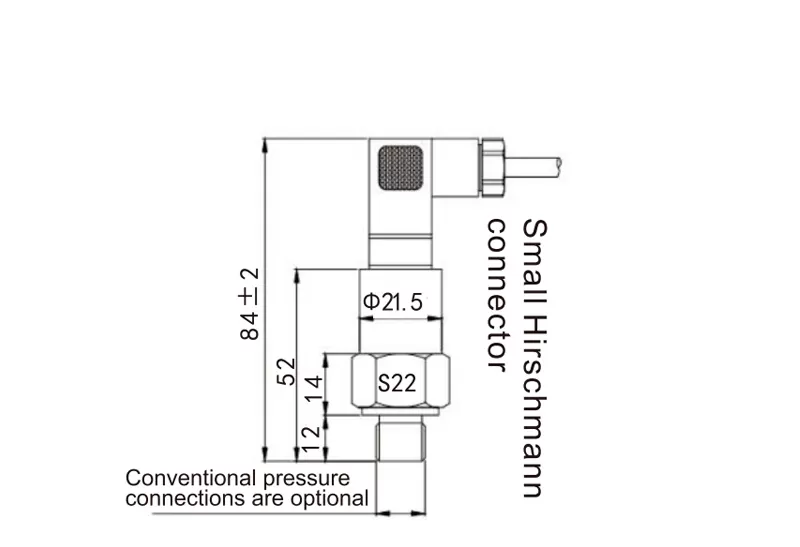

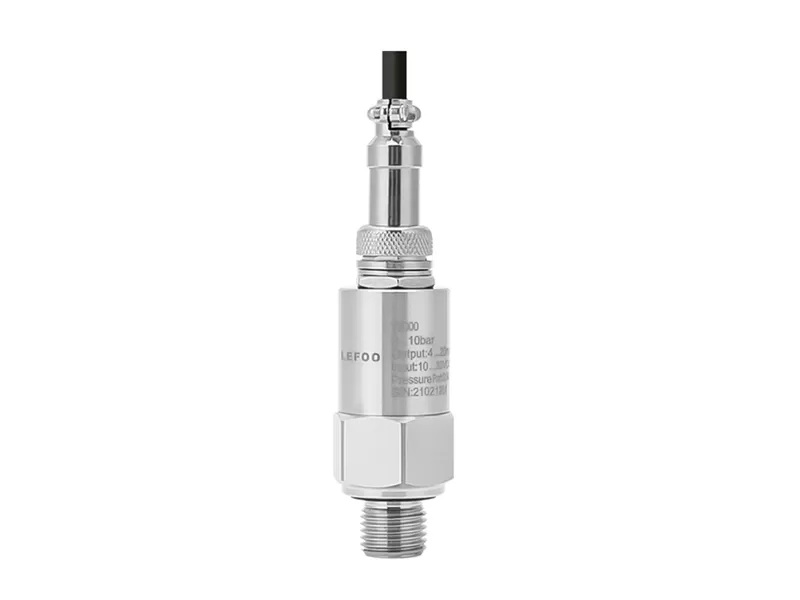

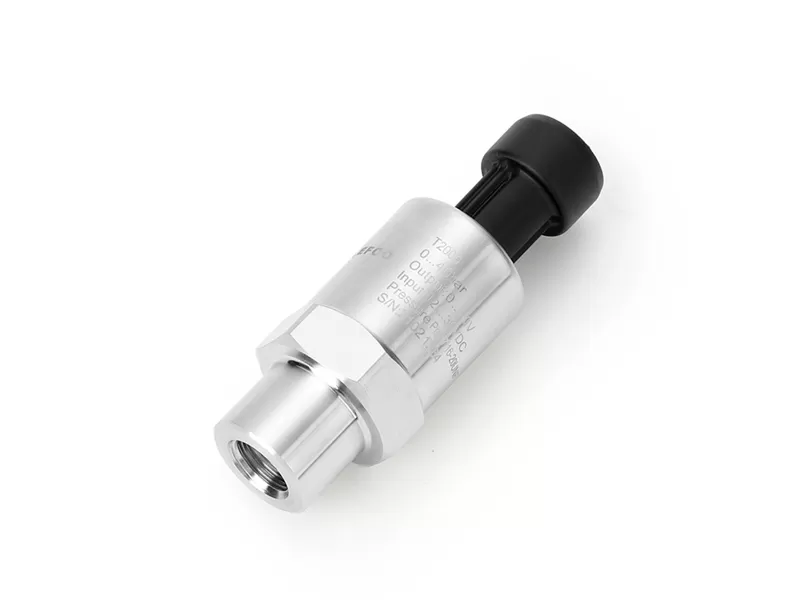

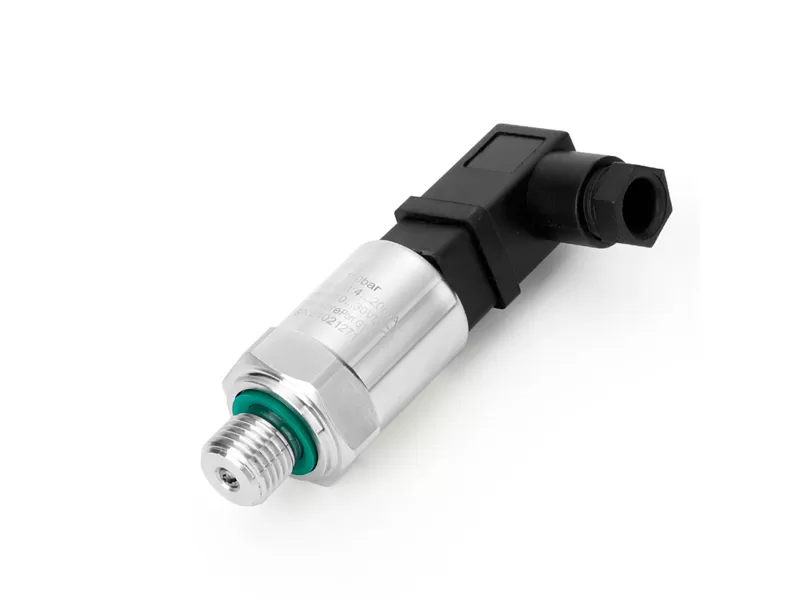

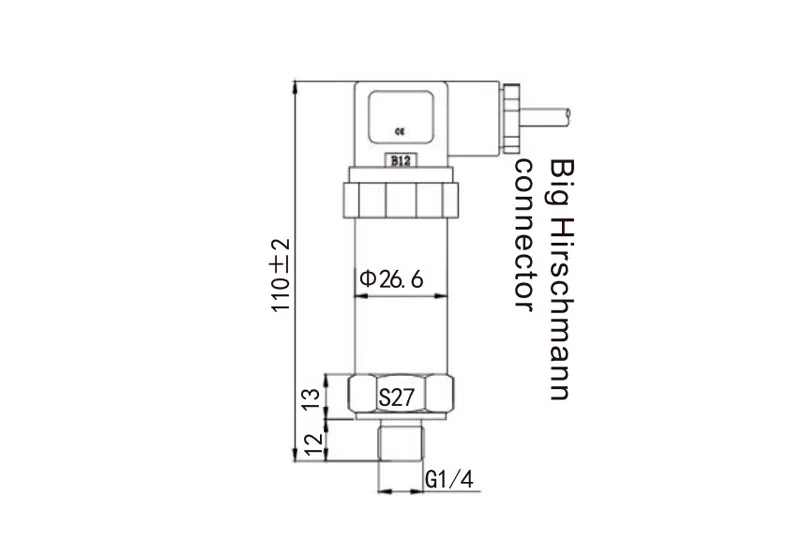

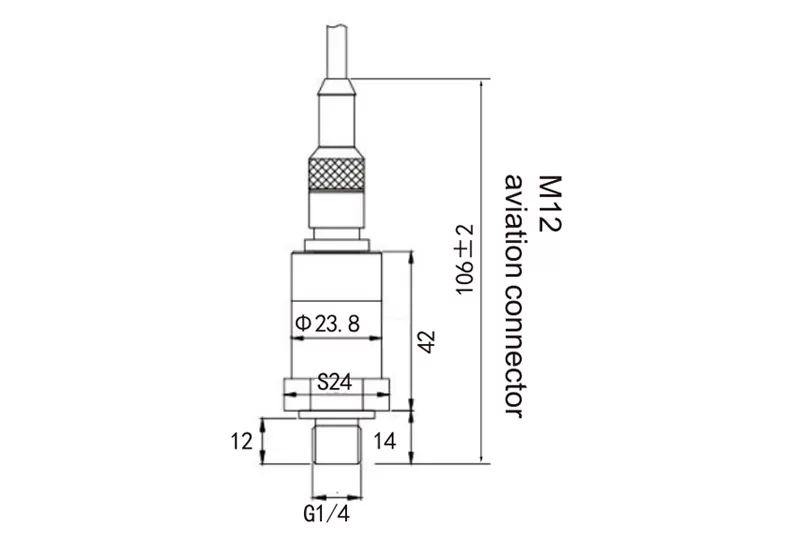

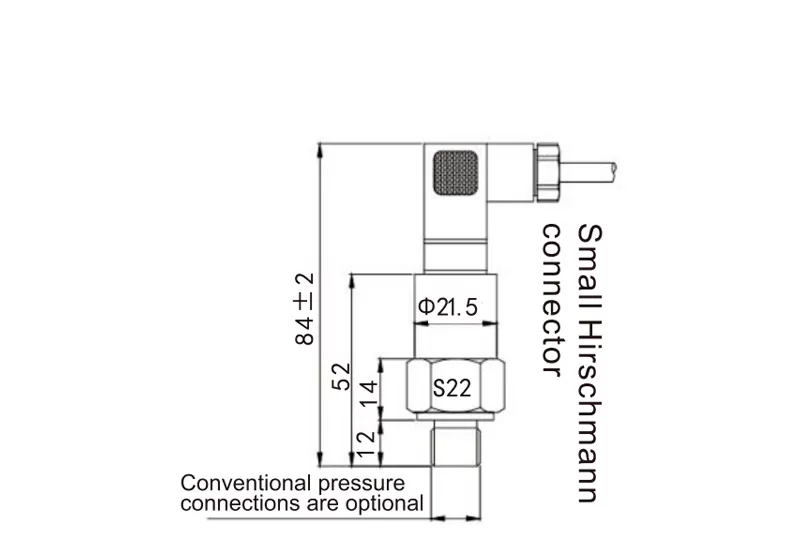

Electrical Connections | Packard, DIN43650C(small Hirschmann), DIN43650A(big Hirschmann), M12 waterproof outlet, M12 aviation connector, GX12 aviation connector (three-core/four-core) | |||
Enclosure Protection | IP67, IP65, IP54 | |||
Pressure Connection | G1/4, NPT1/4, R1/4, BPS1/4, G1/2, 7/16-20UNF, M20*1.5, M10*1, M14*1.5etc | |||
Pressure Form | Gauge Pressure G | |||
Certification | Safety explosion-proof type E,RoHS,EU electrical safety standard CE | |||
