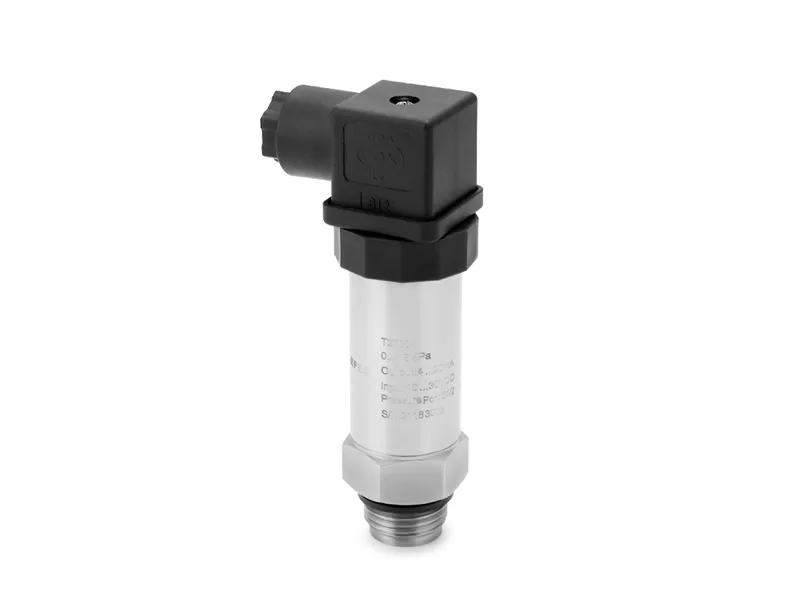

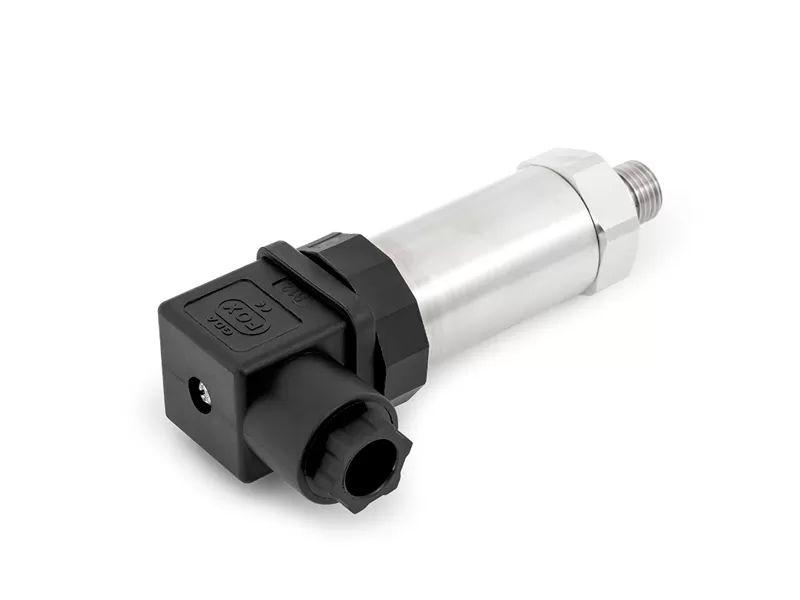

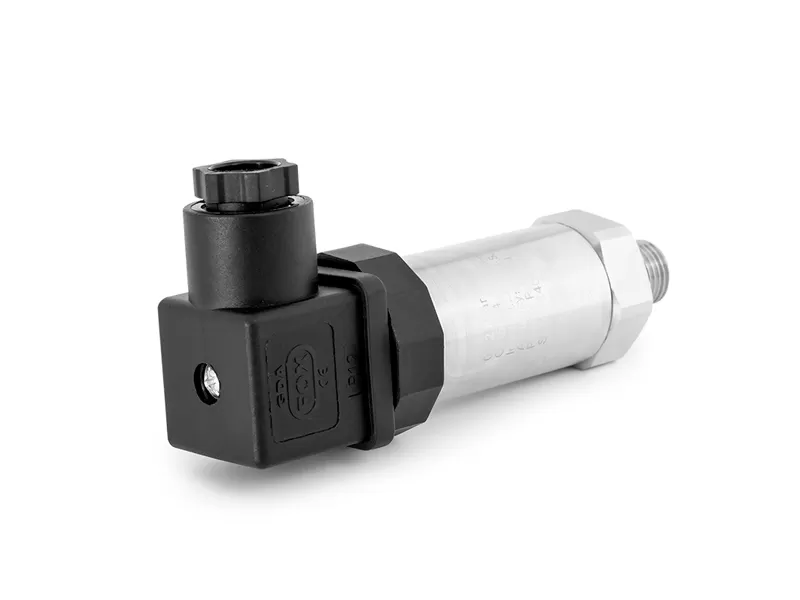

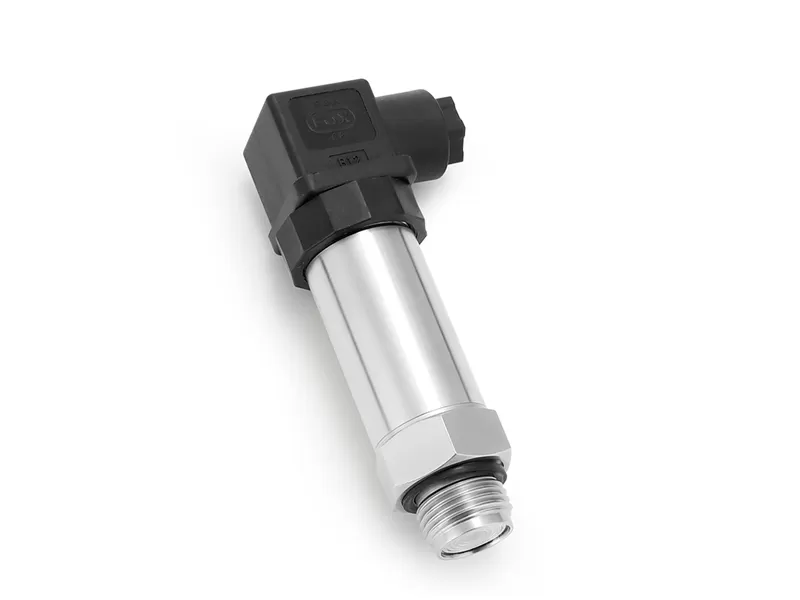

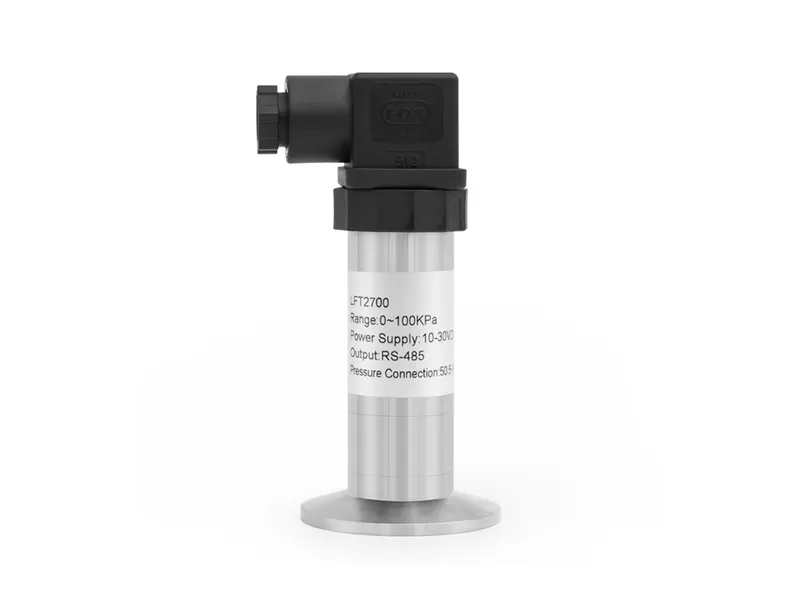

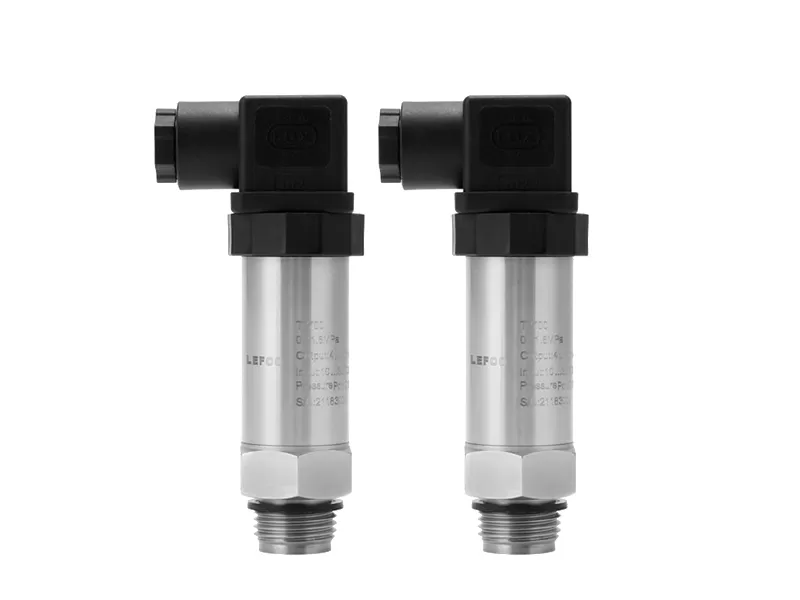

LFT2700 flat film pressure transmitter uses 316Lflat film sensor, which has the features of anti-clogging, easy to clean, can directly measure the pressure of viscous liquid, and has excellent corrosion and wear resistance. Adopt ASIC technology, digital compensation, thread connection, easy installation and maintenance, the thread connection can choose a variety of exterior structure and a variety of electrical output mode can be chosen, gauge or absolute pressure diffusion silicon flat film thread sensor can directly measure viscous medium, such as the detection system of chemical coating paint, environmental protection, coal mine, papermaking, food processing, Polyurethane equipment, oil and others.
Adopt 316L flat film sensor, anti-clogging, easy to clean.
Can directly measure the pressure of viscous liquid.
Adopt ASIC technology, digital compensation technology.
Excellent anti-corrosion and anti-wear properties.
Thread connection, easy to install.
Range | -100kPa.0~20kPa..35MPa | ||||
Overload Pressure | 1.5 times of the rated pressure | ||||
Accuracy① | ±0.5%F.S; ±1.0%F.S | ||||
Stability | <0.5%F.Slyear | ||||
Working Temp | -20~85℃ | ||||
Storage Temp | -40~100℃ | ||||
Measured Medium | Gas or liquid compatible with 304 and 316L stainless steel.Fluorine rubber or Nitrile Rubber | ||||
Electrical Properties | 2-wired | 3-wired | 4-wired | ||
Output Signal | 4~20mA | 0.5~4.5V | 0~5V | 0~10V | RS485 |
Power Supply | 10~36VDC | 4.75~5.25VDC | 10~36VDC | 12~36VDC | 10~30VDC |

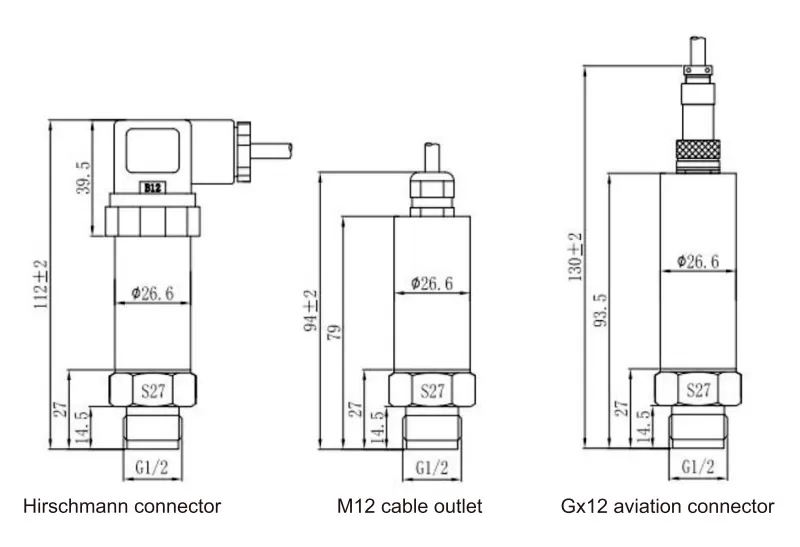

Electrical Connection | DIN43650A(Big Hirschmann), M12 waterproof outlet, M12 aviation connector(three-core/four-core) | ||||
Enclosure Protection | IP65, IP54 | ||||
Pressure Connection | G1/2, M20*1.5 | ||||
Pressure Form | Gauge Pressure G/Absolute Pressure A | ||||
Certification | RoHS, EU electrical safety standard CE | ||||
① Measured at 25℃, including the comprehensive accuracy of linearity, repeatability and hysteresis.
