Principle and Structure

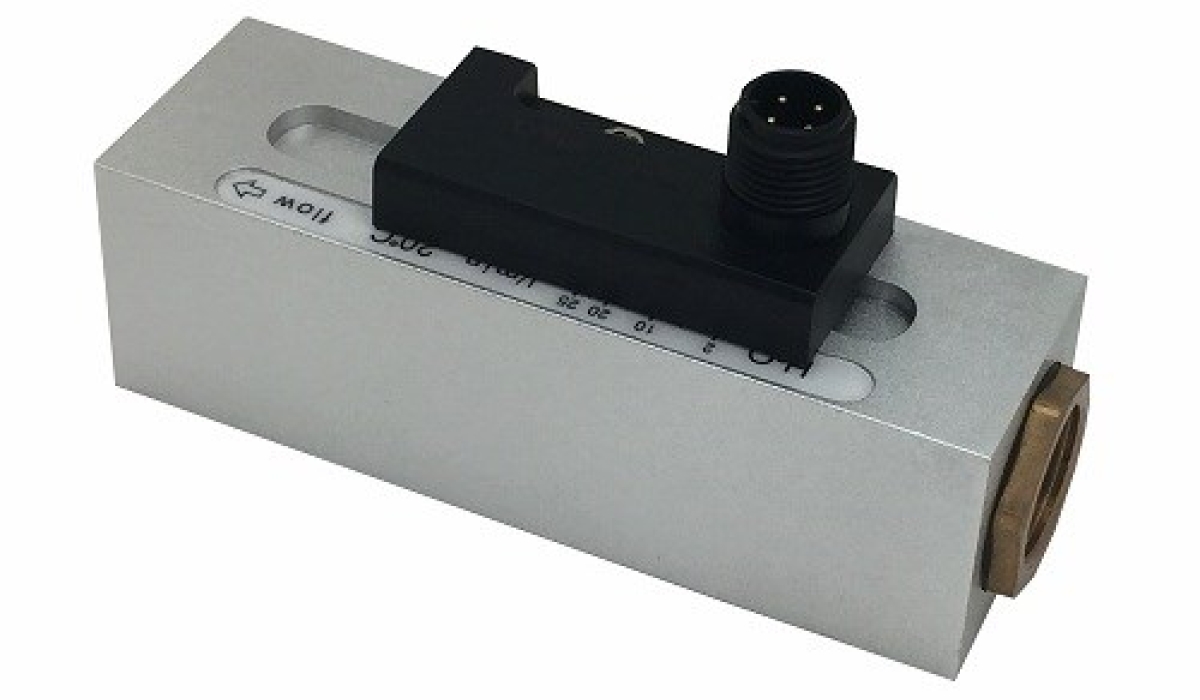

Online installation, mechanical flow switch, Be used in liquid or gas media. Solid plastic, aluminum or stainless steel housing are optional.
Main Feature
Very few pressure loss, satisfactory repeatability and anti-pollution, mechanical and electronic parts are isolated completely. More accurate setting accuracy, with setting dial gauge, easy setting, user no need to set on site, switch status displays in LED.
Application
Can be used in both gas and liquid, industrial automation, mechanical equipment, air compressor industrial, HVAC.
| Setting Range | See Specification Sheet |
| Accuracy | ±5% total range |
| Delay | Depend on different switches, Minimum 0.5L/Min |
| Setting Scale | 20? water as media, horizontally installation in marked position |
| Change of media and temperature can influence the value | |
| LED display | Only available in DC distributing |
| Terminal | M12 and Hirschmann plug |
| Output | Reed switch, capacity:24VDC/250VAC,100mA |
| Proof Pressure | 50bar (aluminum) 200bar (stainless steel) |
| Average Pressure Loss | 0.3bar (25L/min) |
| Return Difference | Related to the switch value, minimum 0.5L/Min |
| Temperature of media | 0-100°C / 0-160°C (high temperature option) |
| Protection Degree | IP65 |
| Engineering plastics materials | Housing: POM engineering plastics |
| Plunger: POM engineering plastics | |
| Spring: 316L stainless steel SUS1.4310 | |
| Seal: NBR | |
| Magnet: Barium | |
| Anodic Aluminum Oxide Materials | Housing: Anodic Aluminum Oxide |
| Plunger: POM engineering plastics | |
| Spring: 316L stainless steel SUS1.4310 | |
| Seal: NBR | |
| Magnet: Barium | |
| Stainless Steel Materials | Housing: 304 stainless steel |
| Plunger: POM engineering plastics | |
| Spring: 316L stainless steel SUS1.4310 | |
| Seal: NBR | |
| Magnet: Barium |
