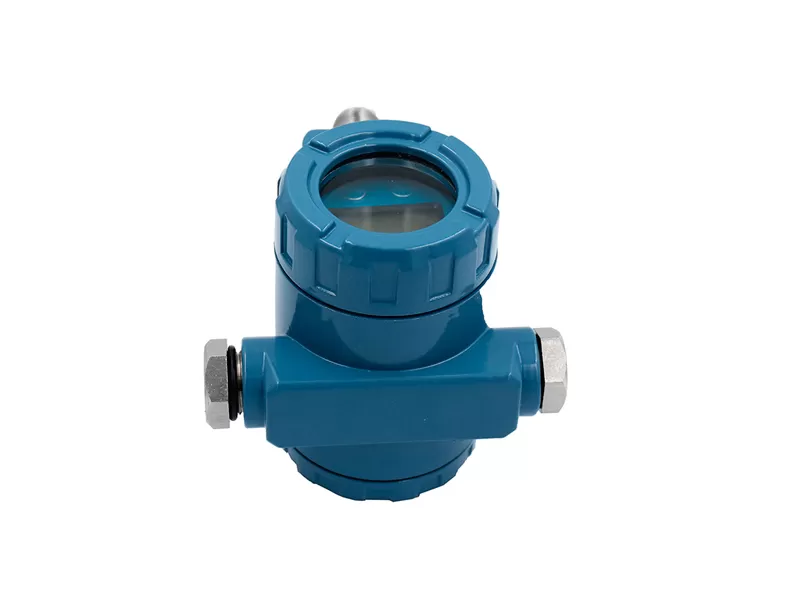

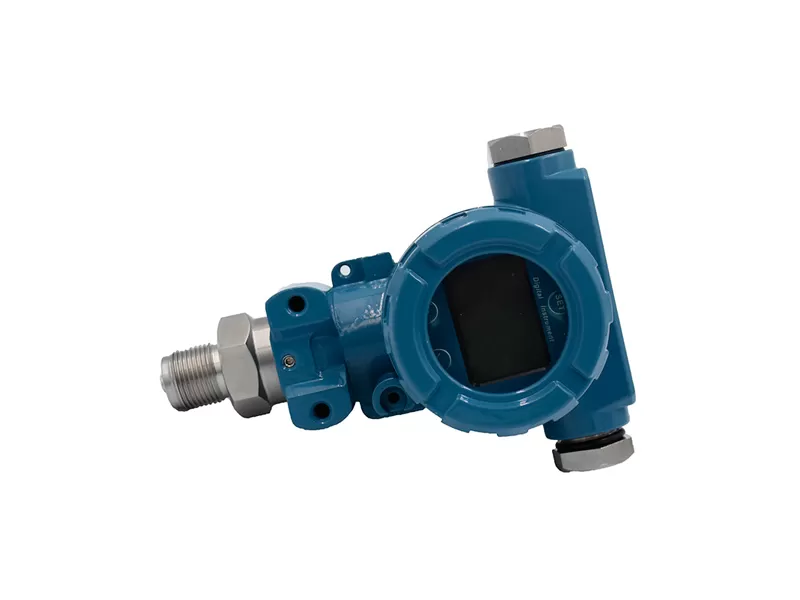

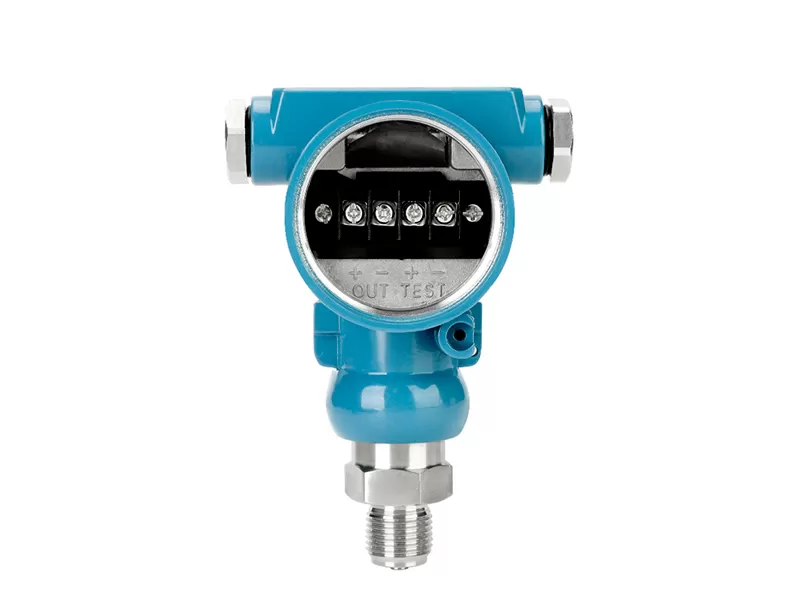

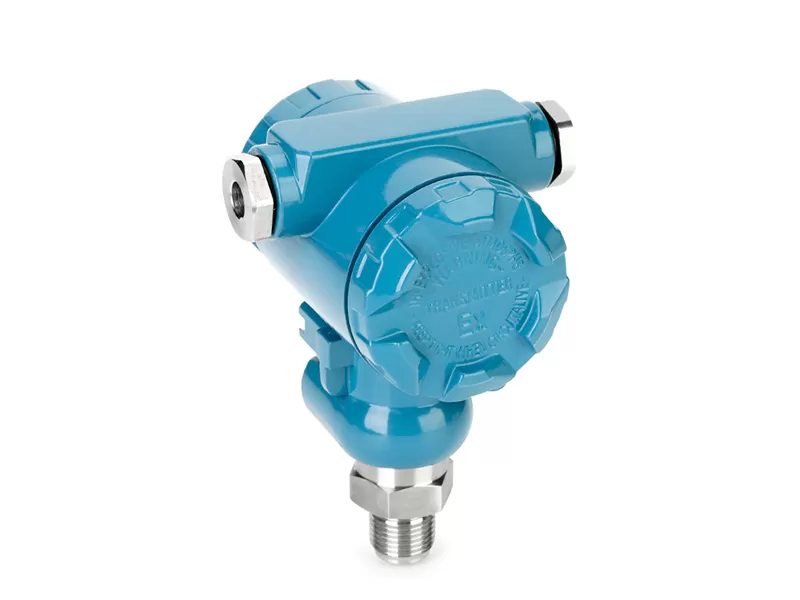

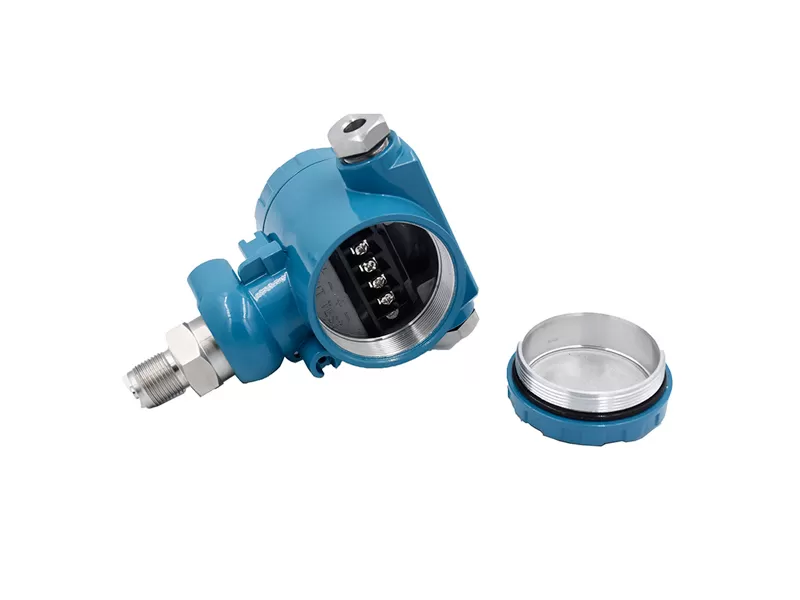

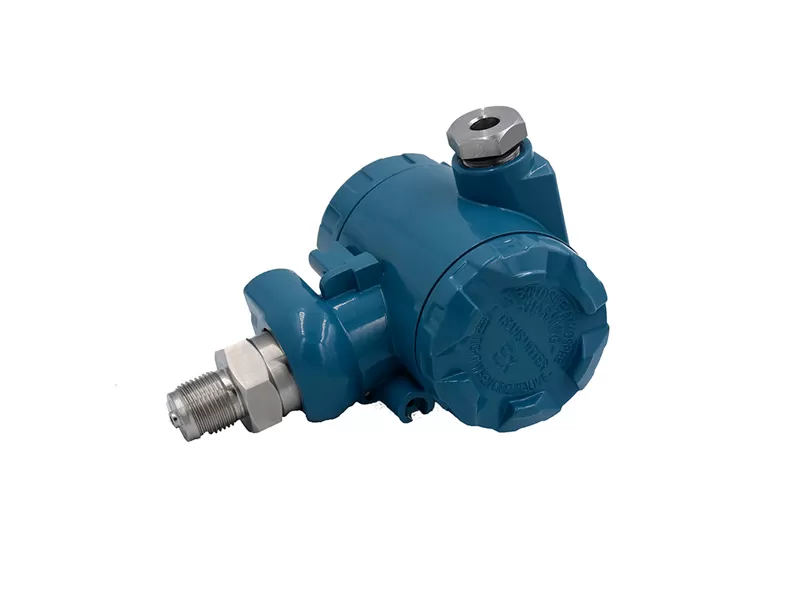

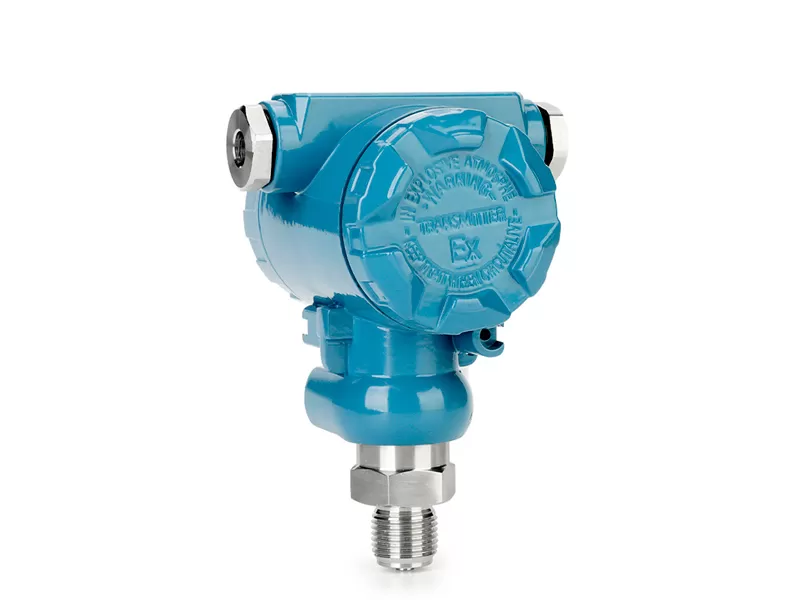

LFT6200 pressure transmitter is an isolated explosion-proof product with high cost performance. Widely used in gas and liquid pressure detection, such as water, oil, mildly corrosive liquid and gas. The product adopts 304 stainless steel pressure head, the pressure core is selected from international famous brands, and the dedicated V/I conversion circuit can easily calibrate its zero point and full scale.
This product has the advantages of small drift, stable performance, reliable quality and reasonable structure.
Anti-pressure shock buffer joint.
Various pressure ranges and signal outputs.
ExdllcT6Gb Explosion-proof grade.

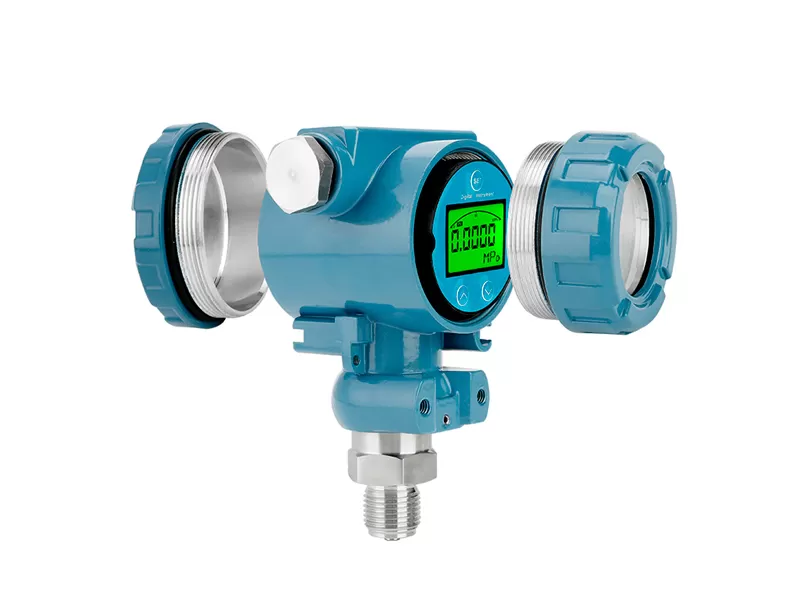

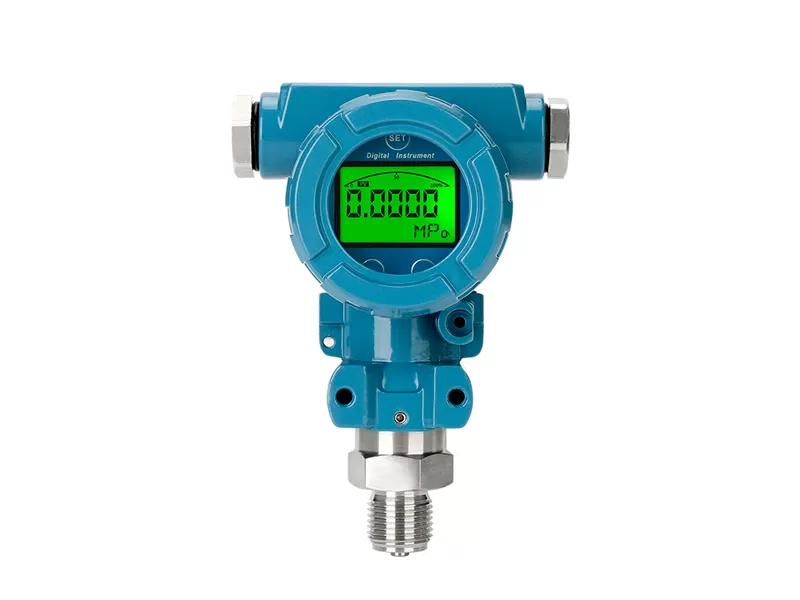

Configurable live display.
Various pressure connections.
Pressure Range | -100kPa....0~10kPa…60MPa | |||
Temperature Range | 1.5 times of rated pressure | |||
Accuracy① | ±1.0%F.S(-100kPa…0~1kPa...2kPa…60MPa) | |||
±0.5%F.S(-100kPa…0~3kPa...19kPa…60MPa) | ||||
±0.25%F.S(-100kPa...0~20kPa…60MPa) | ||||
Stability | <0.5%F.Slyear | |||
Working Temp | -20~80℃ | |||
Storage Temp | -40~100℃ | |||
Measured Medium | Gas or Liquid Compatible with 304 or 316L Stainless Steel, Fluorine rubber or Nitrile rubber | |||
Electrical Performance | 2-wired | 3-wired | 4-wired | |
Output Signal | 4~20mA | 4~20mA+HART | 0~10VDC | RS-485 |
Power Supply | 10~30VDC | 14~36VDC | 10~36VDC | |
Insulation | >100MΩ@500VDC | |||
Electric Strengh | 500VAC@60 second | |||
Electrical Connection | Waterproof cable outlet | |||
Enclosure Protection | IP67 | |||
Pressure Form | Gauge Pressure G/Absolute Pressure A | |||

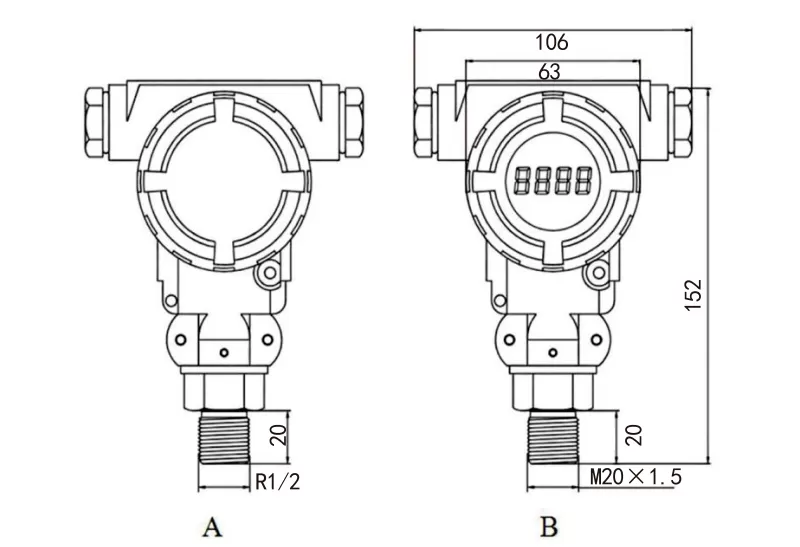

Pressure Connection | M20*1.5, G1/2 | |||
① Measured at 25℃ with combined accuracy of linearity, repeatability and hysteresis.
