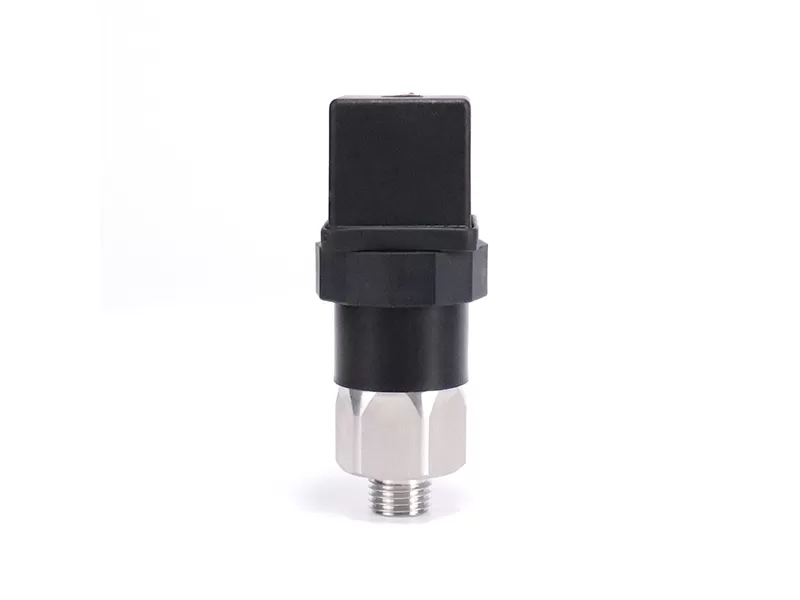

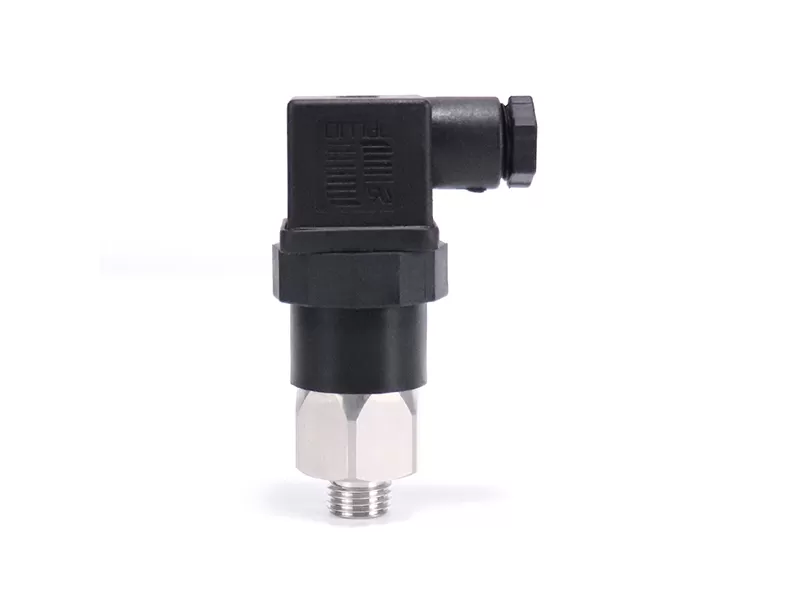

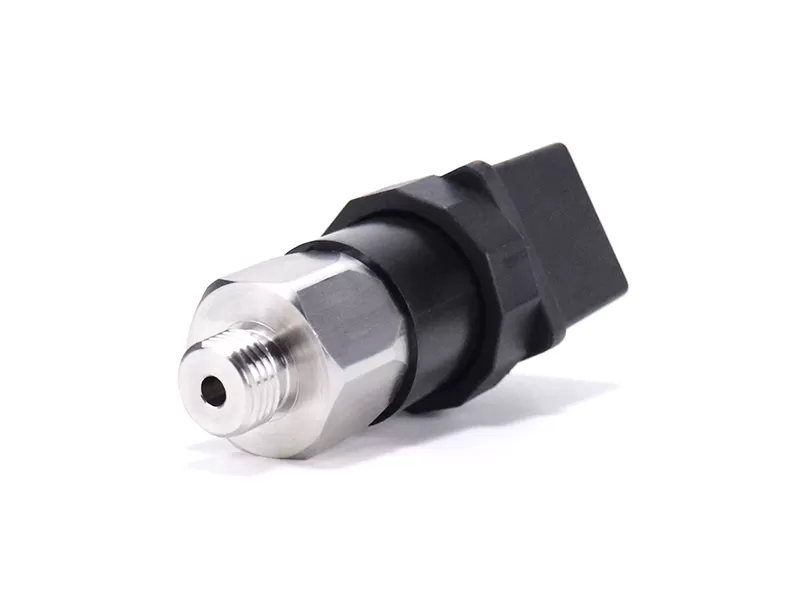

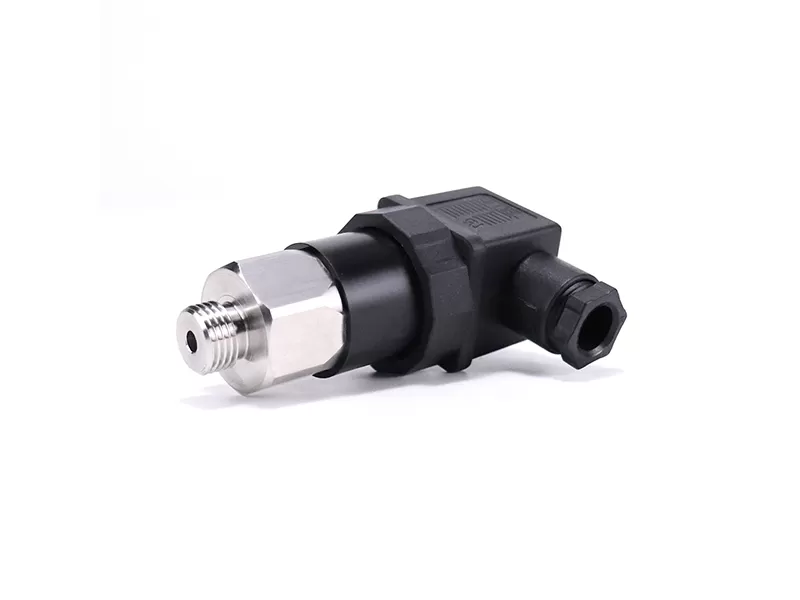

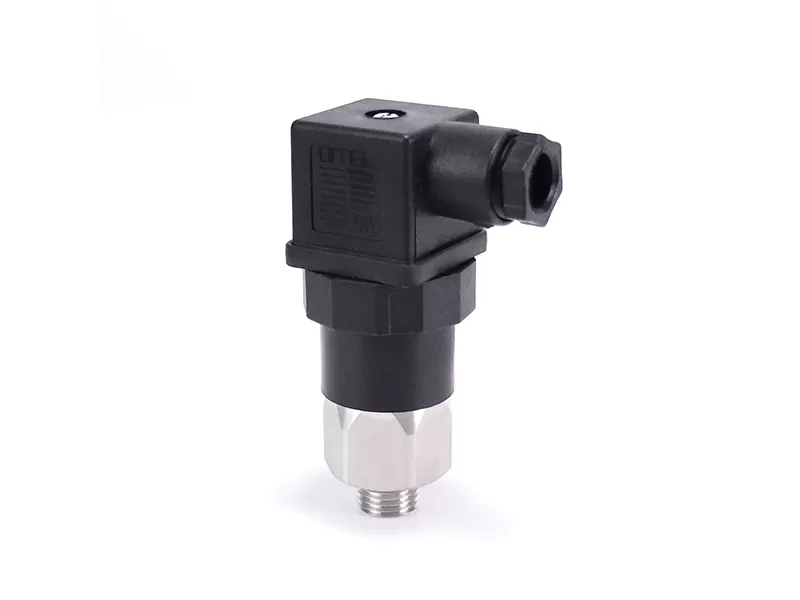

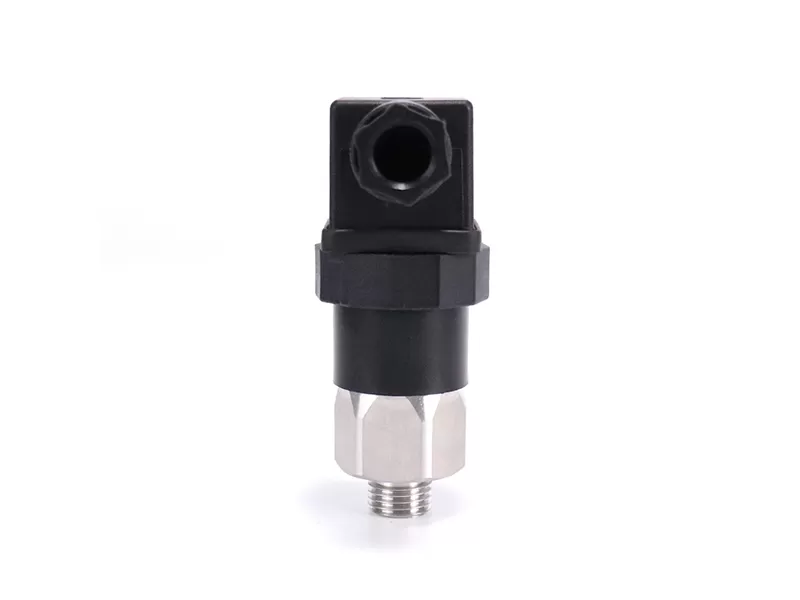

In the industrial and automotive felds, a certain pressure value is usually set for the equipment. When the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment. Which triggers a warning(such as a leak of equipment, an alarm, etc.). This is the plunger typel pressure switch. The max pressure can not be exceeded to 600bar, SPDT.
General | Value |
Body Material | Zinc plated steel/Stainless steel/Brass |
Contact | Silver cadmium alloy |
Max Voltage | 250VAC/42VDC |
Max Current | 4A |
Working Temperature Range | -40°C--+100℃(Different Diaphragm) |
Mechanic Life Endurance | 105 times |
Electric Life Endurance | 104 times |
Pollution Situation | Normal |
Repeated Accuracy | 2% |
IP Grade | Wire leads Ip00, Hirschmann IP65, Resined wires IP67 |
Applicable Rule | EN 60730-1 |
Max Working Pressure | 450bar |
Burst Pressure | 600bar |
Weight | ~140g |
Conversion: 1kgf/cm=14.2psi 1bar=14.5psi
