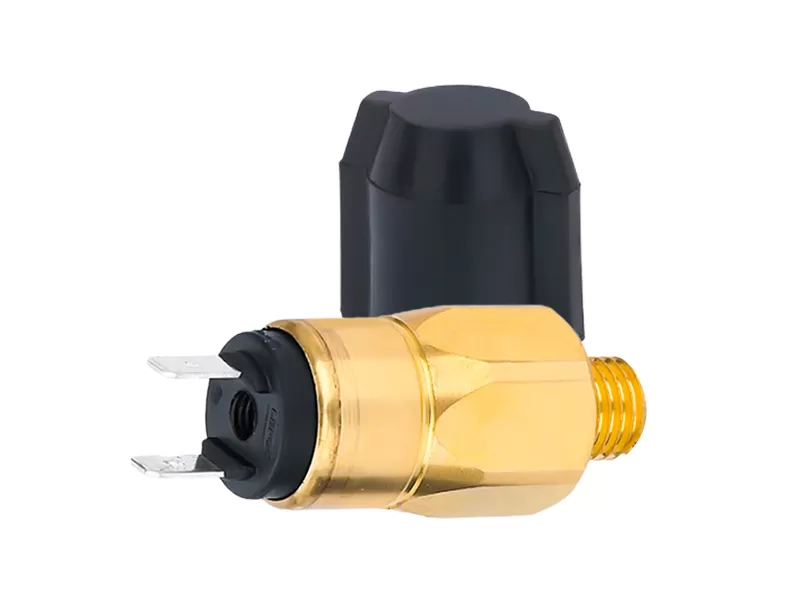

In the industrial and automotive fields, a certain pressure value is usually set for the equipment. When the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment. Which triggers a warning (such as a leak of equipment, an alarm, etc.). This is Diapgragm type pressure switch. The max pressure can not be exceeded to 300bar, SPDT.
General | Value |
Body Material | Zinc plated steel/Stainless steel/Brass |
Contact | Silver cadmium alloy/gold plated is available |
Max Voltage | 42V/MAX100VAC |
Max Current | 4A |
Working Temperature Range | -40°C-+100℃ (Different Diaphragm) |
Mechanic Life Endurance | 106 times |
Electric Life Endurance | 105 times |
Pollution Situation | Normal |
Protection level | IP00(Terminal 1-2), IP67(Terminal 3-8), IP65(Terminal 9) |
Upper cover | P54(Termial 1-2) |
Side cover | P55(Termial 1-2) |
Applicable Rule | EN 60730-1 |
MaxWorking Pressure | Zinc plated steel/Stainless steel: 160bar Brass: 40bar |
Burst Pressure | Zinc plated steel/Stainless steel: 300bar Brass: 80bar |
Weight | ~85gr |
Conversion: 1kgf/cm=14.2psi 1bar=14.5psi
