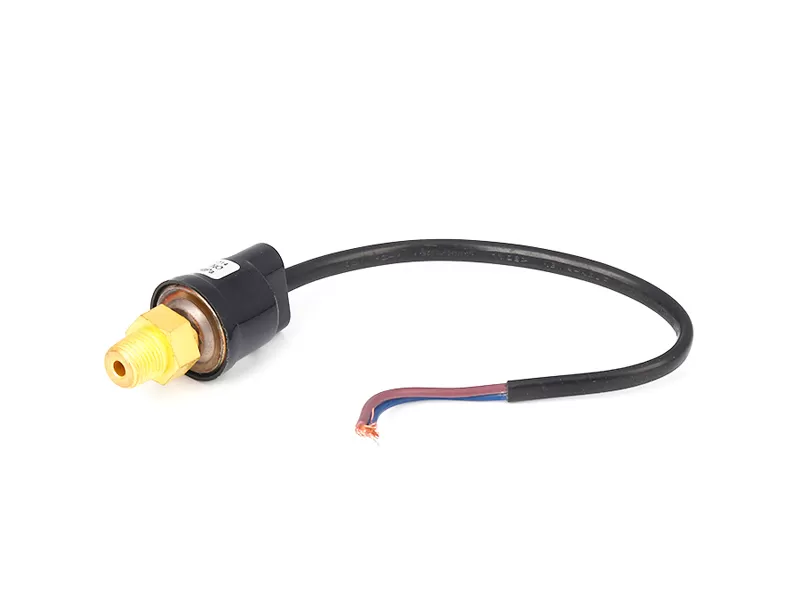

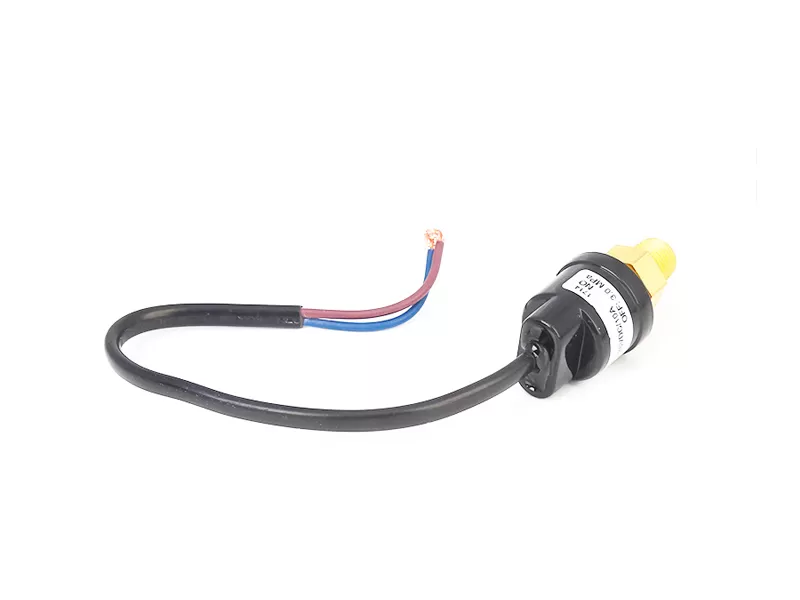

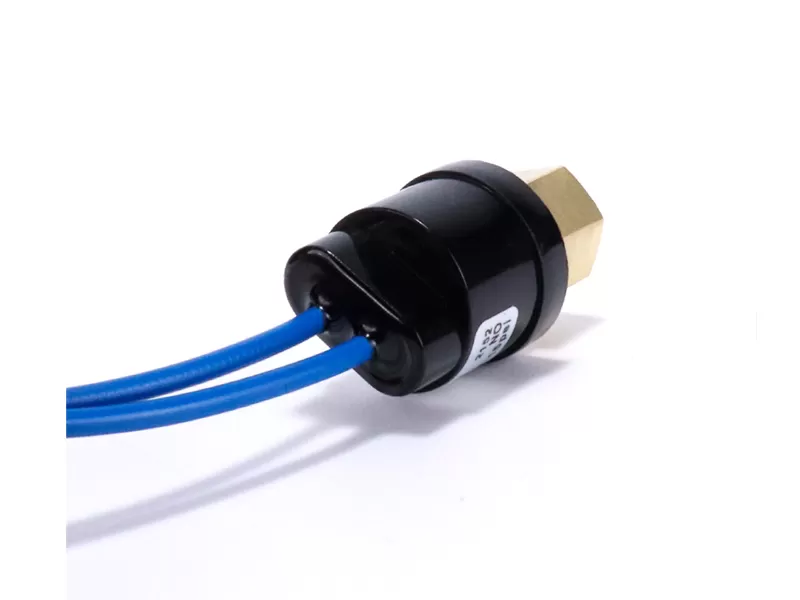

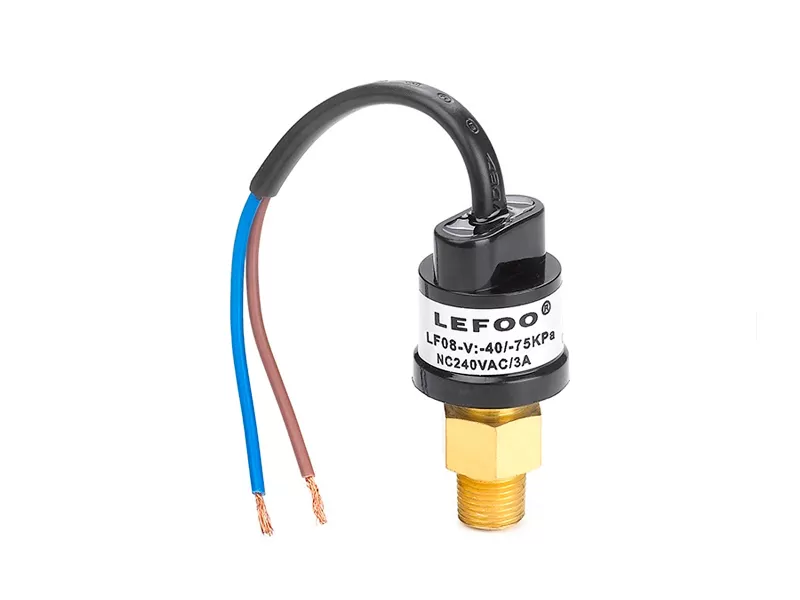

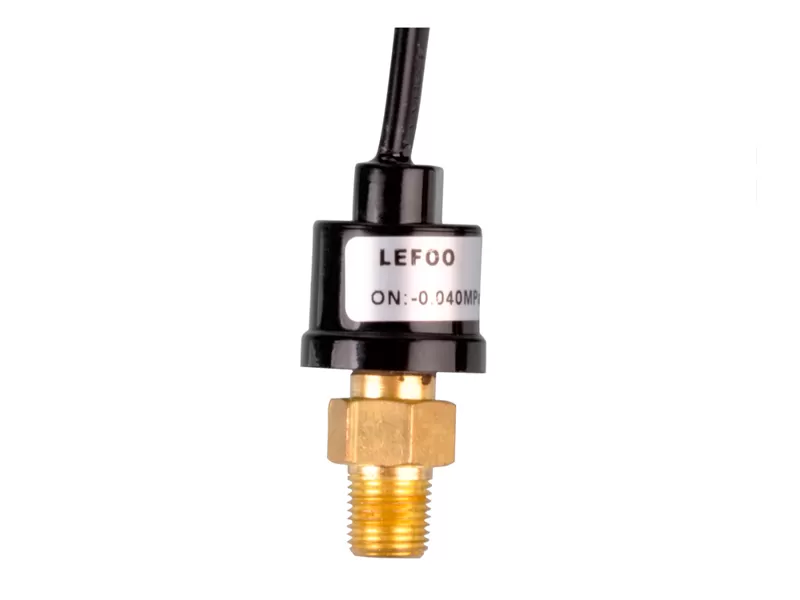

LF08V series pressure switch is designed automatic reset switch, used in vacuum environment, vacuum system applicable to electric car.
| MODEL | LF08V | |||
Pressure setting range (gauge pressure) | -0.09Mpa to 0Mpa | |||
Operating pressure /Tolerance/ Withstand pressure (gauge pressure) | Operating pressure value | Tolerance | Withstand maximum pressure | |
-0.09≤<0Mpa | ±0.02Mpa | 1.0Mpa | ||
Pressure differential ≥ 0.025Mpa | ||||
Burst pressure (gauge pressure) | 34.5Mpa × 1min, no damage, leakage | |||
Operating temperature | Ambient temperature | Medium temperature | ||
-20~65℃ | -20~65℃ | |||
Electricalparameter | 24~50VAC/0.02~3A; 8~36VDC/0.02~3A | |||
Medium | Air, water, oil, Iubricants, refrigerants and other similar hydrocarbons | |||
Service life | Mechanical life: 100,000 | Electrical life: 30,000 | ||
IP level | IP67 | |||
Conversion: 1bar=14.5psi 1Mpa=10bar
