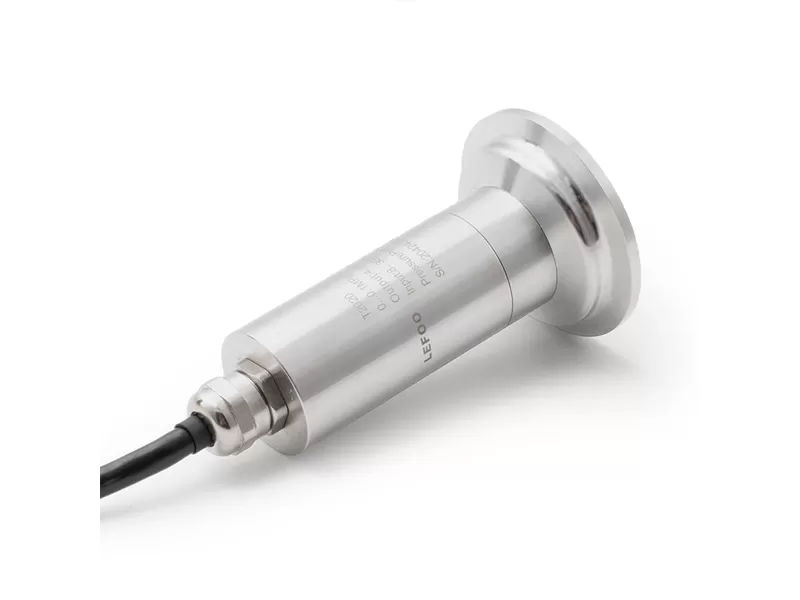

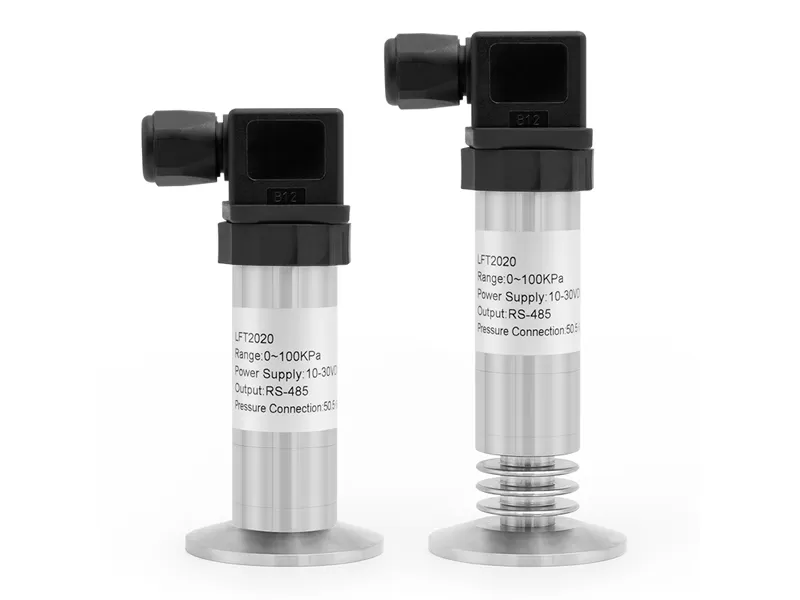

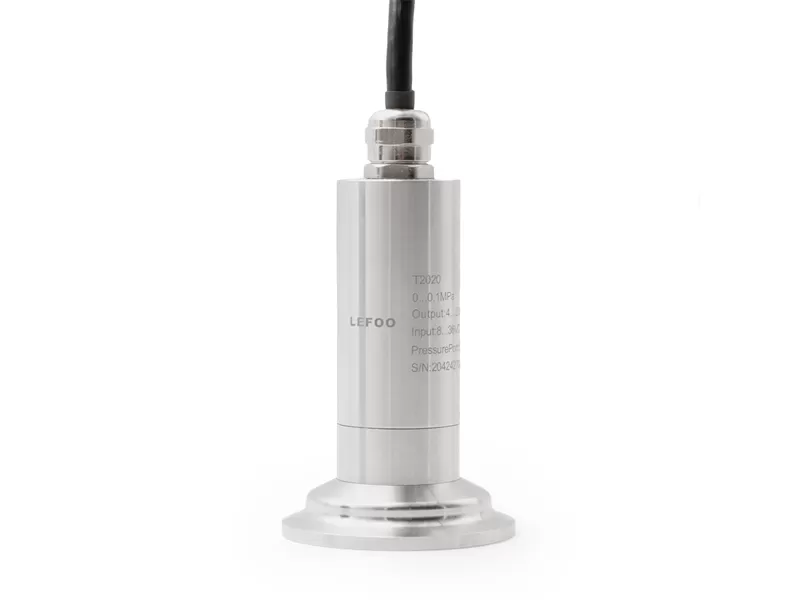

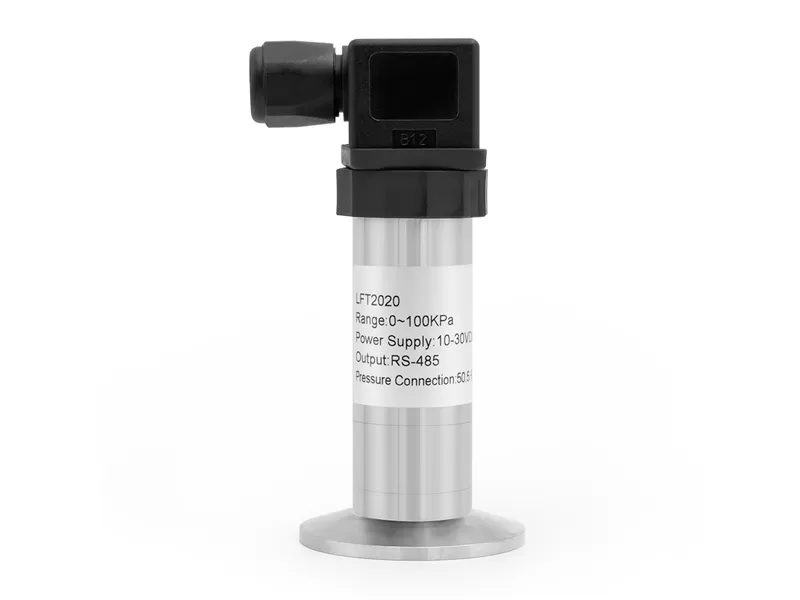

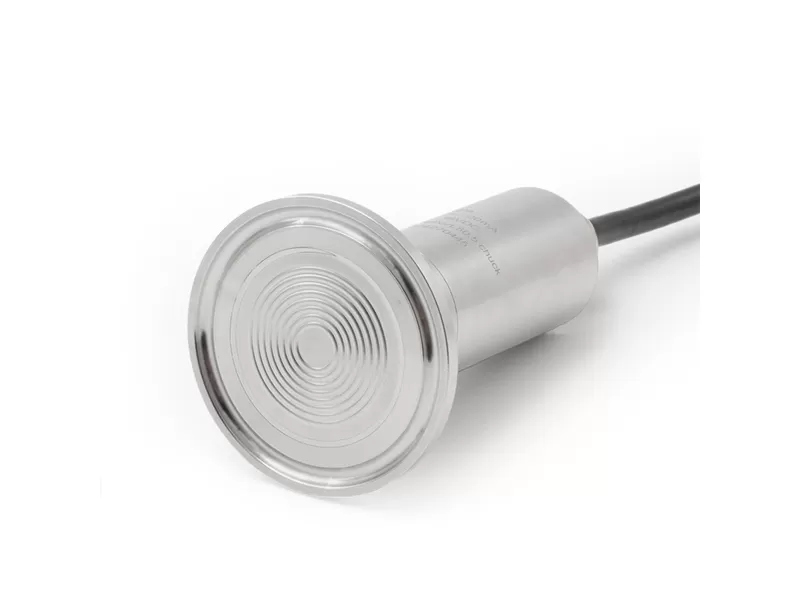

LFT2020 Sanitary Flat Membrane Pressure Transmitter adopts high-performance oil-illed diffusion silicon core. The internal special-purpose integrated circuit converts the millivolt signal of the sensor into standard voltage, current or 485 signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. The process connection of the pressure transmitter is sealed by sterile chuck type diaphragm, which is widely applied in the food, dairy, chemical and pharmaceutical industries.
High temperature model and normal temperature model optional.
Adopt ASIC digital compensation technology.
Excellent anti-corrosion and anti-wear properties.
Strong anti-interference, good long-term stability.
50.5mm chuck connection, easy to install and clean.
The part in contact with the measured object is made of 316L material, which is suitable for medical and sanitation industries.
| Measurement Range | -100kPa...0~10kPa...7MPa | |||
| Overload Pressure | 1.5 times of the rated pressure | |||
| Accuracy① | ±0.5%F.S | |||
| Stability | <0.5%F.S/year | |||
| Working Temp② | -20~85℃ | |||
| Medium Temp③ | -40℃~100℃/-40℃~150℃ | |||
| Measure Medium | Media Compatible with 316L Stainless Steel, Selected Rubber Rings | |||
| Sanitary Flat Membrane Pressure Transmitter | ||||
| Electrical Properties | 2-wired | 3-wired | 3-wired | 4-wired |
| Output Signal | 4~20mA | 0.5~4.5V | 0~10V | RS485 |
| Power Supply | 10~36VDC | 4.75~5.25VDC | 12~36VDC | 10~30VDC |
| Electrical Connection | DIN43650A(Big Hirschmannn), M12 waterproof outlet, M12 aviation connector (four cores), GX12 aviation connector (three/four cores) | |||

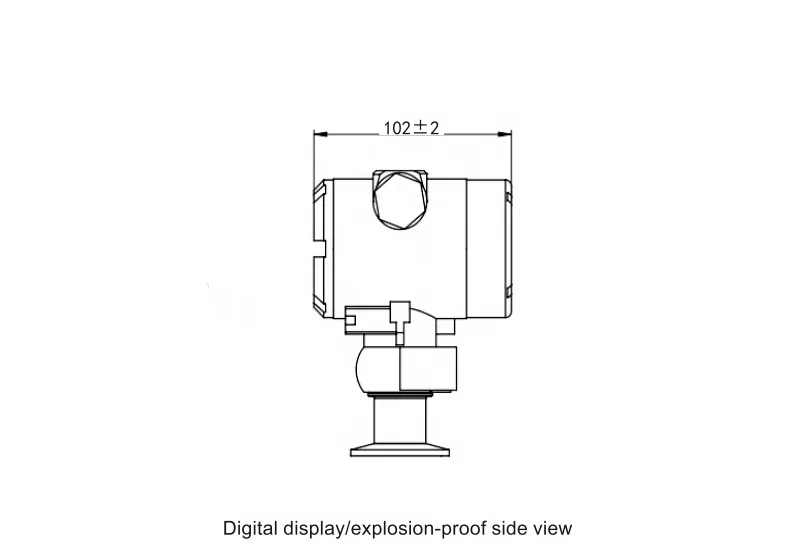

| Explosion-proof Digital Display Sanitary Flat Membrane Pressure Transmitter | ||||
| Electrical Properties | 2-wired | 3-wired | 4-wired | |
| Output Signal | 4~20mA | 0~10V | RS485 | |
| Power Supply | 10~30VDC | 14~36VDC | 10~36VDC | |
| Electrical Connection | Direct cable outlet | |||
| Enclosure Protection | IP65 | |||
| Pressure Connection | 50.5mm chuck connection | |||
| Pressure Form | Gauge Pressure G/Absolute Pressure A | |||
| Certification | EU electrical safety standard CE | |||
① Measured at 25℃, including the comprehensive accuracy of linearity, repeatability and hysteresis.
② Without heat sink is -40~100℃, with heat sink is -40~150℃.
③ The oil-illed silicon core is 316L stainless steel.
