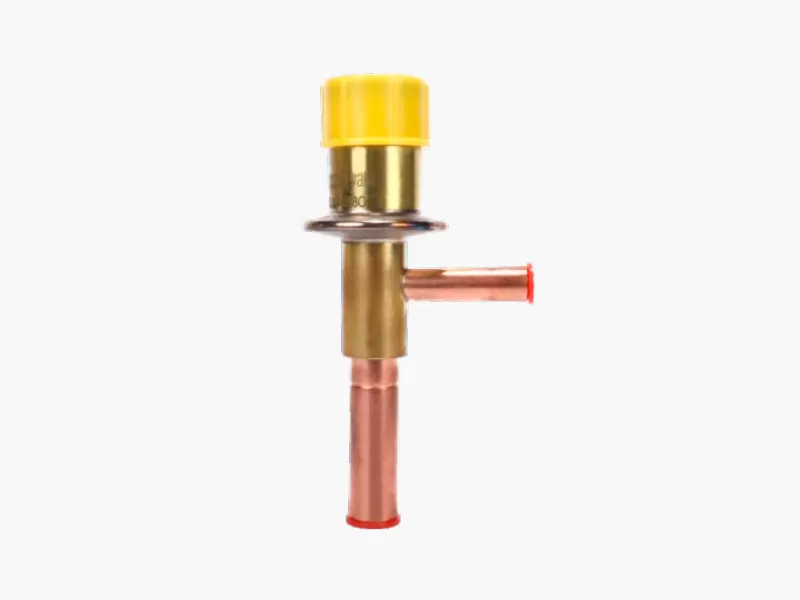

LFDBV discharge-bypass valve is a kind of load adjust component for the refrigerating system with a nonadjustable compressor. LFDBV discharge-bypass valve can be used as automatic expansion valve under fixed pressure tomaintain the fixed evaporation pressure (temperature). LFDBV is capable of maintaining the minimum evaporating pressure. LFDBV discharge-bypass valve can automatically change the opening to get the constant outlet pressure on regardless of the change of the inlet pressure(within a certain range). ODF connecting. Maximum working pressure: 28bar.

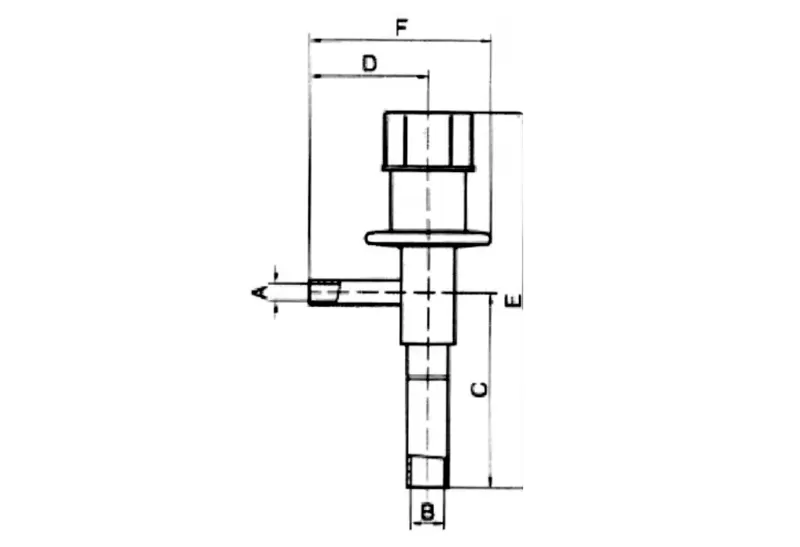

Dimensions and Weights
Model | Valve Size | Connections | Dimensions (mm) | ||||
Inlet (A) | Outlet (B) | C | D | E | F | ||
LFDBV | 0.5 1.0 2.0 3.0 4.0 | 6mm ODF | 10mm ODF | 58 | 36 | 106 | 54 |
1/4" ODF | 3/8" ODF | ||||||
5.0 6.0 | 10mm ODF | 16mm ODF | 64 | 47 | 122 | 69 | |
3/8" ODF | 5/8" ODF | ||||||
Capacities
Type | Valve size | Orifice size | Nominal capacity (kw) | |||
R134a | R22 | R404A | R507 | |||
LFDBV | 0.5 | 0.7 | 0.98 | 1.4 | 1.0 | 1.0 |
1.0 | 1.0 | 1.4 | 2.1 | 1.5 | 1.5 | |
2.0 | 2.0 | 2.9 | 4.2 | 3.0 | 3.0 | |
3.0 | 3.0 | 6.7 | 9.8 | 6.8 | 6.9 | |
4.0 | 3.5 | 8.9 | 12.8 | 9.0 | 9.0 | |
5 | 4.75 | 16.3 | 23.6 | 16.5 | 16.6 | |
6 | 5 | 20.4 | 30.6 | 21.4 | 21.6 | |
