LF56 series pressure switches are mainly used to control pressure of boiler or water tower regulating system. When the system pressure exceed the setting point, the switch wil cut off the circuit for protection. With SPDT contact arrangement, LF56 switch can detect the pressure change and shift the internal status accordingly to control the on/off of external circuits, which is available for the pressure control, limit and alarm of non-hazardous liquid, gas and steam.
MODEL | LF56 |

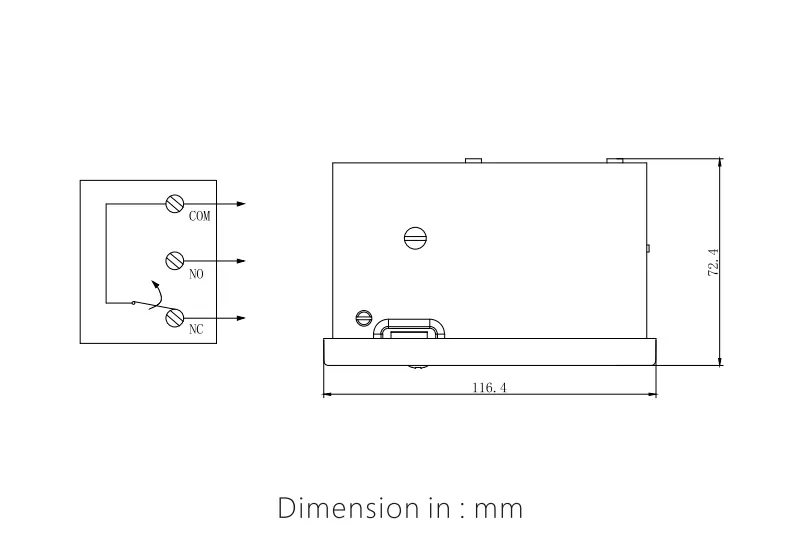

Contact Arrangement | SPDT |
Working Media | Standard model for oil, water, air, steam, liquid and other non-corrosive media, chlorine-containing liquids are not available |
Ambient Temperature | -29℃~66℃ |
Media Temp | -40℃~180℃ non-frozen condition |
Pressure Diaphragm | stainless steel |
Thermal Material | brass |
Connection | NPT1/4, G1/4, R1/4 |
Electrical Rating | FLA 5.1A/240VAC, 8.0A/120VAC; LRA: 30.6A/240VAC, 48.0A/120VAC |
Model Number | Operating Ranges | Subtractive Differential | Maximum Diaphragm pressure | |||
kPa | psi | kPa | psi | kPa | psi | |
LF5615 | 15-100 | 2-15 | 15-40 | 2-6 | 170 | 25 |
LF5650 | 35-350 | 5-50 | 40-100 | 6-14 | 590 | 85 |
LF56150 | 70-1035 | 10-150 | 70-150 | 10-22 | 1550 | 225 |
LF56300 | 140-2070 | 20-300 | 140-345 | 20-50 | 2410 | 350 |
