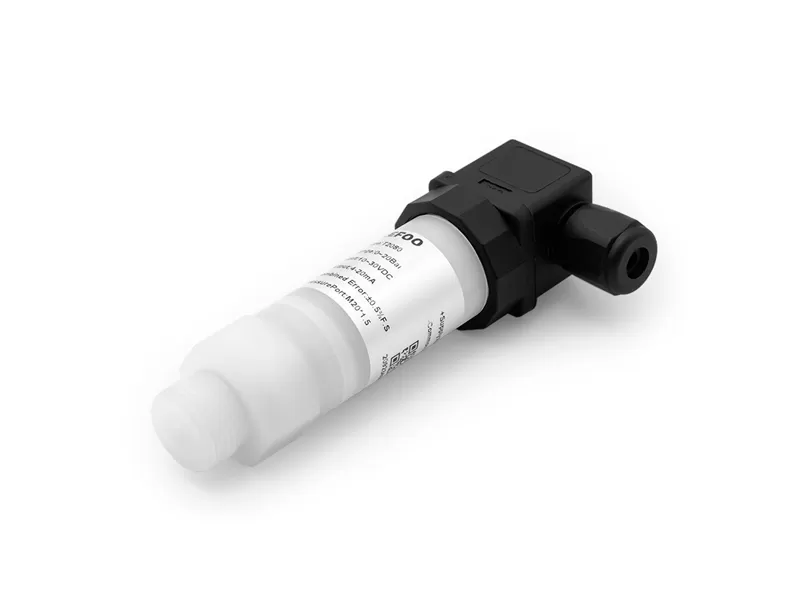

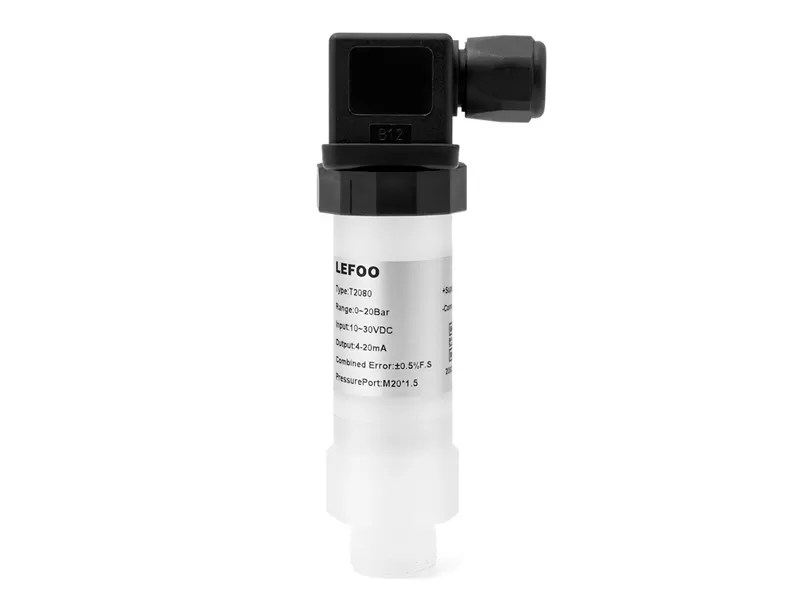

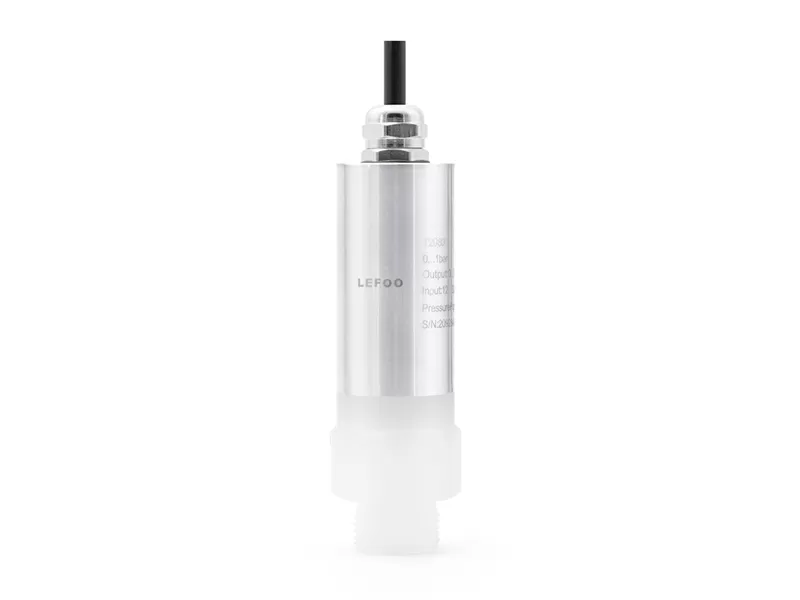

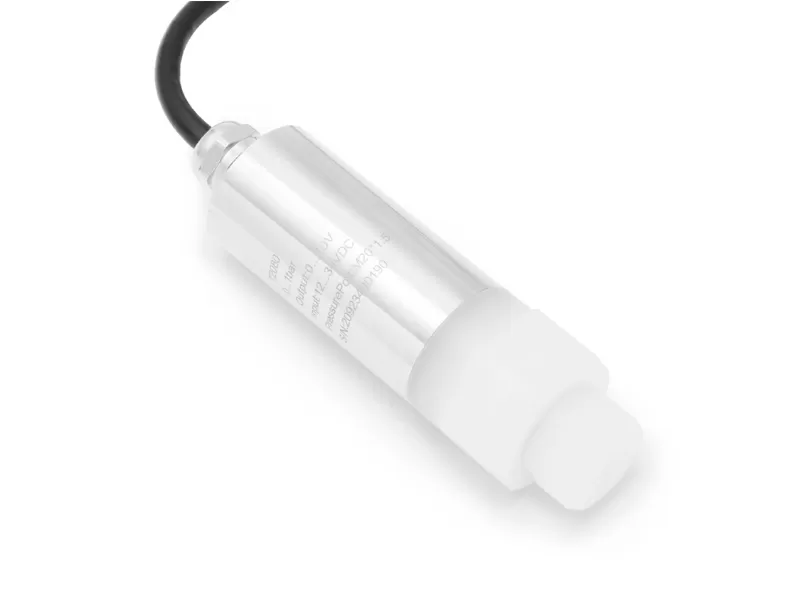

LFT2080 Anti-corrosion Pressure Transmitter adopts a ceramic piezoresistive core with high overload capacity, which has excellent anti-corrosion and anti-wear properties. It adopts AS IC technology and is mainly used for water disinfection, chlorine, chemical industry, battery equipment and other media where the medium is strong acid, strong alkali or other highly corrosive industries, as well as pressure measurement in food hygiene, medical and other industries.
Resistant to strong acids and alkalis.
Small size, high precision.
High sensitivity and stable performance.
Strong anti-interference ability and good long-term stability.
Using ASIC digital compensation technology.
Pressure Range | -100kPa~100kPa...2MPa | |||
Overload Pressure | 1.5times of the rated pressure | |||
Destroying pressure | 2 times the rated pressure | |||
Accuracy① | ±0.5%F.S, ±1%F.S | |||
Stability | <0.5%F.S/year | |||
Working Temp | -20～80℃ | |||
Storage temperature | -20～80℃ | |||
Measured medium | Gas or liquid compatible with 1Cr18Ni9Ti, PVDF, fluoroelastomer or perfluoroether rubber | |||
Anti-corrosion pressure transmitter | ||||
Electrical Properties | 2 wired | 3 wired | ||
Output Signal | 4～20mA | 0.5～4.5V | 0～5V | 0～10V |
Power Supply | 8～36VDC | 4.75～5.25VDC | 8～36VDC | 12～36VDC |
Electrical Connection | DIN43650A(Big Hirschmann), M12 waterproof Cable outlet | |||

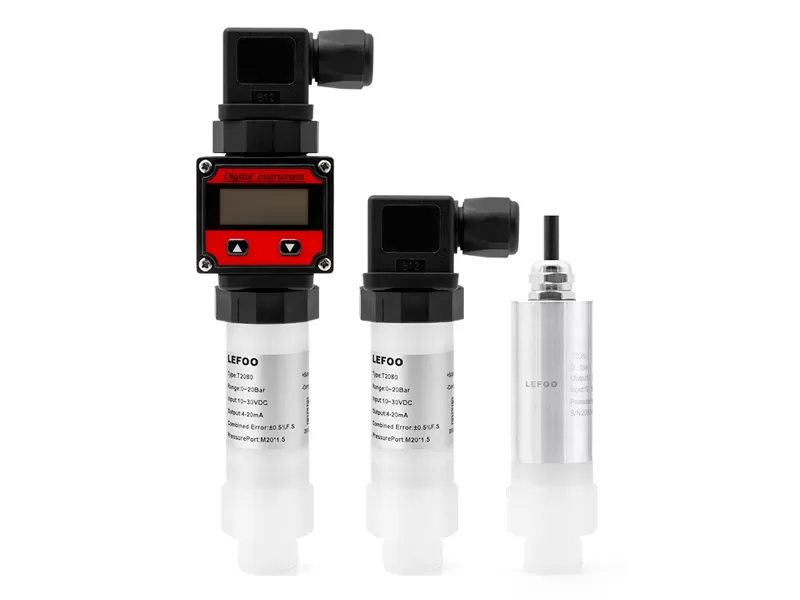

Display anti-corrosion pressure transmitter | ||||
Electrical Properties | 2 wired | 3 wired | ||
Output Signal | 4～20mA | 0～10V | ||
Power Supply | 12～30VDC | 12～30VDC | ||
Electrical Connection | DIN43650A(Big Hirschmann) | |||
Enclosure Protection | IP65 | |||
Pressure Connection | G1/2, M20*1.5 | |||
Pressure Form | Gauge Pressure G | |||
Certification | RoHS | |||
Note①: Measured at 25℃, including comprehensive accuracy of linearity, repeatability and hysteresis.
