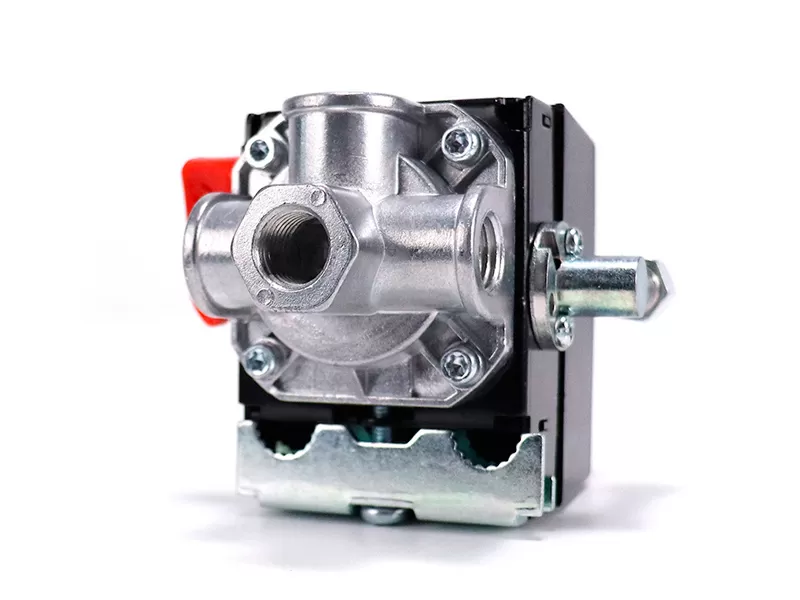

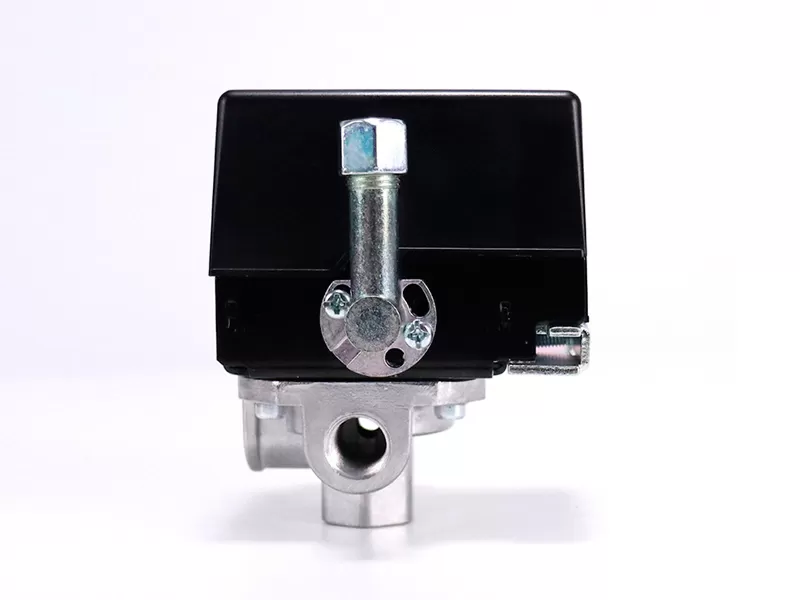

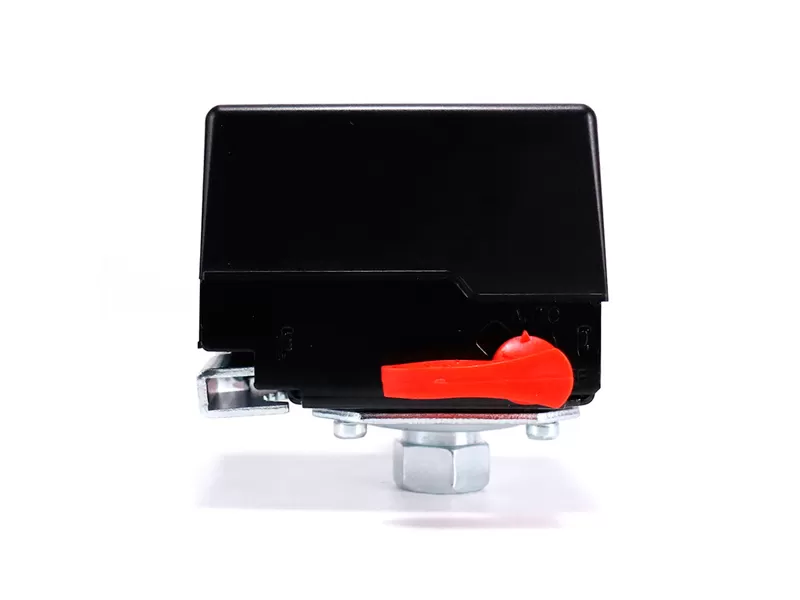

LF15 series pressure switches, this product is used for adjusting the pressure which in the compressor tank to operate between two preset pressure values. The pressure switch with an unloading valve prevents the air compressor fromover loading and the handle is supposed to manually power off the compressor. The four-way base connection makes the installation of additional parts more convenient.
Model | LF15 |
Media | Air, non-flammable or non-hazardous non corrosive gases |
Pressure adjusting range | 0.3-1.2Mpa |
Differential pressure range | 0.15-0.45Mpa |
Factory settings | according to user's requirements |
Pressure setting point tolerance | ≤5%(Operating pressure value) |
Max.working pressure | 1.2Mpa |
Rated voltage, current, frequency | 120VAC/240VAC, 26A/20A, 50HZ/60HZ |
Contact mode | NC |
Connector Type | Female-1-Port, Male-1-Port, F/M-2-Port, Female-4-Port |
Interface thread | NPT1/4, R1/4, G1/4(could be customized) |
Unloading valve | Without/with |
Direction of unloading valve | As required |
Liner diameter of unloading valve | φ6.0mm, φ6.4mm, φ6.5mm(could be customized) |
Manual Mode | Without/with |
Working Temperature | -20℃~80℃ |
Voltage resistance | No breakdown in one minute under 2500V |
Way to installation | Vertically/horizontally |
Protection grade | Ip20 |
